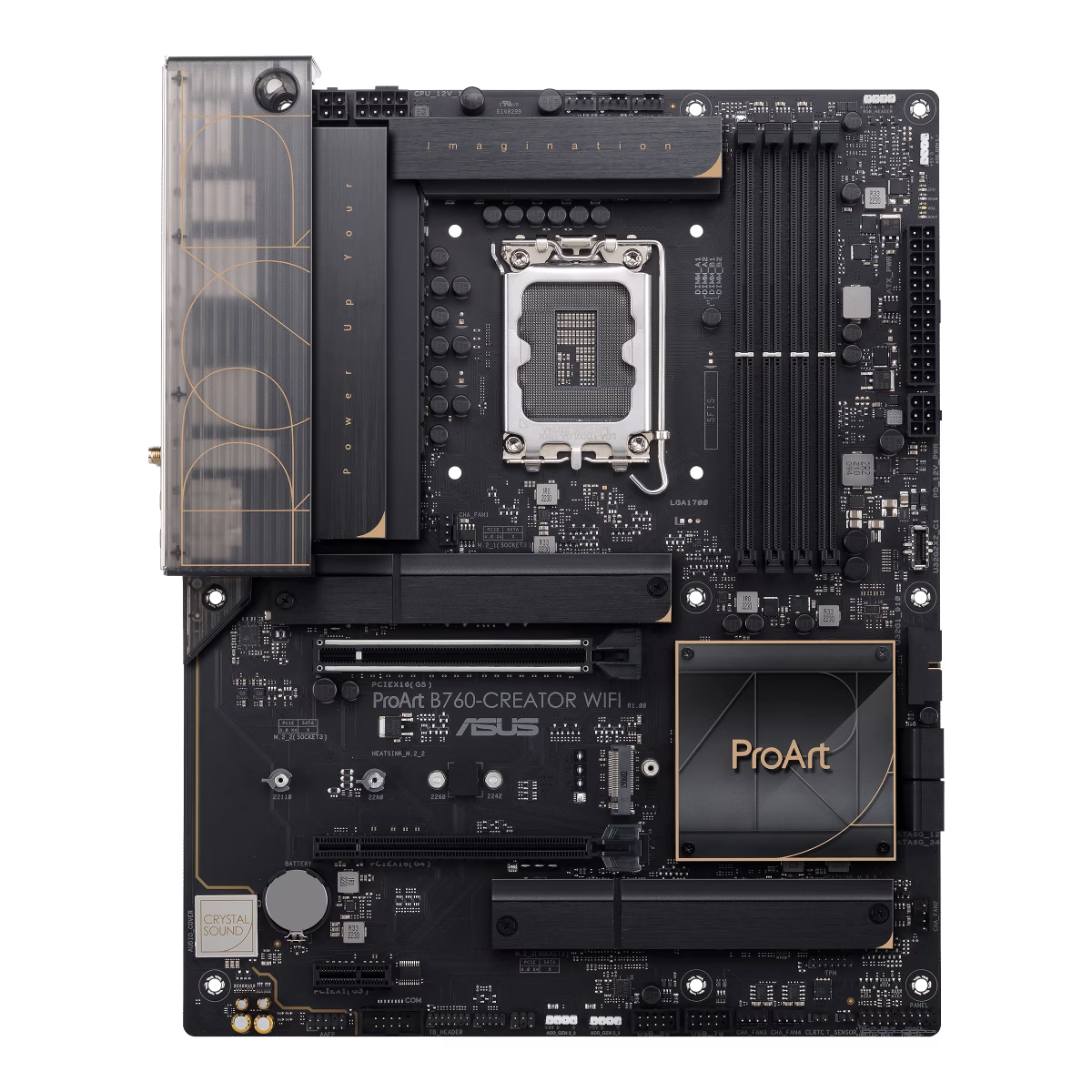

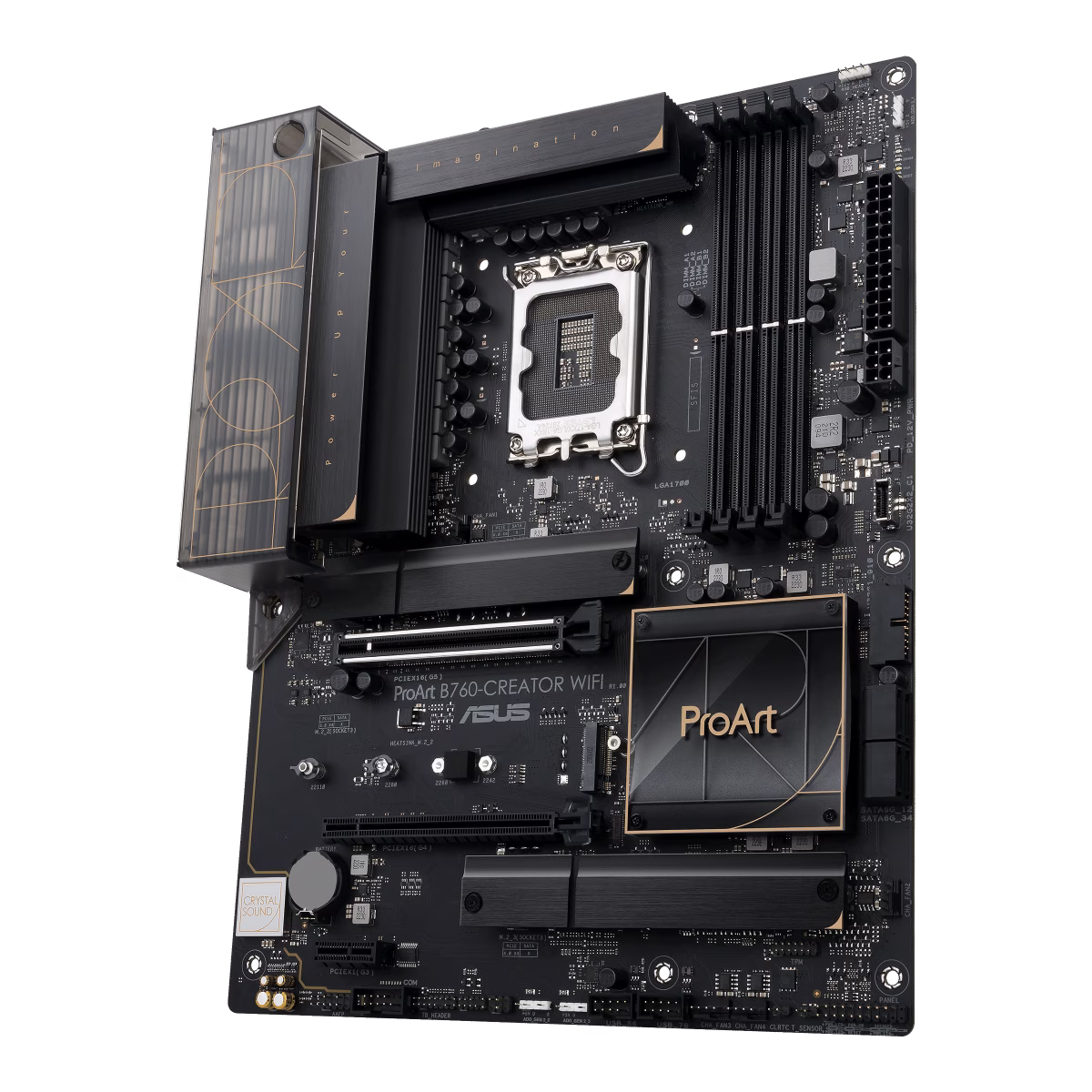

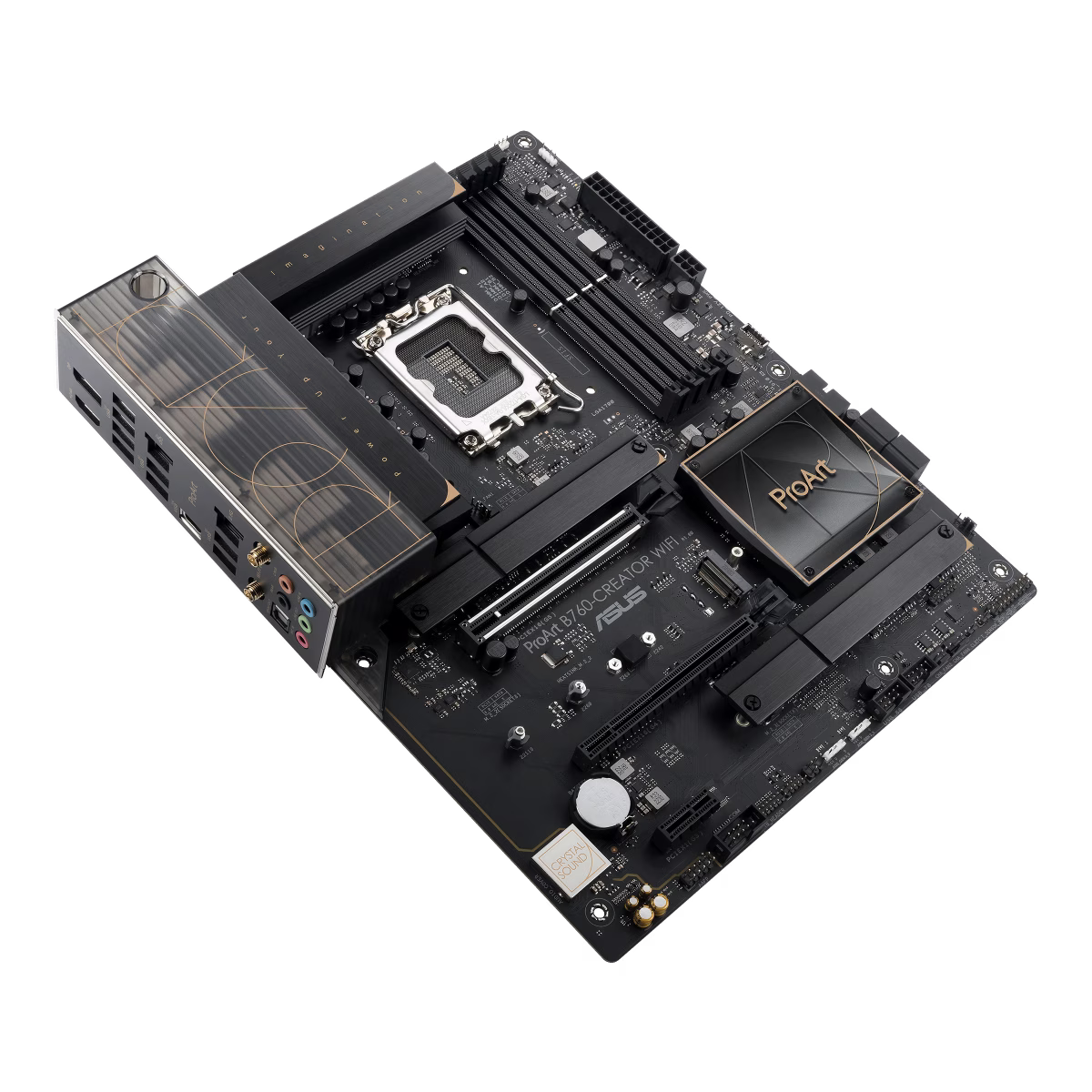

ProArt B760-CREATOR WiFi
ProArt B760-Creator WiFi is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel?? Core??? processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, WiFi 6, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C?? front-panel connector with 60W Quick Charge 4+ and a Thunderbolt??? 4 header.
ASUS ProArt B760-CREATOR WIFI Motherboard Specifications
| Model | ProArt B760-CREATOR WIFI |
| Chipset | Intel?? B760 Chipset |
| CPU Support | Intel?? Socket LGA1700 for Intel?? Core??? 14th, 13th & 12th Gen, Pentium?? Gold, and Celeron?? Processors |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 Non-ECC, Dual Channel, Supports Intel?? XMP |
| Graphics | 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 1.4 (8K@60Hz) |
| Expansion Slots | Intel?? 14th, 13th & 12th Gen Processors: - 1 x PCIe 5.0/4.0/3.0 x16 slot Intel?? B760 Chipset: - 1 x PCIe 4.0 x16 slot (supports x4 mode) - 1 x PCIe 3.0 x1 slot |
| Storage | - 3 x M.2 slots (Key M, 2242/2260/2280/22110) - 4 x SATA 6Gb/s ports - Supports Intel?? Rapid Storage Technology (RAID 0/1/5/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, 1 x Intel?? 1Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth?? v5.2 |
| Rear USB Ports | - 1 x USB 3.2 Gen 2 (10G) Type-C?? - 4 x USB 3.2 Gen 1 (5G) Type-A - 4 x USB 2.0 Type-A |
| Front USB Ports | - 1 x USB 3.2 Gen 2x2 (20G) Type-C?? (supports 60W PD/QC4+) - 1 x USB 3.2 Gen 1 (5G) header (supports 2 ports) - 2 x USB 2.0 headers (supports 4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports up to 24-Bit/192 kHz playback - Premium audio capacitors, Dedicated PCB layers, Audio cover, Unique de-pop circuit |
| Back Panel I/O | - 1 x USB 3.2 Gen 2 Type-C?? - 4 x USB 3.2 Gen 1 Type-A - 4 x USB 2.0 Type-A - 1 x DisplayPort, 1 x HDMI - 1 x Wi-Fi Module - 1 x Realtek 2.5Gb Ethernet port, 1 x Intel?? 1Gb Ethernet port - 5 x Audio jacks, 1 x Optical S/PDIF out |
| Cooling & Fan Headers | - 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers |
| Internal I/O | - 1 x 24-pin Main Power connector - 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector - 1 x 6-pin PD_12V Power connector - 3 x Addressable Gen 2 headers, 1 x AURA RGB header - 1 x Clear CMOS header, 1 x COM Port header - 1 x Front Panel Audio header, 1 x SPI TPM header (14-1 pin) - 1 x 20-5 pin System Panel header, 1 x Thermal Sensor header - 1 x Thunderbolt??? header |
| Special Features | - ASUS 5X PROTECTION III (DIGI+ VRM, Overvoltage Protection, SafeSlot, etc.) - ASUS Q-Design (M.2 Q-Latch, Q-Connector, Q-DIMM, Q-LED, Q-Slot) - ASUS Thermal Solution (Flexible M.2 heatsink, VRM heatsink design) - ASUS EZ DIY (Pre-mounted I/O shield, ProCool) |
| Software & BIOS Features | - Armoury Crate, AURA Creator, AURA Sync, Fan Xpert 4, AI Suite 3 - ProArt Creator Hub, CreationFirst, MyASUS, Norton 360 Deluxe (60 Days Free Trial) - ASUS UEFI BIOS EZ Mode (CrashFree BIOS 3, EZ Flash 3) |

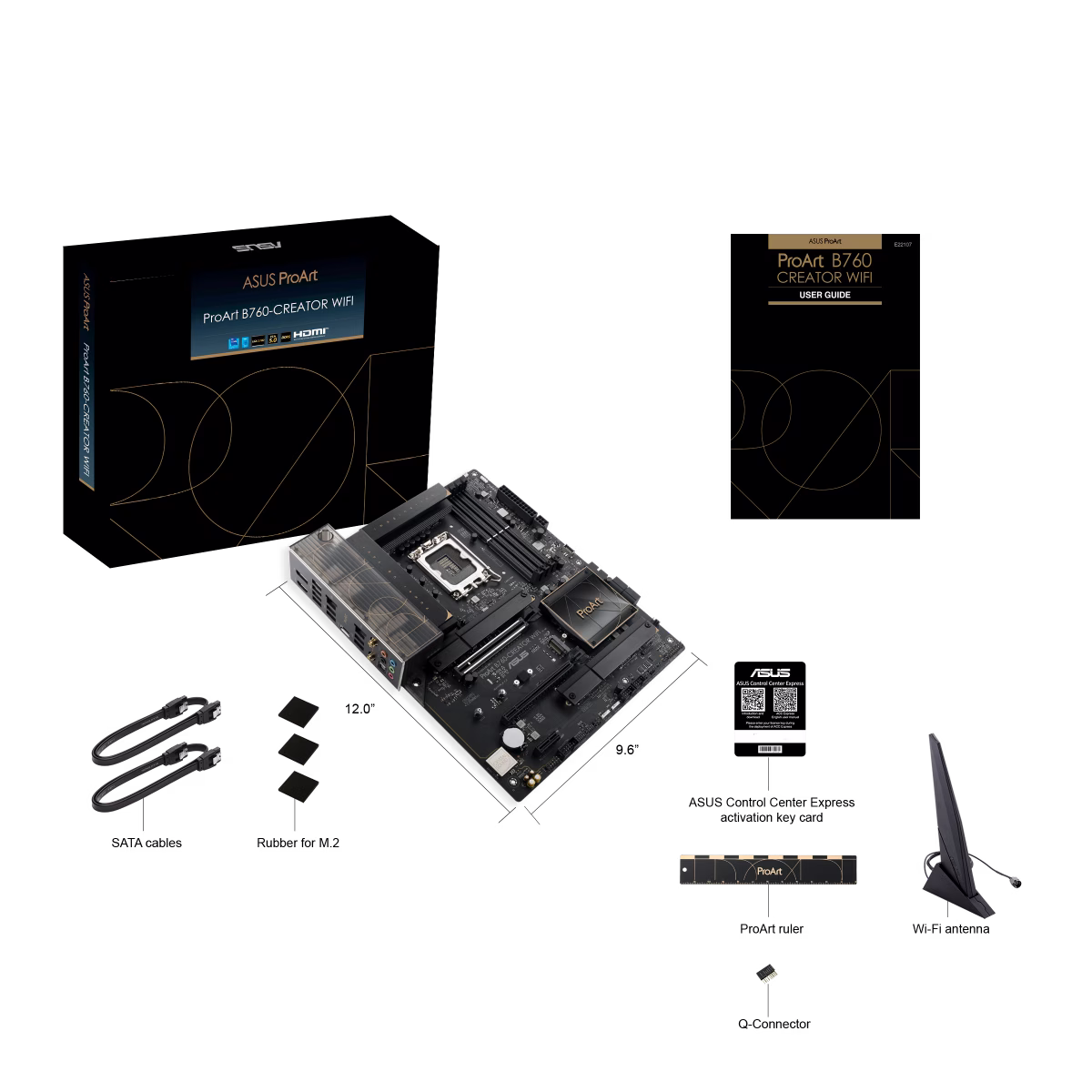

| Accessories | - 2 x SATA 6Gb/s cables - 1 x ASUS Wi-Fi moving antennas - 2 x M.2 Rubber packages, 1 x ProArt ruler - 1 x Q-connector, 1 x User guide, 1 x ACC Express Activation Key Card |
| Operating System | Windows?? 11 64-bit, Windows?? 10 64-bit |
| Form Factor | ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
