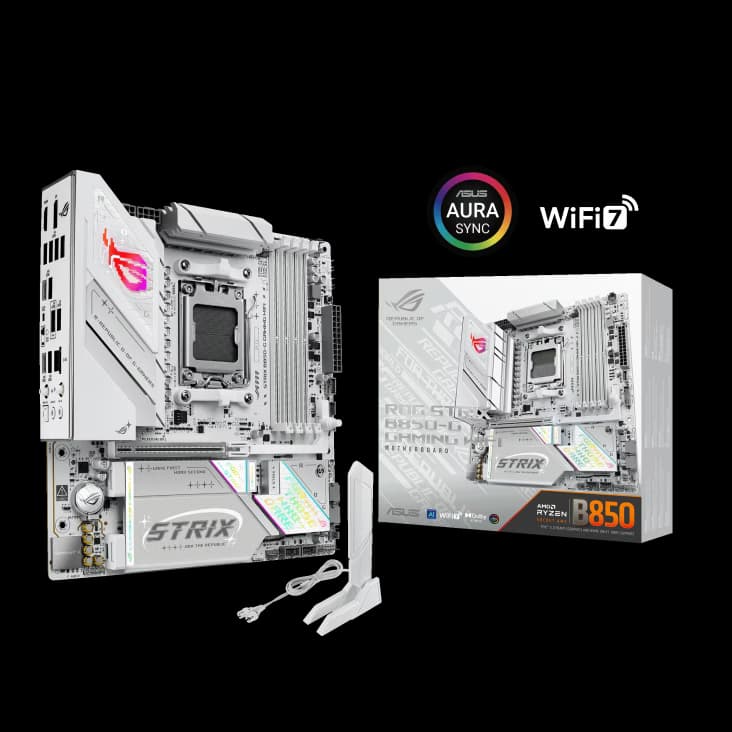

ASUS ROG Strix B850-G Gaming WiFi Micro-ATX Motherboard, AMD AM5, 4x DIMM slots, max. 256GB, DDR5, White PCB, Wi-Fi 7, PCIe 5.0 | 90MB1M30-M0EAY0
1059.00Home/PC Components/Motherboards/Asus PROART Z890-CREATOR WIFI Intel Z890 LGA1851 A...

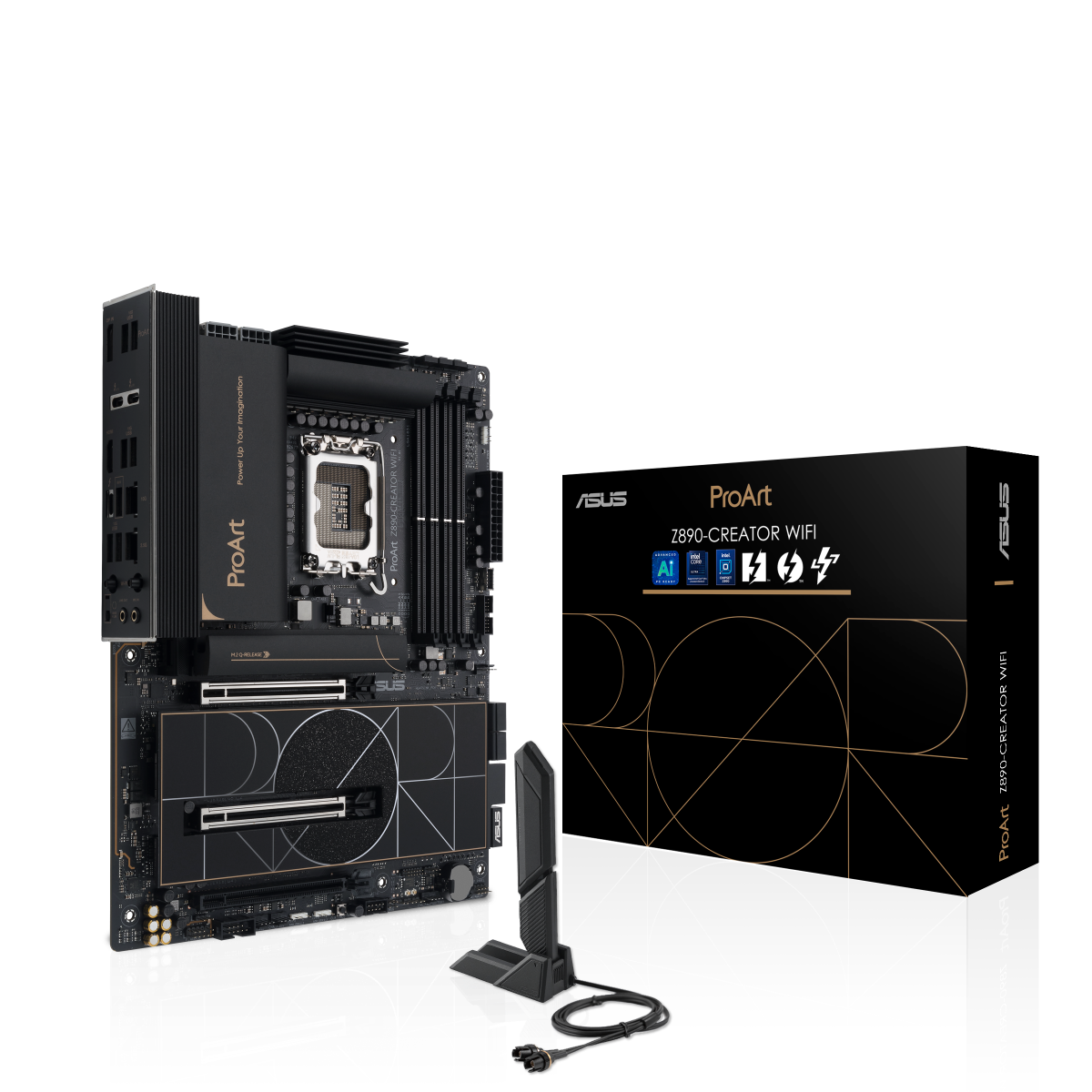

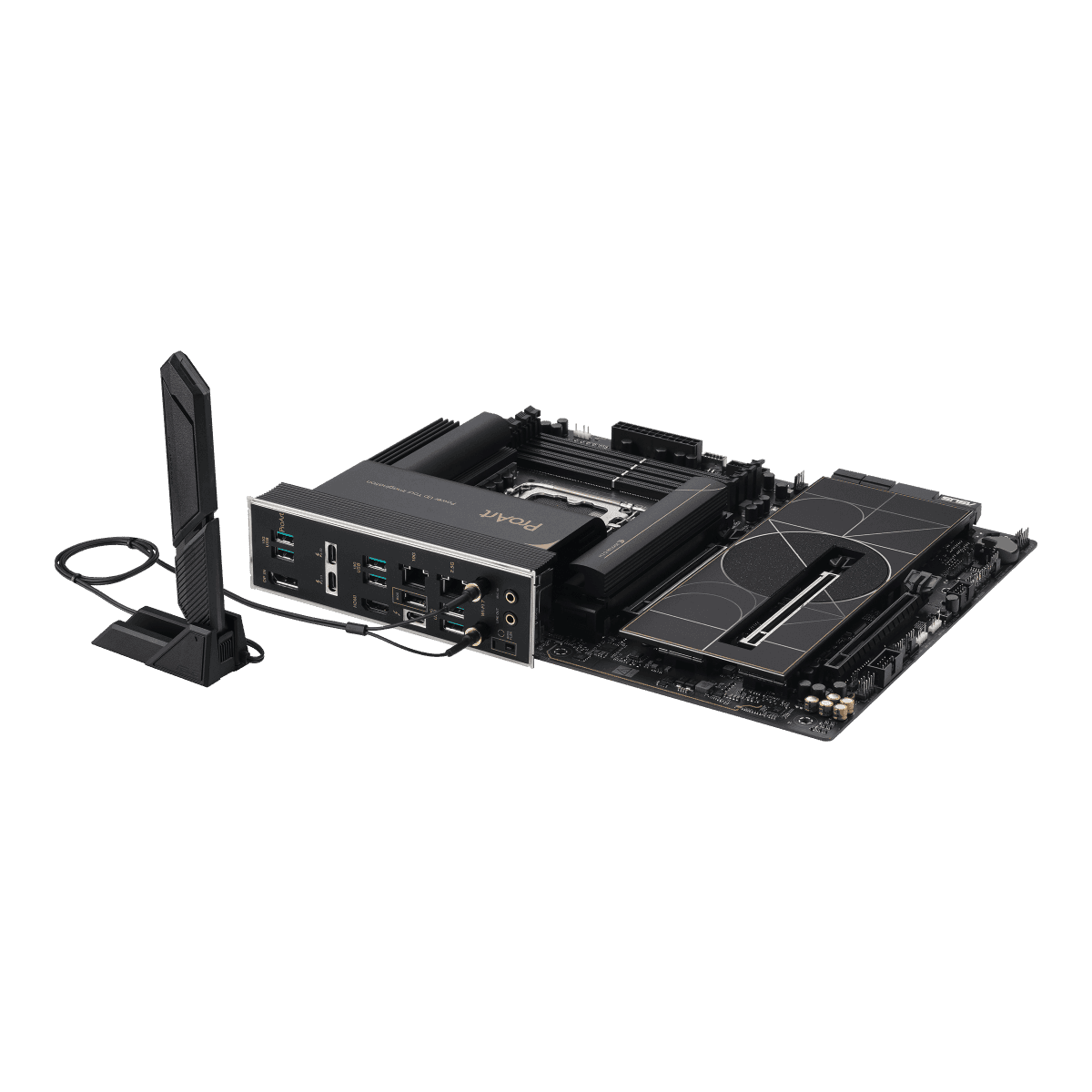

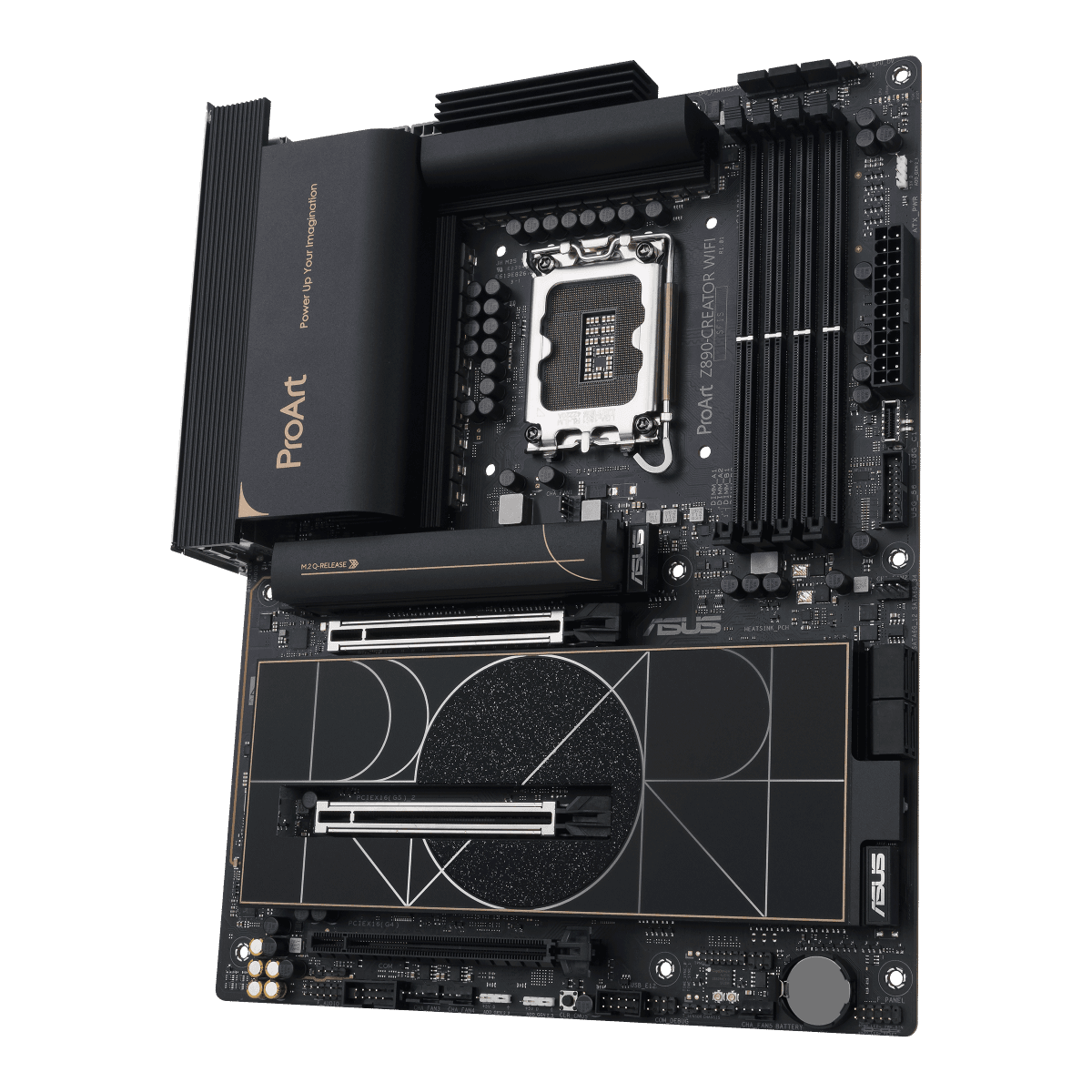

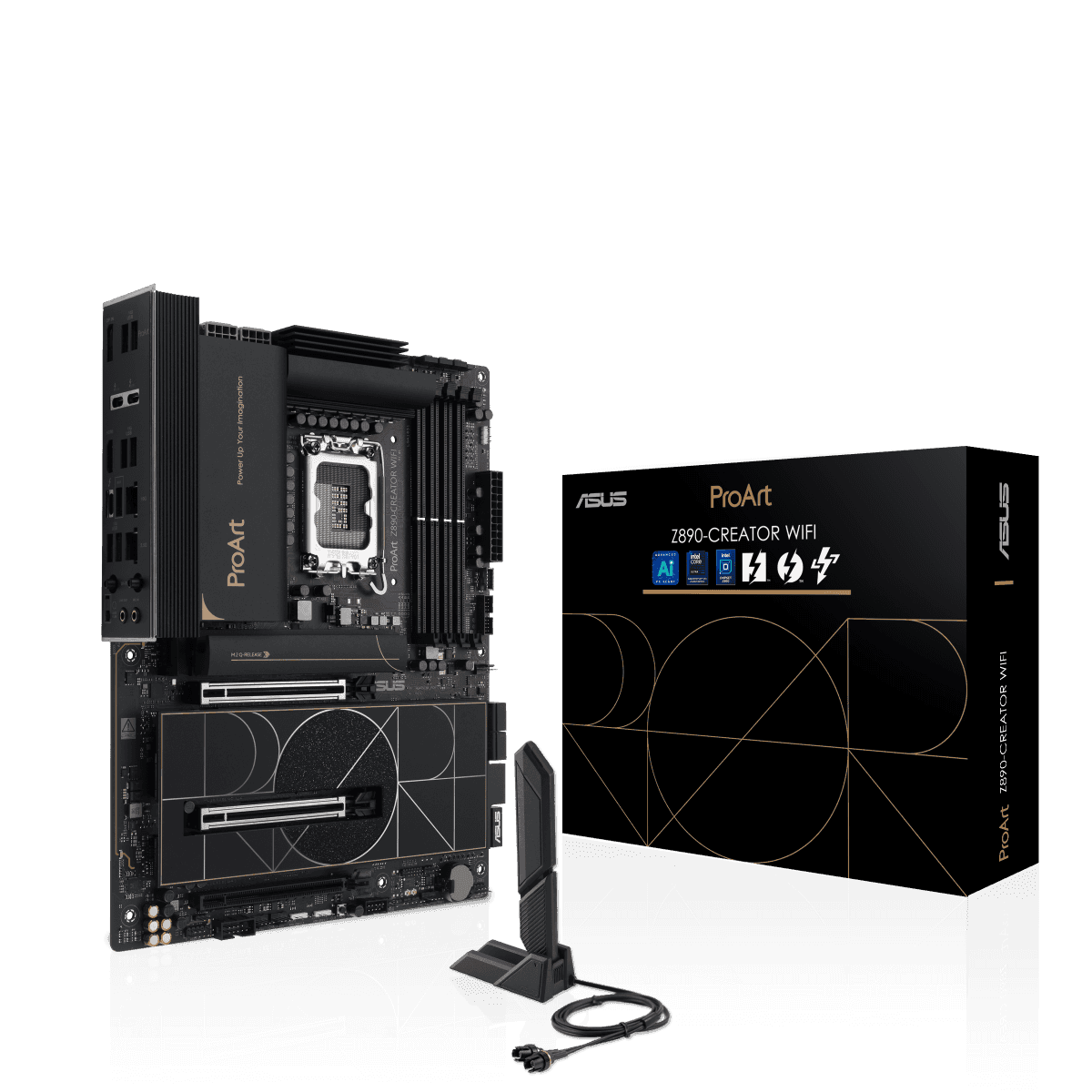

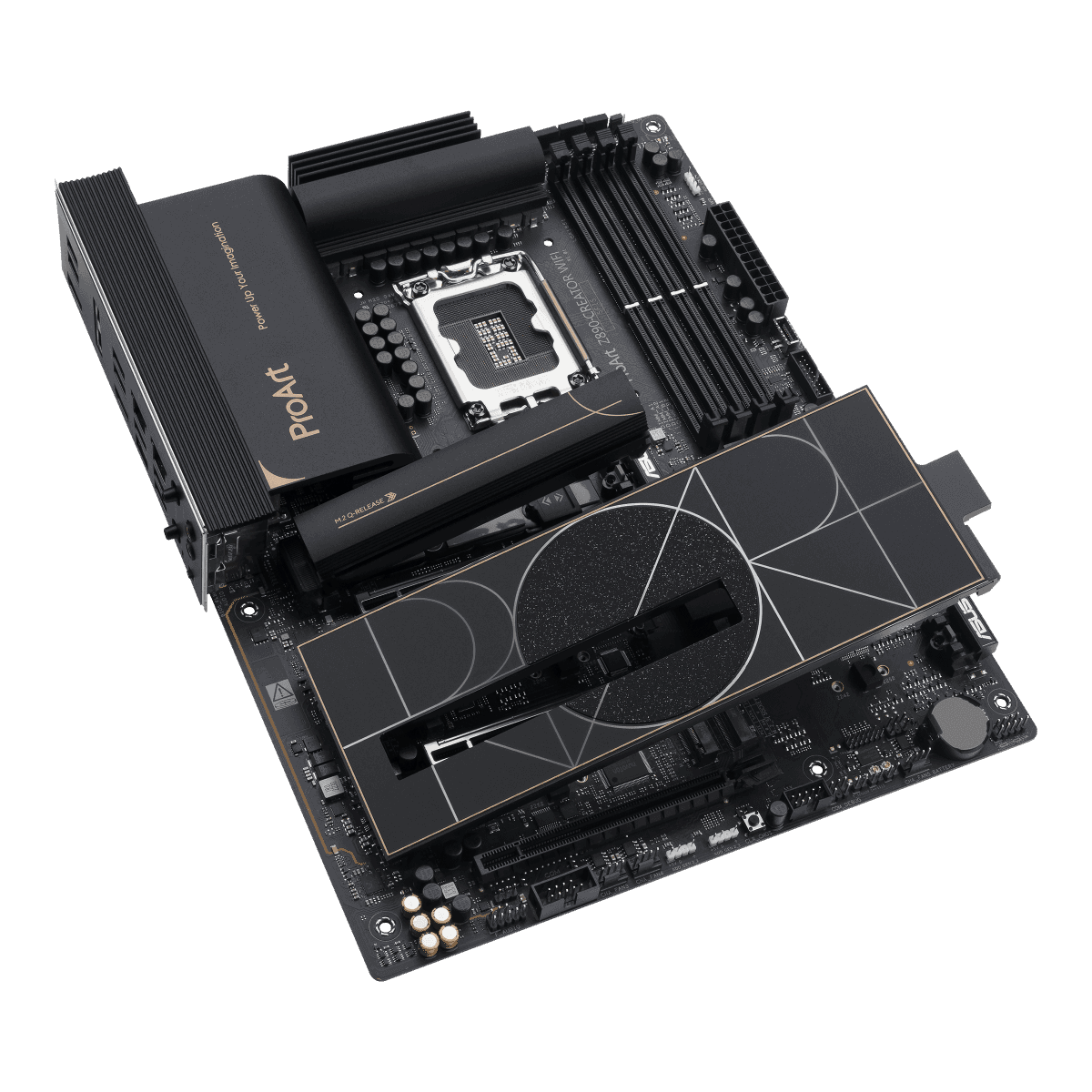

Asus PROART Z890-CREATOR WIFI Intel Z890 LGA1851 ATX Content Creation motherboard, PCIe 5.0, DDR5 slots, 2x USB4® ports, 10G & 2.5G Ethernet, WiFi 7, 5x M.2 slots, USB 20Gpbs front-panel header | 90MB1JD0-M0EAY0
Model :
SKU : MB-ASUS PROA Z890-CREA WI
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Get immersed in your creations with two Thunderbolt™ 5 and one Thunderbolt™ 4 ports for connecting to all your compatible content-creation gadgets, enjoying up to 80 Gbps of bi-directional bandwidth, and up to 120 Gbps with Bandwidth Boost. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port*.
Specification
| Model | ProArt Z890-CREATOR WIFI |
| Chipset | Intel® Z890 Chipset |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Memory Support | 4 x DIMM slots, up to 256GB DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered Dual channel architecture Supports Intel® XMP, ASUS AEMP III, DIMM Fit, DIMM Flex |
| Graphics | 1 x HDMI 2.1 (4K@60Hz) 2 x Thunderbolt™ 5 (USB-C) – DisplayPort & Thunderbolt video output 1 x Thunderbolt™ 4 (USB-C) – DisplayPort & Thunderbolt video output Supports up to 2 × 8K + 1 × 4K monitors (DP in mode) |
| Expansion Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8) 1 x PCIe 4.0 x16 (x4) |
| Storage | 5 x M.2 slots • 1 x PCIe 5.0 x4 • 4 x PCIe 4.0 x4 / SATA 4 x SATA 6Gb/s ports Supports RAID 0/1/5/10 |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2, 2.4/5/6GHz), up to 5.8Gbps Bluetooth® v5.4 |
| USB Ports | Rear: 2 x Thunderbolt™ 5 (USB-C), 1 x Thunderbolt™ 4 (USB-C), 6 x USB 10Gbps (Type-A), 1 x USB 2.0 Front: 1 x USB 20Gbps (USB-C), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC 120 dB SNR playback / 113 dB SNR recording Gold-plated jacks, premium capacitors, dedicated audio PCB layers |

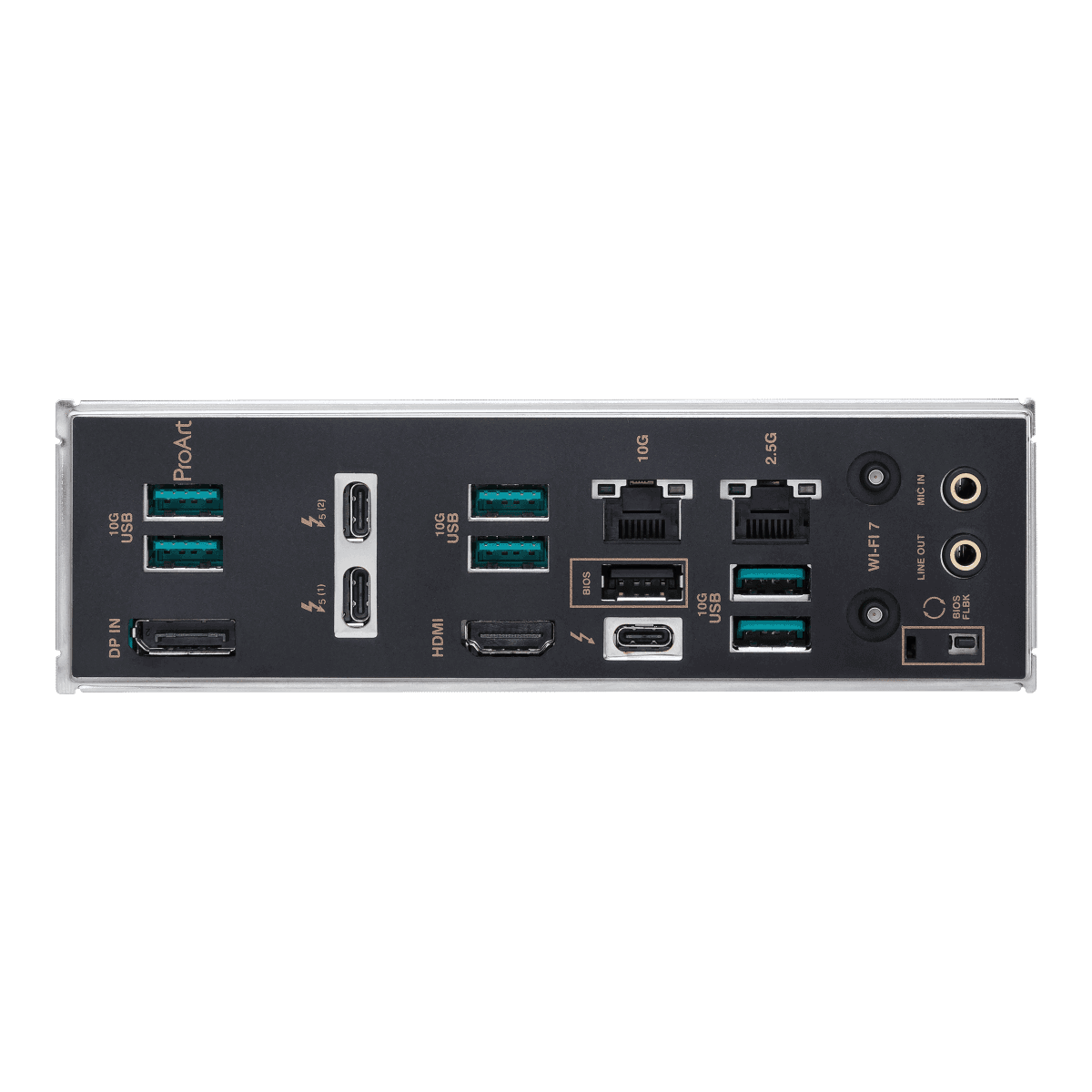

| Back Panel I/O | 2 x Thunderbolt™ 5 USB-C 1 x Thunderbolt™ 4 USB-C 6 x USB 10Gbps (Type-A) 1 x USB 2.0 (Type-A) 1 x DisplayPort (Input), 1 x HDMI 2 x Ethernet (10Gb + 2.5Gb) 2 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fan 1 x 24-pin ATX, 2 x 8-pin CPU Power 5 x M.2, 4 x SATA Multiple USB headers, 3 x ARGB Gen2, Clear CMOS, TPM, Thermal Sensor, etc. |
| Special Features | ASUS 5X PROTECTION III, Q-Design (M.2 Q-Latch, Q-Release, Q-LED, etc.) ASUS Thermal Solution (VRM & M.2 heatsinks) Aura Sync RGB |
| Software Features | Armoury Crate, Aura Creator, Fan Xpert 4, TurboV Core, Thunderbolt™ Share, ProArt Creator Hub, Norton 360 (60-day), Adobe Creative Cloud (Trial) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking Guide, ASUS EZ DIY tools |
| Remote Management | ASUS Control Center Express (ACCE), WOL by PME, PXE |

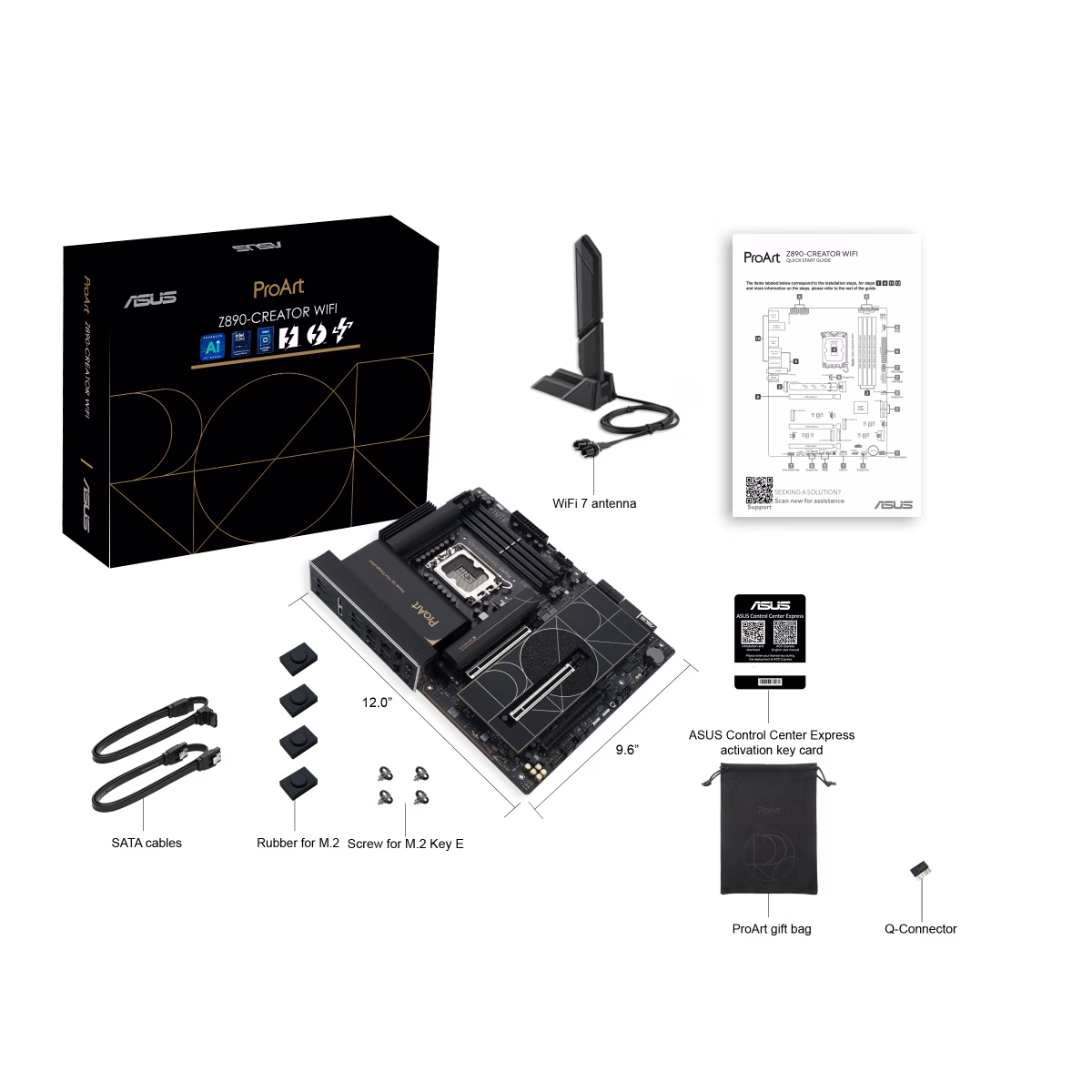

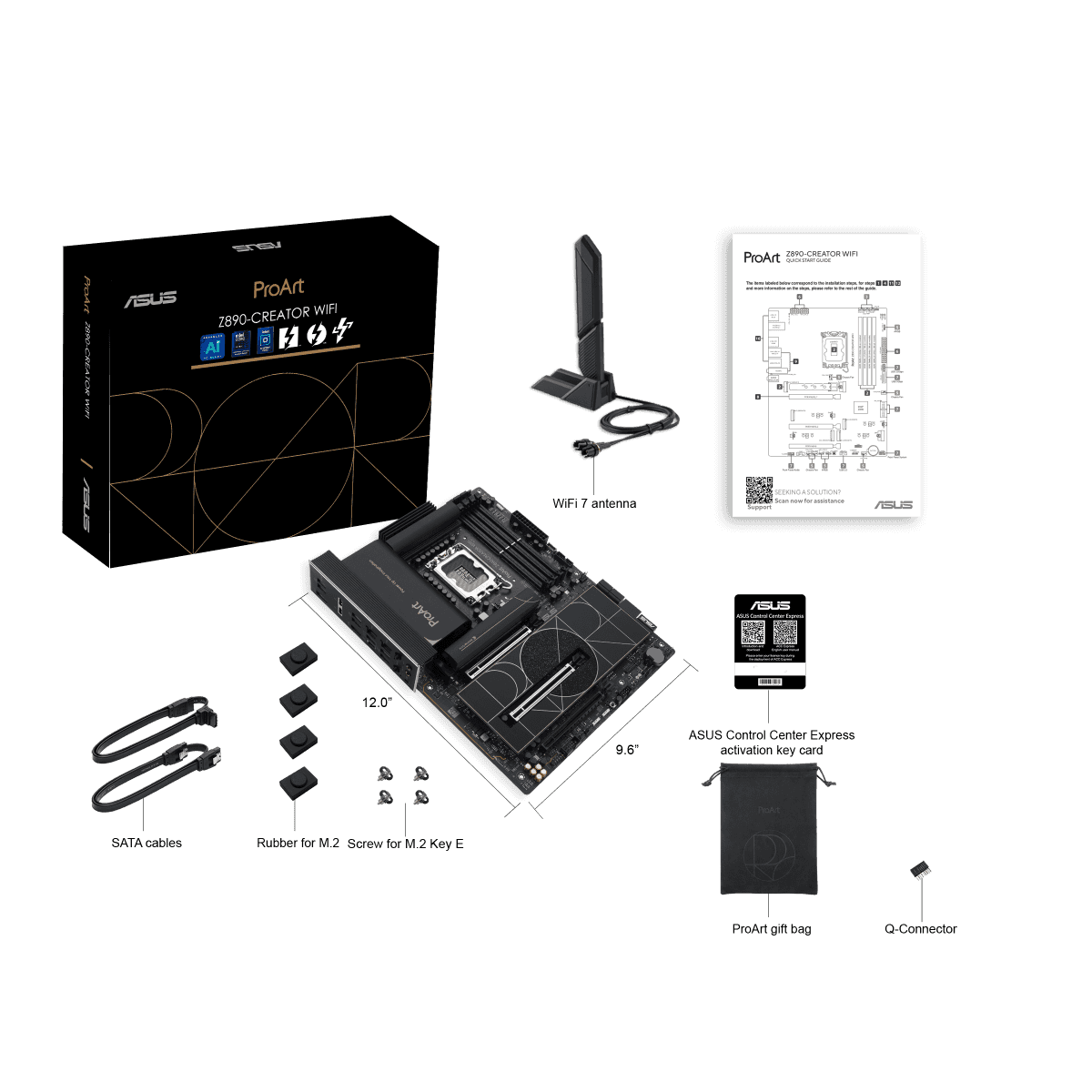

| Accessories | 2 x SATA cables 1 x ASUS WiFi Q-Antenna Q-Connector, M.2 accessories, ProArt accessory bag, Quick Start Guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX — 12 in x 9.6 in (30.5 cm x 24.4 cm) |
