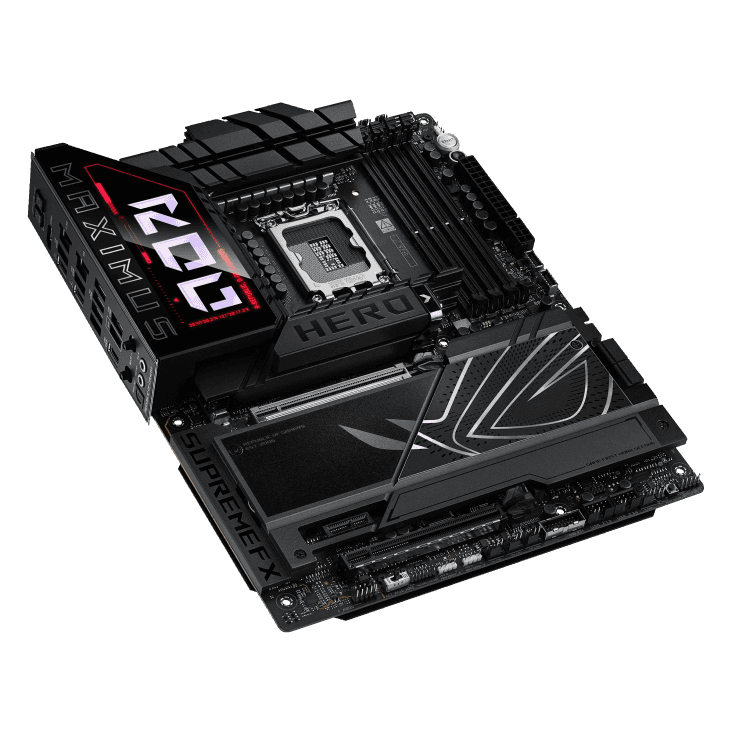

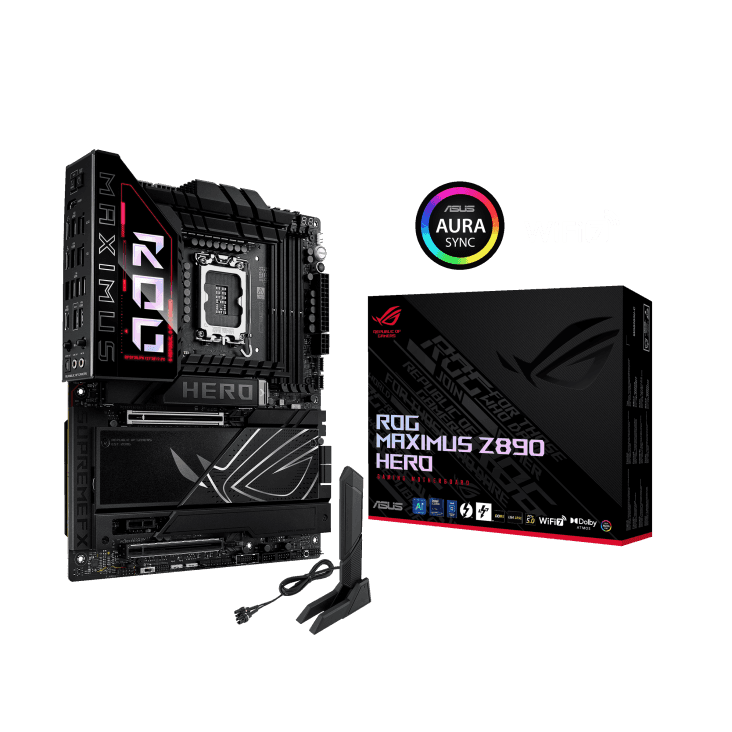

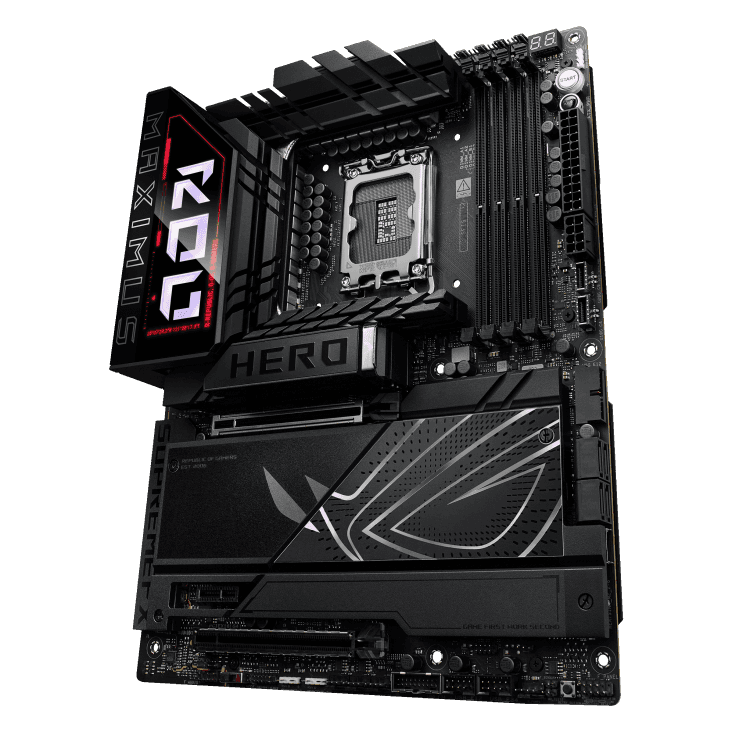

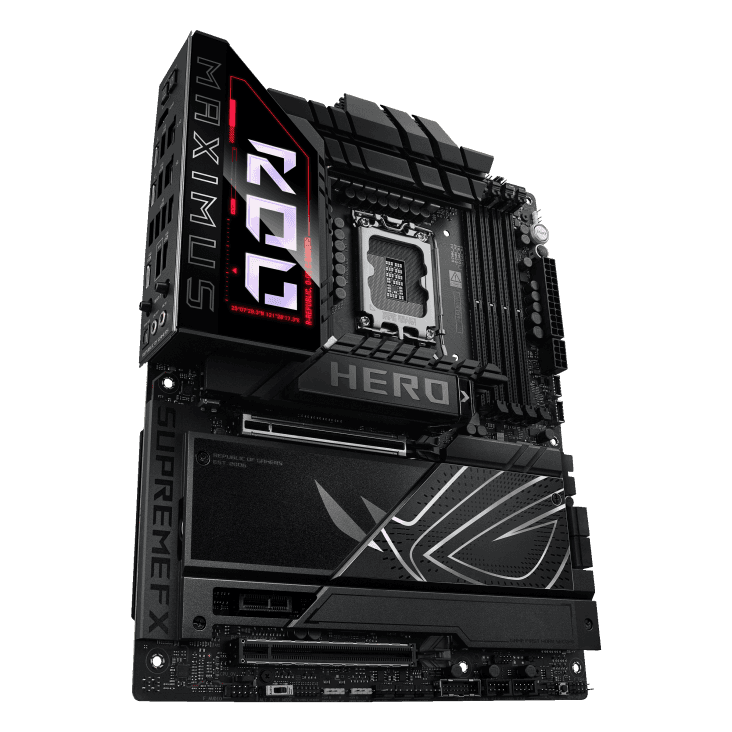

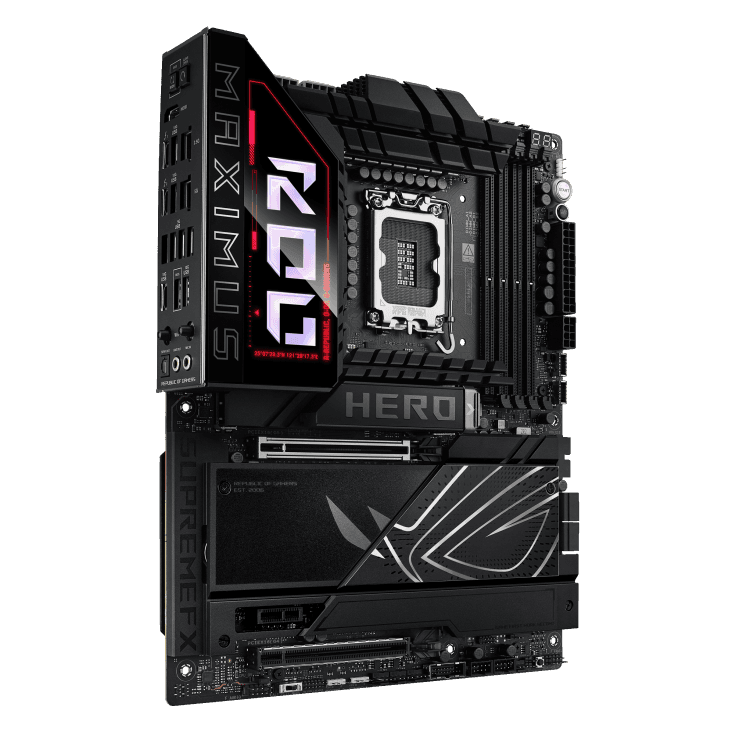

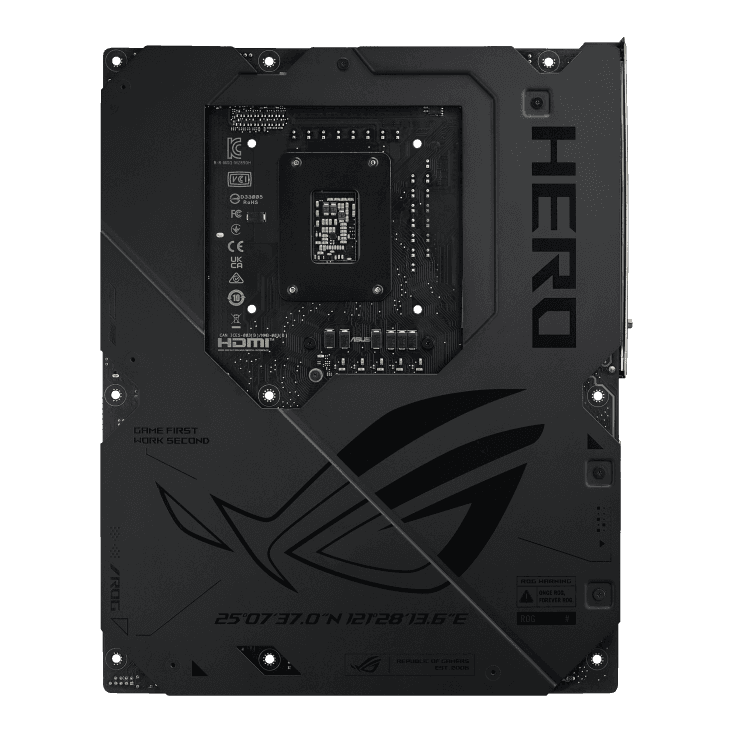

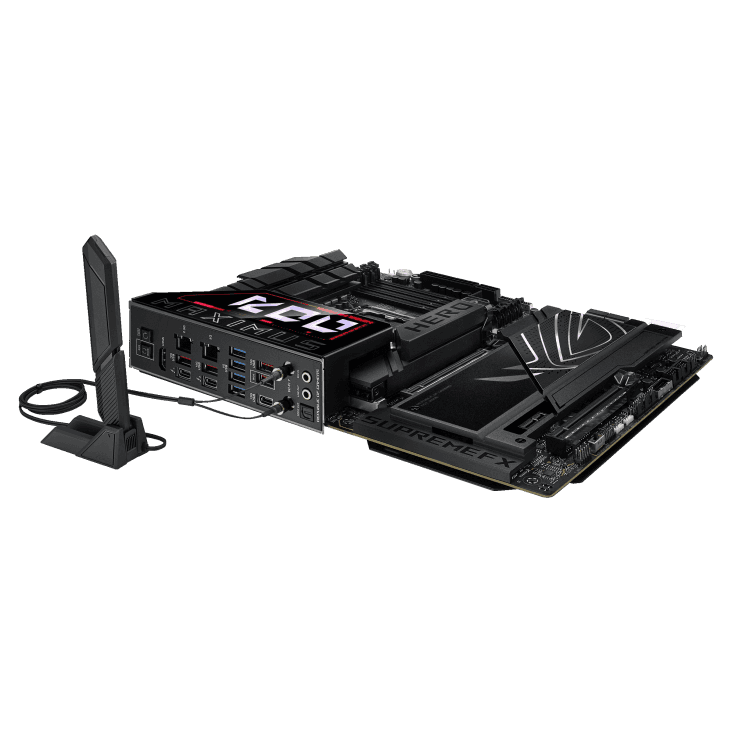

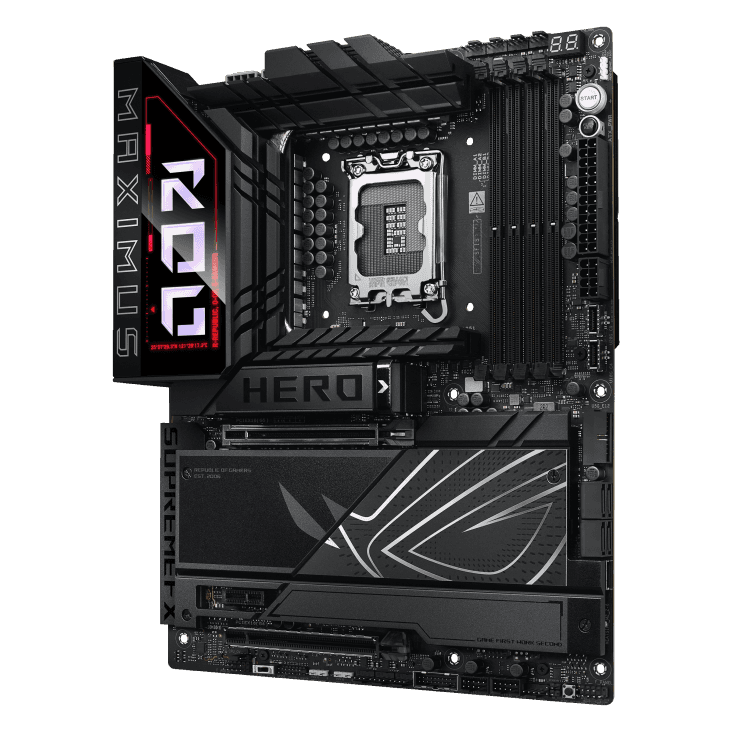

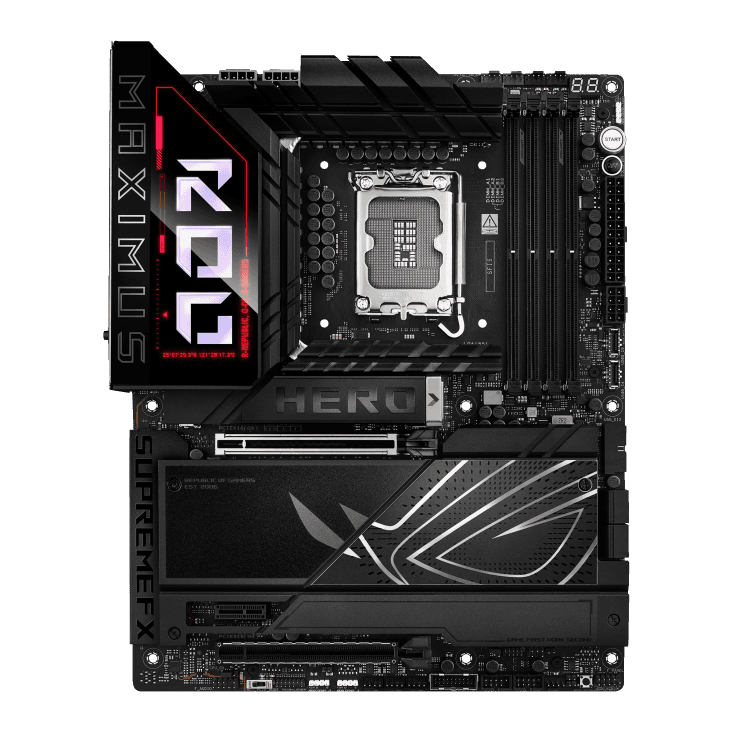

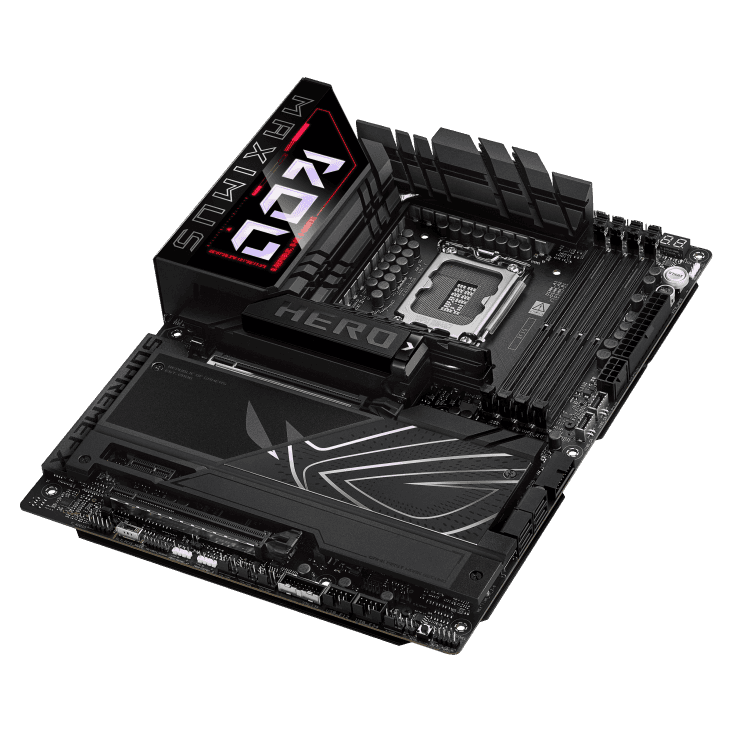

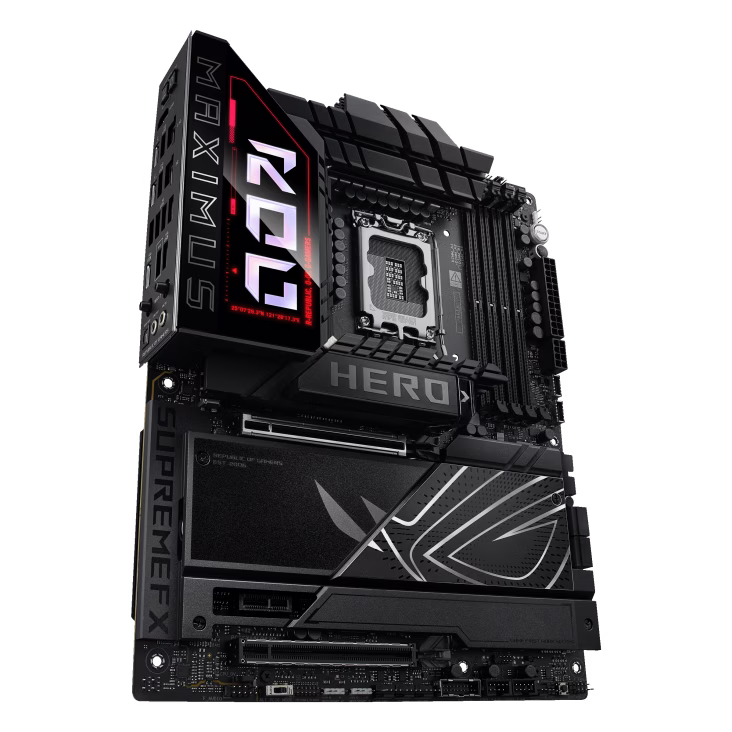

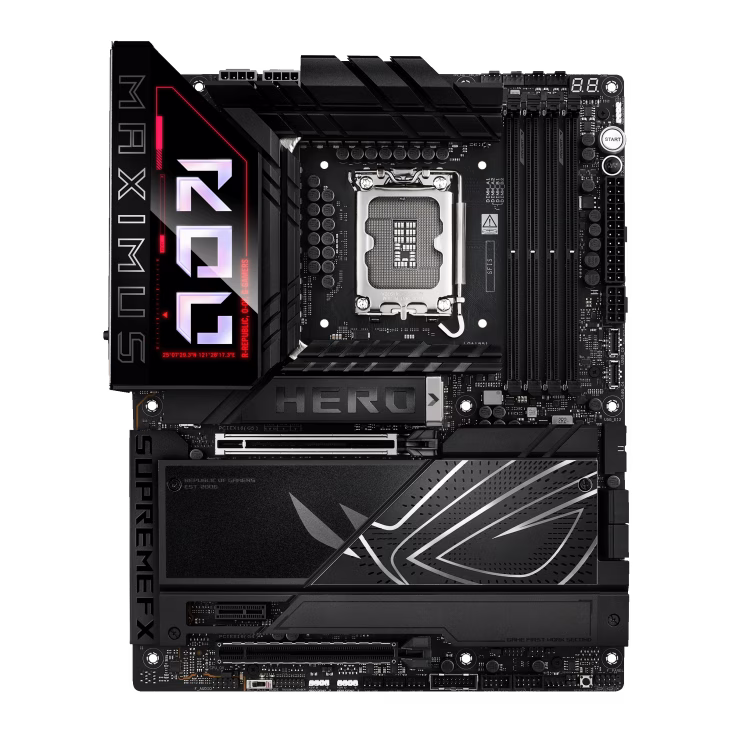

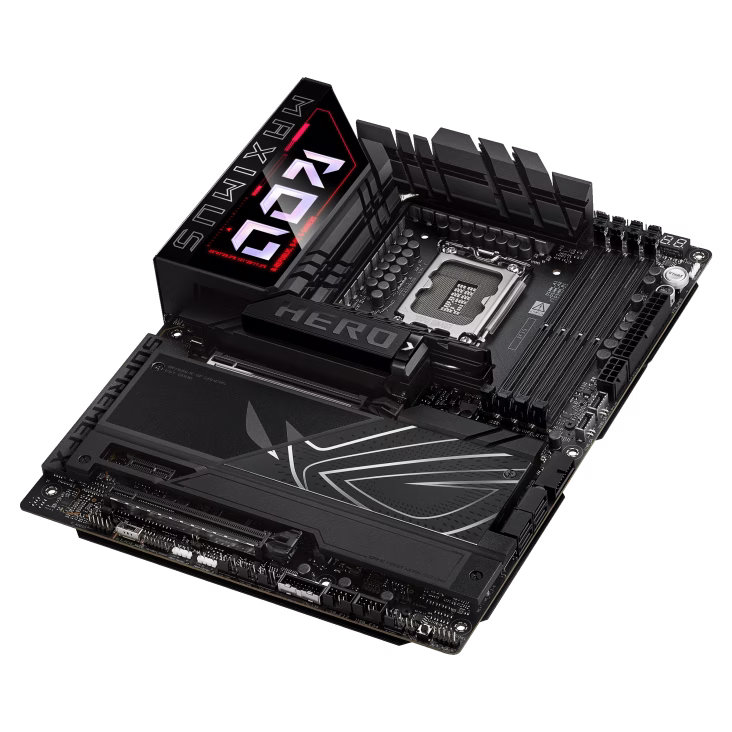

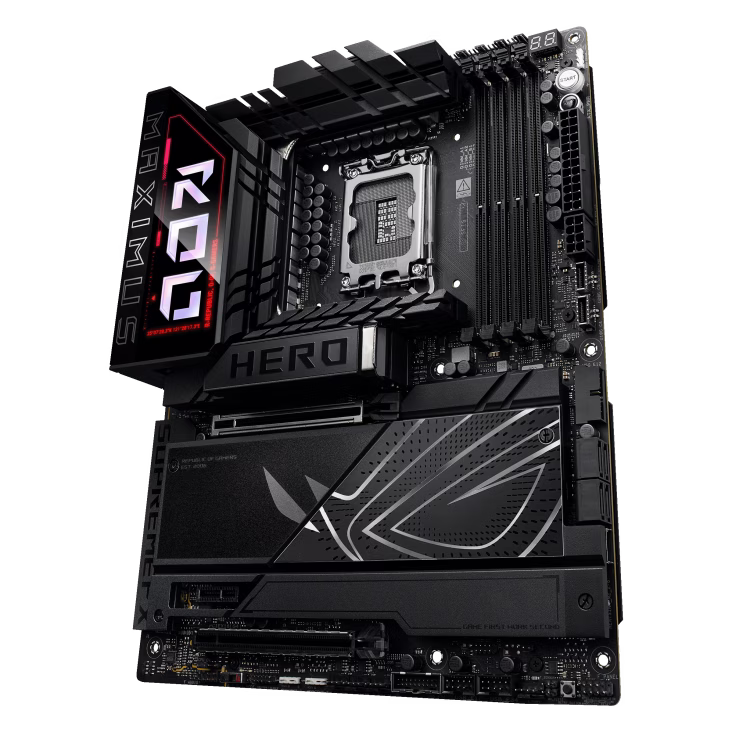

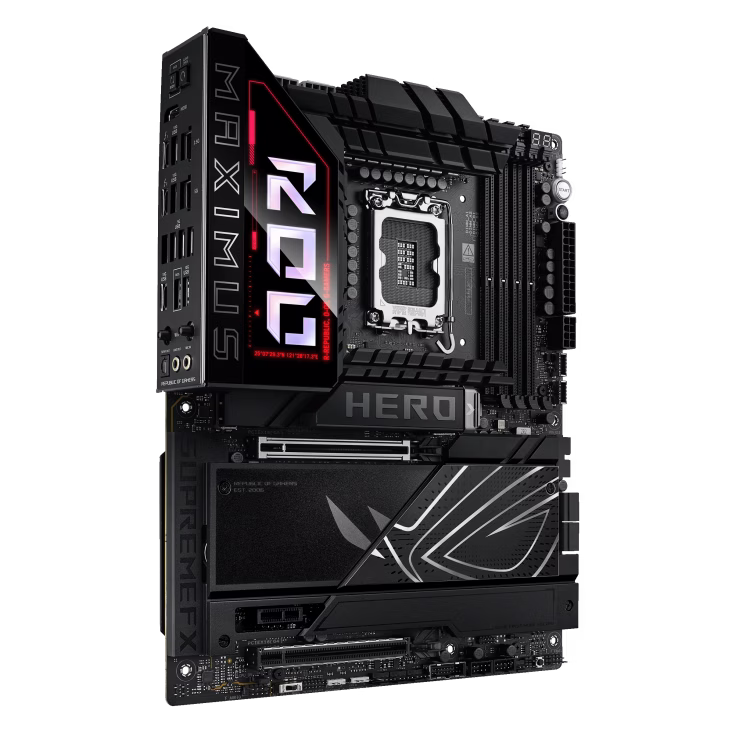

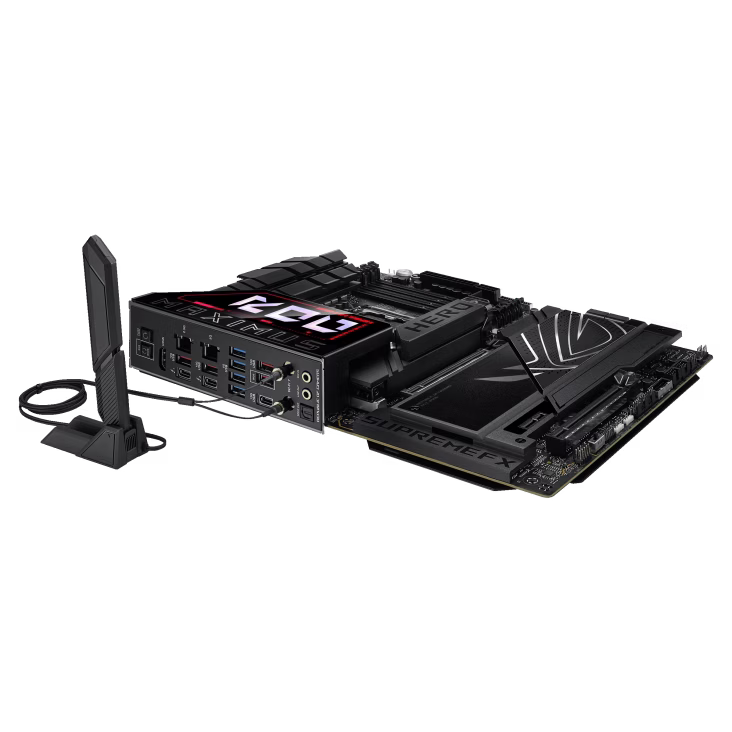

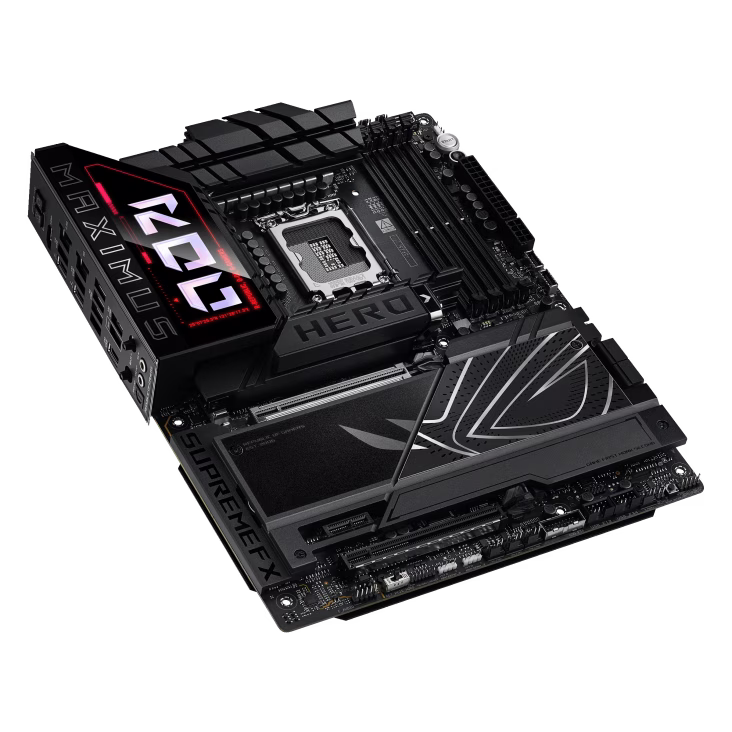

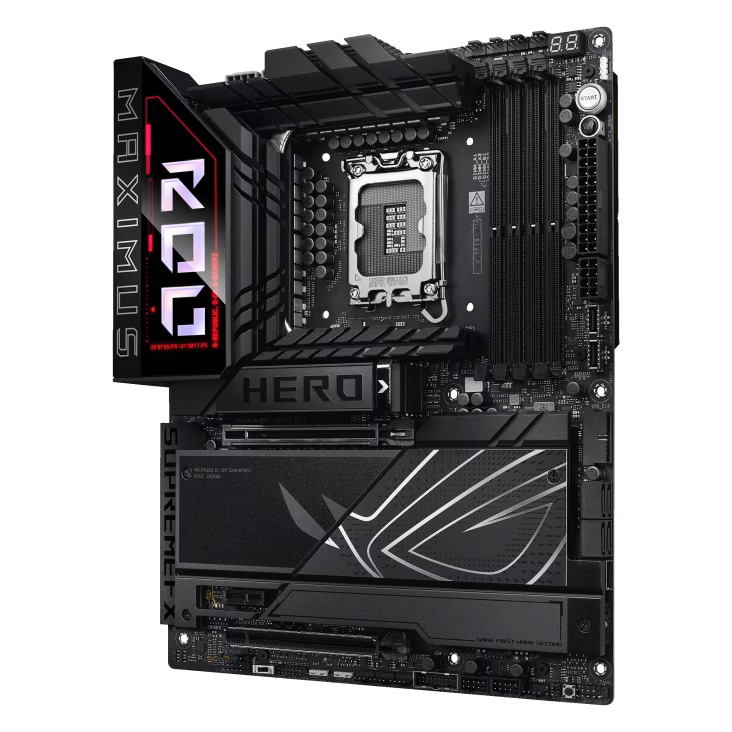

ASUS ROG MAXIMUS Z890 HERO LGA1851 ATX Motherboard, 4x DIMM slots, max. 192GB, DDR5, 6x M.2 slots and 4x SATA 6Gb/s, PCIe 5.0, Wi-Fi 7 & BT | 90MB1ID0-M0EAY0

Model

ROG MAXIMUS Z890 HERO

CPU

Supports Intel?? Core??? Ultra Processors (Series 2), LGA1851*

• Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0**
• * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• ** Intel?? Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel?? Z890 Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5
• Supports up to 8800+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• Intel?? Extreme Memory Profile (XMP) memory module support
• ASUS Enhanced Memory Profile III (AEMP III)
• * Refer to CPU/Memory Support list for more info.

Graphics

• 1 x HDMI??? port (supports max. 8K@60Hz with DSC as specified in HDMI 2.1)
• 2 x Intel?? Thunderbolt??? 4 ports (USB Type-C??), supporting DisplayPort and Thunderbolt??? video outputs*
• * Graphics specifications may vary by CPU type.

Expansion Slots

Intel?? Core??? Ultra Processors (Series 2):

• 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
• Intel?? Z890 Chipset:
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x1 slot

Storage

Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports

• Intel?? Core??? Ultra Processors (Series 2):
• M.2_1 slot (Key M), type 2242/2260/2280/22110, PCIe 5.0 x4 mode
• M.2_2 slot (Key M), type 2242/2260/2280, PCIe 4.0 x4 mode
• M.2_3 and M.2_4 slots, PCIe 5.0 x4 mode (shared with PCIEX16(G5))
• Intel?? Z890 Chipset:
• M.2_5 and M.2_6 slots, PCIe 4.0 x4 mode
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel?? 2.5Gb Ethernet
• 1 x Realtek 5Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be) supporting 2.4/5/6GHz frequency bands
• Bluetooth?? v5.4

USB

• Rear USB (Total 11 ports):
• 2 x Thunderbolt??? 4 USB Type-C?? ports
• 5 x USB 10Gbps ports (4 x Type-A + 1 x Type-C)
• 4 x USB 5Gbps ports (4 x Type-A)
• Front USB (Total 10 ports):
• 1 x USB 20Gbps connector (USB Type-C?? with up to 60W PD/QC4+ support)
• 1 x USB 10Gbps connector (USB Type-C??)
• 2 x USB 5Gbps headers for 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers for 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

• Supports up to 32-Bit/384 kHz playback
• Impedance sense, Jack-detection, Multi-streaming
• Gold-plated audio jacks, Rear optical S/PDIF out port

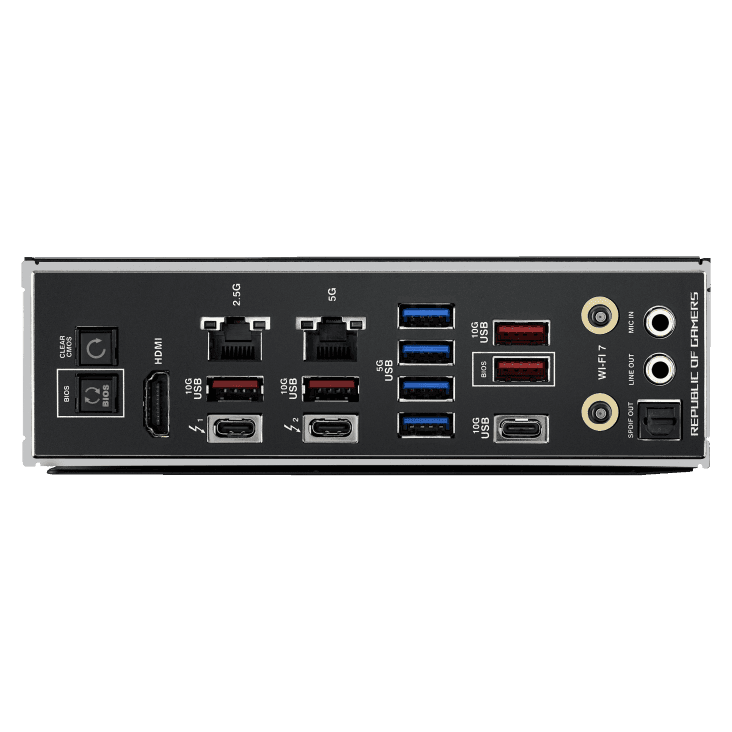

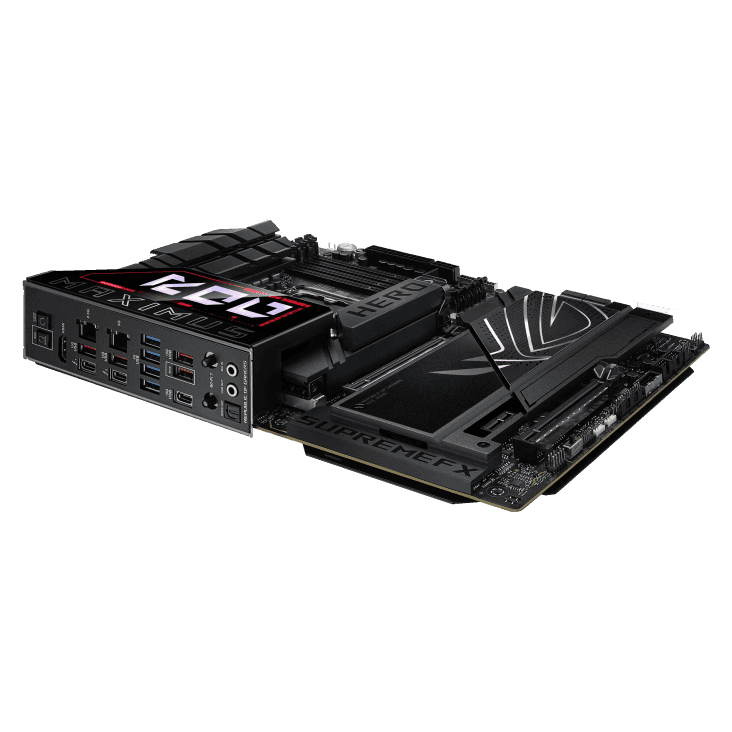

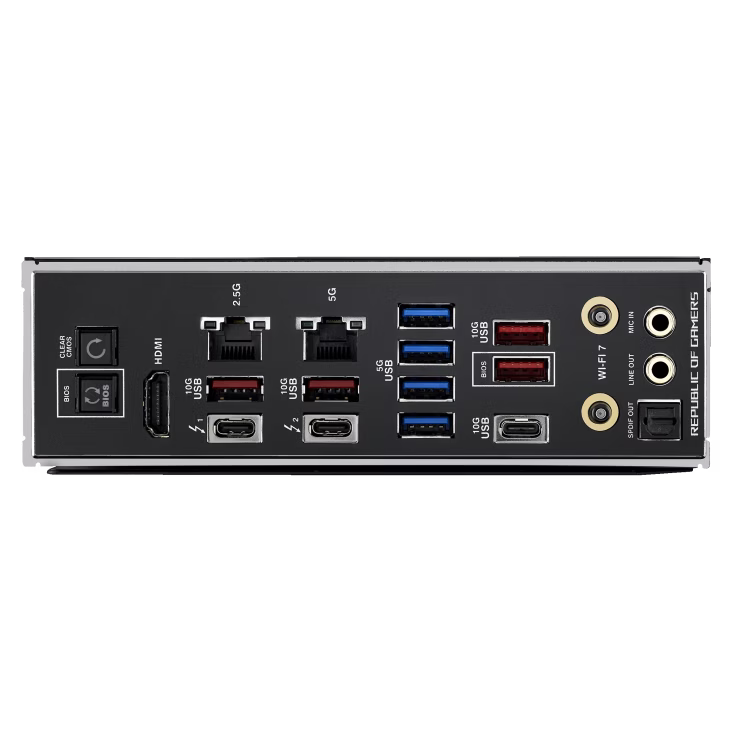

Back Panel I/O Ports

• 2 x Thunderbolt??? 4 USB Type-C?? ports
• 5 x USB 10Gbps ports (4 x Type-A + 1 x Type-C)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x HDMI??? port
• 1 x Intel?? 2.5Gb Ethernet port, 1 x Realtek 5Gb Ethernet port
• 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack??? button, 1 x Clear CMOS button

Special Features

• Extreme OC Kit, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY
• Aura Sync with Addressable Gen 2 header(s), Front Panel USB 20Gbps with Quick Charge 4+ support

Software Features

Includes ROG CPU-Z, Dolby Atmos, Polymo Lighting II, Armoury Crate, AI Overclocking Guide, and more.

Form Factor

ATX Form Factor - 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
