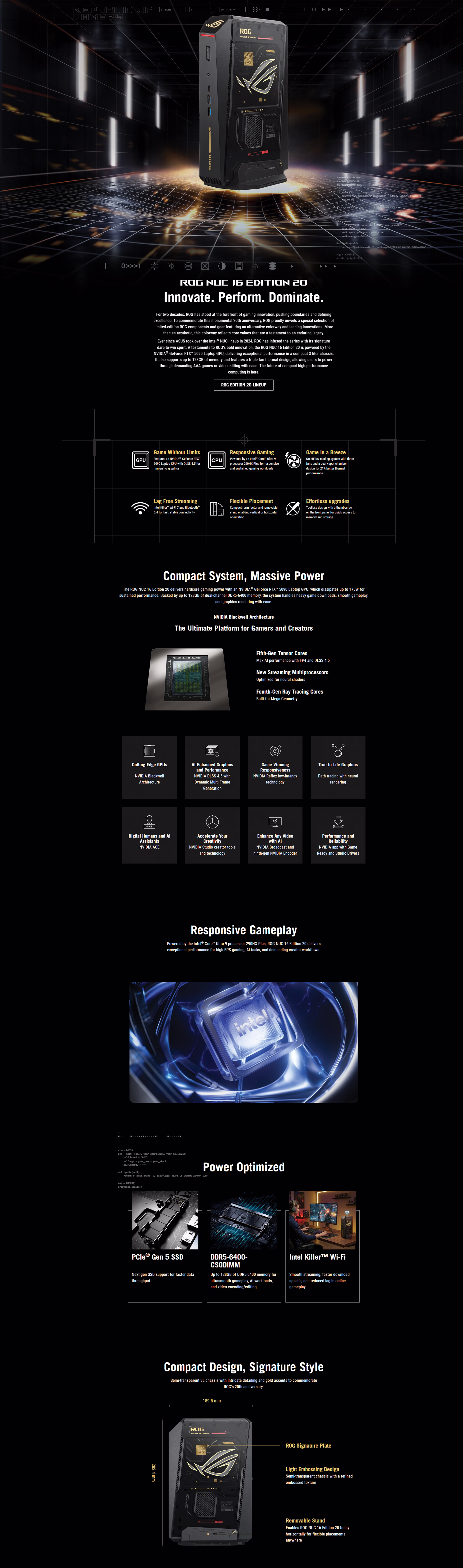

ASUS ROG NUC 16 Edition 20 Ultra 9 RTX 5090 Gaming Mini PC

The ASUS ROG NUC 16 Edition 20 (90AS00S3-M00100 / 199291593008 / 4711636593007) represents the pinnacle of compact PC engineering. Celebrating two decades of ROG innovation, this ultra-small-form-factor gaming PC packs the raw power of top-tier desktop components into a sleek, toolless 3-liter chassis that can be positioned vertically or horizontally on any desk setup.

Performance & Thermals

The ROG NUC 16 Edition 20 maintains sustained clock speeds under maximum gaming loads thanks to its custom QuietFlow thermal design. Dual vapor chambers spread heat away from critical components, while intelligent fan curves keep noise levels low during quiet office work or movie watching.

Design & Flexibility

Featuring an aggressive dark chassis with customizable ROG logo lighting, the NUC 16 includes a heavy-duty vertical stand. The extensive rear I/O supports up to four external 4K/8K displays via dual HDMI 2.1, dual DisplayPort 2.1, and Thunderbolt 4.

Why This Product Stands Out

The ASUS ROG NUC 16 Edition 20 stands out as one of the most powerful mini PCs ever built, housing an Intel Core Ultra 9 290HX, RTX 5090 24GB GPU, 64GB DDR5-6400 RAM, PCIe 5.0 storage, and Wi-Fi 7 in a tiny 3-liter chassis.

Feature	Specification
Model & Form Factor	ASUS ROG NUC 16 Edition 20 (RNUC16JNK9X8ADA3) \| Ultra-Compact Gaming Mini PC
Operating System	Windows 11 Home
Processor (CPU)	Intel® Core™ Ultra 9 Processor 290HX Plus (cTDP: 45 W – 160 W)
Chipset	Intel® HM870 Chipset
Graphics (GPU)	NVIDIA® GeForce RTX™ 5090 Laptop GPU \| 24 GB GDDR7 VRAM
Memory Architecture	Dual-Channel Slots (Max 64 GB) 2x DDR5-5600 SO-DIMM or 2x DDR5-6400 CSO-DIMM
Primary Storage	2 TB M.2 2280 NVMe™ PCIe® 5.0 SSD included
Networking & Wireless	Wi-Fi 7: Intel® Killer™ Wi-Fi 7 BE1750x (Gig+) \| Bluetooth® 5.4 Wired LAN: Realtek® RTL8125D 2.5GbE (2.5G RJ45)
Audio Subsystem	Realtek® ALC3342-CG High-Definition Audio Codec
Front / Side I/O	2x USB 3.2 Gen 2 Type-A 1x USB 3.2 Gen 2 Type-C 1x 3.5 mm Combo Audio Jack
Rear I/O Ports	1x Thunderbolt™ 4 Type-C (supports DisplayPort™ 2.1) 4x USB 3.2 Gen 2 Type-A 2x HDMI 2.1 FRL 2x DisplayPort 2.1 1x 2.5G RJ45 LAN Port 1x DC-In (ASUS rectangular connector) \| 1x Kensington Lock Slot
Power Supply	380 W External AC Adapter (20V DC, 19A)
Dimensions & Weight	282.5 × 189.5 × 56.5 mm (11.12" × 7.46" × 2.22") \| Net Weight: 3.2 kg (7.05 lbs)
Design & Chassis	Matte Black Chassis with illuminated ROG Logo

Description

Performance & Thermals

Design & Flexibility

Why This Product Stands Out

Specification

Feature	Specification
Model & Form Factor	ASUS ROG NUC 16 Edition 20 (RNUC16JNK9X8ADA3) \| Ultra-Compact Gaming Mini PC
Operating System	Windows 11 Home
Processor (CPU)	Intel® Core™ Ultra 9 Processor 290HX Plus (cTDP: 45 W – 160 W)
Chipset	Intel® HM870 Chipset
Graphics (GPU)	NVIDIA® GeForce RTX™ 5090 Laptop GPU \| 24 GB GDDR7 VRAM
Memory Architecture	Dual-Channel Slots (Max 64 GB) 2x DDR5-5600 SO-DIMM or 2x DDR5-6400 CSO-DIMM
Primary Storage	2 TB M.2 2280 NVMe™ PCIe® 5.0 SSD included
Networking & Wireless	Wi-Fi 7: Intel® Killer™ Wi-Fi 7 BE1750x (Gig+) \| Bluetooth® 5.4 Wired LAN: Realtek® RTL8125D 2.5GbE (2.5G RJ45)
Audio Subsystem	Realtek® ALC3342-CG High-Definition Audio Codec
Front / Side I/O	2x USB 3.2 Gen 2 Type-A 1x USB 3.2 Gen 2 Type-C 1x 3.5 mm Combo Audio Jack
Rear I/O Ports	1x Thunderbolt™ 4 Type-C (supports DisplayPort™ 2.1) 4x USB 3.2 Gen 2 Type-A 2x HDMI 2.1 FRL 2x DisplayPort 2.1 1x 2.5G RJ45 LAN Port 1x DC-In (ASUS rectangular connector) \| 1x Kensington Lock Slot
Power Supply	380 W External AC Adapter (20V DC, 19A)
Dimensions & Weight	282.5 × 189.5 × 56.5 mm (11.12" × 7.46" × 2.22") \| Net Weight: 3.2 kg (7.05 lbs)
Design & Chassis	Matte Black Chassis with illuminated ROG Logo
