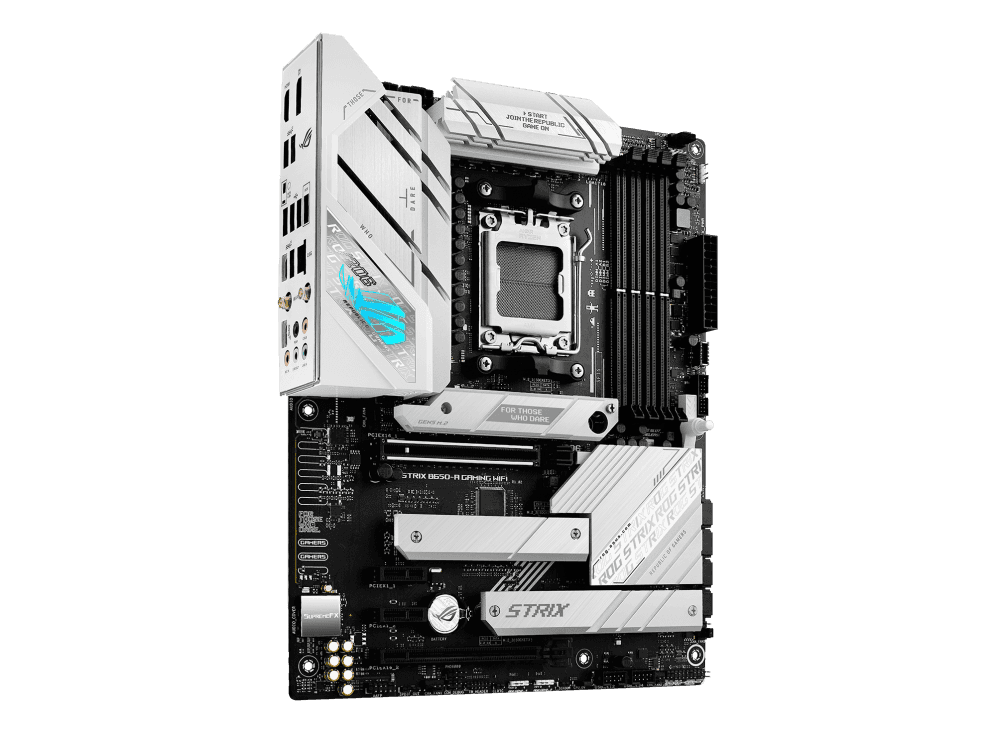

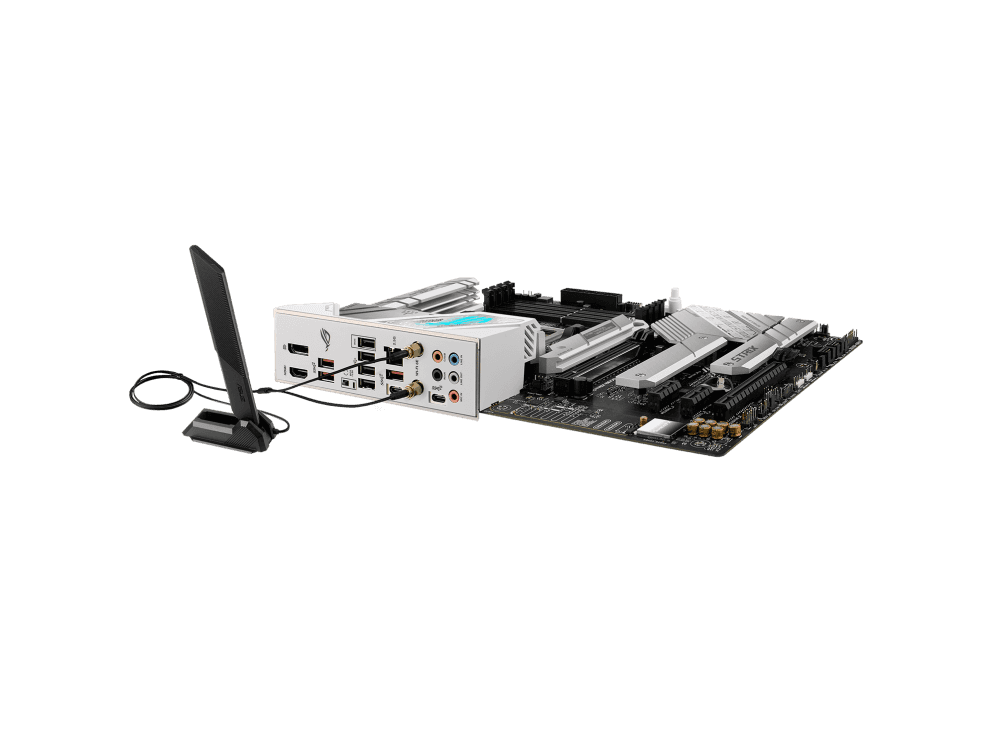

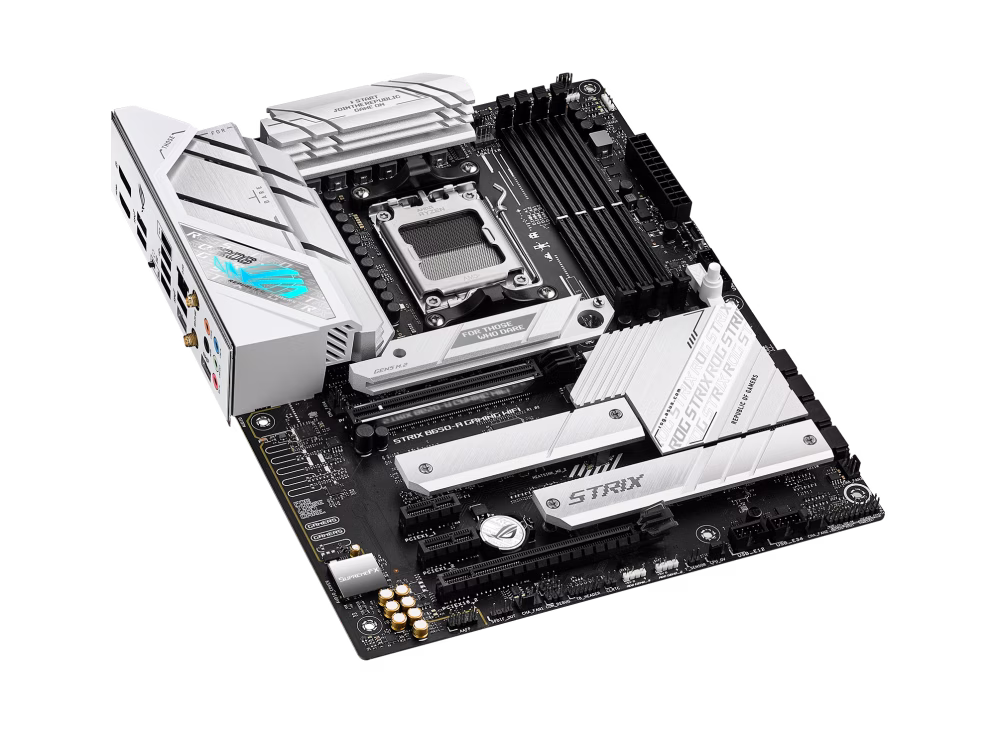

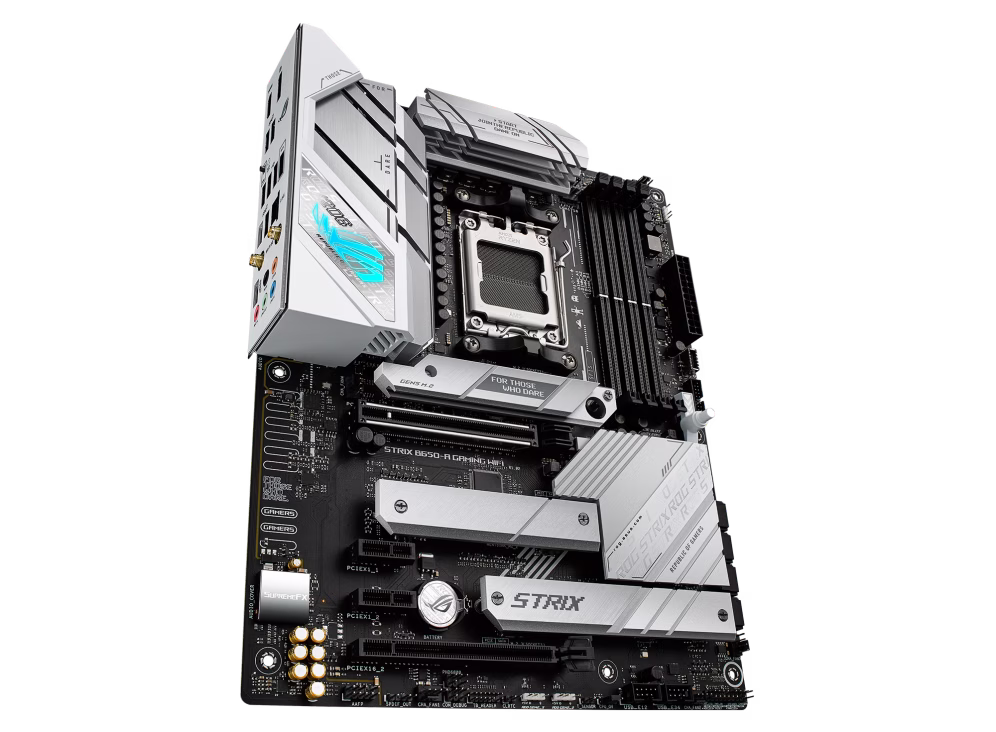

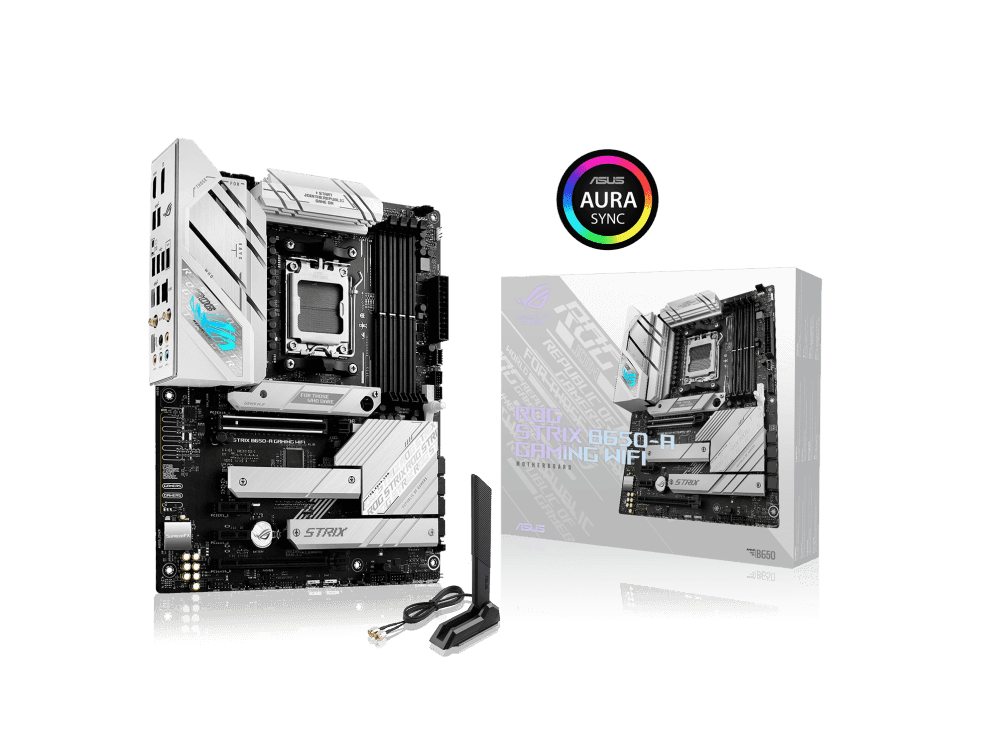

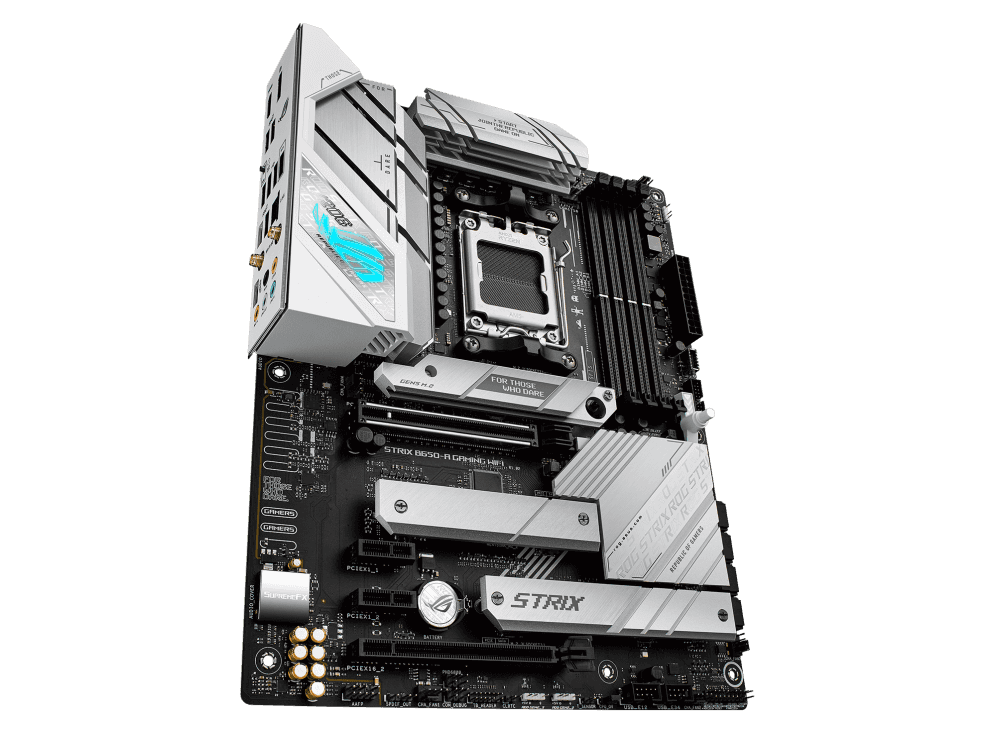

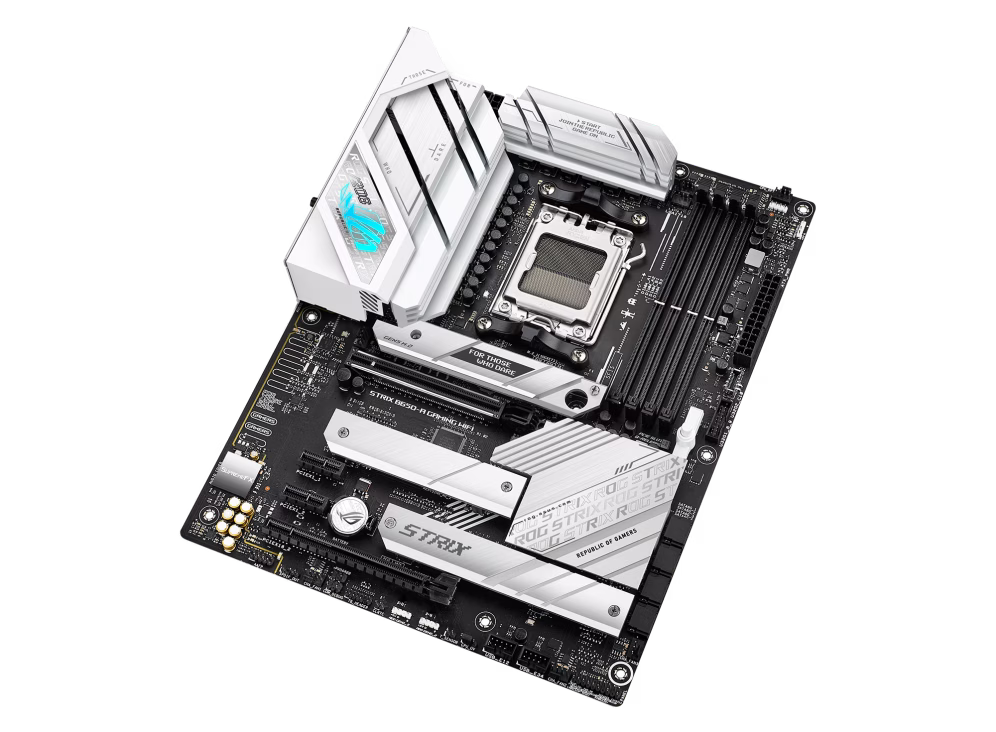

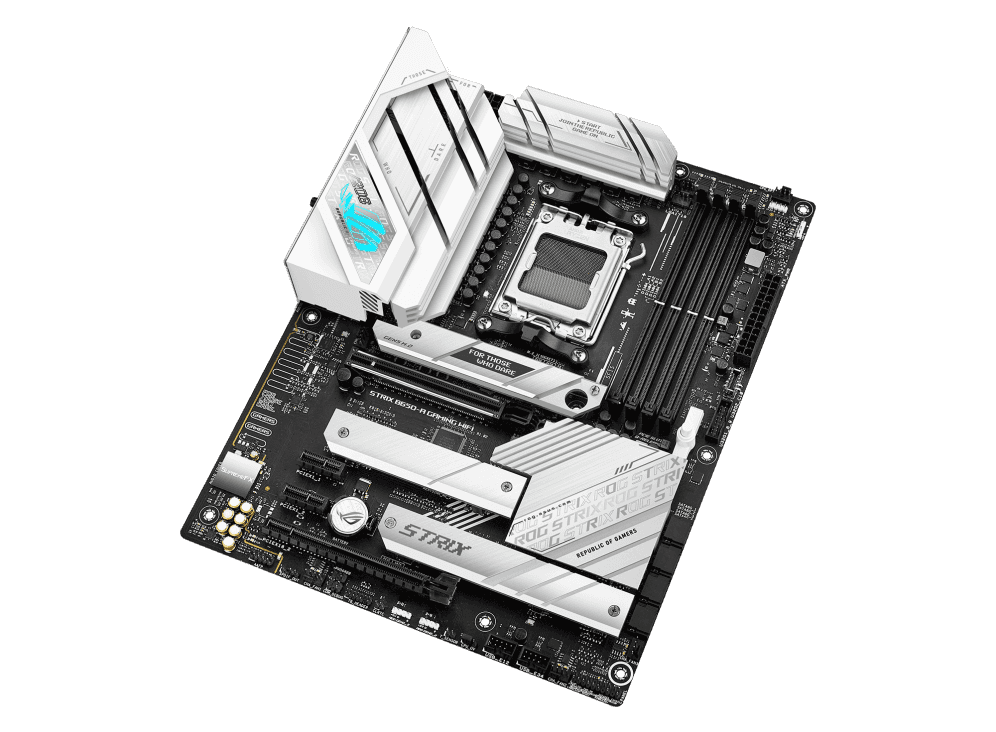

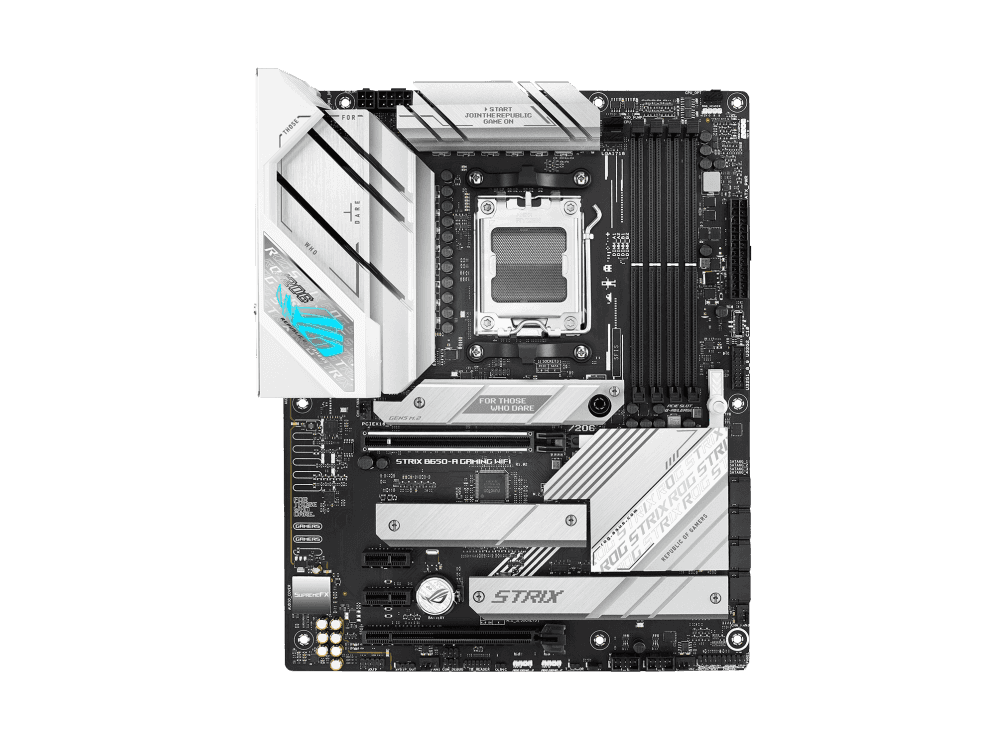

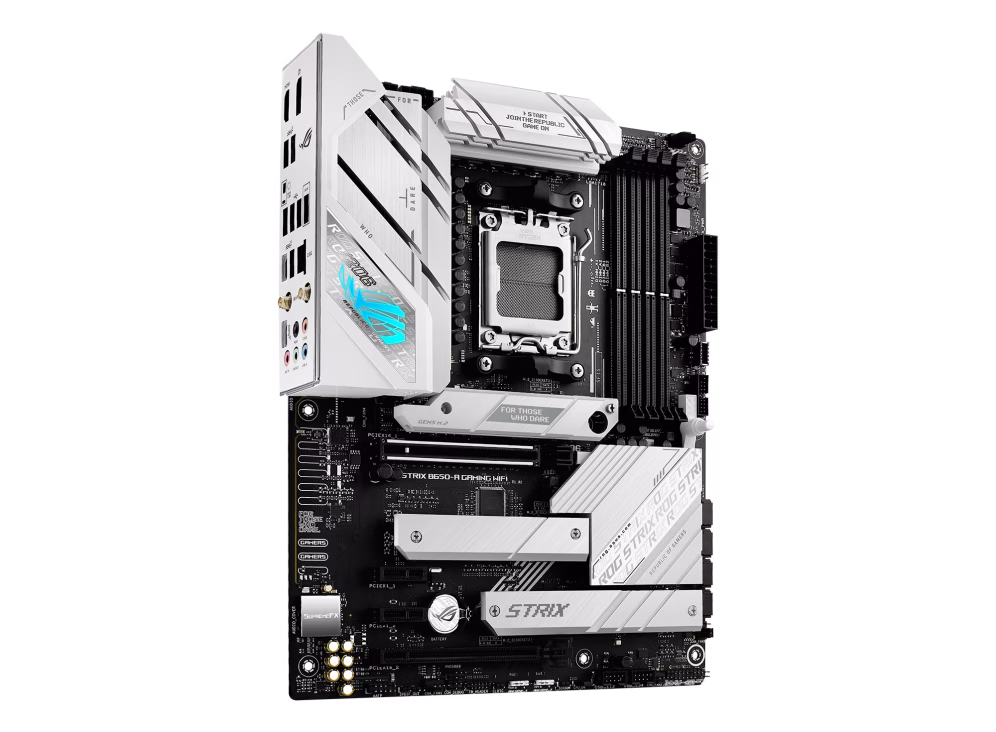

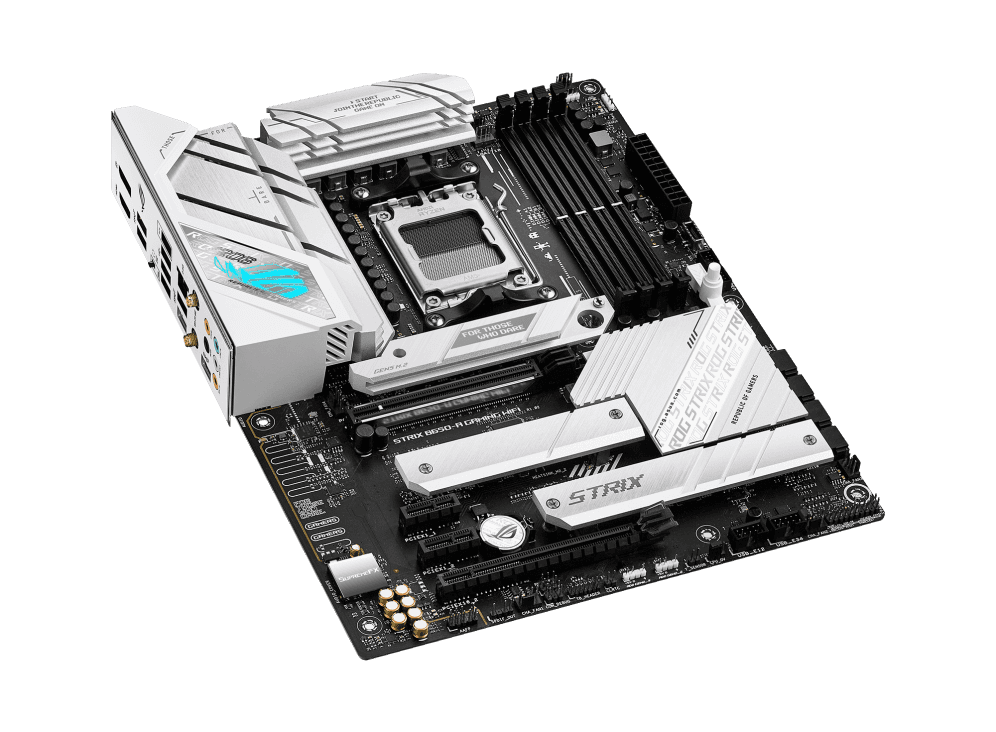

Asus Rog Strix B650-A Gaming Wi-Fi ATX DDR5 Motherboard, AMD Socket AM5, B650 Chipset, 2.5Gb Ethernet, Bluetooth, WiFi 6E 6GHz, Max 128GB 4xDIMM Memory, PCIe 4.0x16, 3xM.2 Slot | 90MB1BP0-M0EAY0
Model :
SKU : MB-ASUS B650A-GAMING WIF
About this item
About this item
Description
The B650 AORUS ELITE AX is designed for users who want to maximize the potential of their "Zen" architecture CPUs. Built on the AMD B650 chipset, this motherboard provides the essential bandwidth and connectivity needed for modern gaming and content creation. Its sleek, dark aesthetic with integrated RGB Fusion lighting makes it a versatile fit for any high-end PC chassis.
Elite Power Delivery & Thermal Cooling
To handle the aggressive boost clocks of Ryzen 9 processors, GIGABYTE has equipped this board with a 14+2+1 phase Twin Digital VRM solution with 70A Smart Power Stages. The thermal architecture is equally impressive, featuring fully covered MOSFET heatsinks and a high-performance M.2 Thermal Guard that prevents high-speed NVMe SSDs from throttling during long sessions. A 6-layer 2oz copper PCB further enhances signal integrity and heat dissipation.
Future-Proof Connectivity: PCIe 5.0 and WiFi 6E
Stay ahead of the hardware curve with a dedicated PCIe 5.0 x4 M.2 slot, allowing you to experience the blistering speeds of next-generation storage drives. Networking is handled by a dual-threat system: onboard WiFi 6E for low-latency wireless gaming on the 6GHz band, and a 2.5GbE LAN port for ultra-fast, stable wired connections.
EZ-DIY Features & Smart Software
Building and maintaining your rig is simple thanks to PCIe EZ-Latch, which allows for easy removal of large graphics cards, and M.2 EZ-Latch for tool-less storage installation. The board also features Q-Flash Plus, enabling you to update the BIOS using only a USB thumb drive—no CPU or RAM required. Through the GIGABYTE Control Center (GCC), you can easily manage fan curves, lighting, and performance tuning from a unified interface.
Why the B650 AORUS ELITE AX Stands Out
AM5 Native: Optimized for Ryzen 9000, 8000, and 7000 Series desktop processors.
DDR5 Ready: Supports high-frequency memory modules with AMD EXPO™ technology.
Superior Storage: Native PCIe 5.0 M.2 support for speeds up to 10GB/s+.
Premium Audio: High-end audio capacitors for immersive, high-fidelity sound.
Specification
| Processor (CPU) | AM5 Socket for AMD Ryzen??? Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO???) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| Graphics | 1 x DisplayPort* 1 x HDMI?? port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* 2 x PCIe 4.0/3.0 x1 slots * PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s port * AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled. |
| Ethernet | 1 x Intel?? 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 * Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C??) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |

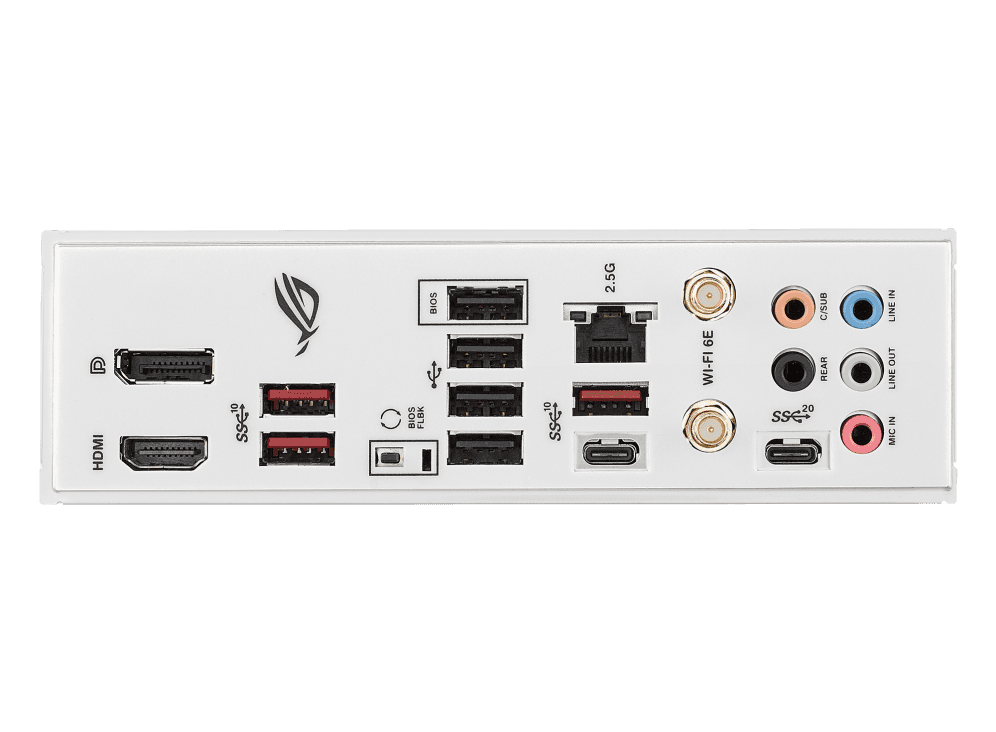

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C??) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI?? port 1 x Wi-Fi Module 1 x Intel?? 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack??? button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt???header 1 x COM_DEBUGheader |
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-LED - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS?? Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

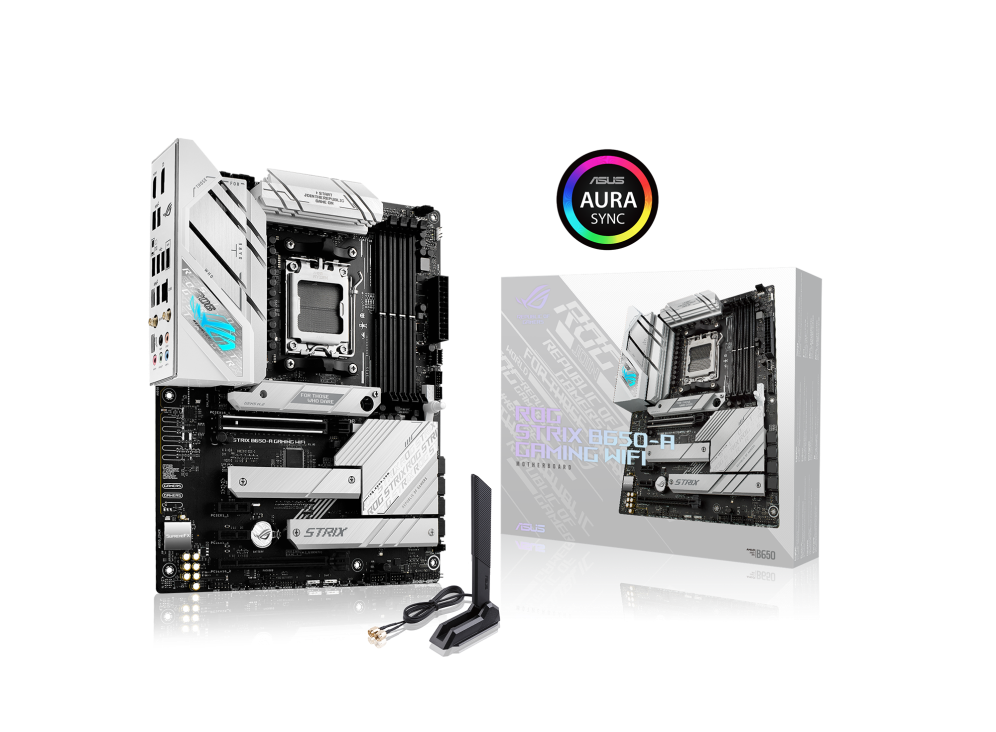

| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages Documentation 1 x User guide |
| Operating System | Windows?? 11 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
