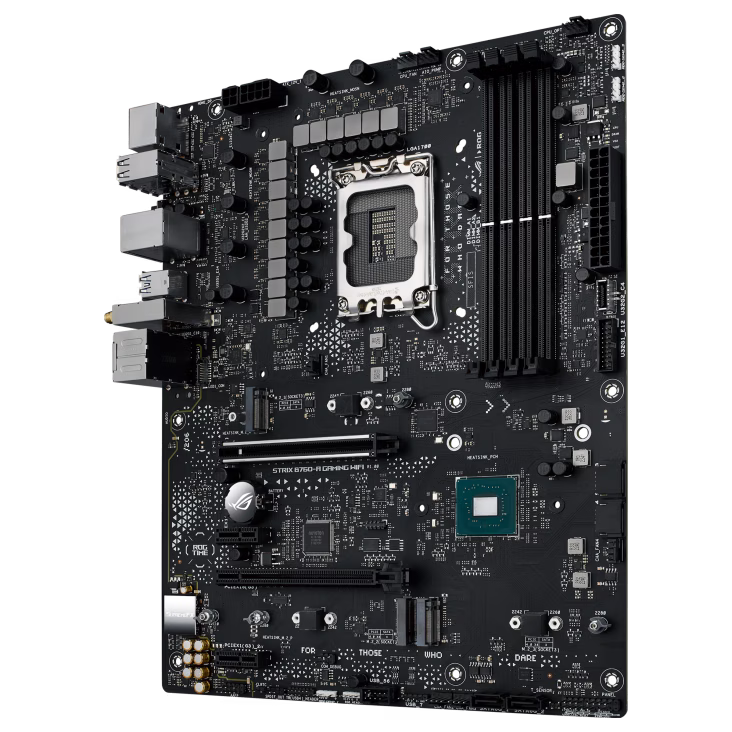

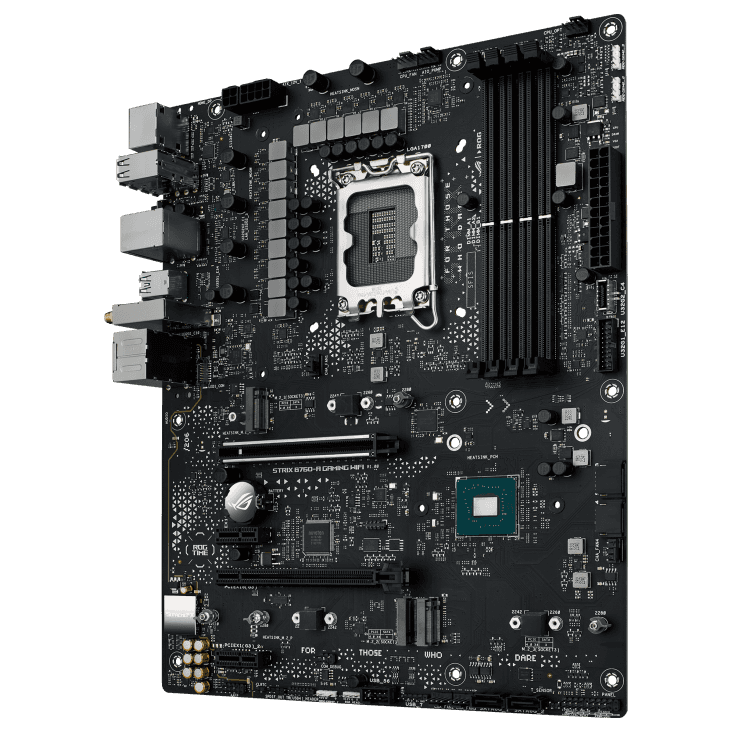

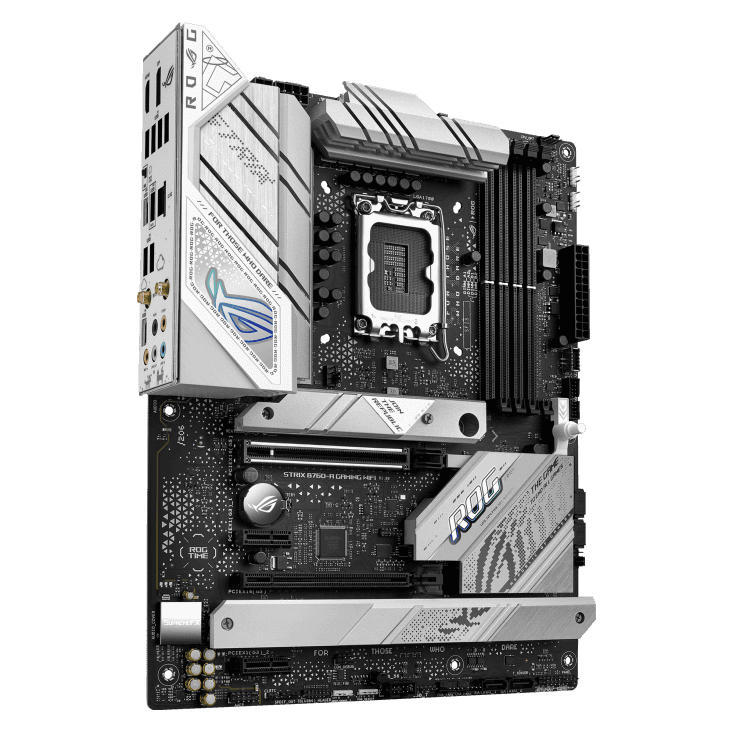

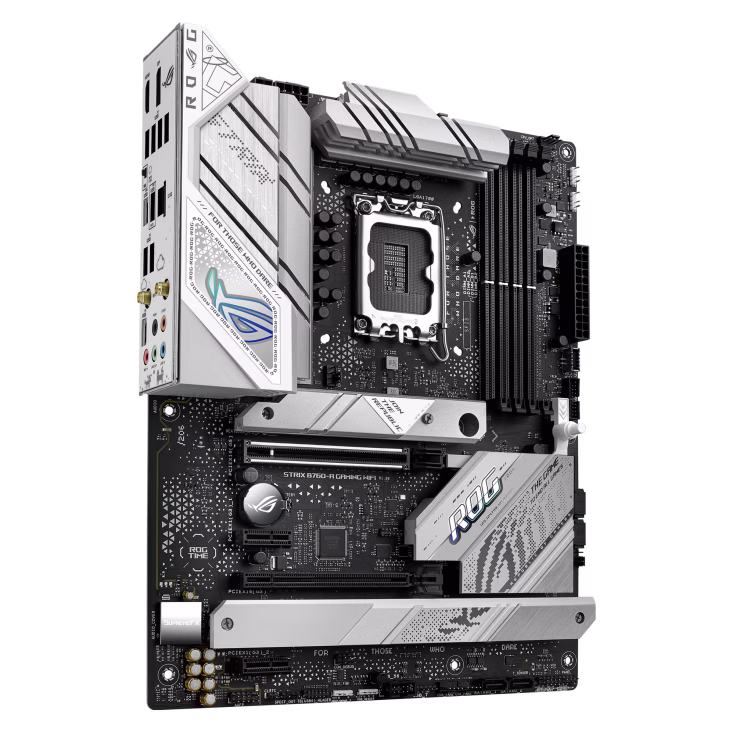

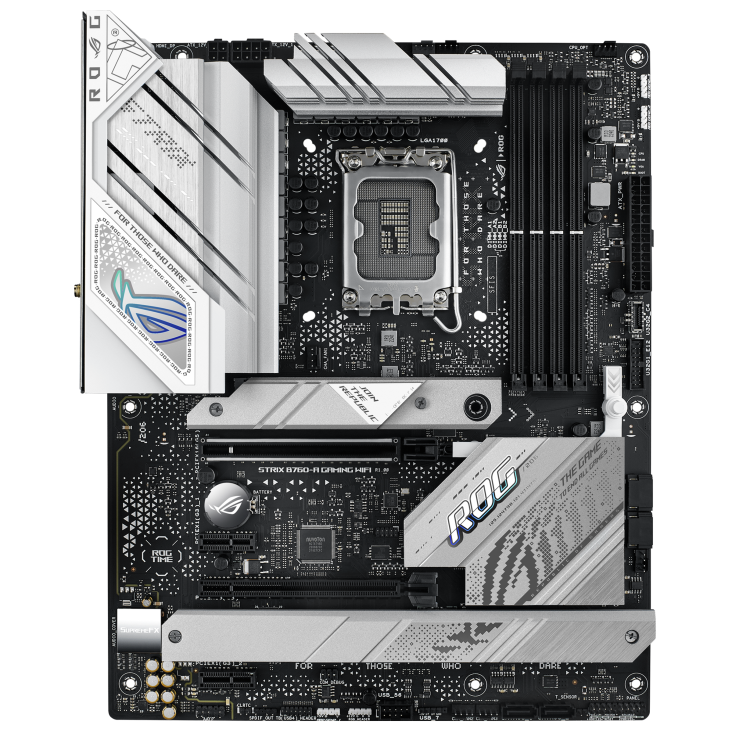

ASUS ROG Strix B760-A Gaming WIFI LGA 1700 ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM, Up to 192GB Max Memory, WIFI 6E / 2.5G ETH, PCIe 5.0, 3x M.2, HDMI / DP, USB 3.2 GEN 2X2 | 90MB1EP0-M0EAY0
Model :
SKU : MB-ASUS ROG B760-A WIFI
About this item
About this item
Description
The ROG Strix B760-A Gaming WIFI is the ideal choice for enthusiasts building a "white-out" or silver-themed gaming rig. Utilizing the Intel B760 chipset, this motherboard offers a specialized balance of power and efficiency. It is designed to handle the hybrid architecture of Intel's latest processors, providing the bandwidth and stability required for high-frame-rate gaming and complex multitasking.
Robust Power Delivery and Advanced Cooling
Under the sleek silver heatsinks lies a formidable 12+1 power stage solution with high-quality alloy chokes and durable capacitors. This ensures stable power delivery to the CPU even during intense gaming sessions. The thermal design is equally impressive, featuring massive VRM heatsinks and dedicated M.2 heatsinks for all three slots, preventing thermal throttling and keeping your high-speed NVMe SSDs running at peak performance.
Next-Gen Speed: DDR5, PCIe 5.0, and WiFi 6E
This board is built for the future of hardware. With DDR5 memory support, users can experience significantly higher data rates compared to previous generations. The primary PCIe 5.0 x16 SafeSlot offers double the bandwidth of PCIe 4.0, making it ready for the world’s most powerful upcoming GPUs. Networking is handled by a dual-threat system: WiFi 6E for the interference-free 6GHz band and Intel 2.5Gb Ethernet for a rock-solid, low-latency wired connection.
Specification
| Model | ROG STRIX B760-A GAMING WIFI |
|---|---|
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II |
| Graphics | 1 x DisplayPort (Max. 4K@60Hz as specified in DP 1.4) 1 x HDMI™ port (Max. 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | Intel® Core™ Processors: 1 x PCIe 5.0 x16 slot *PCIe x1(G3)_1/2 share bandwidth with PCIe x16(G3). When active, x16 slot operates in x2 mode. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* - M.2_1 (CPU): PCIe 4.0 x4 mode (2242/2260/2280) - M.2_2 (Chipset): PCIe 4.0 x4 mode (2242/2260/2280/22110) - M.2_3 (Chipset): PCIe 4.0 x4 mode (2242/2260/2280) - 4 x SATA 6Gb/s ports (Supports RAID 0/1/5/10) |
| Ethernet | 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2x2, 802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3 |

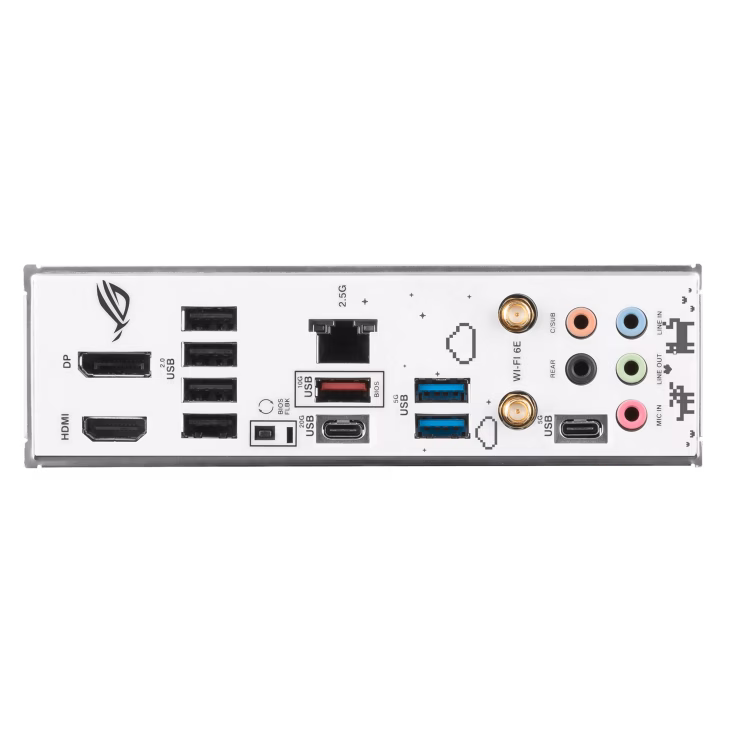

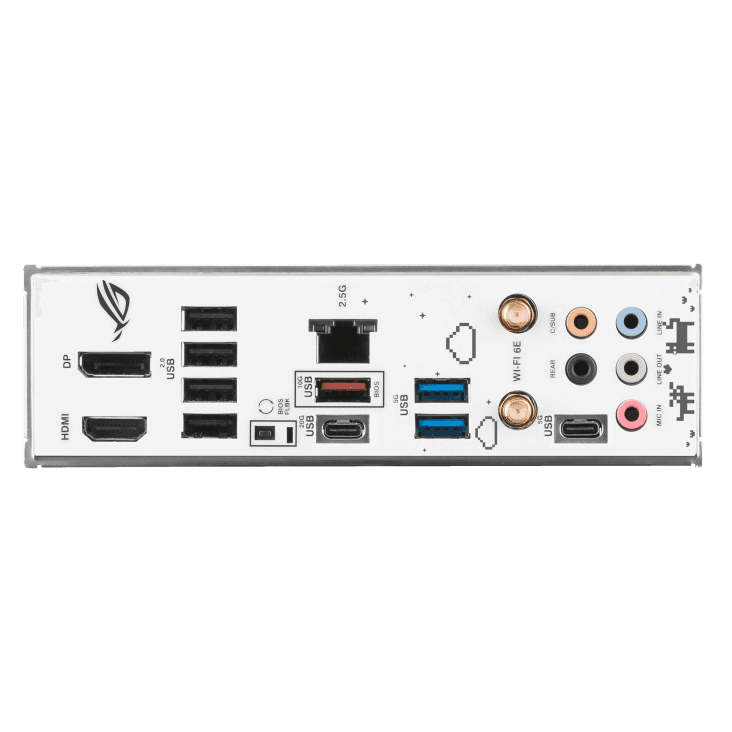

| USB | Rear: 1 x USB 3.2 Gen 2x2 (20G) Type-C®, 1 x USB 3.2 Gen 2 (10G) Type-A, 3 x USB 3.2 Gen 1 (5G) (2x Type-A, 1x Type-C®), 4 x USB 2.0 Front: 1 x USB 3.2 Gen 2 (10G) Type-C®, 1 x USB 3.2 Gen 1 (5G) header (2 ports), 2 x USB 2.0 headers (3 ports total) |
| Audio | ROG SupremeFX 7.1 Surround Sound ALC4080 Savitech SV3H712 AMP, Premium audio capacitors Supports up to 32-Bit/384 kHz playback |
| Special Features | Extreme Engine Digi+, ASUS Q-Design (Q-Release, M.2 Q-Latch, Q-LED, Q-Slot), ASUS Thermal Solution, BIOS FlashBack™, Aura Sync |
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Operating System | Windows® 11, Windows® 10 64-bit |
