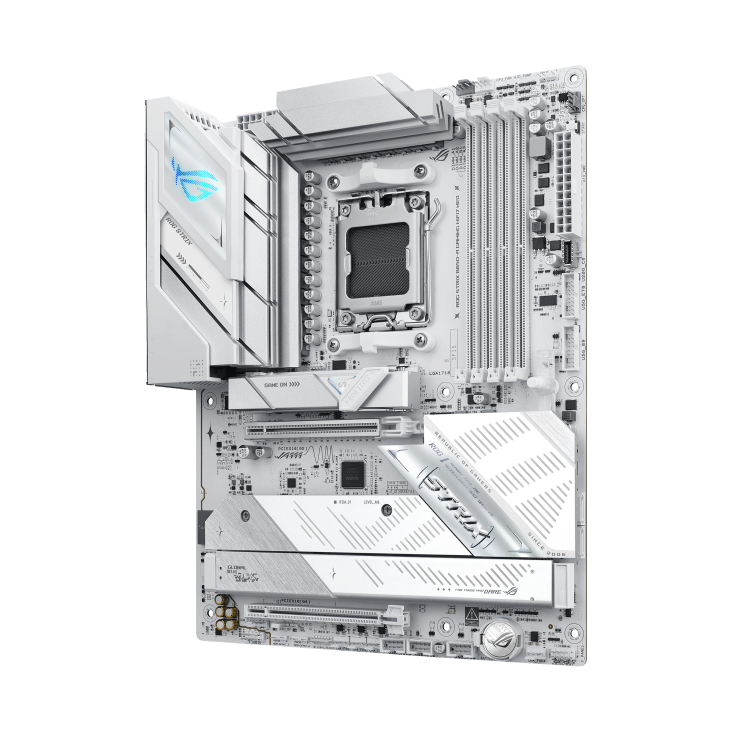

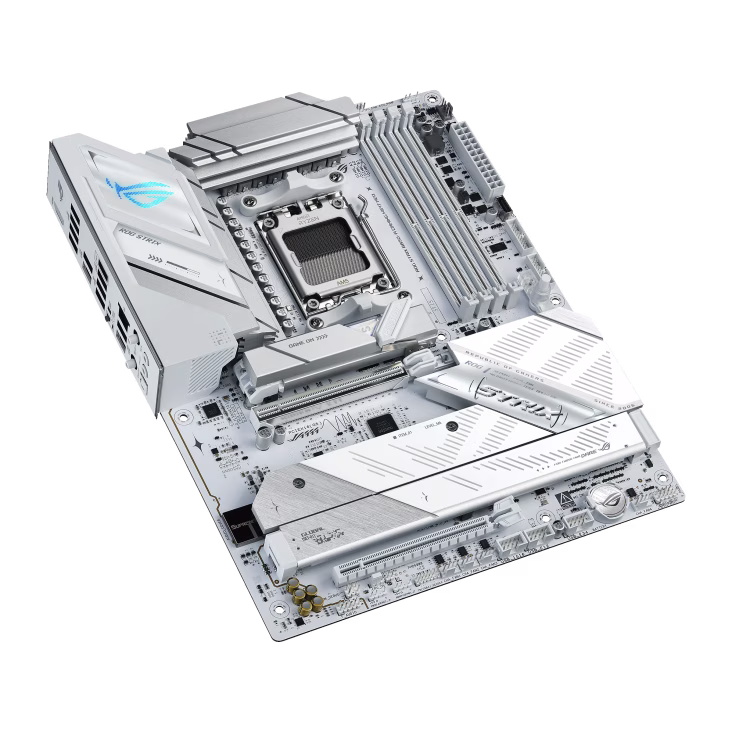

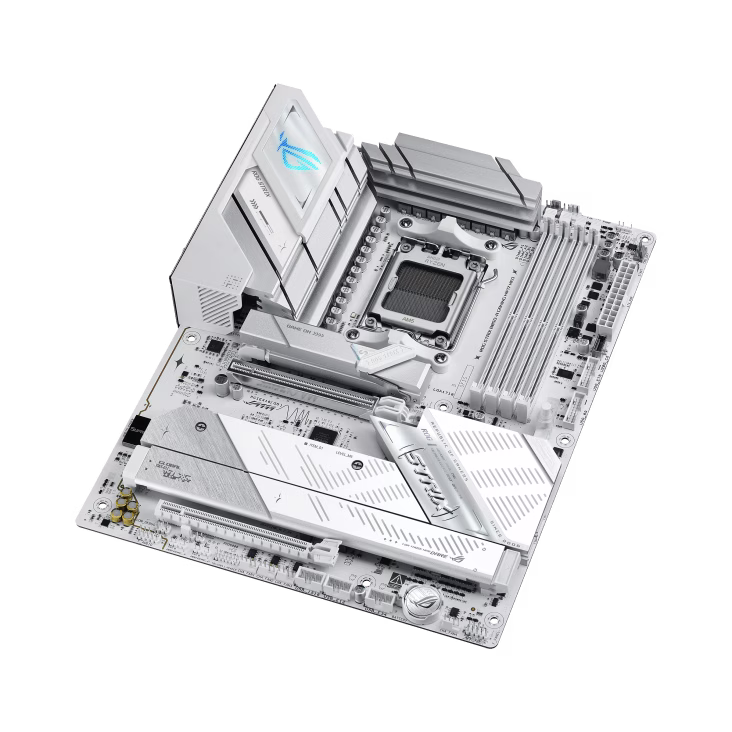

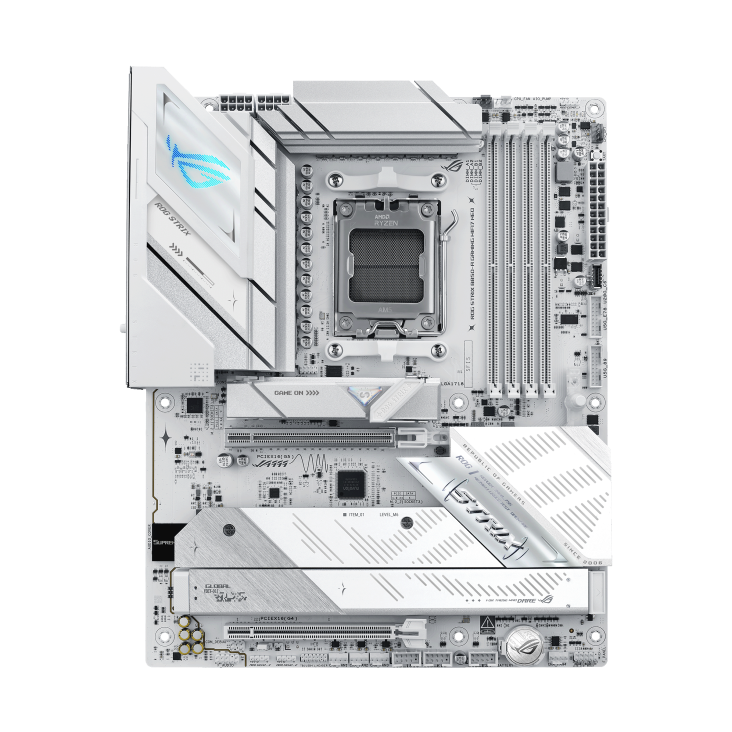

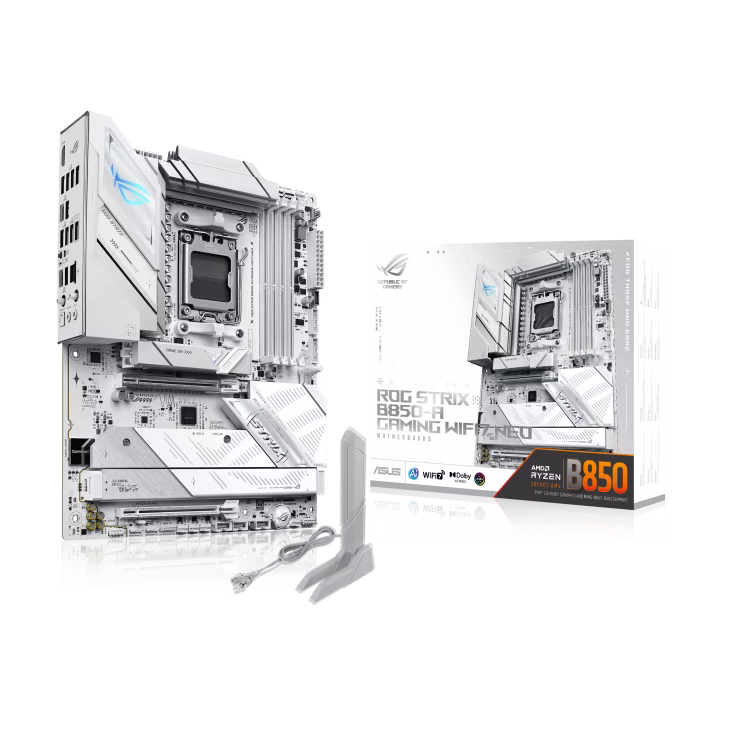

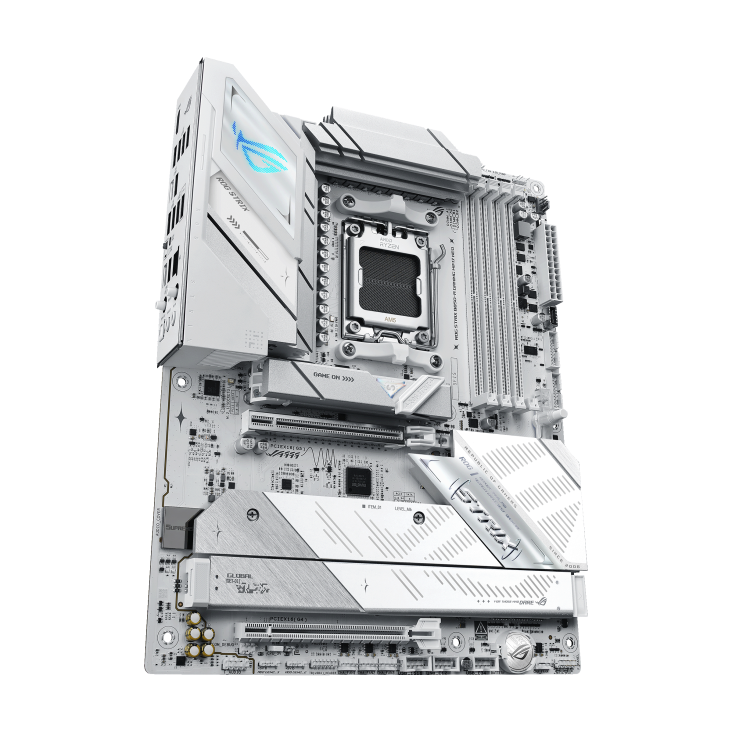

ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD AM5 Gaming Motherboard, Ryzen 9000 Ready, DDR5 8400+, 5Gb LAN, PCIe 5.0 | 90MB1P10-M0EAY0
Model :
SKU : MB-ASUS ROG B850-A NEO W
The ASUS ROG STRIX B850-A GAMING WIFI7 NEO is a high-performance ATX motherboard designed to showcase the power of the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors. Featuring a striking white and silver aesthetic, it delivers next-generation connectivity with Wi-Fi 7 and 5Gb Ethernet, alongside lightning-fast PCIe 5.0 support for both graphics and M.2 storage. Engineered with exclusive ROG overclocking technologies and a robust power solution, it is the perfect foundation for a modern, high-bandwidth gaming or AI-driven PC build.
Description
Step into the future of gaming with the ROG STRIX B850-A GAMING WIFI7 NEO. This motherboard bridges the gap between premium aesthetics and elite performance, offering the AMD AM5 platform a sophisticated, "Neo" white-themed centerpiece. Built with a focus on speed and stability, it supports extreme DDR5 memory overclocking and features the latest AI-enhanced tools from ASUS to ensure your system remains at the cutting edge of 2026 technology.
Key Features
- Next-Gen WiFi 7 & 5Gb Ethernet: Experience revolutionary wireless speeds with Wi-Fi 7, providing 160MHz bandwidth and ultra-low latency. For wired enthusiasts, the Realtek 5Gb Ethernet port offers 5x the speed of traditional Gigabit ports, perfect for high-speed local file transfers and lag-free online gaming.
- PCIe 5.0 Readiness: Future-proof your rig with a primary PCIe 5.0 x16 slot for next-generation GPUs and a dedicated M.2 PCIe 5.0 x4 slot for blistering NVMe storage speeds. With a total of four M.2 slots, your storage expansion options are nearly limitless.
- SupremeFX Audio Excellence: Immerse yourself in superior sound with the ROG SupremeFX ALC4080 codec. Featuring a Savitech SV3H712 amplifier and premium capacitors, it delivers high-fidelity 32-bit/384 kHz playback for an unmatched cinematic experience.
- Elite Memory Performance: Push your memory to the brink with support for DDR5 8400+ MT/s (OC). Utilizing ASUS Enhanced Memory Profile (AEMP) and AMD EXPO™, users can easily fine-tune their RAM for maximum throughput in gaming and AI applications.
- ROG EZ PC DIY Design: Building is simpler than ever with the M.2 Q-Release, PCIe Slot Q-Release, and tool-less M.2 Q-Latch. The pre-mounted I/O shield and the new Q-Antenna for Wi-Fi ensure a frustration-free assembly process.
AI-Enhanced Features: Harness the power of AI Cache Boost to optimize CPU and memory pathways, alongside AI Cooling II, which balances thermals and acoustics with a single click.
Why This Product Stands Out
The "A" series in the ROG Strix lineup is famous for its clean, white-and-silver color palette, and the B850-A GAMING WIFI7 NEO is no exception. It provides the high-end features typically reserved for X-series chipsets—like the Asynchronous Clock generator and BIOS FlashBack™—in a more accessible B850 package. It is the definitive choice for builders who want a visually stunning, high-performance white-themed gaming PC
Specification
ROG STRIX B850-A GAMING WIFI7 NEO – Specifications
General
| Socket | AMD AM5 |
|---|---|
| Chipset | AMD B850 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| BIOS | 64MB UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 & later) |
CPU Support
| Supported Processors | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
|---|
Memory
| Slots | 4 x DDR5 DIMM |
|---|---|
| Maximum Capacity | 256GB |
| Architecture | Dual Channel |
| Supported | ECC & Non-ECC Un-buffered |
| Technologies | EXPO™, AEMP |
| Max Speeds (OC) | Ryzen 9000: 8400+ MT/s Ryzen 8000: 9000+ MT/s Ryzen 7000: 8000+ MT/s |
Graphics (iGPU Required)
| HDMI | 1 x HDMI 2.1 (Up to 4K@60Hz) |
|---|
Expansion Slots
| PCIe 5.0 x16 | Ryzen 9000/7000: PCIe 5.0 x16 Ryzen 8700/8600/8400: PCIe 4.0 x8 Ryzen 8500/8300: PCIe 4.0 x4 |
|---|---|
| PCIe 4.0 x16 (Chipset) | 1 (x4/x2 mode) |
Storage
| Total M.2 Slots | 4 |
|---|---|
| SATA Ports | 2 x SATA 6Gb/s |
| M.2_1 | PCIe 5.0 x4 (9000/7000) PCIe 4.0 x4 (8700/8600/8400/8500/8300) |
| M.2_2 | PCIe 4.0 x4 (Most CPUs) PCIe 4.0 x2 (Ryzen 8500/8300) |
| M.2_3 | PCIe 4.0 x4/x2 (Shared bandwidth) |
| M.2_4 | PCIe 4.0 x4 |
| RAID | RAID 0 / 1 / 5 / 10 (RAIDXpert2) |
Networking
| Ethernet | Realtek® 5Gb |
|---|---|
| Wi-Fi | Wi-Fi 7 (MediaTek MT7925, 2x2, 2.4/5/6GHz) |
| Bluetooth | v5.4 (LE Audio) |
USB Connectivity
| Rear USB (12 Ports) | 4 x USB 10Gbps (2A + 2C) 6 x USB 5Gbps Type-A 2 x USB 2.0 Type-A |
|---|---|
| Front USB (Up to 11) | 1 x USB 20Gbps Type-C 2 x USB 5Gbps headers (4 ports) 3 x USB 2.0 headers (6 ports) |
Audio
| Codec | ROG SupremeFX ALC4080 |
|---|---|
| SNR | 120 dB Playback / 110 dB Recording |
| Max Quality | 32-Bit / 384 kHz (Front Panel) |
| Features | SupremeFX Shielding Savitech SV3H712 AMP Optical S/PDIF Out |

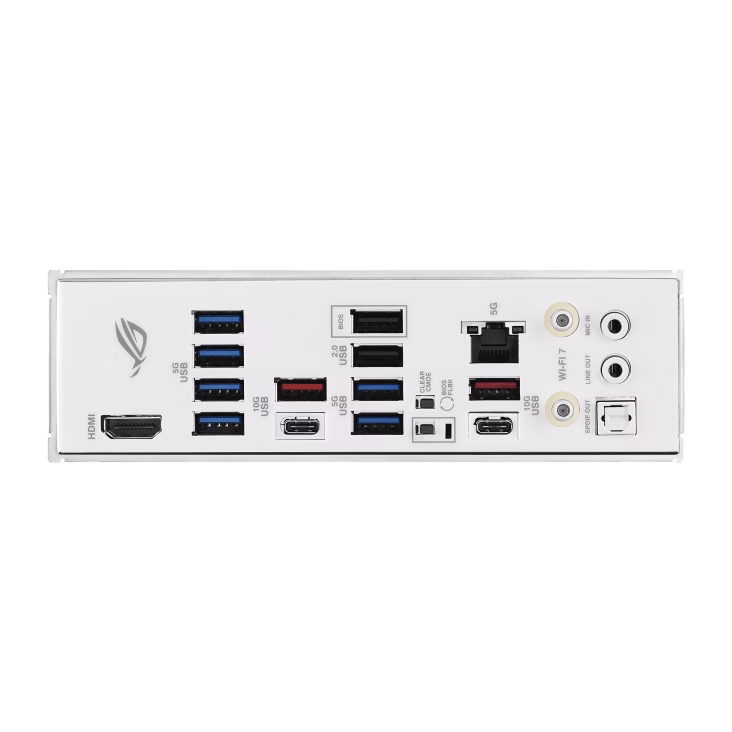

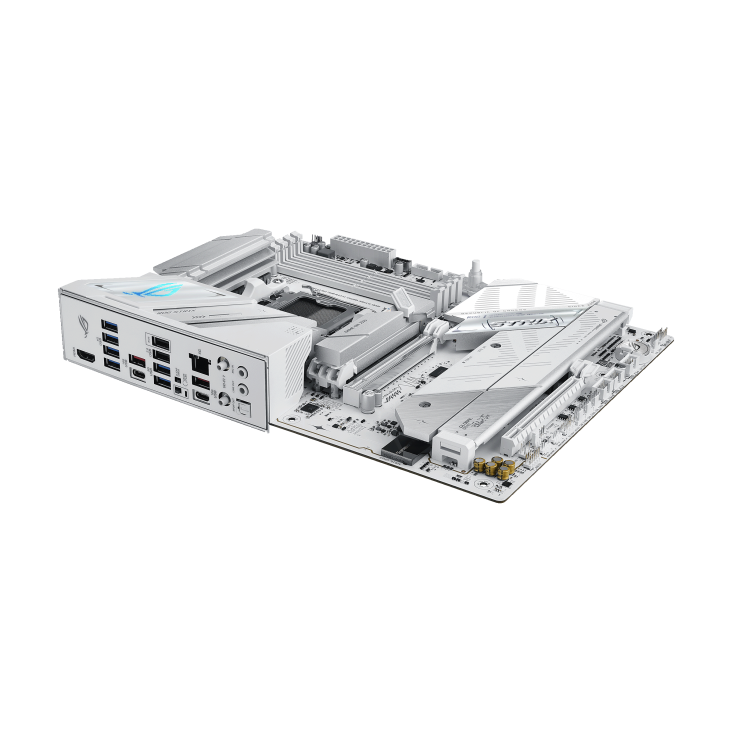

Back Panel I/O
| 4 x USB 10Gbps (2A + 2C) 6 x USB 5Gbps 2 x USB 2.0 1 x HDMI 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet 2 x Audio Jacks 1 x Optical S/PDIF 1 x BIOS FlashBack™ 1 x Clear CMOS |
Internal Connectors
| CPU Power | 2 x 8-pin +12V |
|---|---|
| Main Power | 24-pin ATX |
| Fan Headers | CPU, CPU OPT, AIO, 4 x Chassis |
| RGB | 3 x Addressable RGB Gen 2 |
| Other | Start Button, Thunderbolt Header, CPU OV Jumper, Front Panel Audio |
Special Features
| Extreme Engine Digi+ 5K Black Metallic Capacitors M.2 Q-Latch / Q-Release / Q-Slide PCIe Slot Q-Release SafeSlot Pre-mounted I/O Shield Aura Sync RGB |
Software
| ROG CPU-Z Dolby Atmos Armoury Crate GameFirst AIDA64 Extreme (60-day trial) AI Overclocking Guide AI Cache Boost |

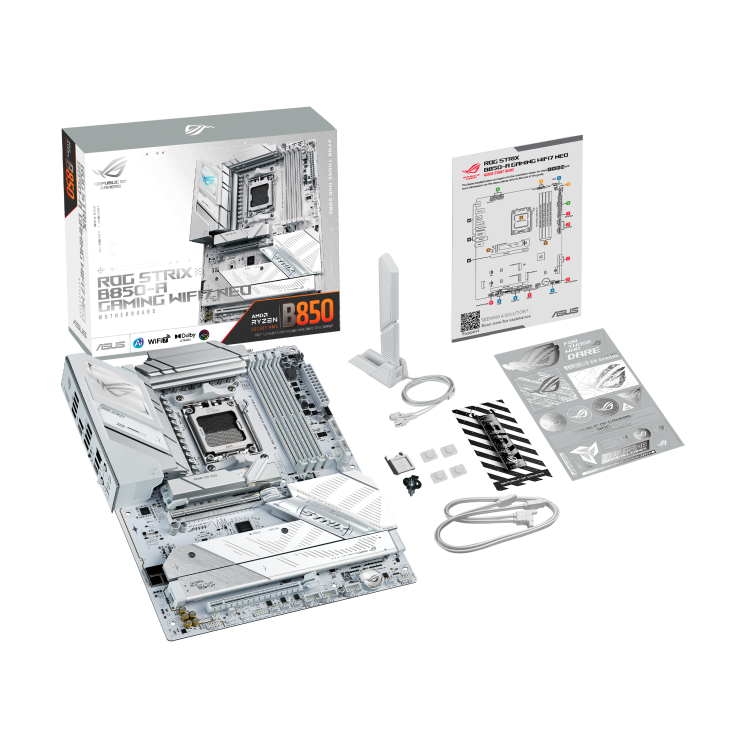

Accessories
| 2 x SATA Cables ASUS WiFi Q-Antenna M.2 Q-Latch Package M.2 Q-Slide Package ROG Key Chain ROG Strix Stickers 4 x M.2 Rubbers Quick Start Guide |
