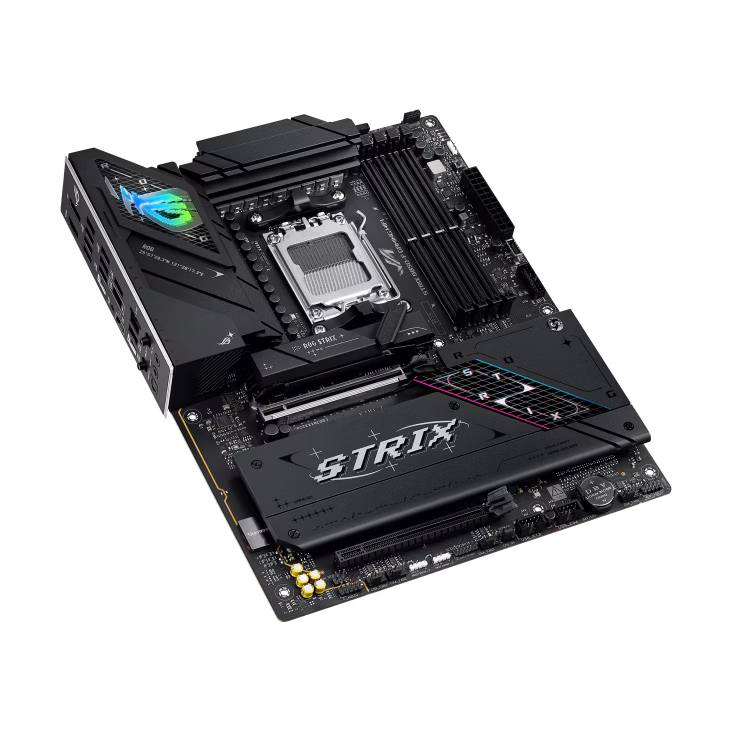

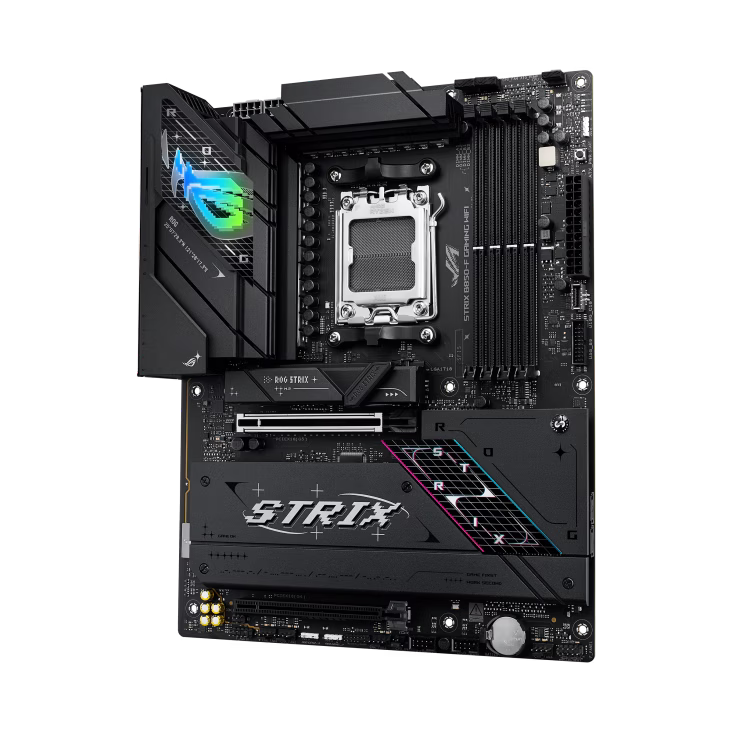

ASUS ROG Strix B850-F Gaming WiFi, AMD ATX Motherboard, 16+2+2 Power Stages, DDR5 Slot, PCIe 5.0 with Q-Release Slot, 4 M.2 Slots, WiFi 7 with WiFi Q-Antenna, AI Advisor, AI Networking II | 90MB1J70-M0EAY0
Model :
SKU : MB-ASUS ROG B850-F GAM WI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
ASUS ROG Strix B850-F Gaming WiFi, AMD ATX Motherboard, 16+2+2 Power Stages, DDR5 Slot, PCIe 5.0 with Q-Release Slot, 4 M.2 Slots, WiFi 7 with WiFi Q-Antenna, AI Advisor, AI Networking II | 90MB1J70-M0EAY0 Specifications
| Model | ROG STRIX B850-F GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen??? 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen??? 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO???) ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 1 x DisplayPort* 1 x HDMI??? port** |
| Expansion Slots | 1 x PCIe 5.0 x16 slot with Q-Release Slim 1 x PCIe 4.0 x16 slot (supports x4 mode)** |
| Storage | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports Supports PCIe 5.0 x4, PCIe 4.0 x4, and PCIe 4.0 x4 modes for different CPU types |
| Ethernet | 1 x Intel?? 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be) up to 2.9Gbps Bluetooth?? v5.4*** |
| USB | Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C??) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C??) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C??) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports up to 32-Bit/384 kHz playback on front panel Supports rear optical S/PDIF out port |
| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C??) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C??) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI??? port 1 x Wi-Fi module 1 x Intel?? 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack??? button 1 x Clear CMOS button |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 4 x 4-pin Chassis Fan headers 1 x USB 10Gbps connector (supports USB Type-C??) 1 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x Thunderbolt??? (USB4??) header |
| Special Features | Extreme Engine Digi+ ASUS Q-Design: M.2 Q-Latch, Q-Release, Q-Slide, SafeSlot, SafeDIMM, Aura Sync ASUS Thermal Solution: M.2 heatsink, ProCool, Pre-mounted I/O shield ROG Exclusive Software: ROG CPU-Z, Dolby Atmos, Armoury Crate, Aura Sync, Fan Xpert 4 |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
ASUS ROG Strix B850-F Gaming WiFi, AMD ATX Motherboard, 16+2+2 Power Stages, DDR5 Slot, PCIe 5.0 with Q-Release Slot, 4 M.2 Slots, WiFi 7 with WiFi Q-Antenna, AI Advisor, AI Networking II | 90MB1J70-M0EAY0 Specifications
| Model | ROG STRIX B850-F GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen??? 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen??? 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO???) ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 1 x DisplayPort* 1 x HDMI??? port** |
| Expansion Slots | 1 x PCIe 5.0 x16 slot with Q-Release Slim 1 x PCIe 4.0 x16 slot (supports x4 mode)** |
| Storage | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports Supports PCIe 5.0 x4, PCIe 4.0 x4, and PCIe 4.0 x4 modes for different CPU types |
| Ethernet | 1 x Intel?? 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be) up to 2.9Gbps Bluetooth?? v5.4*** |
| USB | Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C??) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C??) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C??) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports up to 32-Bit/384 kHz playback on front panel Supports rear optical S/PDIF out port |
| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C??) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C??) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI??? port 1 x Wi-Fi module 1 x Intel?? 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack??? button 1 x Clear CMOS button |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 4 x 4-pin Chassis Fan headers 1 x USB 10Gbps connector (supports USB Type-C??) 1 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x Thunderbolt??? (USB4??) header |
| Special Features | Extreme Engine Digi+ ASUS Q-Design: M.2 Q-Latch, Q-Release, Q-Slide, SafeSlot, SafeDIMM, Aura Sync ASUS Thermal Solution: M.2 heatsink, ProCool, Pre-mounted I/O shield ROG Exclusive Software: ROG CPU-Z, Dolby Atmos, Armoury Crate, Aura Sync, Fan Xpert 4 |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
