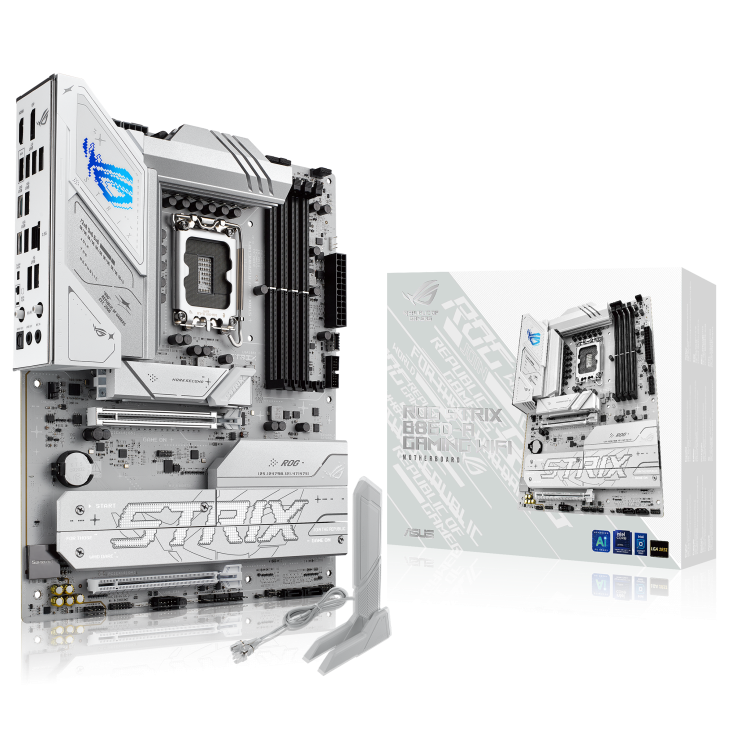

ASUS ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard, 4x DIMM slots, max. 256GB, DDR5, 4x M.2 slots and 4x SATA 6Gb/s ports, Wi-Fi 7, PCIe 5.0, USB4 (20Gbps) port, White | 90MB1JI0-M0EAY0
Model :
SKU : MB-ASUS ROG B860-A GAM WI
About this item
About this item
Description
With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.
Specification
| CPU Support | Intel?? Core??? Ultra Processors (Series 2) - Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0 |
| Chipset | Intel?? B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, Supports up to 8600+MT/s (OC), Non-ECC Un-buffered, Dual channel memory architecture |
| DIMM Fit | Supports Intel?? Extreme Memory Profile (XMP) memory module and ASUS Enhanced Memory Profile III(AEMPIII) |
| Graphics | 1 x DisplayPort, 1 x HDMI??? port, 1 x USB4?? (20Gbps) port (supports USB Type-C?? display outputs) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), M.2_4 shares bandwidth with PCIEX16(G4) |
| Storage | 4 x M.2 slots and 4 x SATA 6Gb/s ports, Intel?? Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Ethernet | 1 x Intel?? 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2x2 Wi-Fi 7, up to 2.9Gbps transfer rate, Bluetooth?? v5.4 |
| USB | Rear: 1 x USB4?? (20Gbps) port, 3 x USB 10Gbps ports, 2 x USB 5Gbps ports, 4 x USB 2.0 ports; Front: 1 x USB 10Gbps connector, 1 x USB 5Gbps header, 1 x USB 2.0 header |
| Audio | Realtek ALC1220P 7.1 Surround Sound, High Definition Audio CODEC, 120 dB SNR stereo playback output |
| Back Panel I/O Ports | 1 x USB4?? (20Gbps) port, 3 x USB 10Gbps ports, 2 x USB 5Gbps ports, 4 x USB 2.0 ports, 1 x DisplayPort, 1 x HDMI??? port, 1 x Intel?? 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports |
| Special Features | Extreme Engine Digi+, ASUS Q-Design, Aura Sync, M.2 heatsink, VRM heatsink design |
| Software Features | ROG CPU-Z, Armoury Crate, AIDA64 Extreme (60 days free trial), TurboV Core, Norton 360 for Gamers (60 Days Free Trial) |
| UEFI BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS MyHotkey |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch, 1 x M.2 Q-Slide, 1 x ROG key chain |
| Documentation | 1 x Quick start guide |
