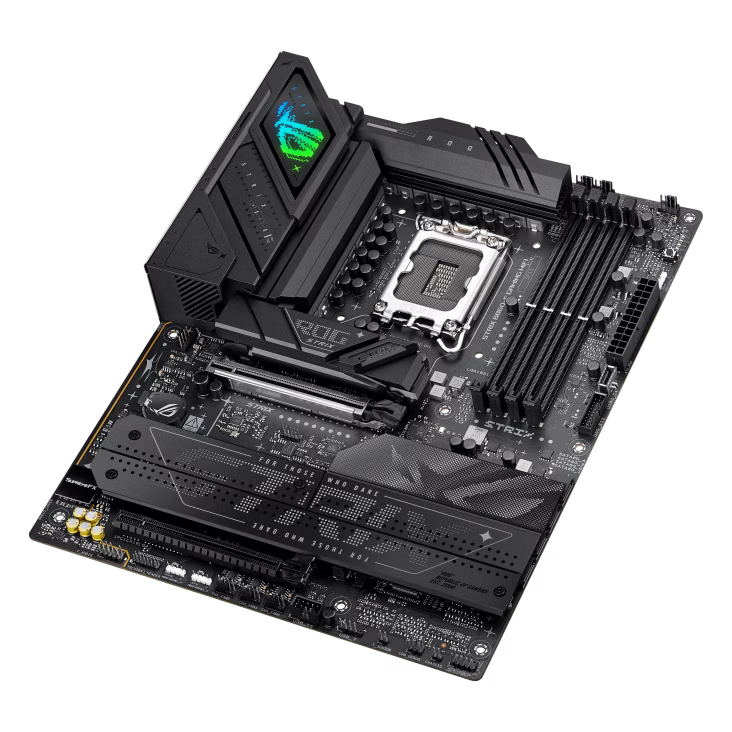

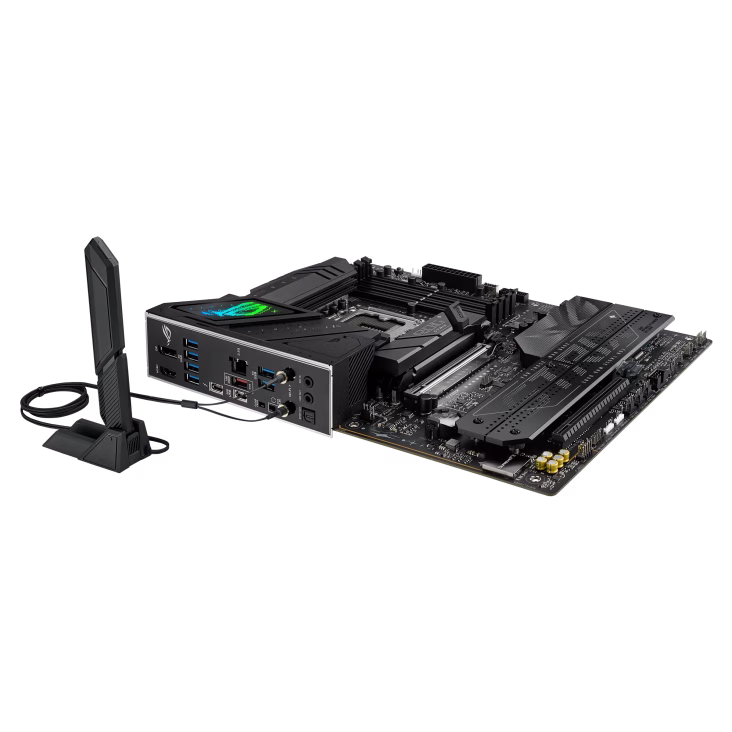

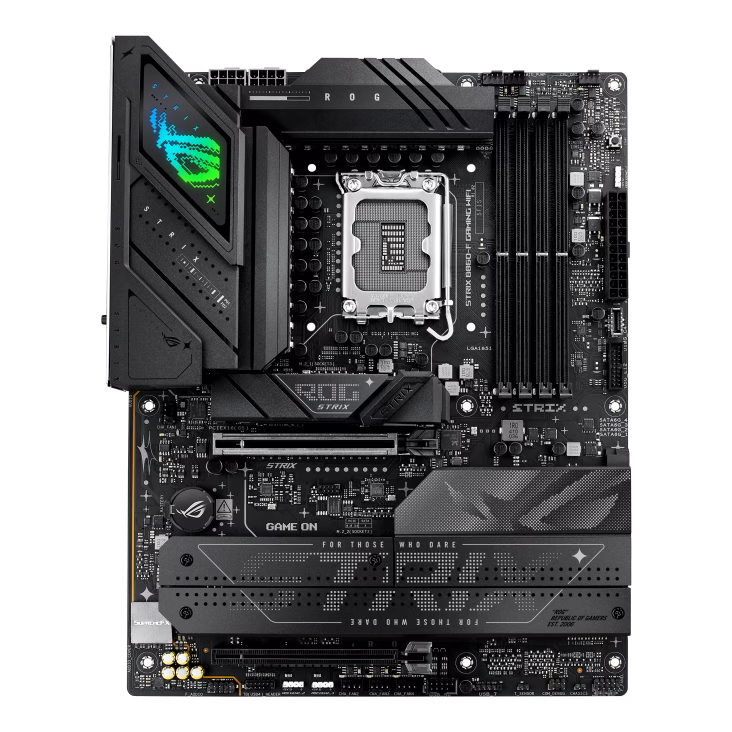

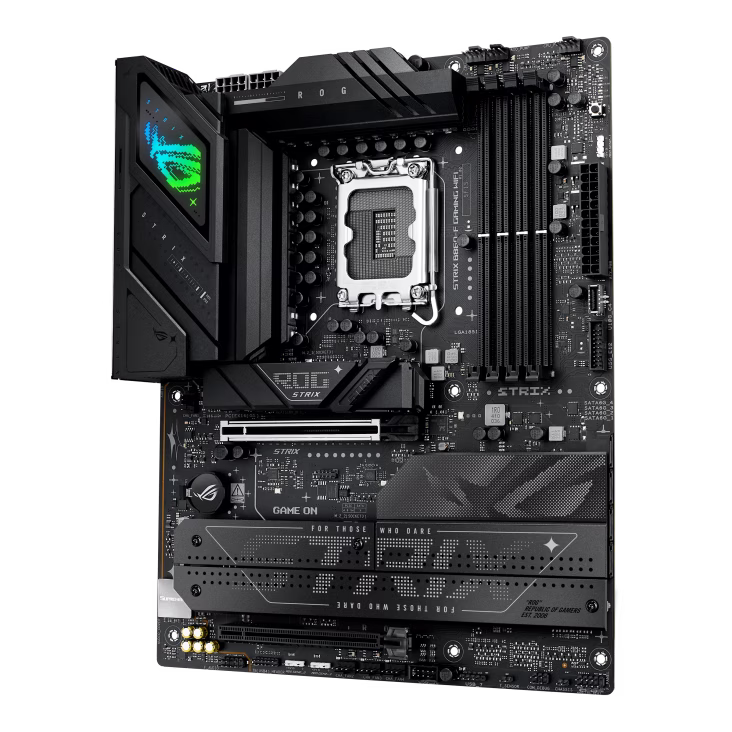

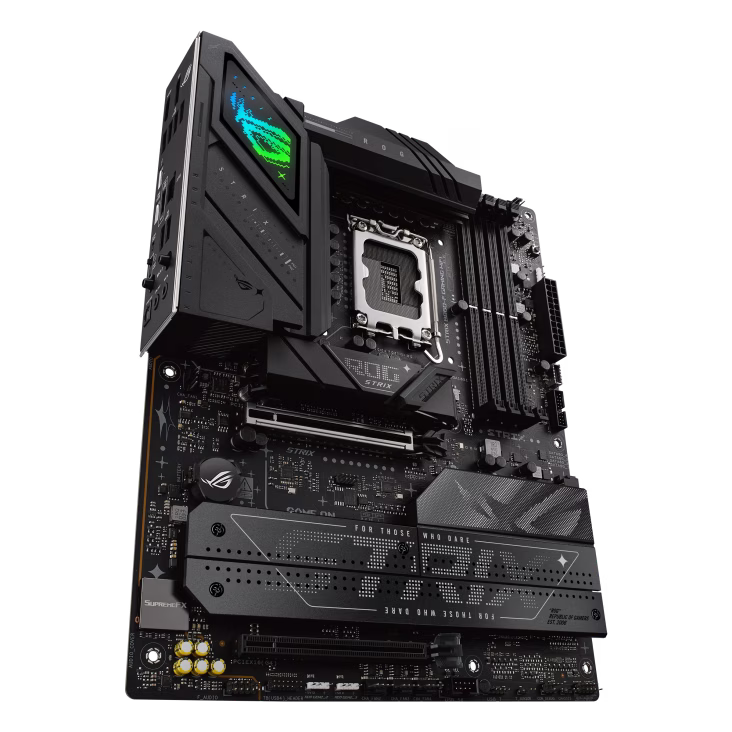

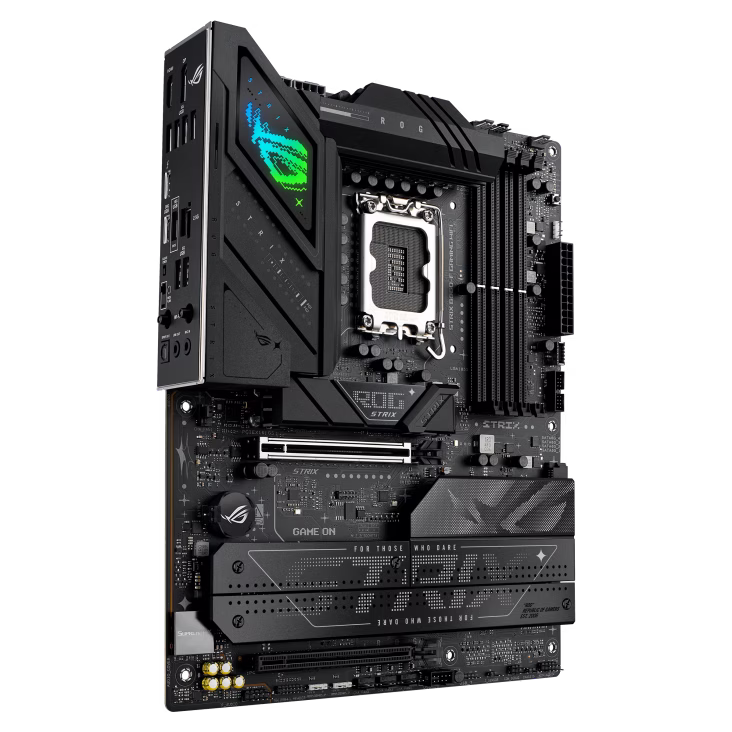

ASUS ROG STRIX B860-F GAMING WIFI LGA1851 ATX Motherboard, 4x DIMM slots, max. 256GB, DDR5, Thunderbolt 4, WIFI 7, AI Networking II, M.2 Heatsinks, 4-PIN Fan Headers | 90MB1JG0-M0EAY0
Model :
SKU : MB-ASUS ROG B860-F GAM WI
About this item
About this item
Description
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
Specification
| Model | ROG STRIX B860-F GAMING WIFI |
| CPU Support | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2) Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 *Refer to ASUS Support for CPU support list. |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel architecture Supports Intel® XMP & ASUS AEMP III Non-ECC DDR5 supports On-Die ECC |
| Graphics | 1 × DisplayPort (max. 8K@60Hz with DSC) 1 × HDMI™ port (max. 8K@60Hz with DSC) 1 × Intel® Thunderbolt™ 4 (USB-C) with DisplayPort & Thunderbolt™ video outputs |
| Expansion Slots | 1 × PCIe 5.0 x16 slot (CPU) 1 × PCIe 4.0 x16 slot (Chipset, x4 mode) |
| Storage | 4 × M.2 slots 4 × SATA 6Gb/s ports M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x4 (2280/22110) M.2_4: PCIe 4.0 x4 (shared with PCIEX16(G4)) Supports Intel® RST RAID 0/1/5/10 |
| Networking | Intel® 2.5Gb Ethernet with ASUS LANGuard Wi-Fi 7 (2×2, 2.4/5/6GHz, 160MHz, up to 2.9Gbps) Bluetooth® v5.4 |
| USB Ports | Rear (9) • 1 × Thunderbolt™ 4 (USB-C) • 1 × USB 20Gbps (USB-C) • 1 × USB 10Gbps (Type-A) • 6 × USB 5Gbps (Type-A) Front (6) • 1 × USB 10Gbps (USB-C) • 1 × USB 5Gbps header (2 ports) • 2 × USB 2.0 headers (3 ports) |
| Audio | ROG SupremeFX 7.1 Surround Sound ALC4080 Impedance sense (front & rear), Jack detection, Multi-streaming 120 dB SNR playback / 110 dB SNR recording 32-Bit / 384 kHz playback (front panel) Savitech SV3H712 AMP, S/PDIF out, premium audio capacitors |
| Back Panel I/O | • 1 × Thunderbolt™ 4 (USB-C) • 1 × USB 20Gbps (USB-C) • 1 × USB 10Gbps (Type-A) • 6 × USB 5Gbps (Type-A) • 1 × DisplayPort • 1 × HDMI™ • 1 × Intel® 2.5Gb LAN • Wi-Fi module • 2 × Audio jacks + 1 × Optical S/PDIF • BIOS FlashBack™ & Clear CMOS buttons |
| Internal I/O | • CPU Fan, CPU OPT, AIO Pump, 4× Chassis Fan • 24-pin ATX + 2× 8-pin CPU power • 4× M.2, 4× SATA • USB 10Gbps (Type-C), USB 5Gbps header, 2× USB 2.0 headers • Addressable Gen2, Chassis Intrusion, Start button, Thermal Sensor, Thunderbolt™ header |
| Special Features | ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-LED, etc.) Extreme Engine Digi+ (5K Black capacitors) ASUS Thermal Solution (VRM & M.2 heatsinks) ASUS EZ DIY (BIOS FlashBack™, Clear CMOS, SafeSlot, SafeDIMM) Aura Sync RGB (Addressable Gen2 headers) |
| Software | Armoury Crate, Aura Sync, Fan Xpert 4, GameFirst, Power Saving ROG CPU-Z, Dolby Atmos, HWiNFO, AIDA64 (60-day trial), TurboV Core Norton 360 (60-day), WinRAR (40-day), Adobe Creative Cloud trial |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS ASUS CrashFree BIOS 3, EZ Flash, UEFI EZ Mode, MyHotkey, NPU Boost |

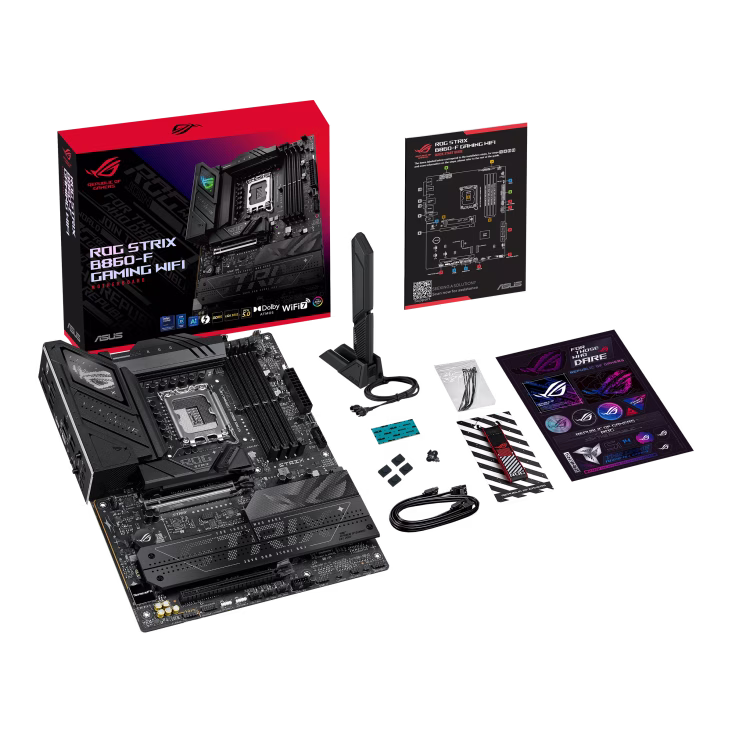

| Accessories | 2 × SATA 6Gb/s cables ASUS WiFi Q-Antenna, Cable ties M.2 Q-Latch & Q-Slide kits ROG keychain, Strix stickers, M.2 rubbers Quick start guide |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | ATX — 12 in × 9.6 in (30.5 × 24.4 cm) |
