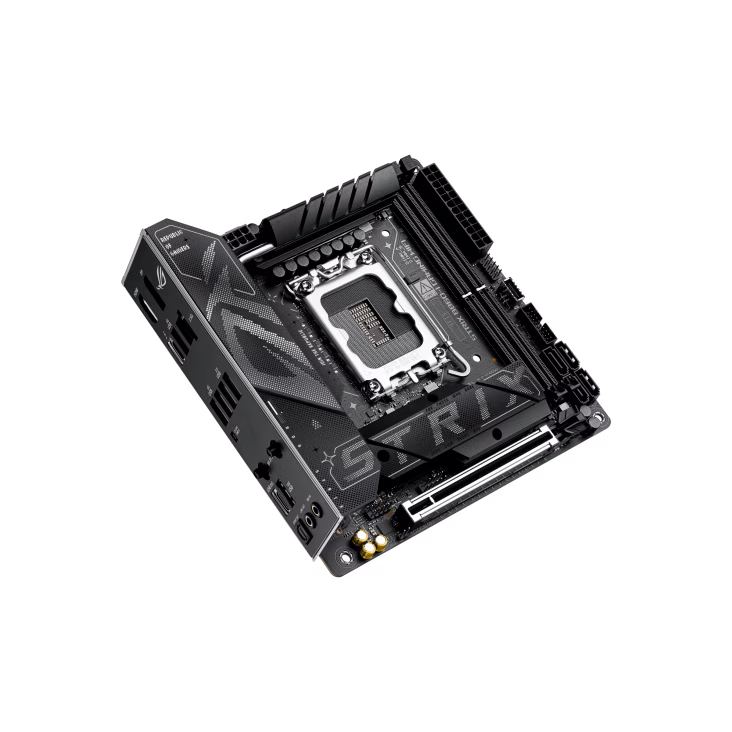

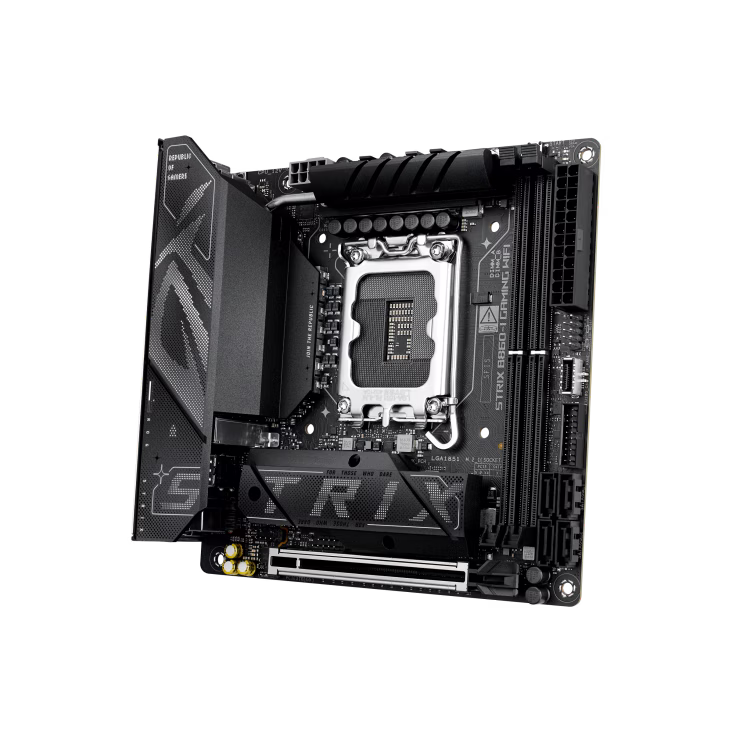

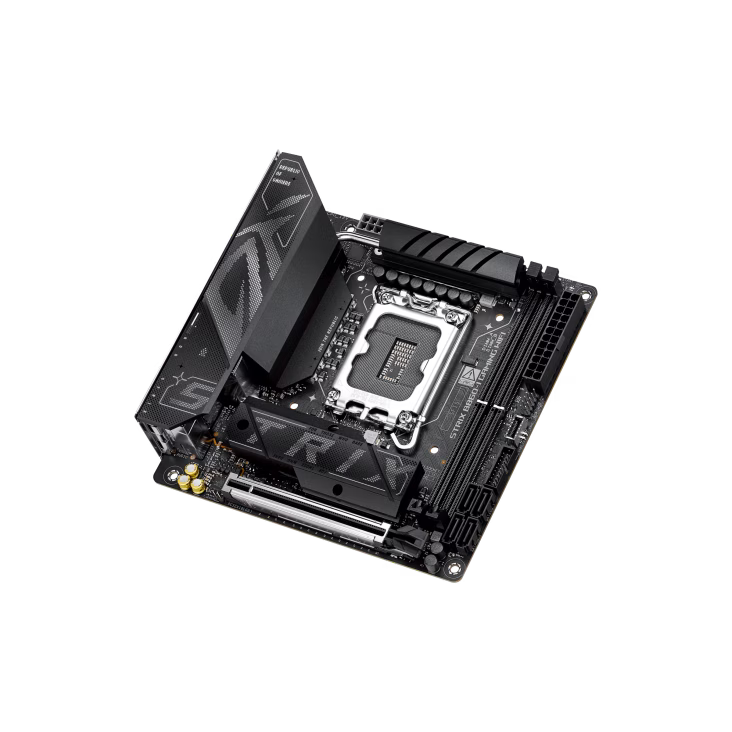

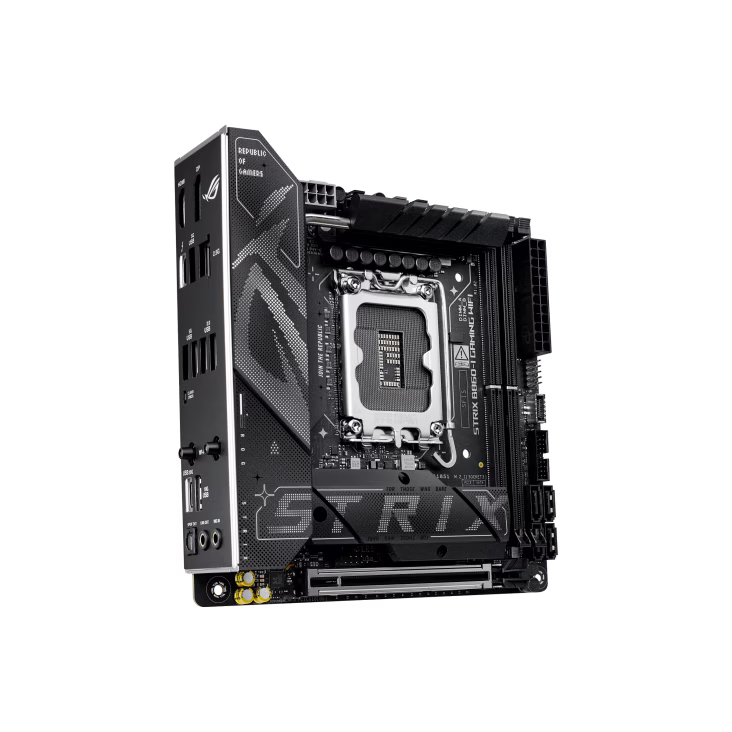

ASUS ROG STRIX B860-I GAMING WIFI DDR5 Motherboard, B860 Chipset, 2x DIMM slots, max.128GB up to 9066+MT/s (OC), Non-ECC, 2 x M.2 slots and 4 x SATA 6Gb/s ports, Wi-Fi 7 & BT v5.4, Realtek ALC1220P 7.1, Extreme Engine Digi+ | 90MB1JB0-M0EAY0
Model :
SKU : MB-ASUS ROG B860-I GAM WI
About this item
About this item
Description
UNDENIABLY ROG STRIX

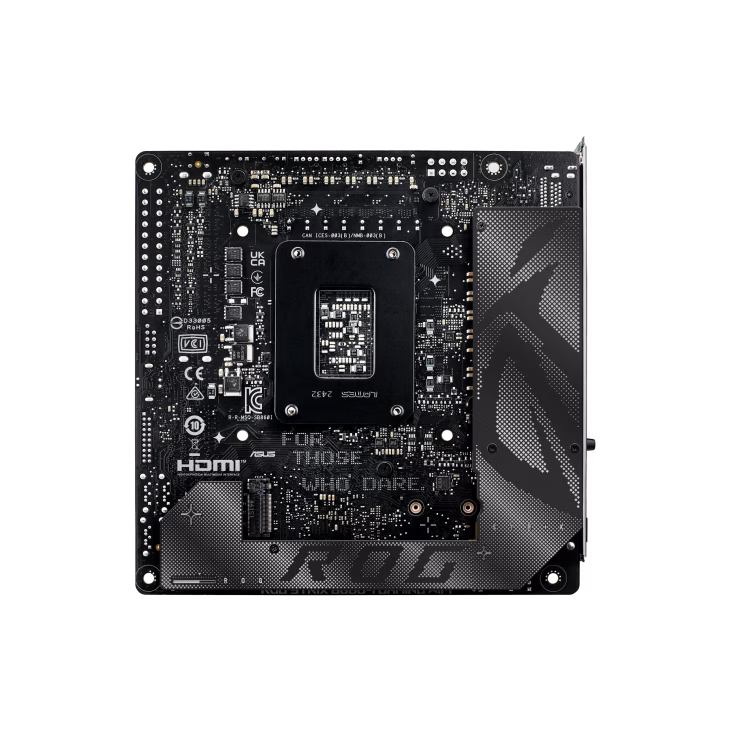

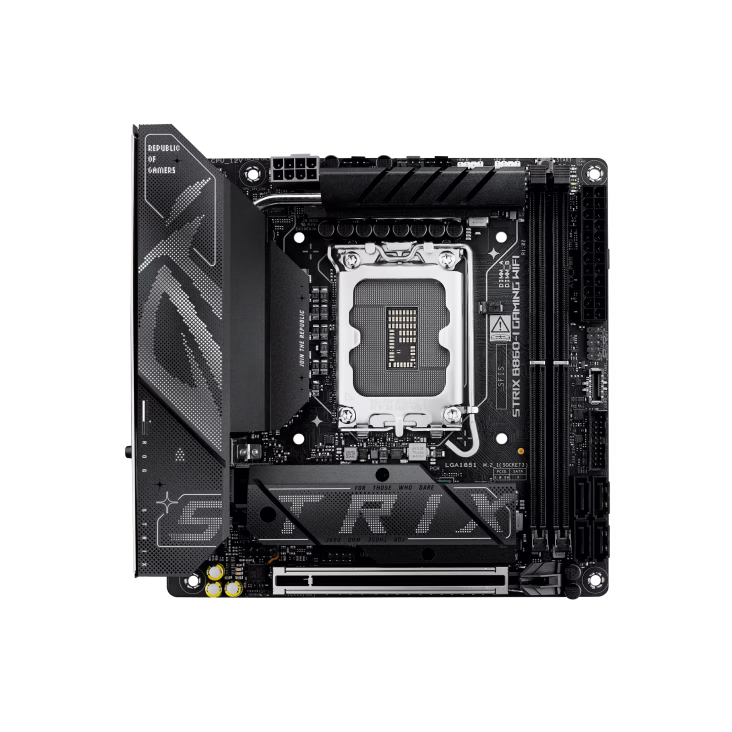

The ROG Strix B860-I features a sleek, minimalist design that blends effortlessly with various system components. Its deep black PCB and metallic heatsinks give it a bold, intense look, while the L-shaped backplate adds both style and practical protection against sharp edges.
Specification
| Model | ROG STRIX B860-I GAMING WIFI |
| CPU | Support Intel?? Core??? Ultra Processors (Series 2)* Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel?? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel?? B860 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9066+MT/s (OC), Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel?? Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
| Graphics | 1 x DisplayPort** 1 x HDMI??? port*** 1 x Intel?? Thunderbolt??? 4 supports DisplayPort and Thunderbolt??? video outputs**** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. |
| Expansion Slots | Intel?? Core??? Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel?? Core??? Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel?? Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Intel?? 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth?? v5.4*** *Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, no driver is available, please refer to the Wi-Fi chipset vendor's website for details. |
| USB | Rear USB (Total 8 ports) 1 x Thunderbolt??? 4 port (1 x USB Type-C??) 1 x USB 20Gbps port (1 x USB Type-C??) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C??) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphones and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* |

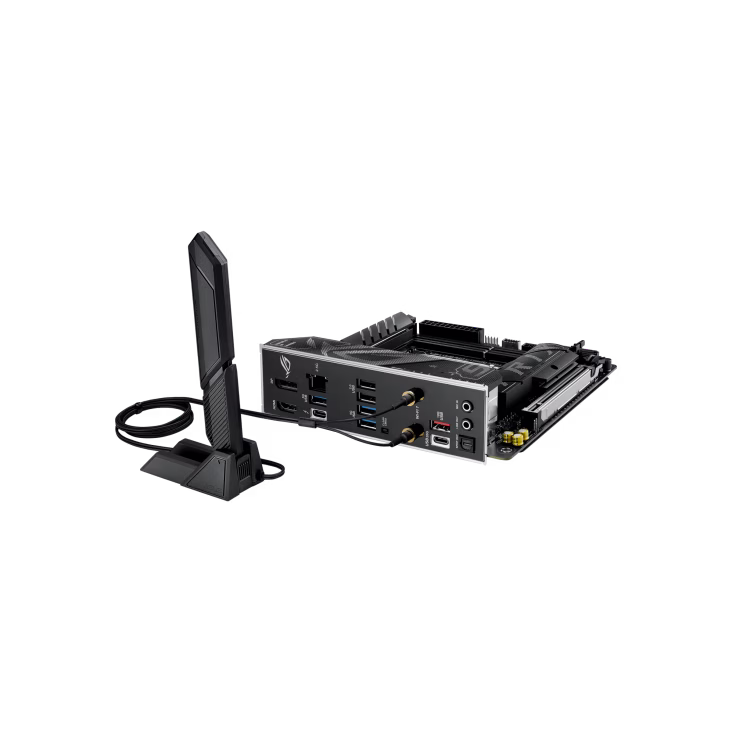

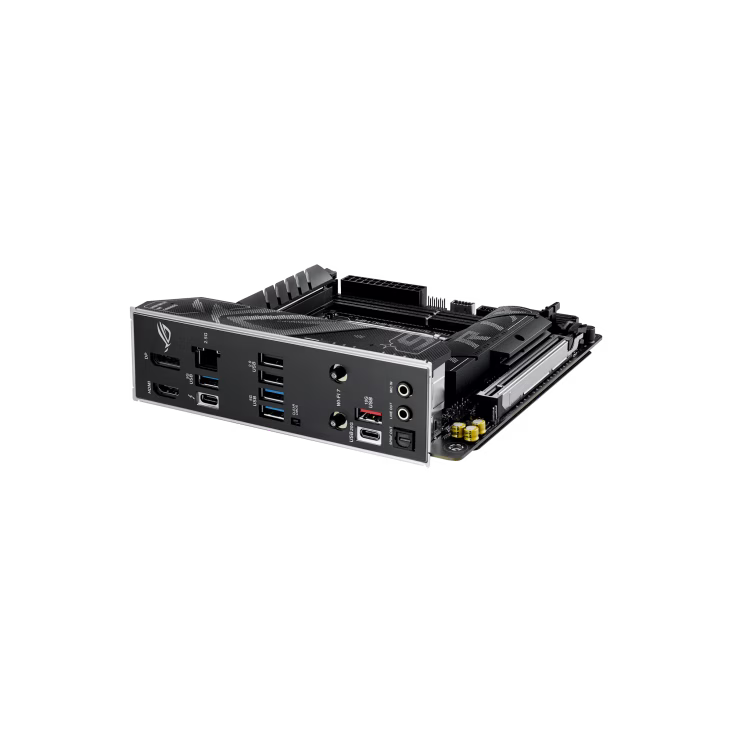

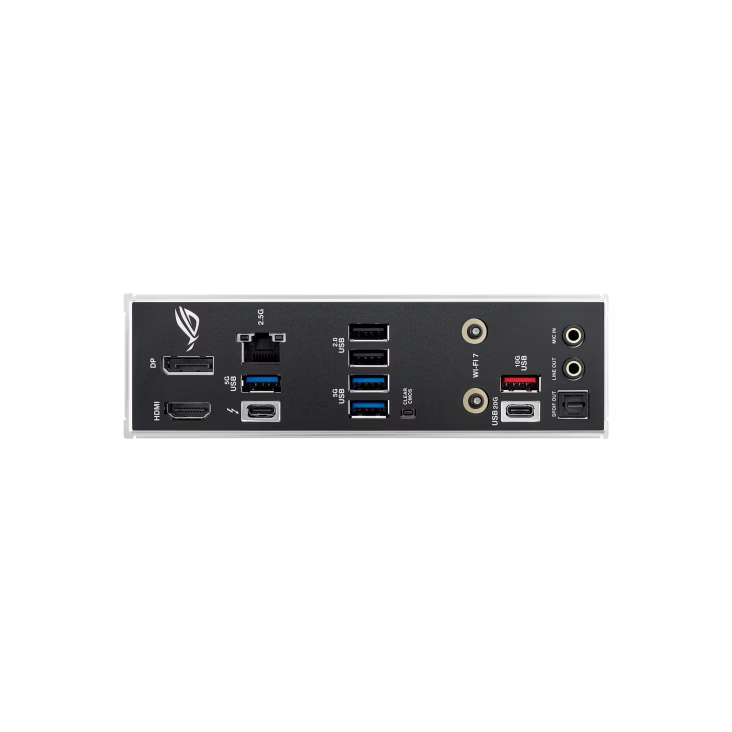

| Back Panel I/O Ports | 1 x Thunderbolt??? 4 port (1 x USB Type-C??) 1 x USB 20Gbps port (1 x USB Type-C??) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI??? port 1 x Wi-Fi module 1 x Intel?? 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C??) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Special Features | Extreme Engine Digi+ ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync ROG Exclusive Software ASUS Exclusive Software UEFI BIOS Manageability |
| Accessories | Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x Screw package for M.2 SSD 1 x M.2 Bracket 1 x ROG key chain 1 x ROG Strix stickers Documentation 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm) |
