Home/PC Components/Motherboards/ASUS ROG STRIX X870-A GAMING WIFI AM5 DDR5 Motherb...

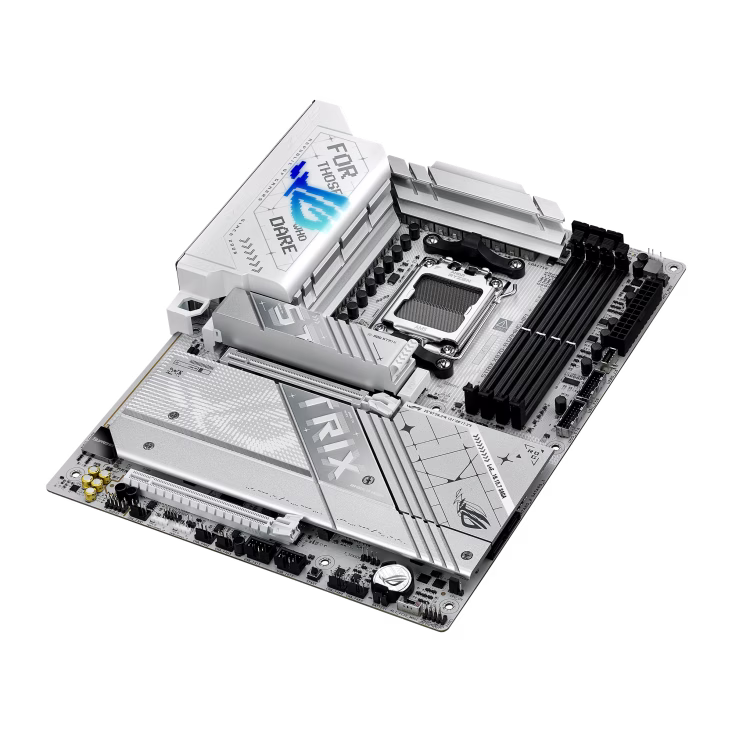

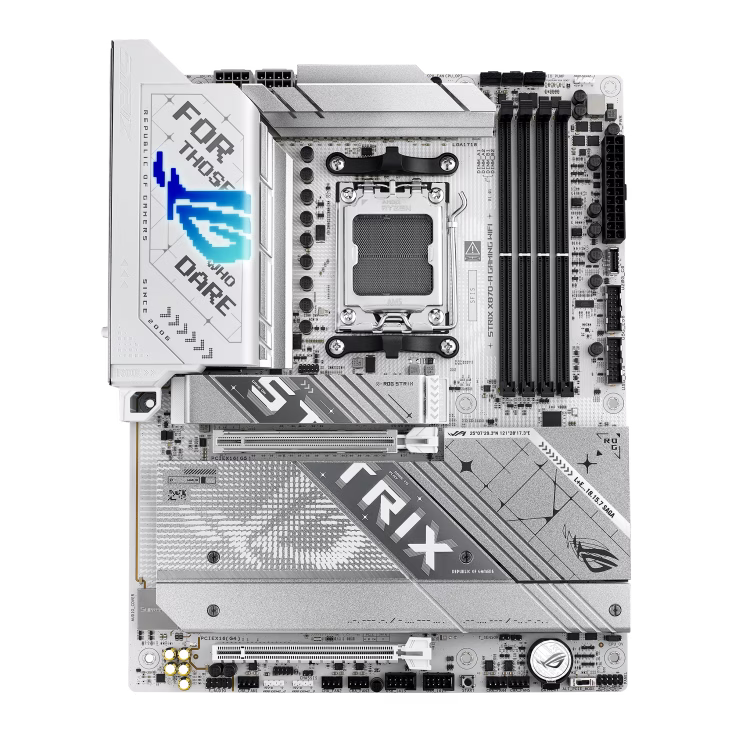

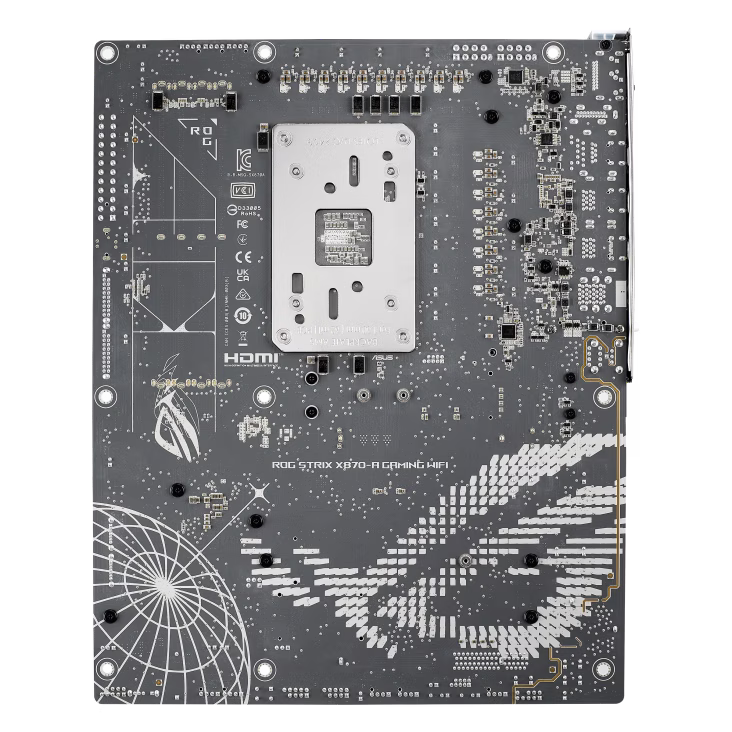

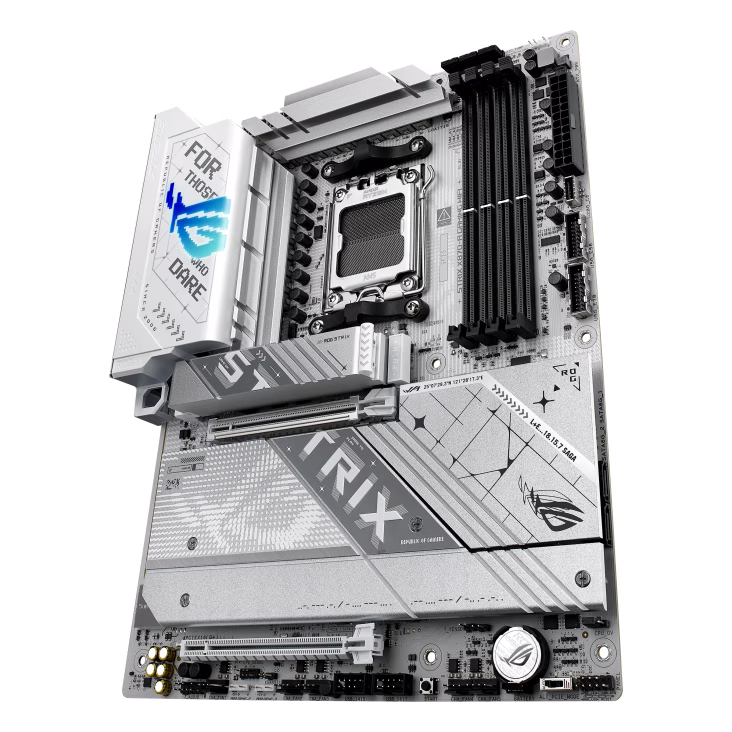

ASUS ROG STRIX X870-A GAMING WIFI AM5 DDR5 Motherboard, 4x DIMM slots, max. 192GB, 4x M.2 and 2x SATA, PCIe 5.0, Wi-Fi 7, 2.5Gb Ethernet, AI Solution | 90MB1IF0-M0EAY0
Model :
SKU : MB-ASUS ROG X870-A GAM WI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
CPU
| Socket | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
|---|
Chipset
| Chipset | AMD X870 |
|---|
Memory
| Slots & Capacity | 4 x DIMM slots, max. 256GB DDR5 |
|---|---|
| Speed | Supports up to 8000+MT/s (OC) |
| Type | ECC & Non-ECC, Un-buffered |
| Architecture | Dual channel, AMD EXPO™, ASUS AEMP |
Graphics
| Display Ports | 1 x DisplayPort (max. 8K@30Hz), 1 x HDMI™ (max. 4K@60Hz), 2 x USB4® Type-C® with DP Alt mode |
|---|
Expansion Slots
| Ryzen™ 9000 & 7000 | 1 x PCIe 5.0 x16 slot |
|---|---|
| Ryzen™ 8000 | 1 x PCIe 4.0 x16 slot (x8/x4) |
| Chipset | 1 x PCIe 4.0 x16 slot (x4) |
Storage
| M.2 Slots | 4 x M.2 (PCIe 5.0/4.0 modes depending on CPU) |
|---|---|
| SATA Ports | 2 x SATA 6Gb/s |
| RAID | AMD RAIDXpert2 Technology (RAID 0/1/5/10) |
Ethernet
| LAN | 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard |
|---|
Wireless & Bluetooth
| Wi-Fi | Wi-Fi 7 (802.11be), 2x2, 2.4/5/6GHz, up to 2.9Gbps |
|---|---|
| Bluetooth | Bluetooth® v5.4 |
USB
| Rear | 2 x USB4 (Type-C), 6 x USB 10Gbps (5 x Type-A + 1 x Type-C), 4 x USB 5Gbps (Type-A) |
|---|---|
| Front | 1 x USB 20Gbps (Type-C), 4 x USB 5Gbps, 4 x USB 2.0 |
Audio
| Chipset | ROG SupremeFX 7.1 ALC4080 |
|---|---|
| Features | 120 dB SNR playback, Savitech AMP, S/PDIF out, premium capacitors |

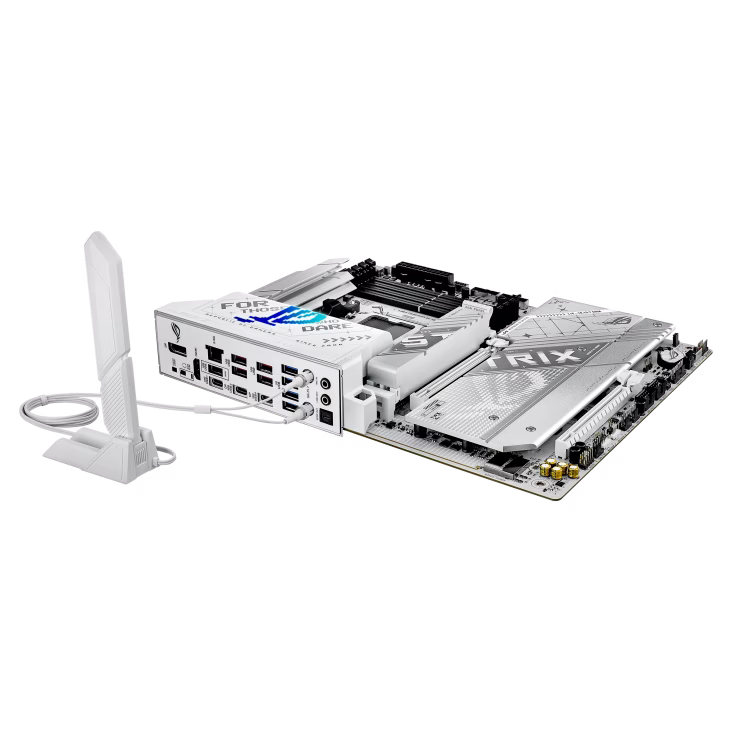

Back Panel I/O
| Ports | 2 x USB4 Type-C, 6 x USB 10Gbps, 4 x USB 5Gbps, 1 x DP, 1 x HDMI, 1 x 2.5Gb LAN, Wi-Fi, 2 x audio jacks, 1 x Optical S/PDIF, BIOS FlashBack™, Clear CMOS |
|---|
Internal I/O
| Cooling | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 5 x Chassis Fan |
|---|---|
| Power | 1 x 24-pin ATX, 2 x 8-pin CPU |
| Misc | 3 x ARGB Gen2, PCIe mode switch, Q-LED, Start button, Thermal sensor |
Special Features
| Q-Design | M.2 Q-Latch, Q-Release, Q-LED, SafeSlot, Pre-mounted I/O shield |
|---|---|
| Thermal | M.2 heatsinks + backplate |
| DIY | BIOS FlashBack™, Clear CMOS, ProCool II |
| Lighting | Aura Sync, ARGB Gen 2 headers |
Software
| ROG Software | ROG CPU-Z, Dolby Atmos |
|---|---|
| ASUS Software | Armoury Crate, Aura Sync, Fan Xpert 4, GameFirst, AIDA64 (trial), Norton 360 (trial), Adobe CC (trial) |
BIOS
| Type | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|---|
| Features | AI OC Guide, EZ Flash 3, CrashFree BIOS 3, MyHotkey |
Manageability
| Features | WOL by PME, PXE |
|---|

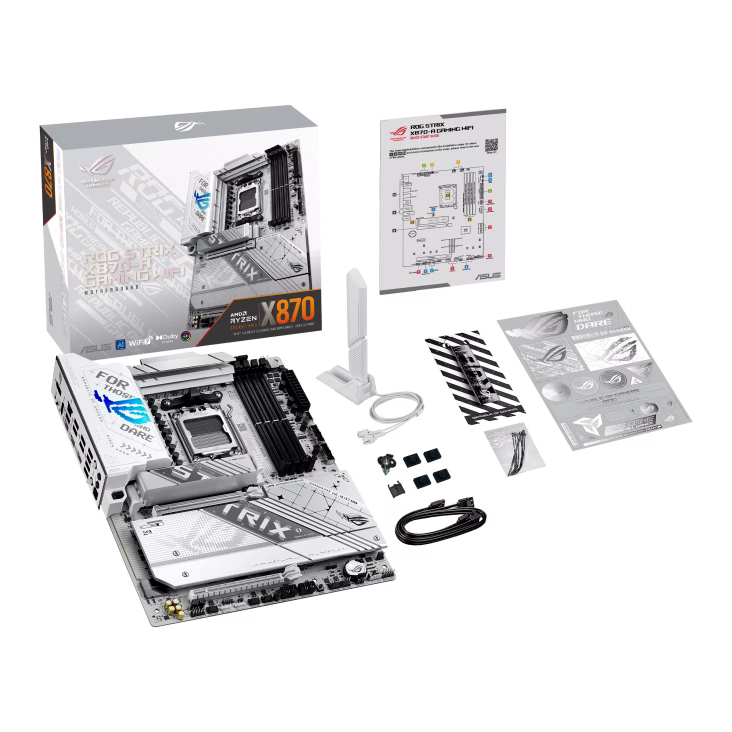

Accessories
| Cables | 2 x SATA 6Gb/s |
|---|---|
| Misc | WiFi Q-Antenna, Cable ties, M.2 Q-Latch & Q-Slide packages, ROG key chain, Stickers, M.2 rubber packages |
| Documentation | Quick start guide |
Operating System
| Supported | Windows 11 |
|---|
Form Factor
| Type | ATX Form Factor |
|---|---|
| Dimensions | 30.5 cm x 24.4 cm (12 in x 9.6 in) |
