ASUS ROG STRIX X870E-E GAMING WIFI AM5 DDR5 ATX Motherboard, 4x DIMM slots, max. 192GB Upto 8400+ MT/s, 5x M.2 slots 4x SATA, PCIe 5.0, Wi-Fi 7, 2.5Gb Ethernet, AI Solution | 90MB1IB0-M0EAY0
Model :
SKU : MB-ASUS ROG X870E-E GA WI
About this item
About this item
Description
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Specification
| Model | ROG STRIX X870E-E GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to ASUS Support for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to: - 8000+MT/s(OC) with Ryzen™ 9000 Series - 8400+MT/s(OC) with Ryzen™ 8000 Series - 8000+MT/s(OC) with Ryzen™ 7000 Series ECC & Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports EXPO™, NitroPath DRAM Technology, ASUS AEMP * Supported memory types, data rate, and module count vary depending on CPU. |
| Graphics | 1 x HDMI™ port (max. 4K@60Hz) 2 x USB4® (40Gbps) Type-C display outputs (max. 4K@60Hz) * Specs vary by CPU type. |
| Expansion Slots | Ryzen™ 9000 & 7000: - 1 x PCIe 5.0 x16 (x16 mode) Ryzen™ 8000: - 1 x PCIe 4.0 x16 (x8/x4 mode) Chipset: - 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 5 x M.2 slots + 4 x SATA 6Gb/s Ryzen™ 9000 & 7000: - M.2_1 / M.2_2 / M.2_3: PCIe 5.0 x4 Ryzen™ 8000: - M.2_1: PCIe 4.0 x4 - M.2_2 & M.2_3: Disabled Chipset: - M.2_4 & M.2_5: PCIe 4.0 x4 - 4 x SATA 6Gb/s Supports PCIe & SATA RAID 0/1/5/10 (RAID 5 only on Ryzen™ 9000) |
| Ethernet | 1 x Realtek 5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2x2, 2.4/5/6GHz Supports 320MHz, up to 6.5Gbps Bluetooth® v5.4 * Wi-Fi 7 full support requires Windows 11 24H2 or later. |
| USB | Rear (13 total): - 2 x USB4® 40Gbps (Type-C) - 1 x USB 20Gbps (Type-C, up to 30W PD) - 10 x USB 10Gbps (9 Type-A + 1 Type-C) Front (11 total): - 1 x USB 20Gbps Type-C - 2 x USB 5Gbps headers (4 ports) - 3 x USB 2.0 headers (6 ports) |
| Audio | ROG SupremeFX 7.1 Surround ALC4080 CODEC 120 dB SNR playback / 110 dB recording Up to 32-Bit / 384 kHz playback Features: Audio shielding, Savitech AMP, gold jacks, S/PDIF out, premium caps. |

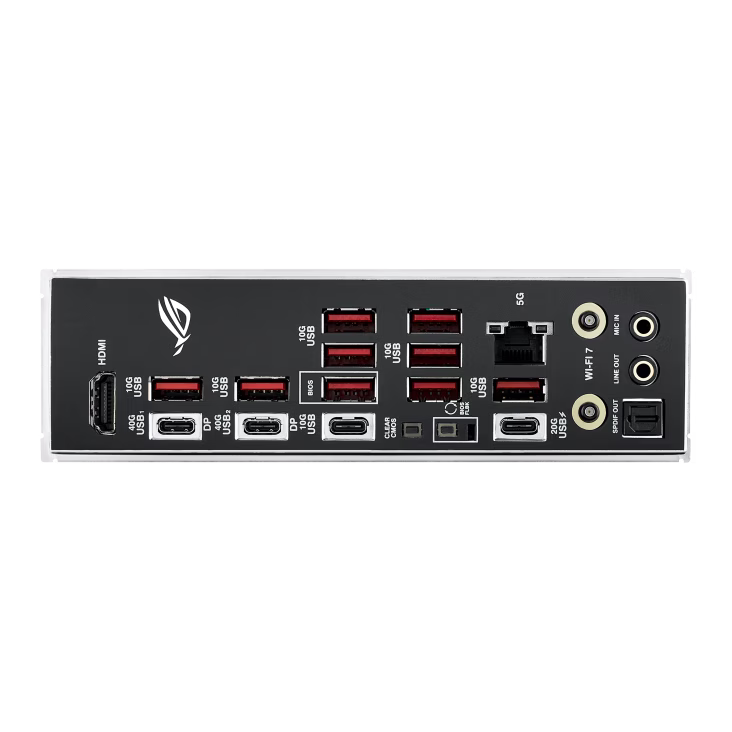

| Back Panel I/O | - 2 x USB4® Type-C - 1 x USB 20Gbps Type-C - 10 x USB 10Gbps (9 Type-A + 1 Type-C) - 1 x HDMI™ - 1 x Wi-Fi Module - 1 x Realtek 5Gb Ethernet - 2 x Audio jacks + Optical S/PDIF - BIOS FlashBack™ & Clear CMOS buttons |
| Internal I/O | Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 5 x Chassis Fan Power: 1 x 24-pin, 2 x 8-pin CPU Storage: 5 x M.2, 4 x SATA USB: 1 x 20Gbps Type-C, 2 x 5Gbps, 3 x USB 2.0 Misc: Addressable RGB, FlexKey, Start button, Q-code, etc. |
| Special Features | Extreme Engine Digi+ ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-LED, etc.) ASUS Thermal Solution (VRM & M.2 heatsinks) ASUS EZ DIY (BIOS FlashBack™, Clear CMOS, SafeSlot, SafeDIMM) Aura Sync Gen 2 headers |
| Software Features | ROG Exclusive: ROG CPU-Z, Dolby Atmos ASUS Armoury Crate: Aura Creator, Fan Xpert 4, GameFirst, HWiNFO, etc. Bundled Trials: AIDA64 Extreme (60d), Norton 360 (60d), WinRAR (40d) |
| UEFI BIOS | 256 Mb Flash ROM, UEFI AMI BIOS Features: AI OC Guide, EZ Flash 3, CrashFree BIOS 3, FlexKey, MyHotkey |
| Manageability | WOL by PME, PXE |

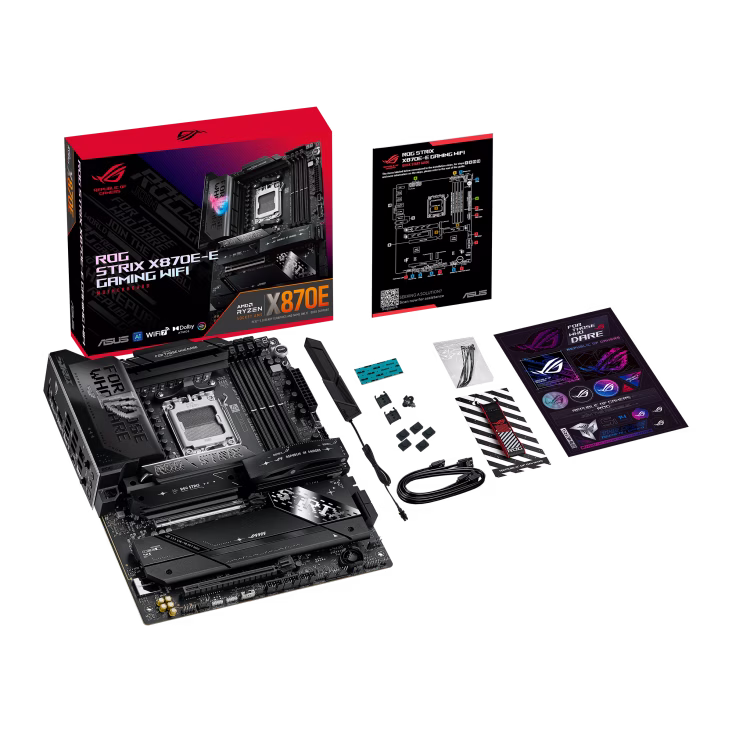

| Accessories | 2 x SATA cables 1 x Thermal pad (M.2 22110) ASUS Wi-Fi antennas Cable ties pack, M.2 Q-Latch & Q-Slides ROG key chain, stickers, rubbers Quick start guide |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX (12" x 9.6" / 30.5 cm x 24.4 cm) |
