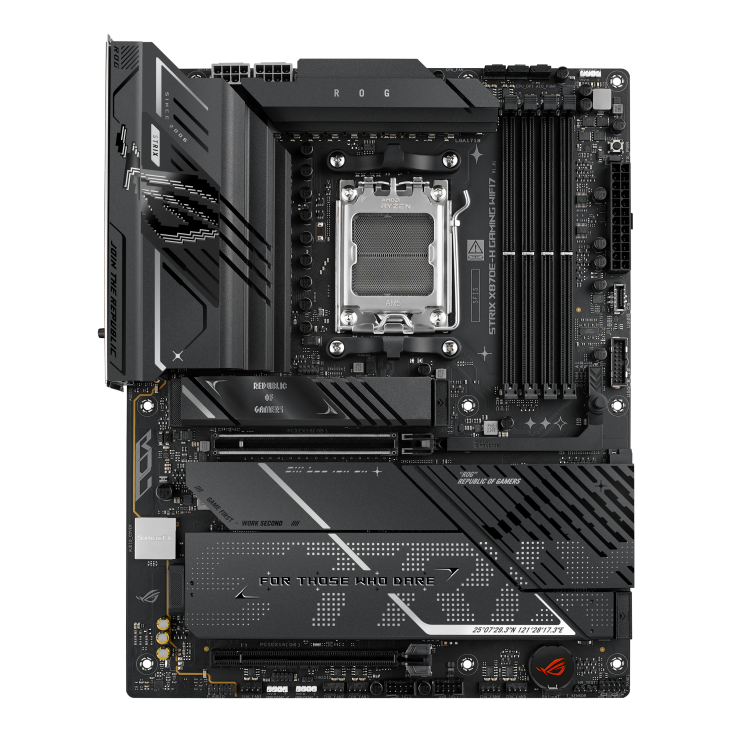

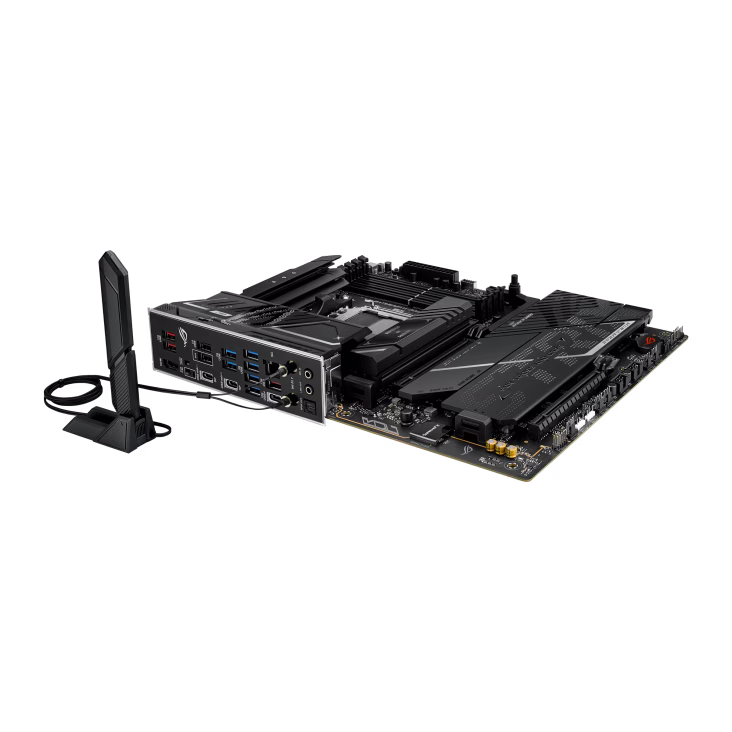

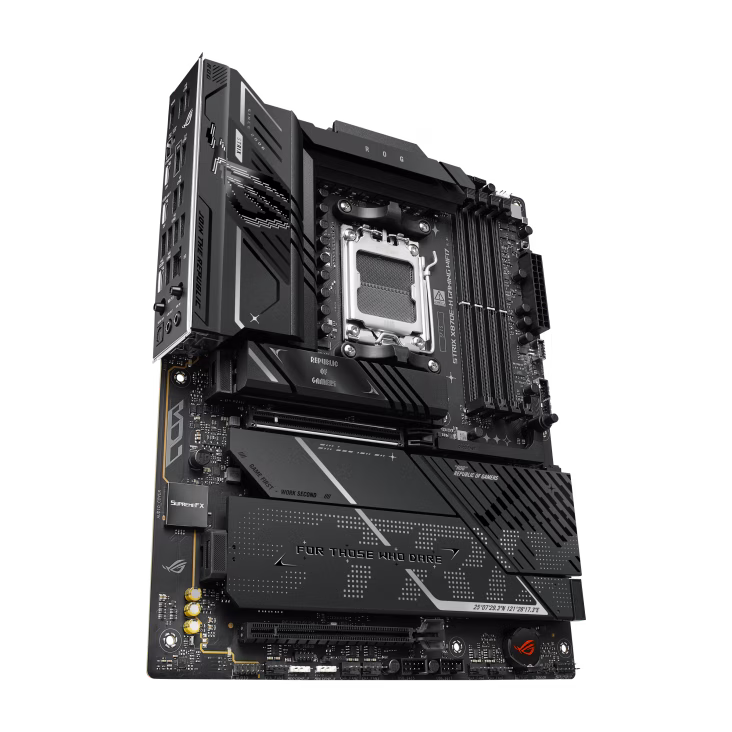

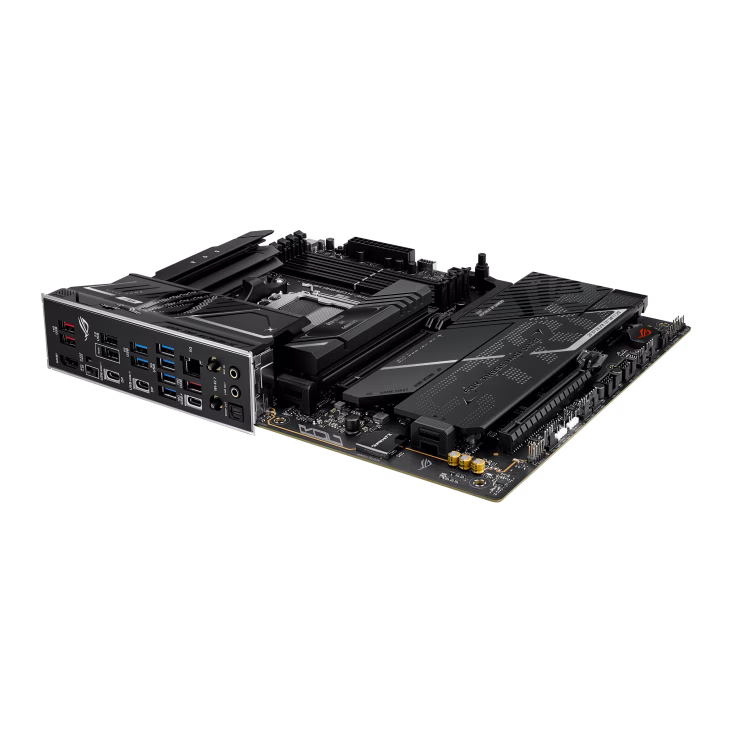

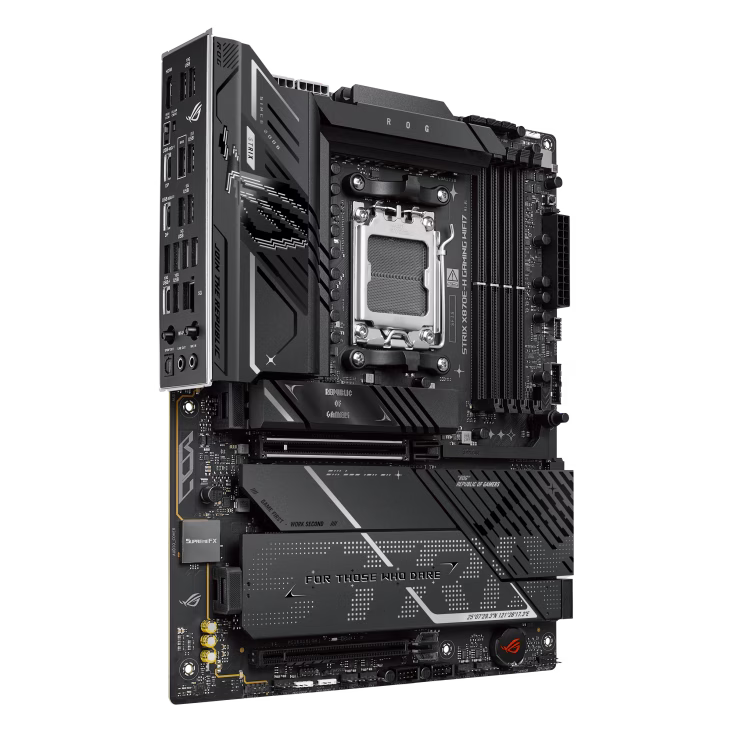

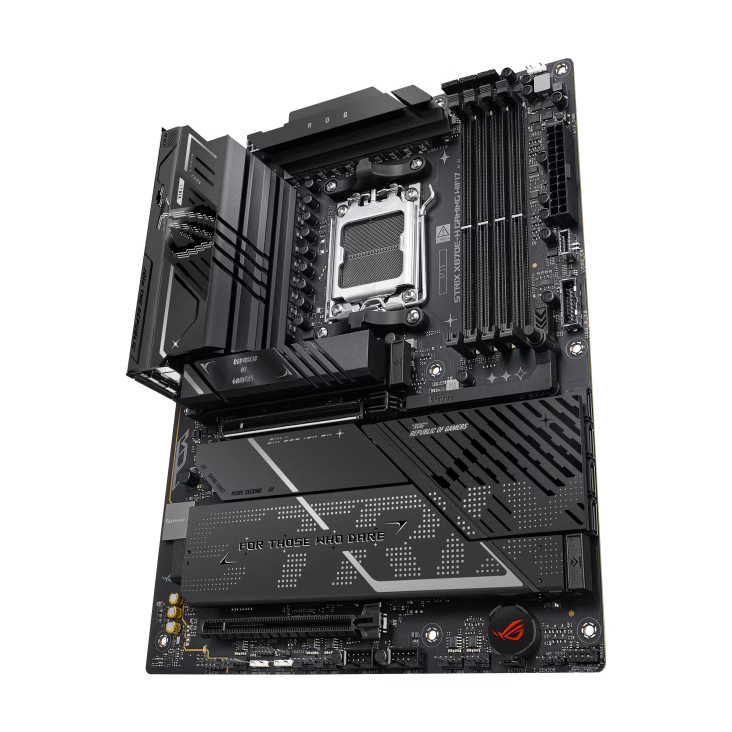

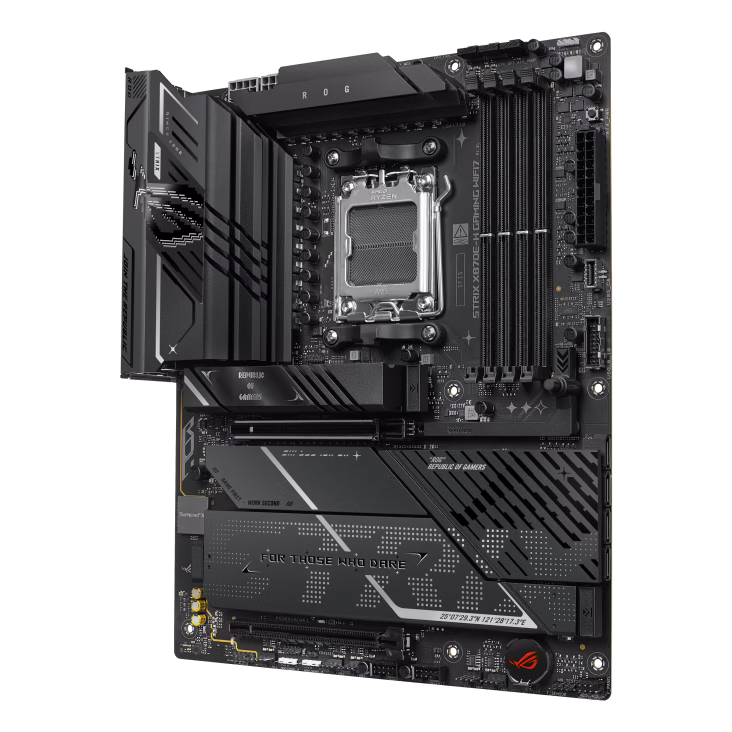

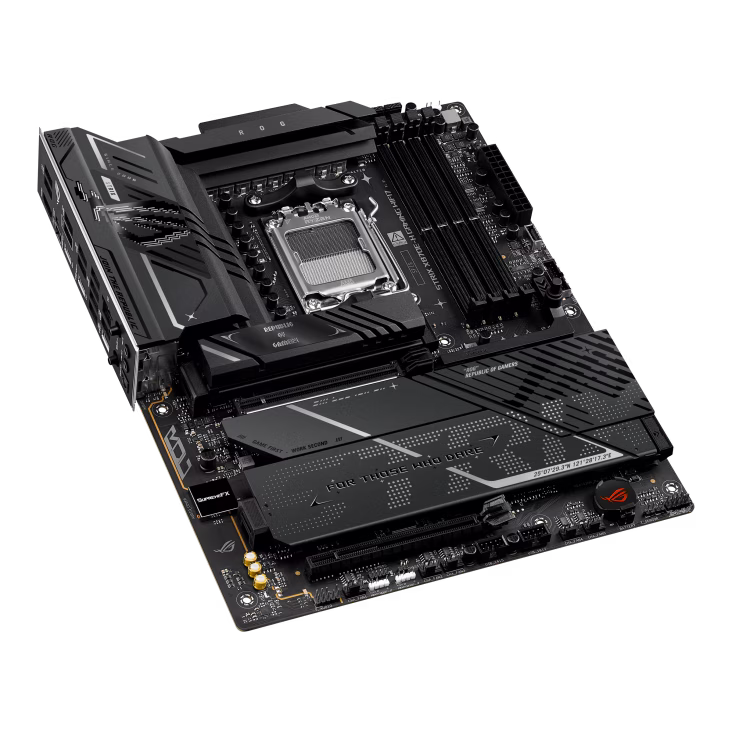

ASUS ROG STRIX X870E-H GAMING WIFI7 ATX AM5 Motherboard, 4x DIMM DDR5, upto 8000+MT/s(OC), PCIe 5.0 x16 slots, dual USB4 Type-C ports | 90MB1M90-M0EAY0
Model :
SKU : MB-ASUS ROG X870E-H GM W7
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Specification
| News & Updates | Please visit our GLOBAL website to check and download the latest updates. |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) Dual channel, AMD EXPO™, DIMM Fit / Fit Pro, AEMP ** Non-ECC, un-buffered DDR5 with On-Die ECC |
| Graphics | 1 x HDMI™ port (4K@60Hz, HDMI 2.1) 2 x USB4® (40Gbps) ports support Type-C display output (4K@60Hz DP 1.4a) |
| Expansion Slots | Ryzen 9000 & 7000: 1 x PCIe 5.0 x16 (x16 mode) Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4) Chipset: 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x M.2 slots + 4 x SATA 6Gb/s M.2_1: PCIe 5.0 x4 M.2_2: PCIe 5.0 x4 (shares with PCIEX16(G5)) M.2_3: PCIe 4.0 x4 M.2_4: PCIe 4.0 x4 |
| RAID Support | Ryzen 9000: RAID 0/1/5/10 Ryzen 8000: RAID 0/1 Ryzen 7000: RAID 0/1/10 |
| Ethernet | 1 x Realtek 5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (RTL8922AE), 2x2 (2.4/5/6GHz) Bluetooth v5.4 * Windows 11 24H2+ for Wi-Fi 7 full functions |
| USB (Rear) | 2 x USB4® (40Gbps, 2 x Type-C) 4 x USB 10Gbps (3 x Type-A, 1 x Type-C with 30W PD/PPS) 6 x USB 5Gbps (6 x Type-A) 2 x USB 2.0 (2 x Type-A) |
| USB (Front) | 1 x USB 20Gbps (Type-C) 2 x USB 5Gbps (via header) 4 x USB 2.0 (via headers) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC SupremeFX Shielding, Savitech SV3H712 AMP, Premium capacitors Optical S/PDIF out, 120 dB SNR playback / 113 dB SNR recording |
| Back Panel I/O | 2 x USB4 Type-C 4 x USB 10Gbps (3 x Type-A, 1 x Type-C) 6 x USB 5Gbps (6 x Type-A) 2 x USB 2.0 1 x HDMI 1 x Wi-Fi module 1 x Realtek 5Gb LAN 2 x Audio jacks 1 x Optical S/PDIF 1 x BIOS FlashBack™ 1 x Clear CMOS |
| Internal I/O | Fan: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 5 x Chassis Fan Power: 24-pin ATX, 2 x 8-pin CPU Storage: 4 x M.2, 4 x SATA USB: 1 x USB 20Gbps (Type-C), 1 x USB 5Gbps header, 2 x USB 2.0 headers Misc: 3 x ARGB Gen2, Chassis Intrusion, CPU OV jumper, Front Panel Audio, Start button, Thermal Sensor |
| Special Features | Extreme Engine Digi+ ASUS Q-Design (Q-Latch, Q-Release, Q-Antenna, Q-DIMM, Q-LED, Q-Slot) Thermal: VRM & M.2 heatsinks EZ DIY: BIOS FlashBack™, Clear CMOS, Pre-mounted I/O, SafeSlot, SafeDIMM Aura Sync (ARGB Gen2) |
| Software Features | ROG CPU-Z, Dolby Atmos Armoury Crate (Aura, Fan Xpert 4, GameFirst) AI Advisor, DriverHub, GlideX, USB Wattage Watcher, TurboV Core Bundled Trials: AIDA64 Extreme, Norton 360, Adobe CC, WinRAR |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS AI Overclocking Guide, AI Cache Boost, EZ Flash 3, MyHotkey |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables, ASUS WiFi Q-Antenna, Cable ties, M.2 Q-Latch, ROG key chain, Stickers, 4 x M.2 rubber, Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX, 12" x 9.6" (30.5 cm x 24.4 cm) |
