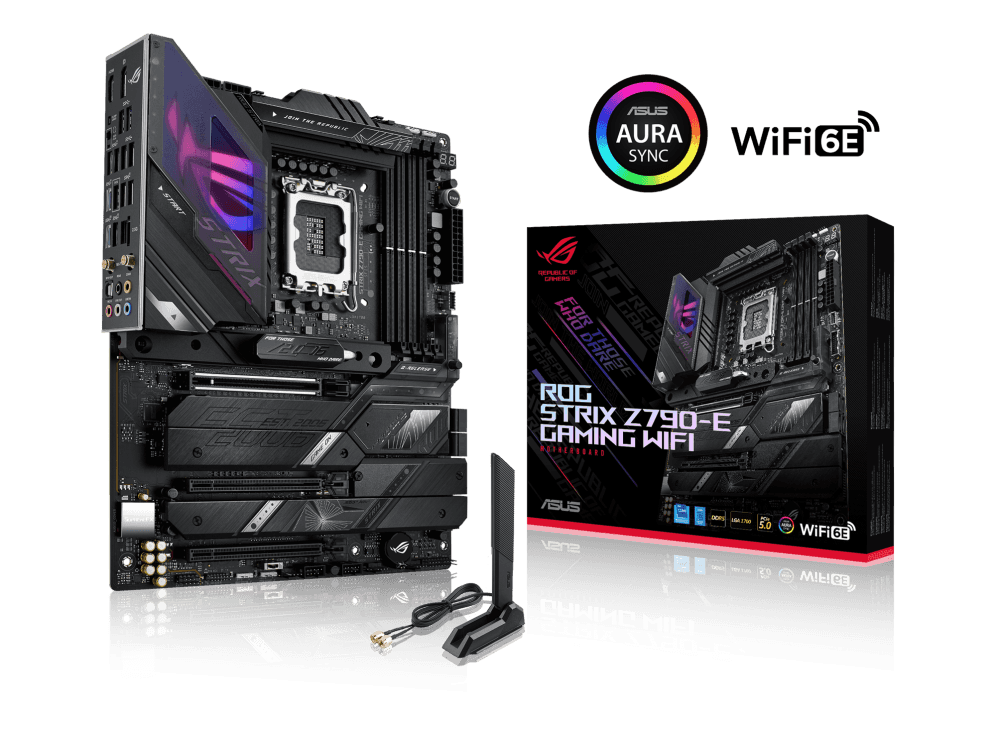

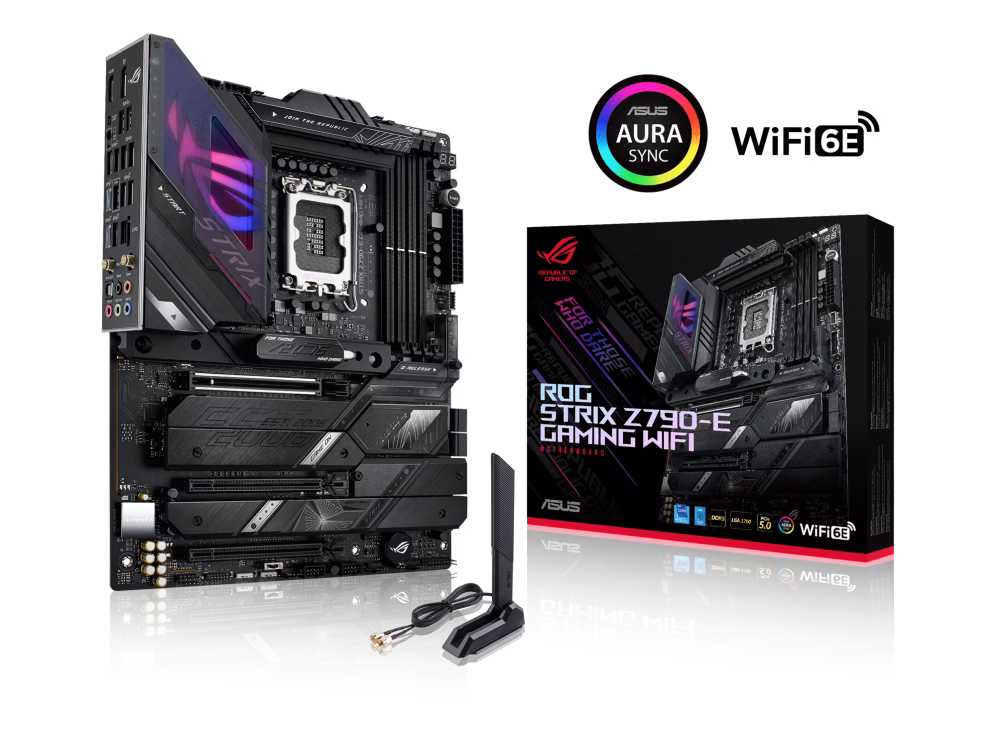

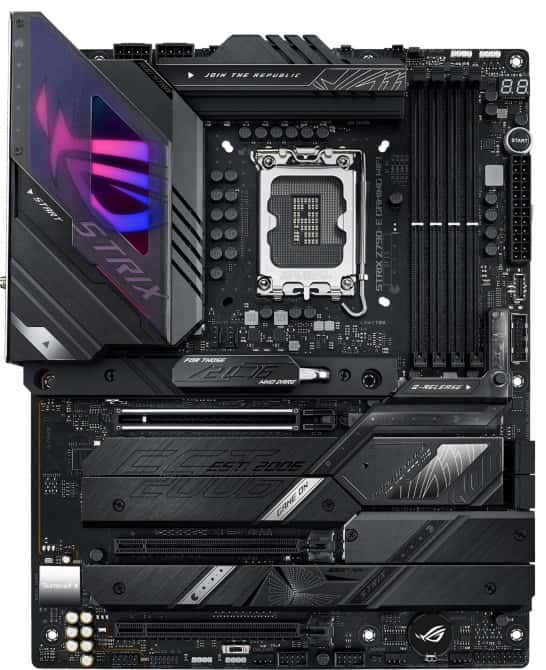

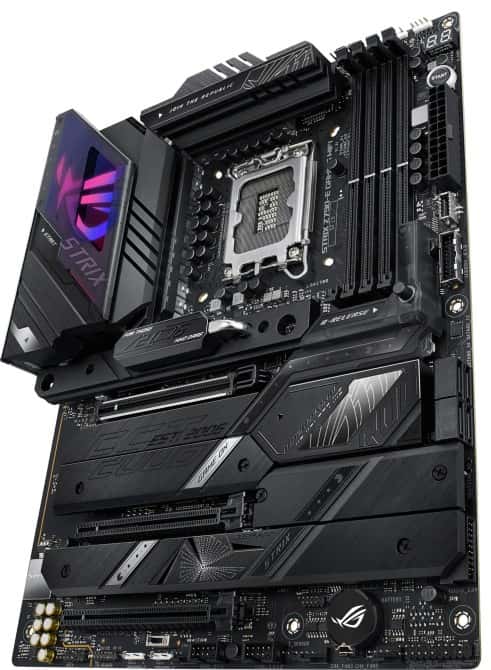

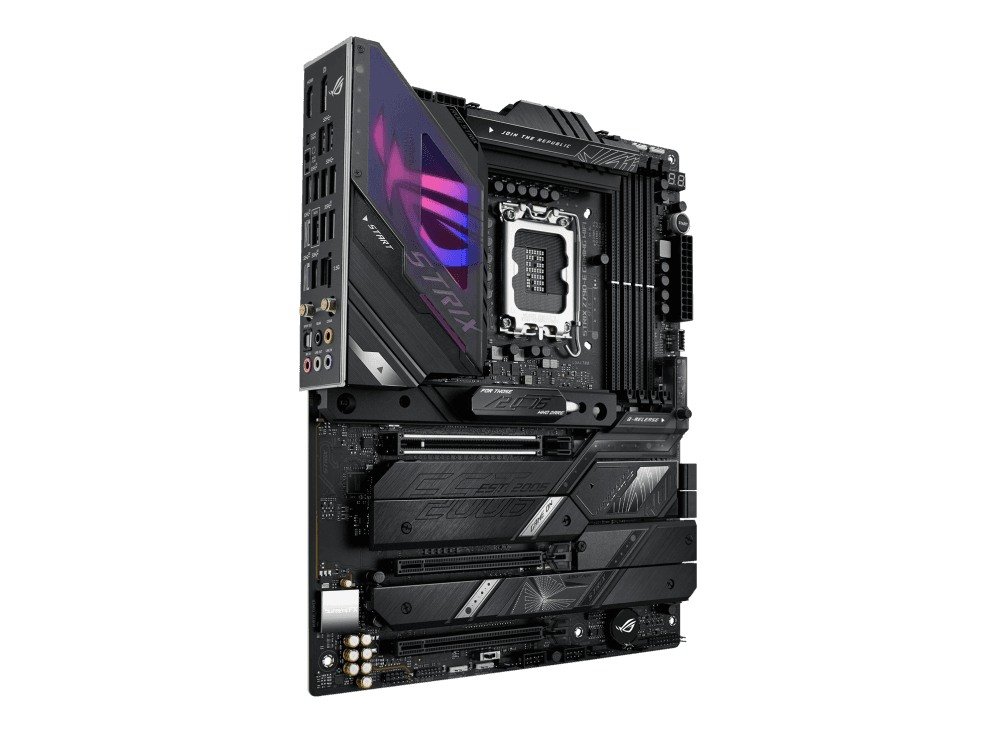

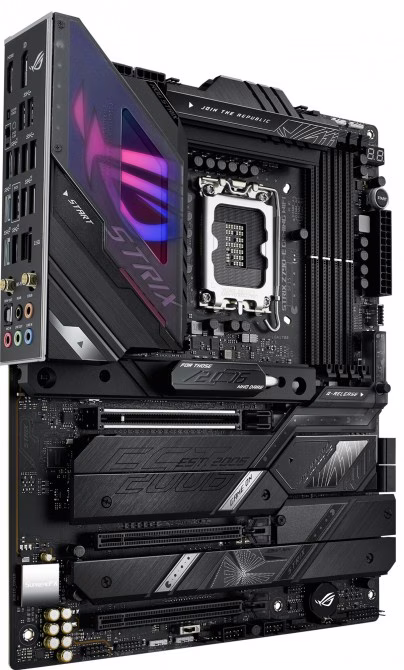

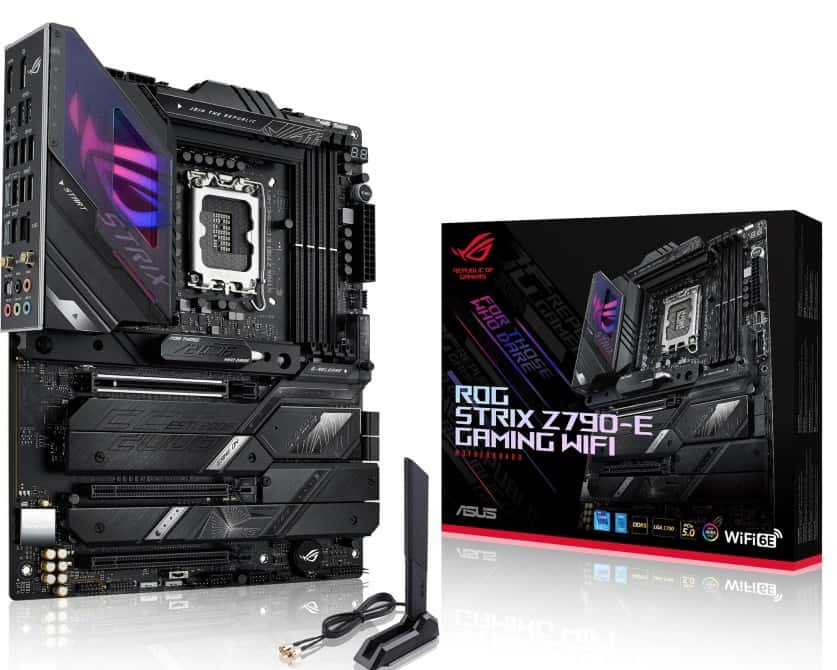

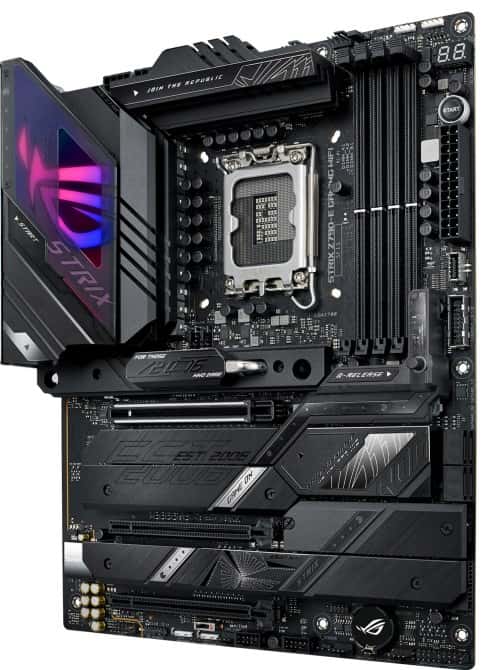

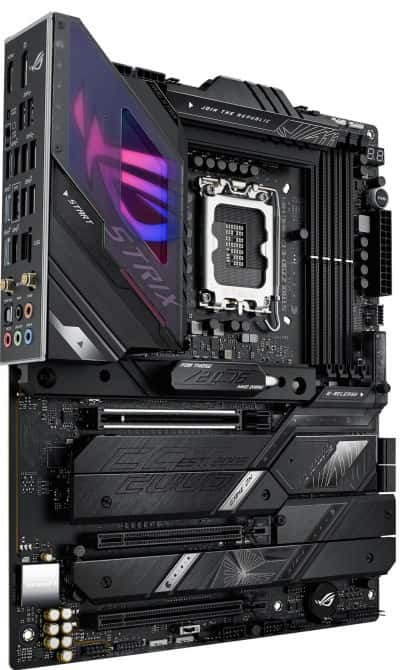

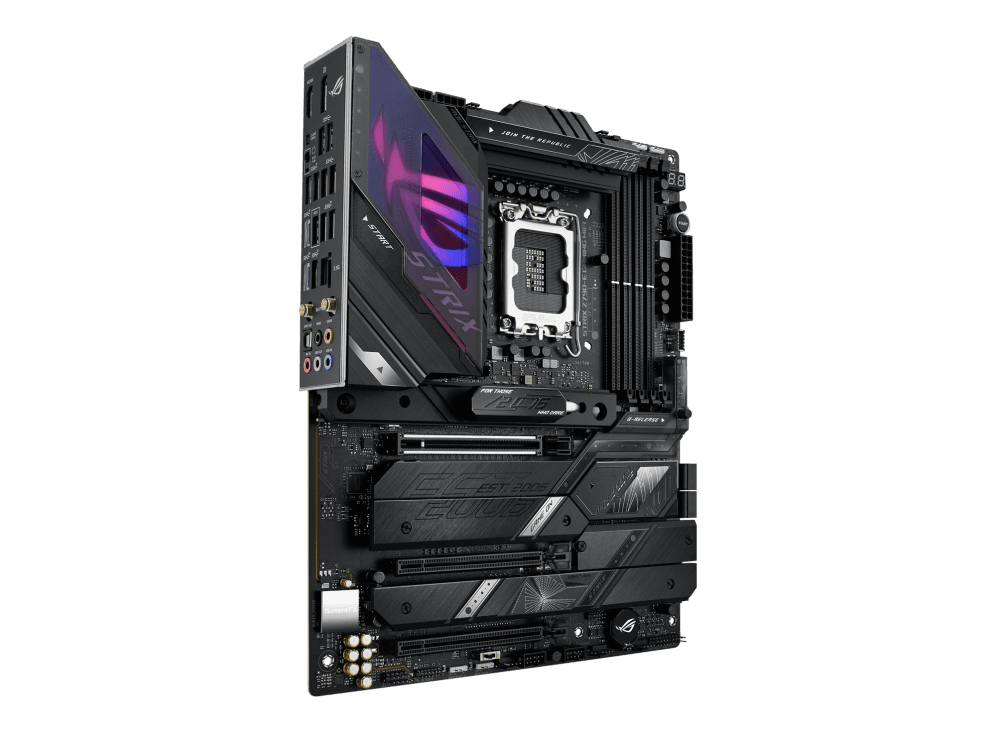

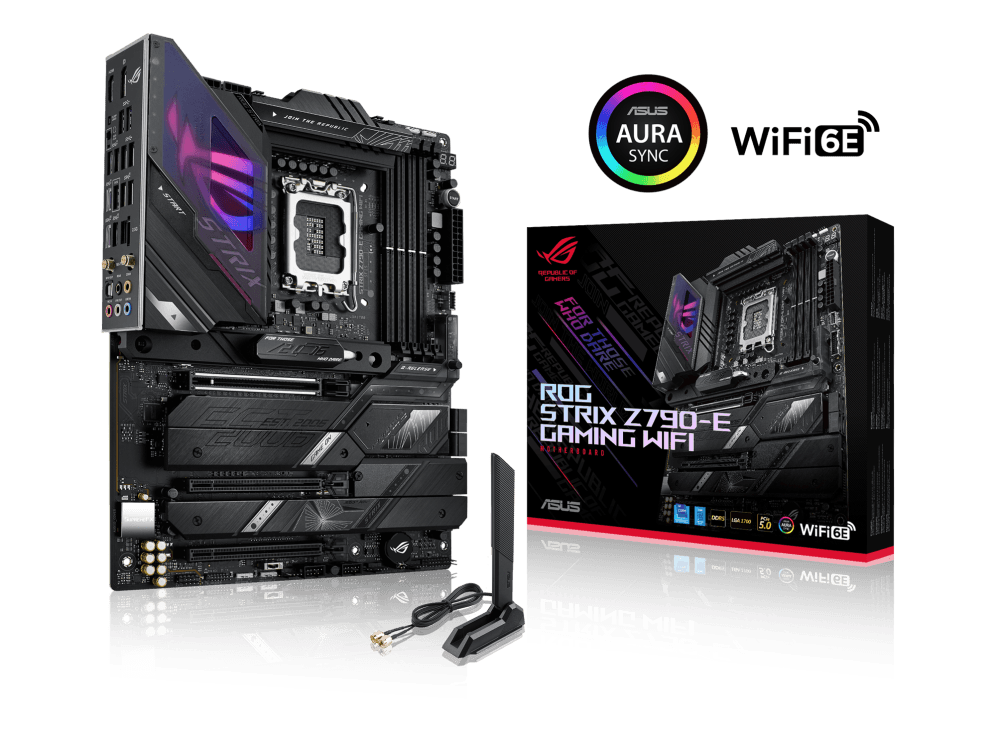

Asus Rog Strix Z790-E Gaming Wifi ATX DDR5 Motherboard, LGA 1700 Socket, Z790 Chipset, 2.5G LAN, Wifi 6E, Max 128GB Memory, 4x SATA 6Gb/s, 5x M.2 Slot, PCIe 5.0, Armoury Crate | 90MB1CL0-M0EAY0
Model :
SKU : MB-ASUS ROG Z790-E WIFI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
ASUS ROG Strix Z790-E Gaming Motherboard Specifications
| CPU | Intel?? Socket LGA1700 for Intel?? Core??? 14th & 13th Gen Processors, Intel?? Core??? 12th Gen, Pentium?? Gold and Celeron?? Processors
Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel?? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel?? Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel?? Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. **** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort**
1 x HDMI?? port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Intel?? 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot Intel?? Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only. *** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel?? 13th & 12th Gen Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel?? Z790 Chipset** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) 4 x SATA 6Gb/s ports * Intel?? Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Ethernet | 1 x Intel?? 2.5Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth?? v5.3 * WiFi 6E 6GHz regulatory may vary between countries. |
| USB | Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C??) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C?? with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??)
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C?? ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x HDMI??? port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel?? 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack??? button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
| Internal I/O Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C?? with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Start button 1 x Thermal Sensor header 1 x Thunderbolt??? (USB4??) header |
| Special Features | Extreme Engine Digi+
- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support - Support: up to 30W charging - Output: 5/9V max. 3A, 12V max 2.5A - Compatible with PD3.0 |
| Software Features | ROG Exclusive Software
- GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS?? Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync - Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

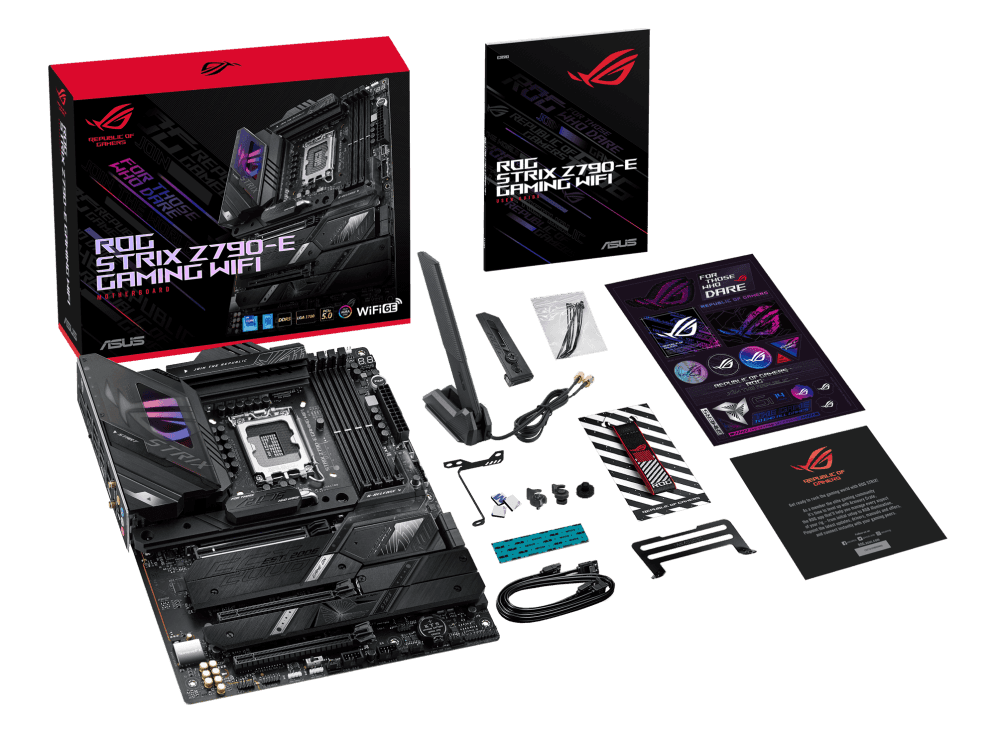

| Accessories | Cables
2 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 Fan holder 1 x VRM Fan holder 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages 1 x M.2 backplate Rubber |
| Package Documentation | 1 x User guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Specification
ASUS ROG Strix Z790-E Gaming Motherboard Specifications
| CPU | Intel?? Socket LGA1700 for Intel?? Core??? 14th & 13th Gen Processors, Intel?? Core??? 12th Gen, Pentium?? Gold and Celeron?? Processors
Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel?? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel?? Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel?? Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. **** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort**
1 x HDMI?? port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Intel?? 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot Intel?? Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only. *** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel?? 13th & 12th Gen Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel?? Z790 Chipset** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) 4 x SATA 6Gb/s ports * Intel?? Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Ethernet | 1 x Intel?? 2.5Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth?? v5.3 * WiFi 6E 6GHz regulatory may vary between countries. |
| USB | Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C??) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C?? with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??)
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C?? ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x HDMI??? port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel?? 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack??? button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
| Internal I/O Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C?? with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Start button 1 x Thermal Sensor header 1 x Thunderbolt??? (USB4??) header |
| Special Features | Extreme Engine Digi+
- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support - Support: up to 30W charging - Output: 5/9V max. 3A, 12V max 2.5A - Compatible with PD3.0 |
| Software Features | ROG Exclusive Software
- GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS?? Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync - Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables
2 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 Fan holder 1 x VRM Fan holder 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages 1 x M.2 backplate Rubber |
| Package Documentation | 1 x User guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
