ASUS ROG STRIX Z790-H Gaming Wi-Fi LGA 1700 Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM, Up to 192GB Max Memory, Wi-Fi 6E / BT v5.3, 4 x M.2 Slots, 1*HDMI / 1*DP | 90MB1E10-M0EAY0

CPU

Intel^?? Socket LGA1700 for 13th Gen Intel^?? Core??? & 12th Gen Intel^?? Core???, Pentium^?? Gold and Celeron^?? Processors*
       Supports Intel^?? Turbo Boost Technology 2.0 and Intel^?? Turbo Boost Max Technology 3.0**
       * Refer to www.asus.com for CPU support list.
       ** Intel^?? Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^?? Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5
       7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
       Non-ECC, Un-buffered Memory*
       Dual Channel Memory Architecture
       Supports Intel^?? Extreme Memory Profile (XMP)
       OptiMem II
       * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
       ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
       1 x HDMI^?? port***
       * Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
       ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
       *** Supports 4K@60Hz as specified in HDMI 2.1.
       **** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel^?? 13th & 12th Gen Processors
       1 x PCIe 5.0 x16 slot

       Intel^?? Z790 Chipset
       1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
       1 x PCIe 3.0 x1 slot

       * Please check the PCIe bifurcation table
       on the support site (https://www.asus.com/support/FAQ/1037507/).
       ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

       Intel^?? 13th & 12th Gen Processors
       M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)

       Intel^?? Z790 Chipset
       M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
       M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
       M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
       4 x SATA 6Gb/s ports
       * Intel^?? Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Intel^?? 2.5Gb Ethernet
       ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
       2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
       Supports 2.4/5/6GHz frequency band*
       Bluetooth^?? v5.3
       * WiFi 6E 6GHz regulatory may vary between countries.
       ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 10 ports)
       1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^??)
       3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C^??)
       4 x USB 3.2 Gen 1 ports (4 x Type-A)
       2 x USB 2.0 ports (2 x Type-A)

       Front USB (Total 7 ports)
       1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^??)
       1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
       2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
       - Impedance sense for front and rear headphone outputs
       - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
       - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
       - Supports up to 32-Bit/192 kHz playback*
       Audio Features
       - SupremeFX Shielding Technology
       - Savitech SV3H712 AMP
       - Rear optical S/PDIF out port
       - Premium audio capacitors
       - Audio cover
       *Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

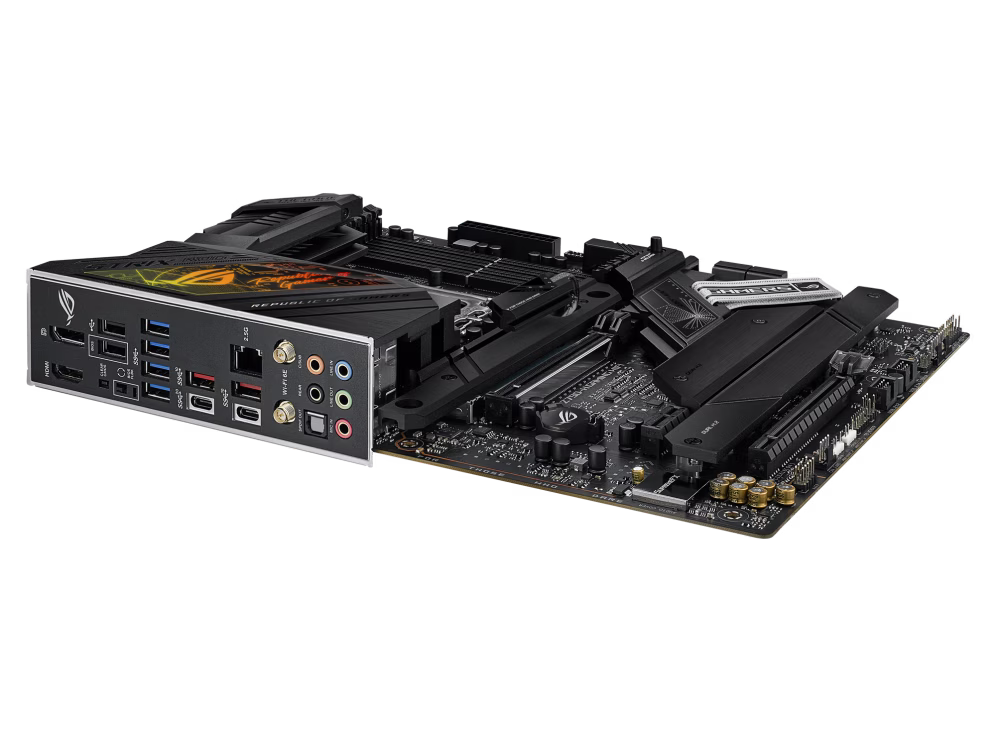

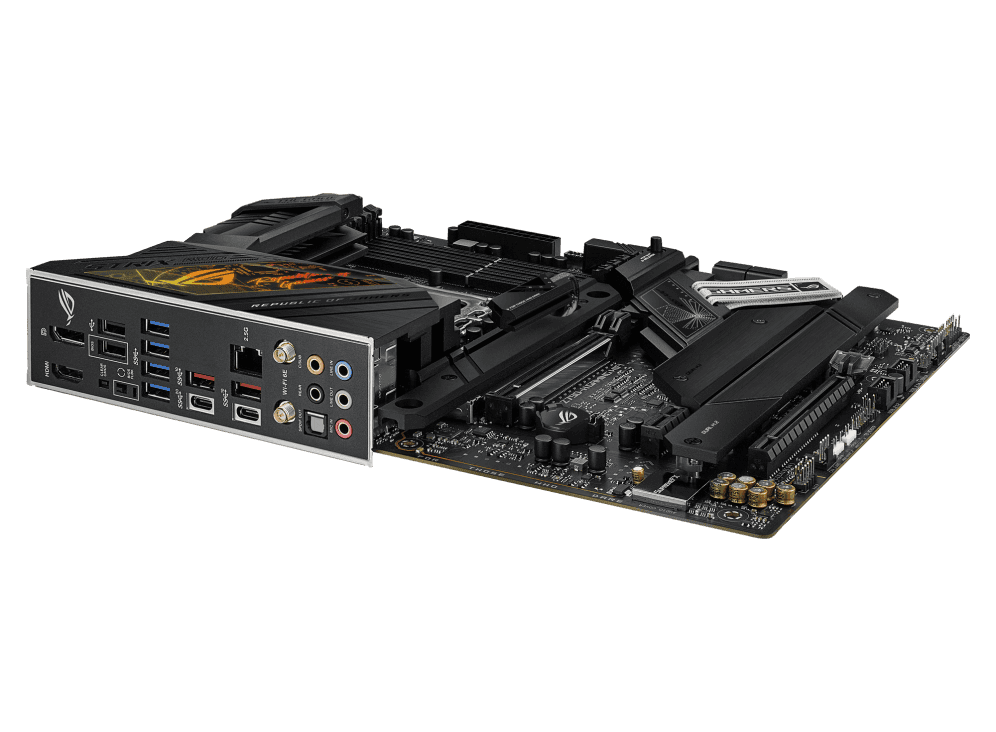

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^??)
       3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C^??)
       4 x USB 3.2 Gen 1 ports (4 x Type-A)
       2 x USB 2.0 ports (2 x Type-A)
       1 x DisplayPort
       1 x HDMI^?? port
       1 x Wi-Fi Module
       1 x Intel^?? 2.5Gb Ethernet port
       5 x Gold-plated audio jacks
       1 x Optical S/PDIF out port
       1 x BIOS FlashBack???  button
       1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related
       1 x 4-pin CPU Fan header
       1 x 4-pin CPU OPT Fan header
       1 x 4-pin AIO Pump header
       5 x 4-pin Chassis Fan headers

         Power related
       1 x 24-pin Main Power connector
       2 x 8-pin +12V Power connectors

       Storage related
       4 x M.2 slots (Key M)
       4 x SATA 6Gb/s ports

       USB
       1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^??)
       1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
       2 x USB 2.0 headers support 4 additional USB 2.0 ports

       Miscellaneous
       3 x Addressable Gen 2 headers
       1 x Aura RGB header
       1 x CPU Over Voltage jumper
       1 x Front Panel Audio header (AAFP)
       1 x 20-3 pin System Panel header with Chassis intrude function
       1 x Thermal Sensor header
       1 x Thunderbolt???  header

Special Features

Extreme Engine Digi+
       - 5K Black Metallic Capacitors

       ASUS Q-Design
       - M.2 Q-Latch
       - PCIe Slot Q-Release
       - Q-DIMM
       - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
       - Q-Slot

       ASUS Thermal Solution
       - M.2 heatsink backplate
       - M.2 heatsink
       - VRM heatsink design

       ASUS EZ DIY
       - BIOS FlashBack??? button
       - BIOS FlashBack??? LED
       - Clear CMOS button
       - CPU Socket lever protector
       - ProCool II
       - Pre-mounted I/O shield
       - SafeSlot
       - SafeDIMM

       Aura Sync
       - Aura RGB header
       - Addressable Gen 2 headers

Software Features

ROG Exclusive Software
       - GameFirst VI
       - ROG CPU-Z
       - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
       - Sonic Radar III
       - DTS^?? Sound Unbound

       ASUS Exclusive Software
       Armoury Crate
       - AIDA64 Extreme (60 days free trial)
       - Aura Creator- Aura Sync
       - Fan Xpert 4 (with AI Cooling II)
       - Power Saving
       - Two-Way AI Noise Cancellation
       AI Suite 3
       - Easy Optimization with AI Overclocking
       - TPU
       - DIGI+ VRM
       - Turbo app
       - PC Cleaner
       - System Information
       MyAsus
       Norton 360 for Gamers
       WinRAR

         UEFI BIOS
       AI Overclocking Guide
       ASUS EZ DIY
       - ASUS CrashFree BIOS 3
       - ASUS EZ Flash 3
       - ASUS UEFI BIOS EZ Mode
       FlexKey
       MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
       2 x SATA 6Gb/s cables

       Additional Cooling Kit
       1 x Thermal pad for M.2

       Miscellaneous
       1 x ASUS Wi-Fi moving antennas
       1 x Cable ties package
       1 x M.2 backplate Q-Latch package
       1 x M.2 Q-Latch package
       1 x ROG key chain
       1 x ROG Strix stickers
       1 x ROG Strix thank you card
       2 x M.2 Rubber Packages
       1 x M.2 backplate Rubber

       PackageDocumentation
       1 x User guide

Operating System

Windows^?? 11, Windows^?? 10 64-bit

Form Factor

ATX Form Factor
       12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
