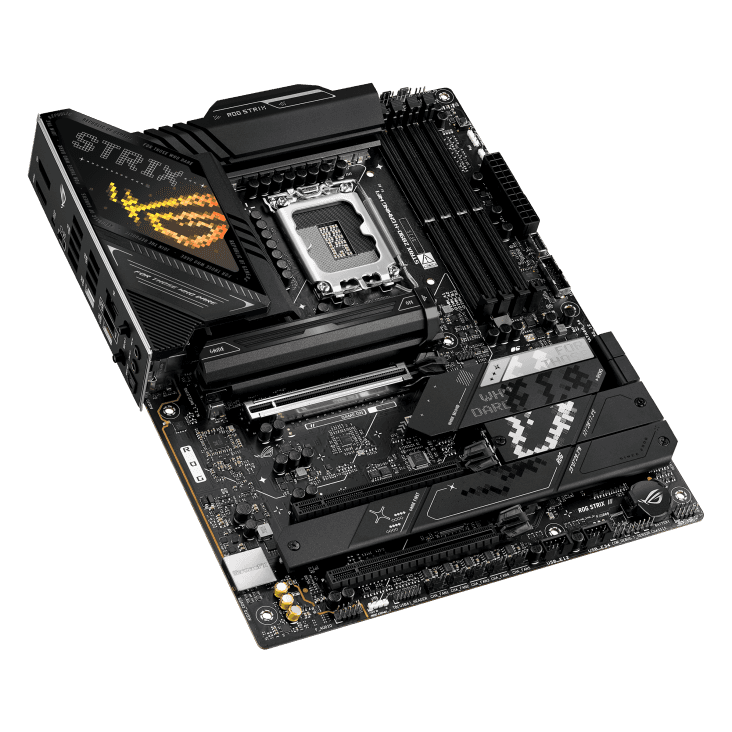

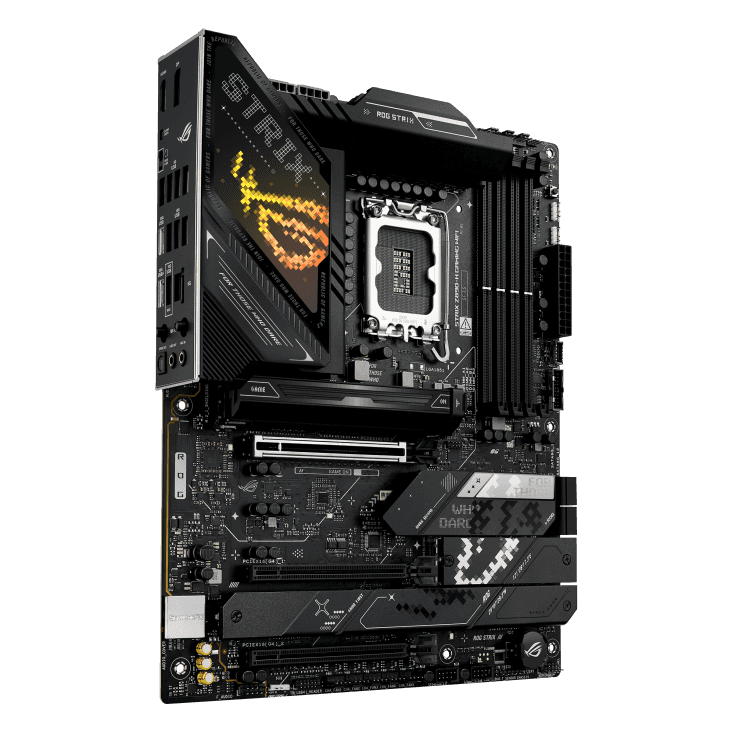

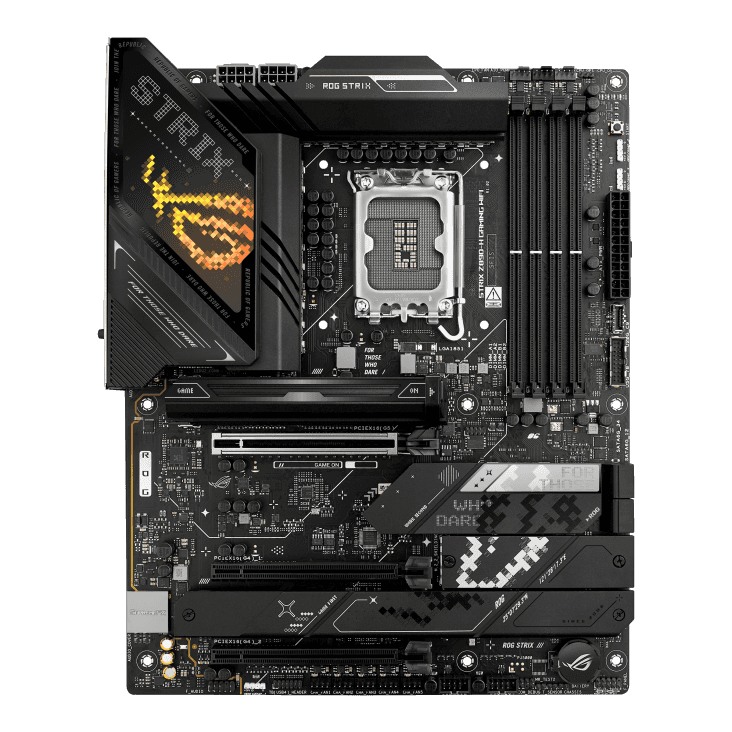

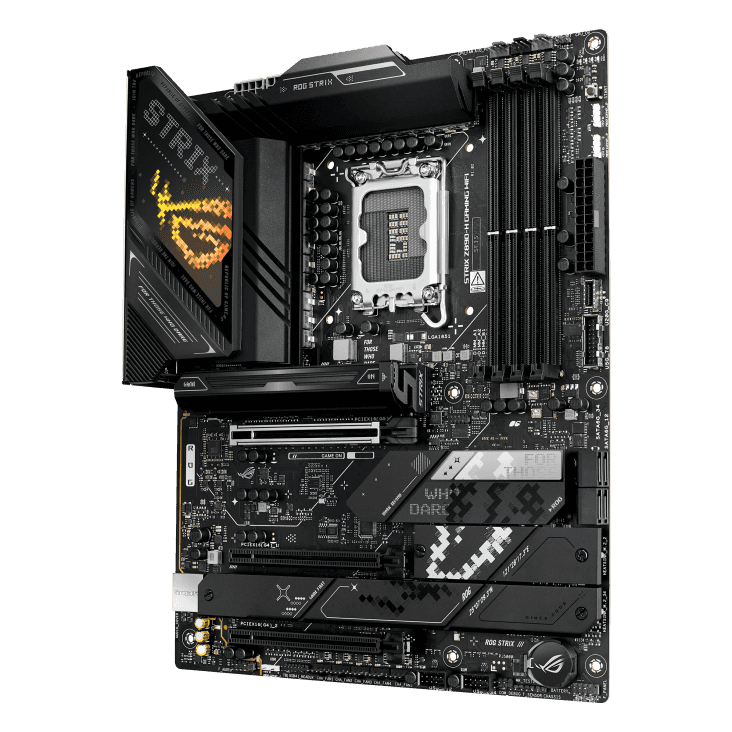

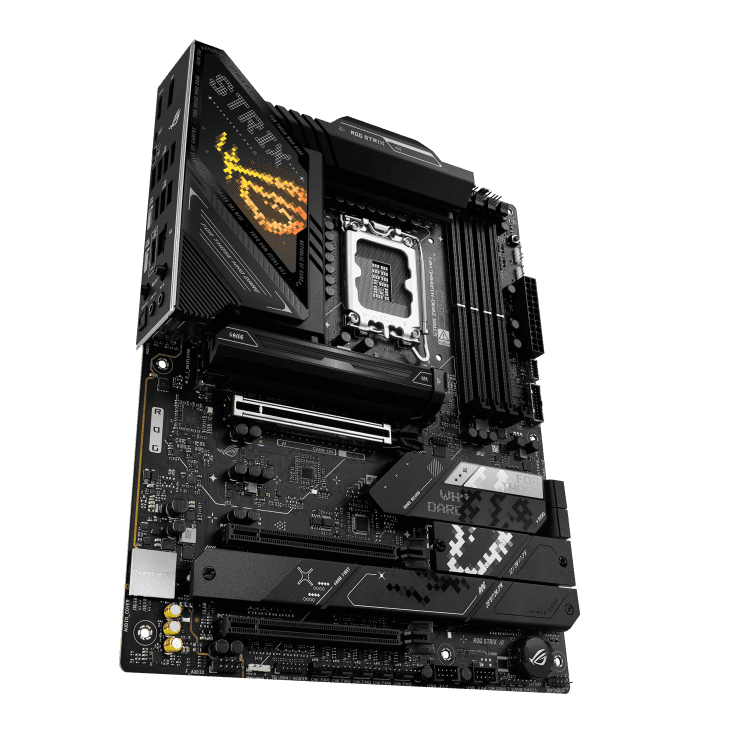

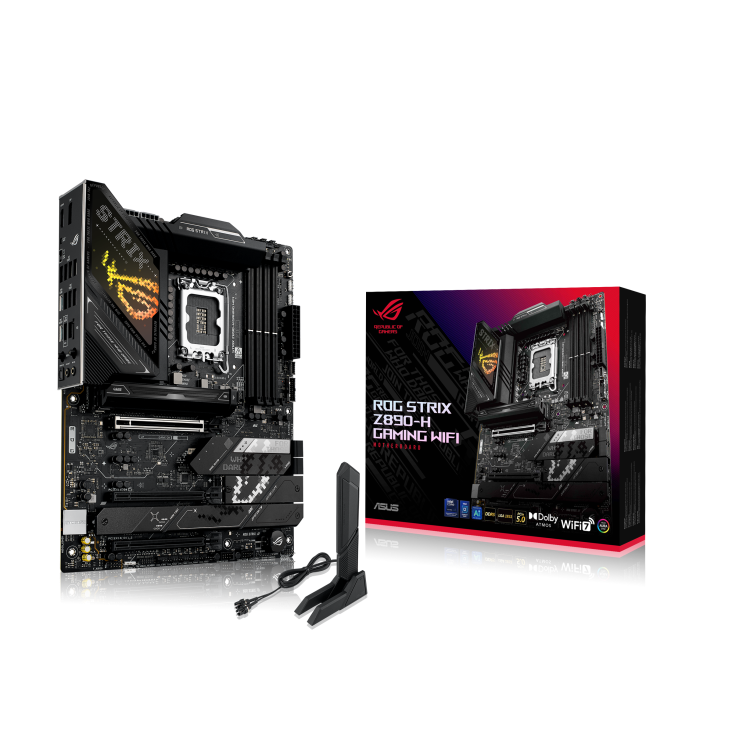

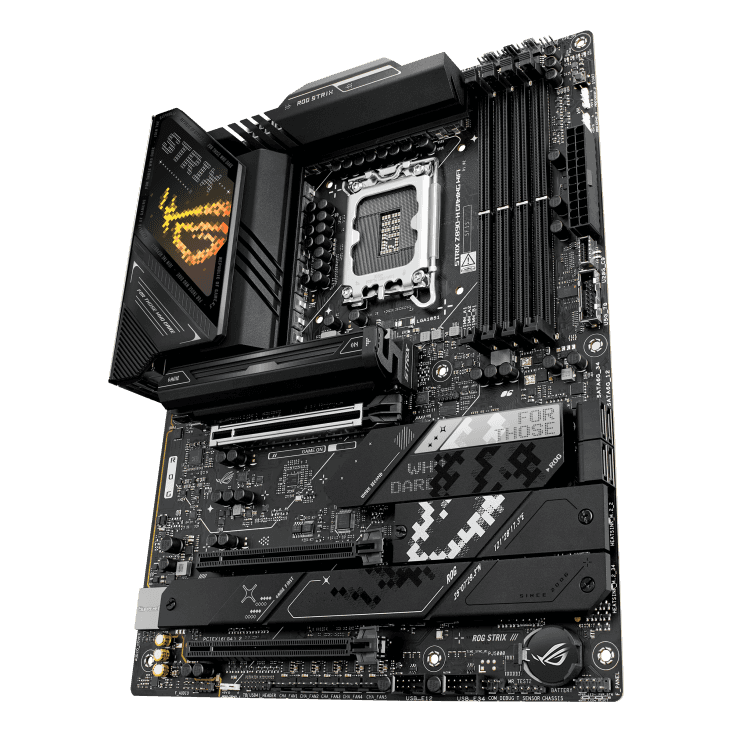

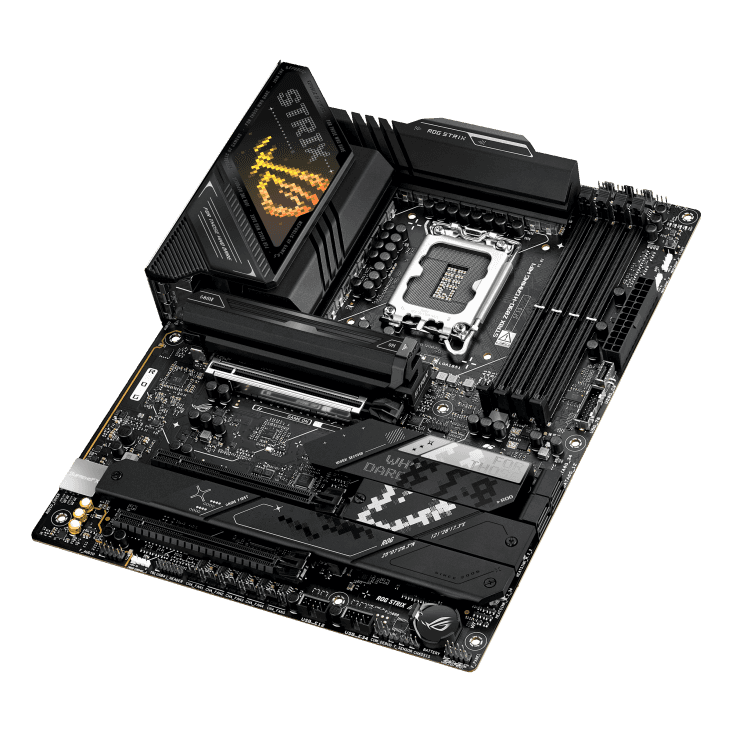

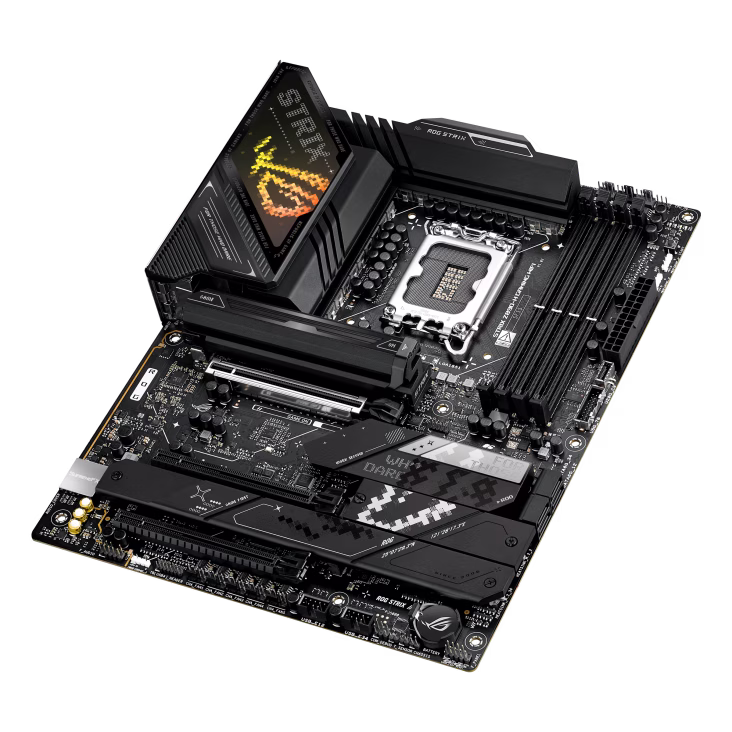

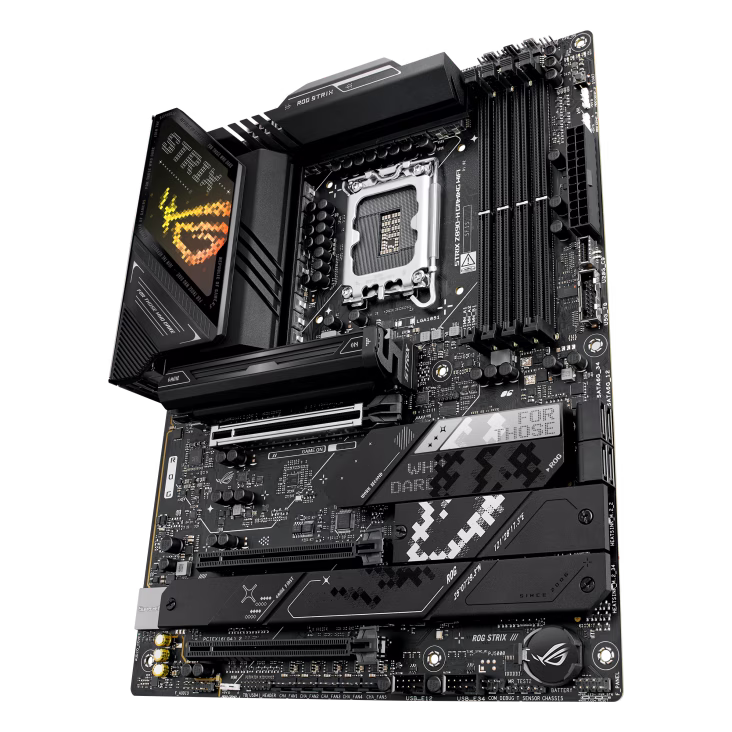

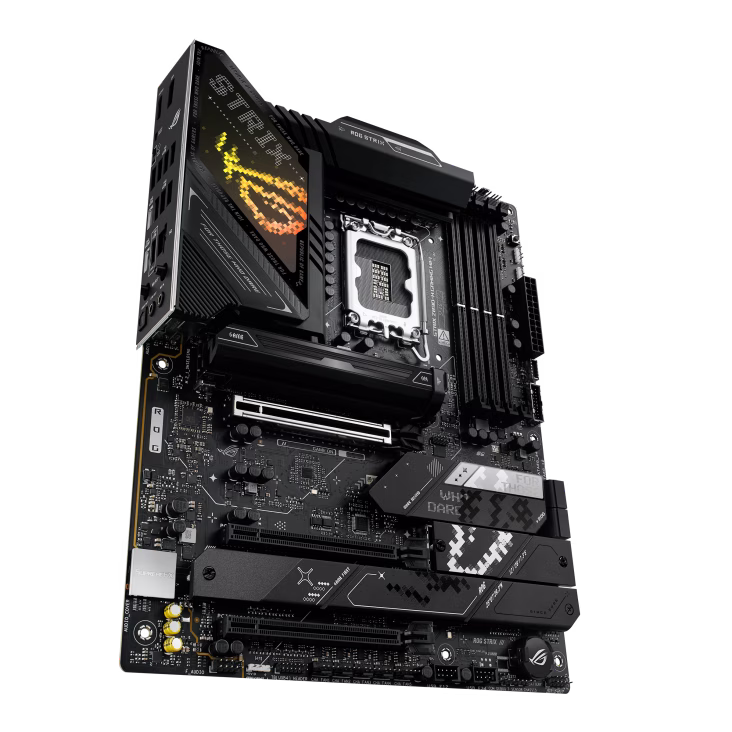

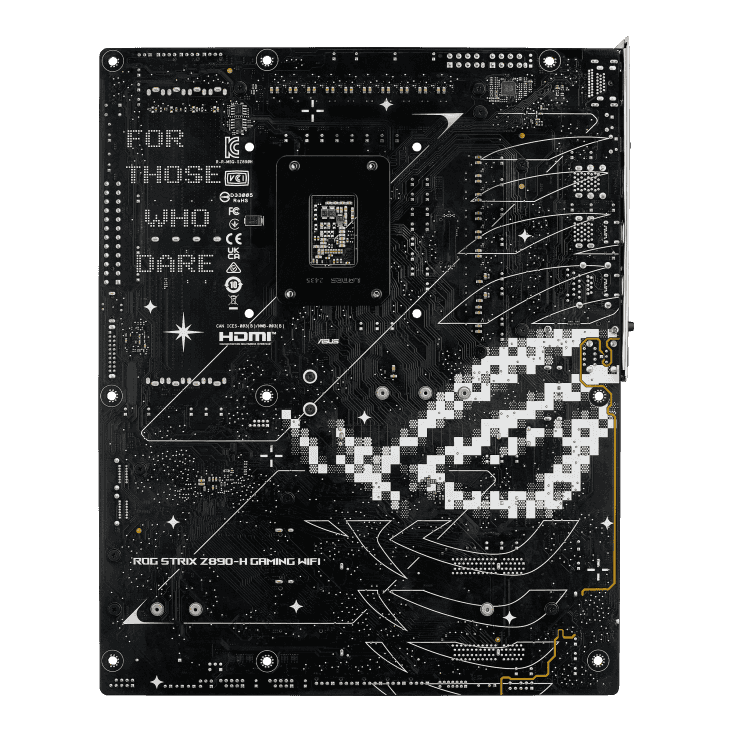

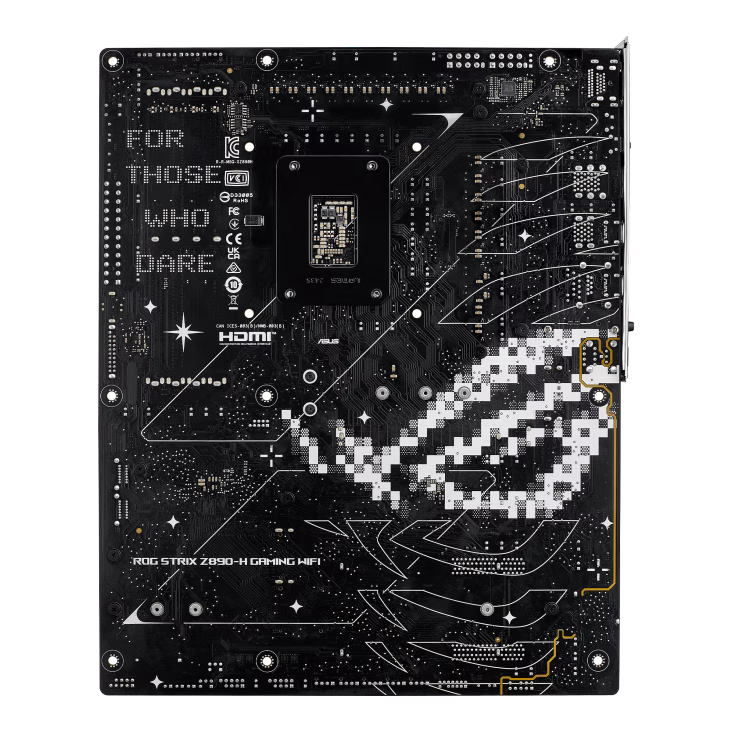

ASUS ROG STRIX Z890-H GAMING WIFI ATX Motherboard, Intel Socket LGA1851, 4x DIMM slots, max. 256GB, DDR5, 4x M.2 slots and 4 x SATA 6Gb/s ports, Pcie 5.0, GEN 5, Wi-Fi 7, Bluetooth v5.4, Black | 90MB1K20-M0EAY0
Model :
SKU : MB-ASUS ROG Z890-H GAM WI
About this item
About this item
Description
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
Specification
| Model | ROG STRIX Z890-H GAMING WIFI |
| CPU Support | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2) Supports Intel® Turbo Boost Technology 2.0 & Intel® Turbo Boost Max Technology 3.0 * CPU support list available at ASUS Download Center. |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 × DIMM slots, Max. 256GB DDR5 Supports up to 9066+ MT/s (OC), Non-ECC, Un-buffered CUDIMM Dual Channel Memory Architecture Supports Intel® XMP, DIMM Flex, DIMM Fit, and ASUS Enhanced Memory Profile III (AEMP III) * Supported types and speeds vary by CPU and configuration. |
| Graphics | 1 × DisplayPort (max. 8K@60Hz, DP 1.4) 1 × HDMI™ port (max. 4K@60Hz, HDMI 2.1) * Specifications vary between CPU types. |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2) • 1 × PCIe 5.0 x16 slot (x16 or x8/x4/x4 modes) Intel® Z890 Chipset • 2 × PCIe 4.0 x16 slots (x4 mode) |
| Storage | 4 × M.2 slots + 4 × SATA 6Gb/s ports From CPU: • M.2_1 (2242/2260/2280/22110, PCIe 5.0 x4) • M.2_2 (2280, PCIe 4.0 x4) From Chipset: • M.2_3 (2280/22110, PCIe 4.0 x4) • M.2_4 (2242/2260/2280, PCIe 4.0 x4 & SATA) • 4 × SATA 6Gb/s ports Supports Intel® Rapid Storage Technology RAID 0/1/5/10 |
| Ethernet | 1 × Realtek 5G Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2, 2.4/5/6GHz Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps Bluetooth® v5.4 * Wi-Fi 7 features require Windows 11 24H2 or later. |
| USB (Rear) | 2 × USB 20Gbps (1 × Type-C® + 1 × Type-C® PD up to 30W) 4 × USB 10Gbps Type-A 4 × USB 5Gbps Type-A |
| USB (Front) | 1 × USB 20Gbps Type-C® 1 × USB 5Gbps header (supports 2 ports) 2 × USB 2.0 headers (supports 4 ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Savitech SV3H712 AMP, SupremeFX Shielding Gold-plated audio jacks, Optical S/PDIF out Premium audio capacitors, Audio cover 120 dB SNR playback / 113 dB SNR recording |

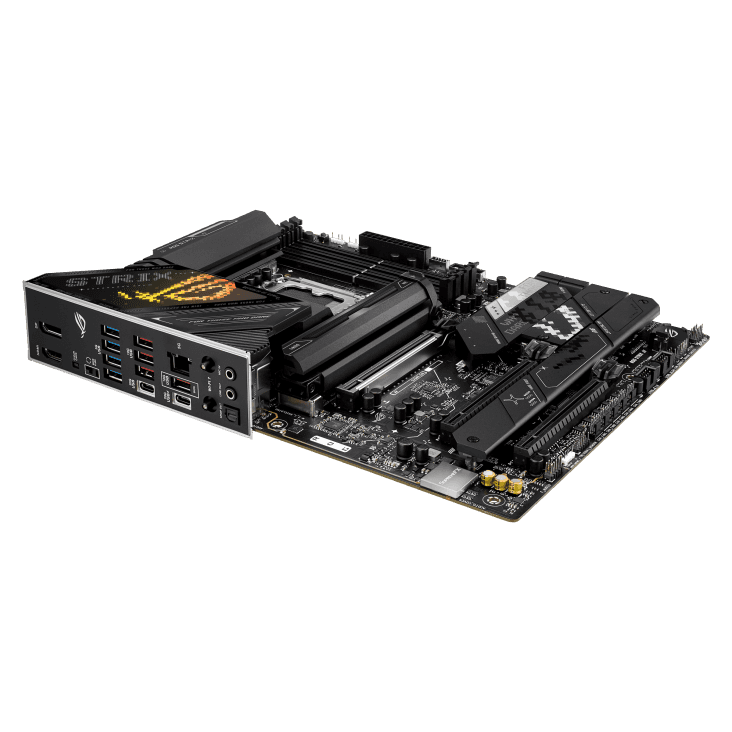

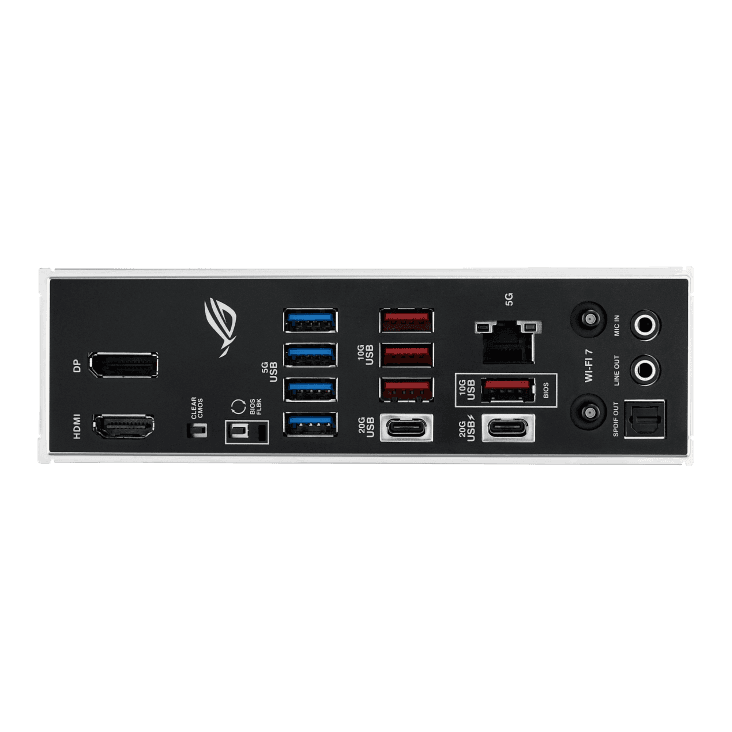

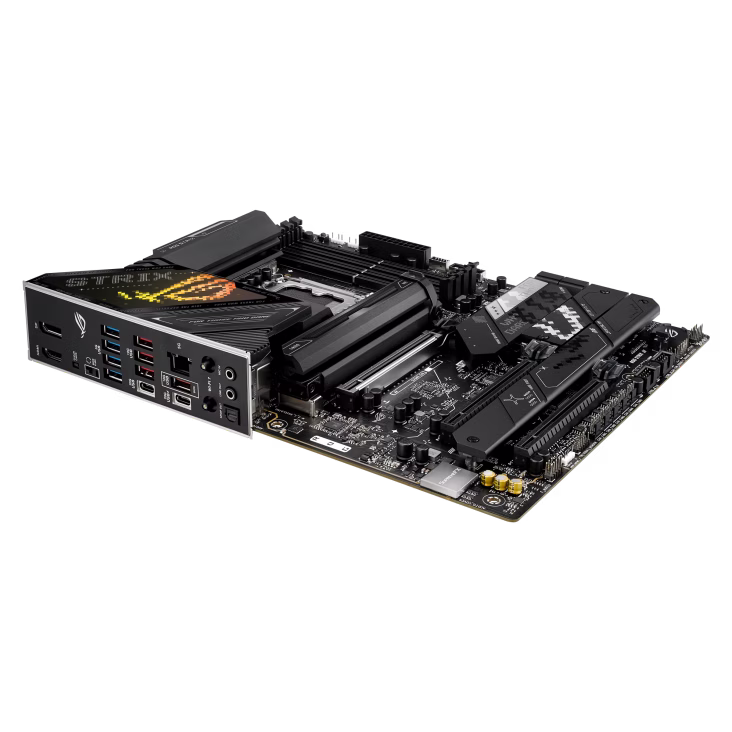

| Back Panel I/O | 2 × USB 20Gbps (2 × Type-C®, 1 with PD up to 30W) 4 × USB 10Gbps (Type-A) 4 × USB 5Gbps (Type-A) 1 × DisplayPort, 1 × HDMI™ 1 × Wi-Fi module 1 × Realtek 5G Ethernet 2 × Audio jacks + 1 × Optical S/PDIF BIOS FlashBack™ & Clear CMOS buttons |
| Internal I/O | • 1 × 24-pin ATX Power • 2 × 8-pin CPU Power • 4 × M.2 slots, 4 × SATA ports • Multiple USB headers (20Gbps, 5Gbps, USB 2.0) • 5 × 4-pin Chassis Fan, CPU Fan, CPU OPT, AIO Pump • 3 × ARGB Gen2 headers • Thunderbolt™ (USB4®) header • Start button, Chassis intrusion, Thermal sensor |
| Special Features | Extreme Engine Digi+, 5K Black Metallic Capacitors ASUS Q-Design (M.2 Q-Latch / Q-Release / Q-Slide, PCIe Slot Q-Release Slim, Q-LED, Q-Antenna) ASUS Thermal Solution (VRM & M.2 heatsinks, backplate) ASUS EZ DIY (ProCool II, Pre-mounted I/O shield, BIOS FlashBack™, SafeDIMM) Aura Sync RGB (Addressable Gen 2) |
| Software Features | ROG CPU-Z, Dolby Atmos Armoury Crate, Aura Sync, Aura Creator Fan Xpert 4 (AI Cooling II), GameFirst, HWiNFO, AI Advisor AIDA64 Extreme (60-day), Norton 360 for Gamers (60-day), Adobe Creative Cloud Trial WinRAR (40-day), USB Wattage Watcher, TurboV Core |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS AI Overclocking Guide, ASUS EZ Flash, CrashFree BIOS 3, FlexKey |
| Manageability | WOL by PME, PXE |

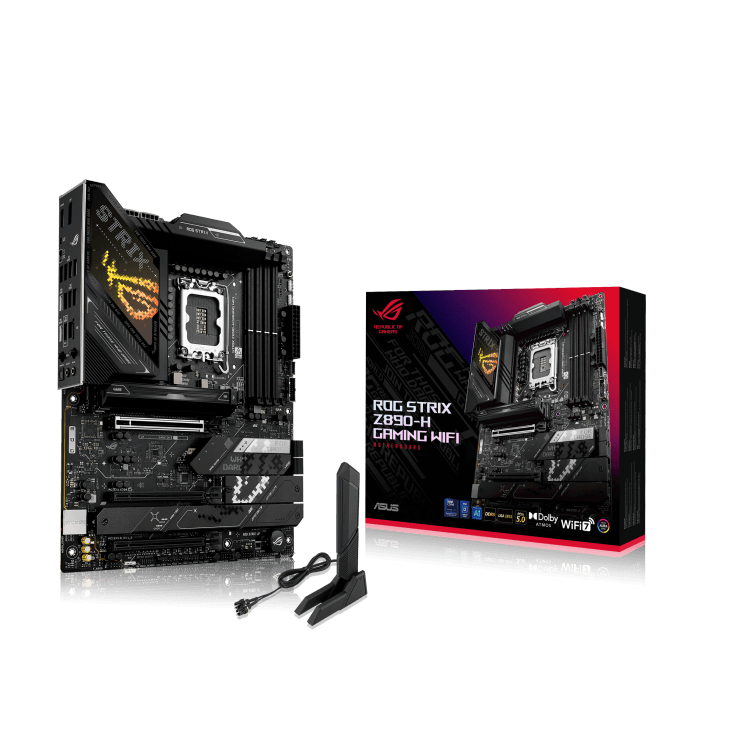

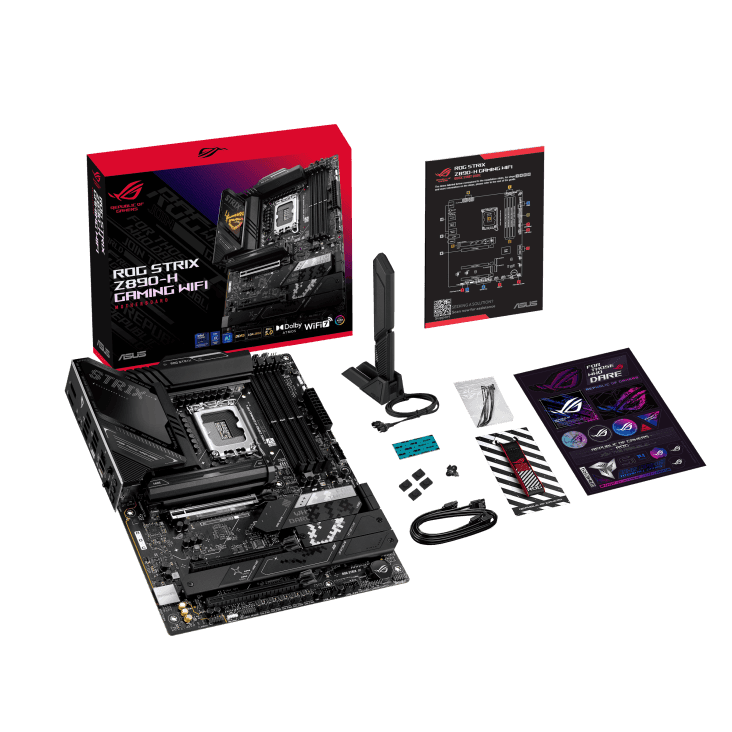

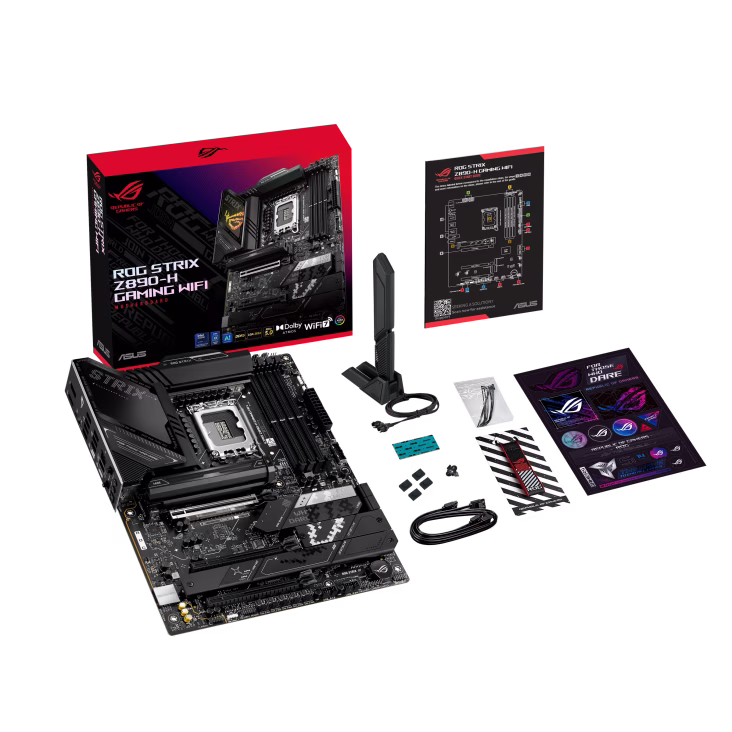

| Accessories | 2 × SATA 6Gb/s cables 1 × Thermal pad for M.2 22110 1 × ASUS Wi-Fi Q-Antenna Cable ties, M.2 Q-Latch pack, 4 × M.2 rubbers ROG keychain, ROG Strix stickers Quick start guide |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
