ASUS ROG Thor 1000W Platinum III ATX 3.1 Power Supply, 80Plus Platinum, Active PFC, Black | 90YE00V3-B0NA00
Model :
SKU : PS-ASUS ROG THOR 1000P3 B
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.
The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment ¡V it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build
GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
"GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.

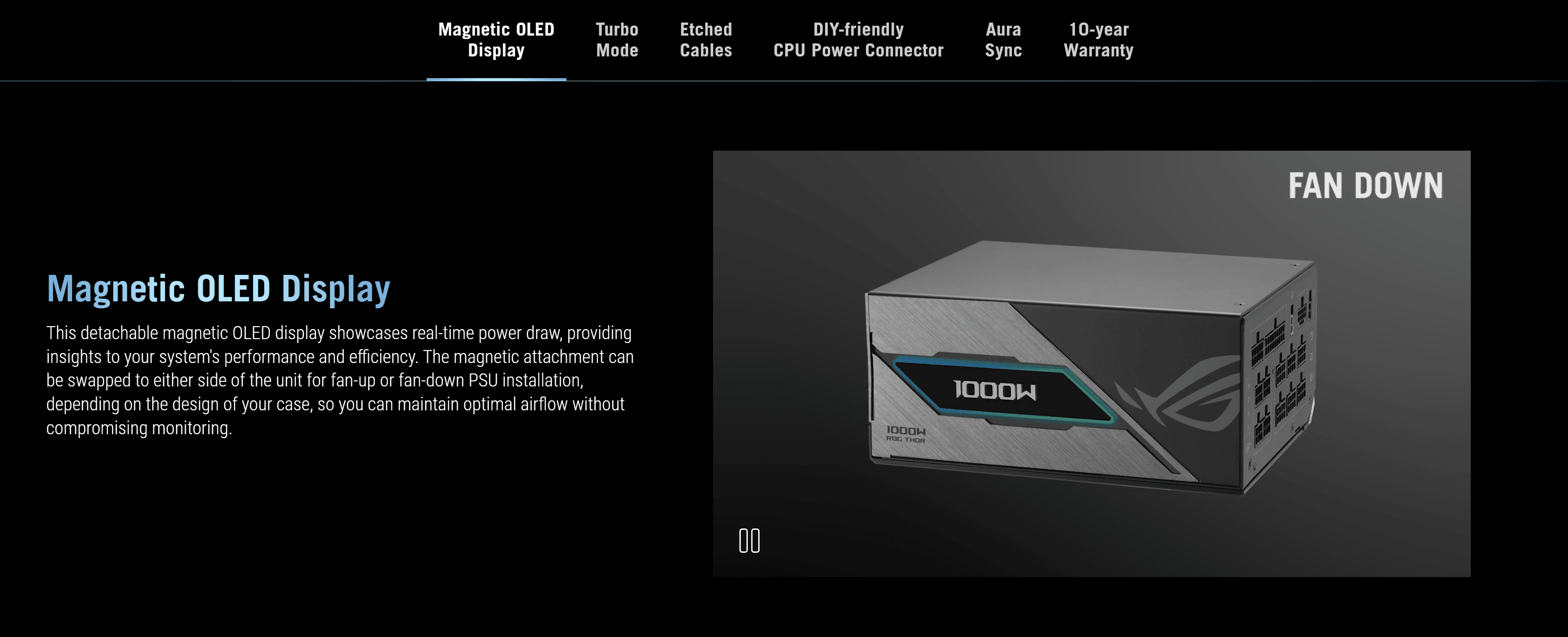

Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
10-year warranty included.
Part Number: 90YE00V3-B0NA00
Specification
ROG Thor 1000W Platinum III
| Model | ROG Thor 1000W Platinum III |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 30A 25A 83.33A 0.3A 3A |
| Combined Load | 125W 125W 1000W 3.6W 15W |
| Total Output | 1000W |
| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 4 SATA x 7 PERIPHERAL x 6 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 16-pin Cable x 1 (750mm) PCI-E Cable 1-to-1 x 4 (750mm) SATA Cable 1-to-4 x 1 (400+120+120+120mm) SATA Cable 1-to-3 x 1 (400+120+120mm) Peripheral 1-to-3 x 2 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Weight | 2.37 KG |
| AURA SYNC | ARGB |
| Cybenetics Noise Level Certification | A++ |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
