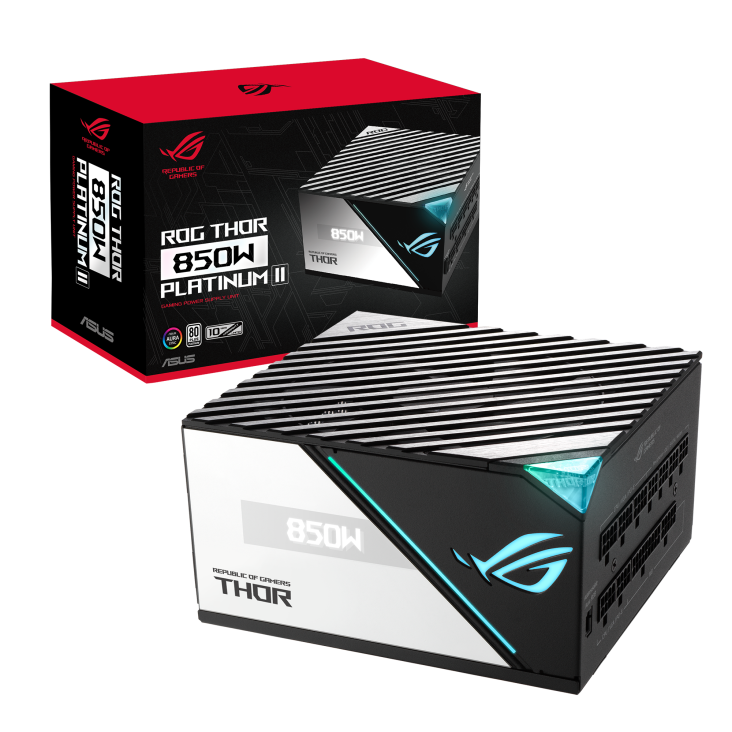

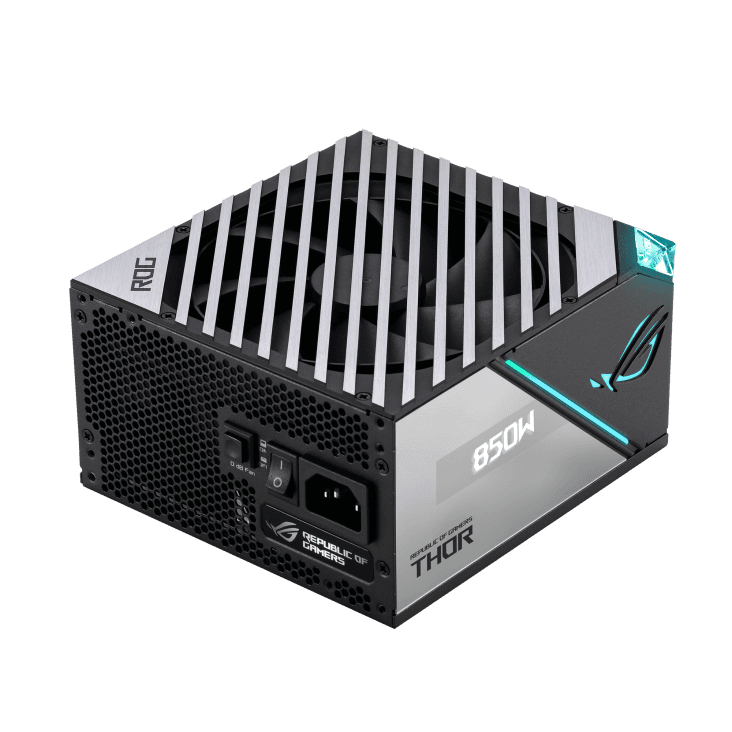

ASUS ROG THOR 850W Platinum II Fully Modular Power Supply, 80 Plus Platinum,135mm Wing-blade Fan with PWM Control, ROG Heatsinks, OLED Display, Aura Sync, Low-ESR Capacitors | 90YE00L2-B0NA00
Model :
SKU : PS-ASU THOR 850W PLATI II
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description

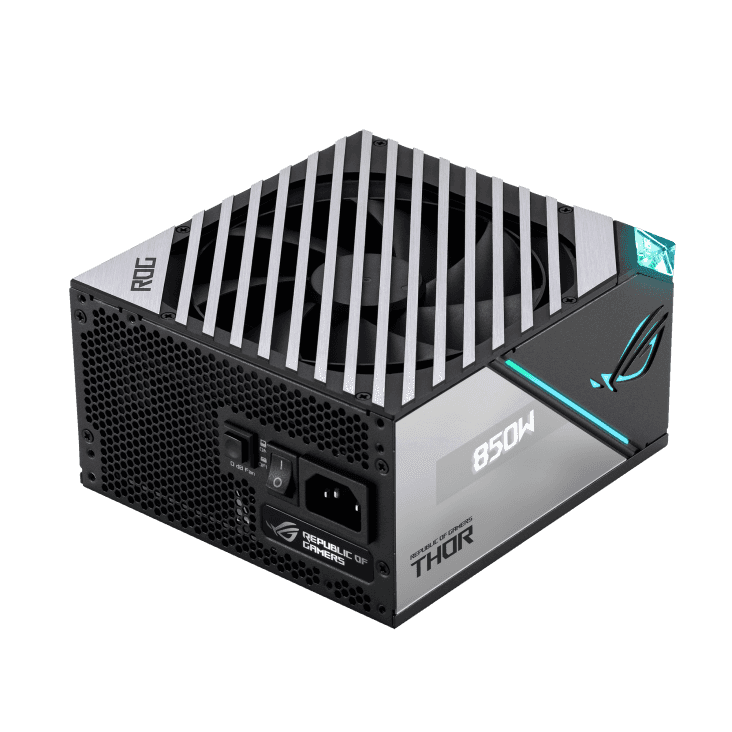

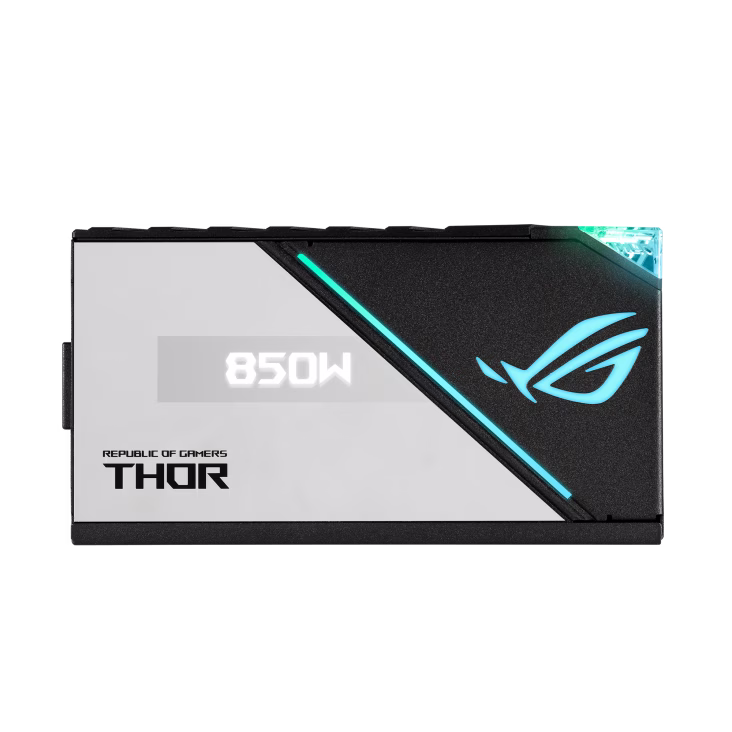

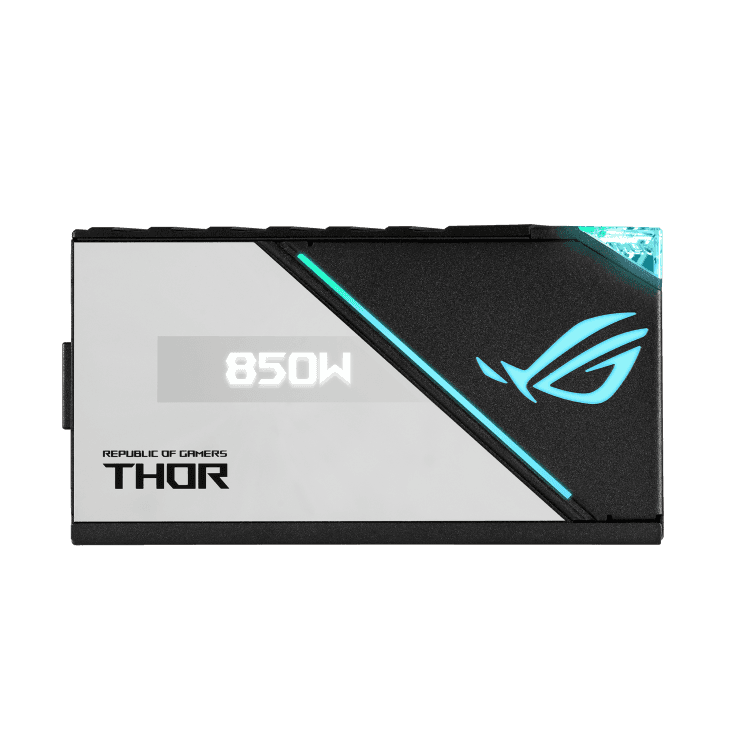

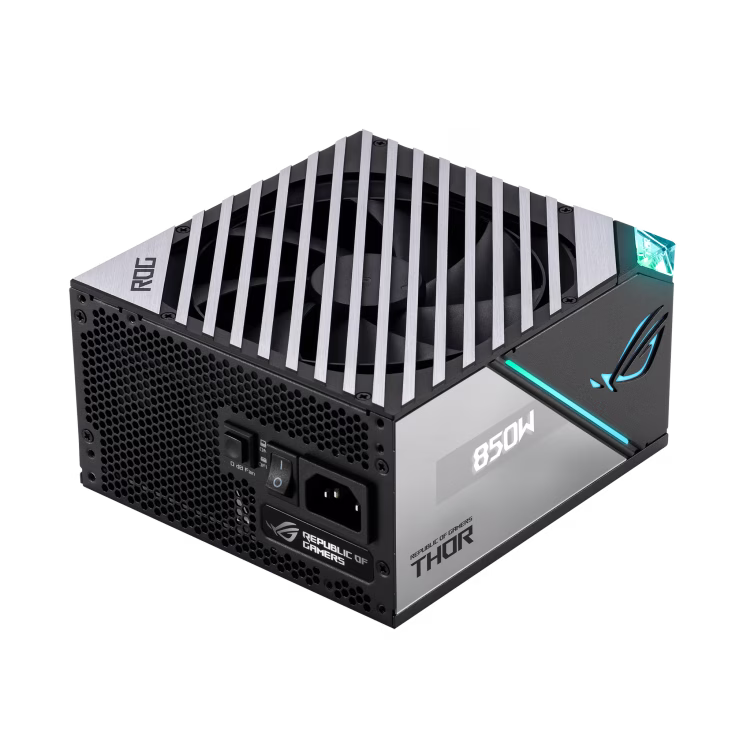

The Quietest 850W Platinum Power Supply Back with a vengeance, the second iteration of the ROG Thor 850W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display. Based on the Cybenetics PSU test result database entries before October 2021. For more information, please refer to here.
Specification
Intel Power Supply Unit Specifications
| General Information | |
| PFC Type | Active PFC |
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25??C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 20A, 20A, 71A, 0.3A, 3A |
| Combined Load | 100W, 100W, 852W, 3.6W, 15W |
| Total Output | 850W |

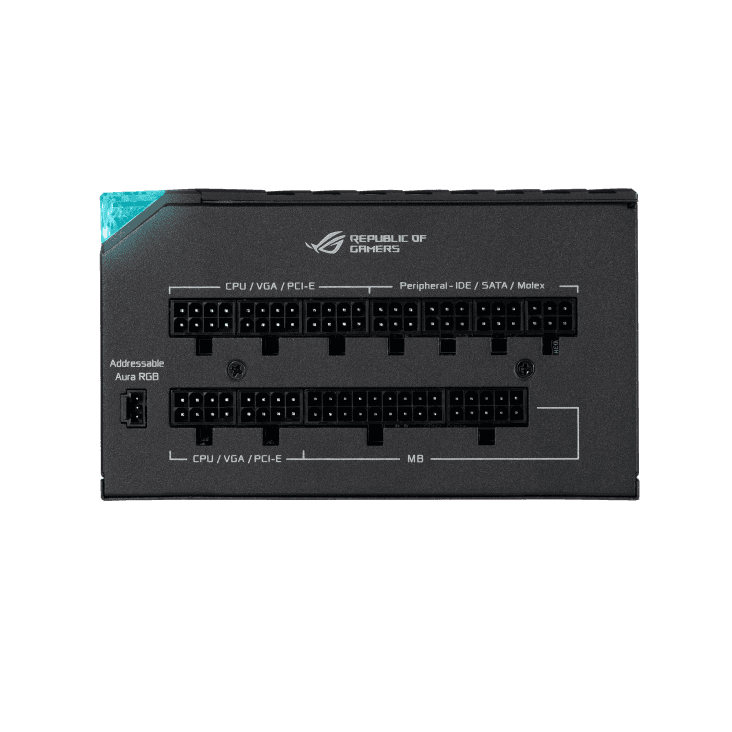

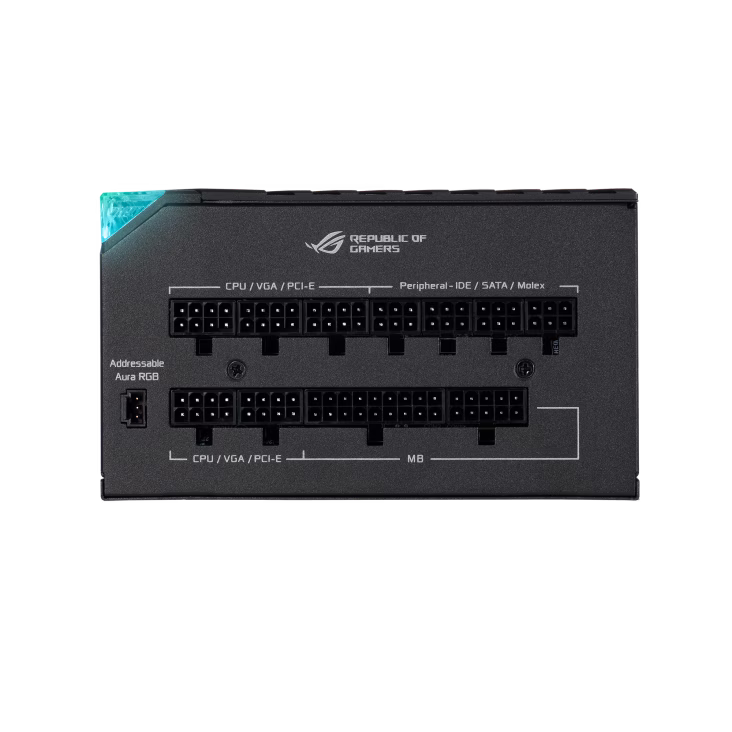

| Cable Connectors | |
| MB 24/20-pin | x 1 |
| CPU 4+4-pin | x 2 |
| PCI-E 16-pin (component side) | x 1 |
| PCI-E 6+2-pin | x 3 |
| SATA | x 10 |
| PERIPHERAL | x 6 |
| Package Contents | |

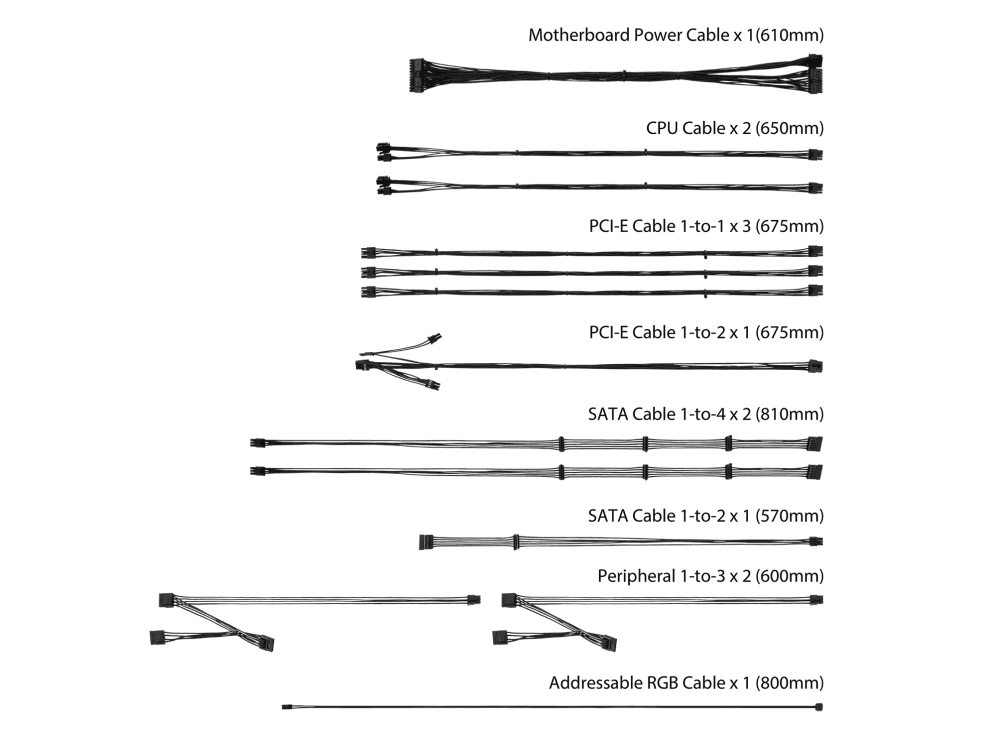

| Power Cord | x 1 |
| Motherboard Power Cable | x 1 (610mm) |
| CPU Cable | x 2 (650mm) |
| PCIE Cable 16-pin | x 1 (675mm) |
| PCIE 1-to-1 Cable | x 3 (675mm) |
| PCIE 1-to-2 Cable | x 2 (675+75mm) |
| SATA 1-to-2 Cable | x 1 (400+120mm) |
| SATA 1-to-4 Cable | x 2 (400+120+120+120mm) |
| Peripheral 1-to-3 Cable | x 2 (450+120+120mm) |
| Addressable RGB Cable | x 1 (800mm) |
| ROG sticker | x 1 |
| ROG cable tie | x 4 |
| Sleeved Cable Combs (6-pin) | x 2 |
| Sleeved Cable Combs (8-pin) | x 6 |
| Sleeved Cable Combs (24-pin) | x 2 |
| Chassis Screws Package | x 1 |
| Cable Tie | x 10 |
| User Manual | x 1 |
| Additional Features | |
| Weight | 1.865kg (Single) |
| AURA SYNC | ARGB |
| Cybenetics Noise Level Certification | A++ |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
