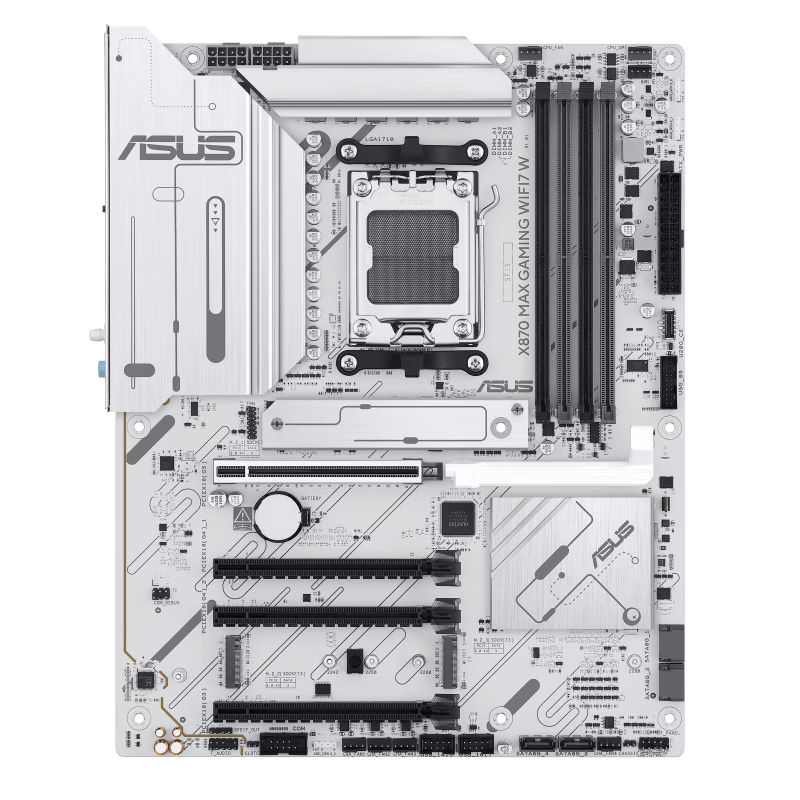

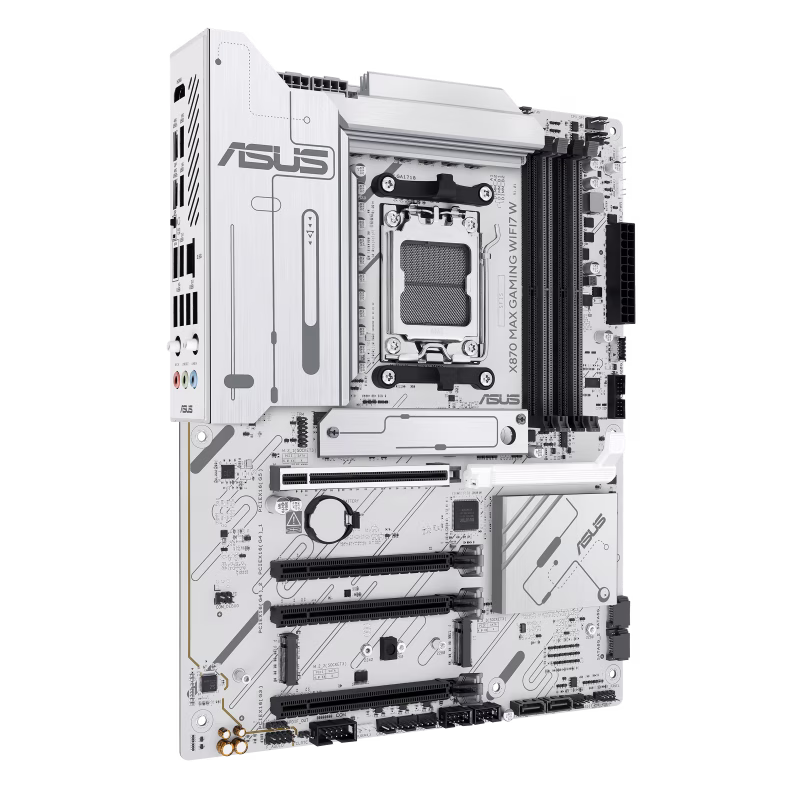

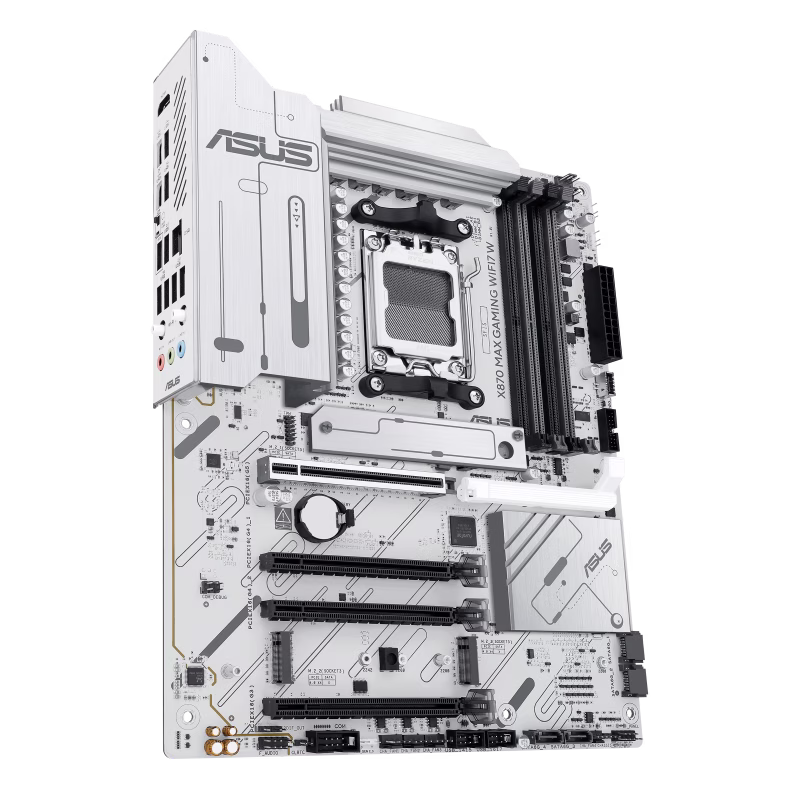

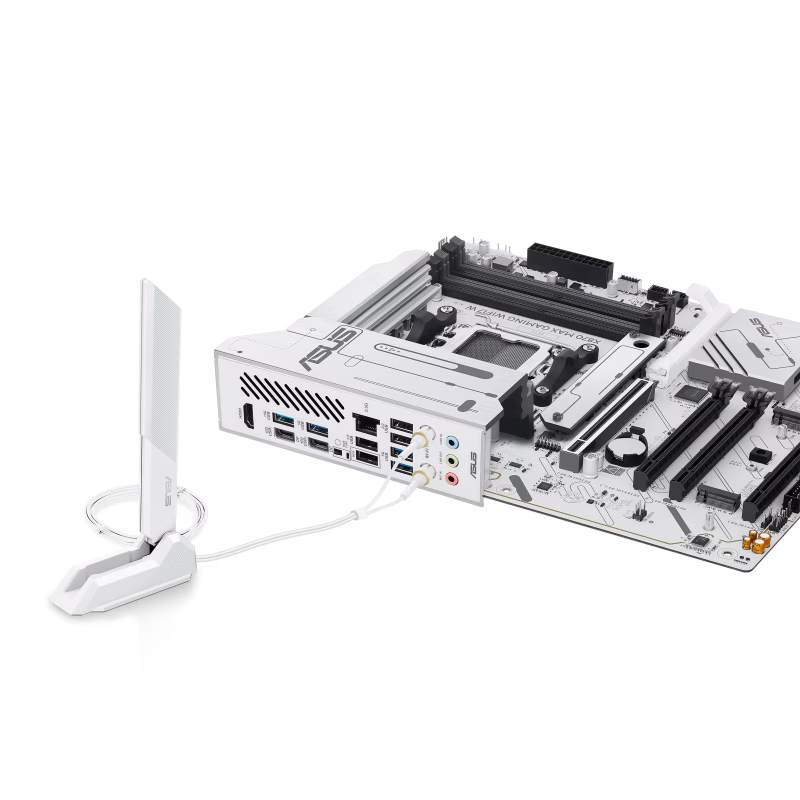

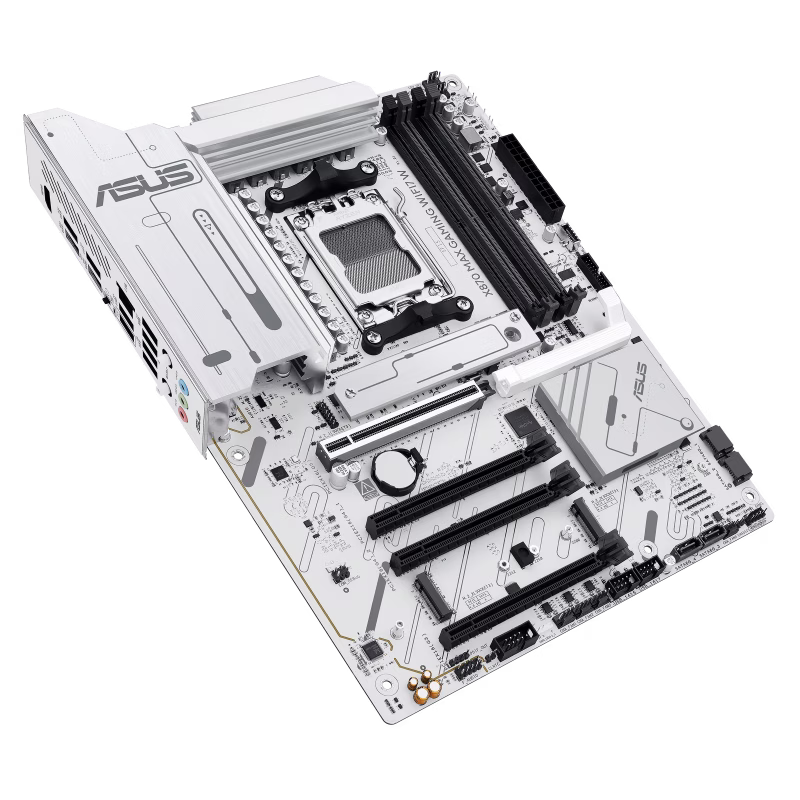

ASUS X870 MAX GAMING WIFI7 W AM5 White ATX Motherboard, AI PC-ready, PCIe 5.0 x16, 4x DIMM slots, max. 256GB, DDR5 upto 8000+MT/s(OC), 3 x M.2 slots 4x SATA 6Gb/s ports, 2.5Gb Ethernet ASUS LANGuard, Wi-Fi 7, 10x USB ports, Realtek 7.1 | 90MB1LZ0-M0EAY0
Model :
SKU : MB-ASU X870 MAX GAM WI7 W
About this item
About this item
Description
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specification
| Model | X870 MAX GAMING WIFI7 |
|---|---|
| CPU | AMD Socket AM5 for Ryzen??? 9000, 8000, 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DDR5 DIMM, max. 256GB Up to 8000+MT/s (OC) Dual channel, ECC/Non-ECC Un-buffered Supports EXPO???, AEMP |
| Graphics | 1 x HDMI port (4K@60Hz) 2 x USB4?? Type-C?? display outputs (4K@60Hz) *Depends on CPU |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16 Ryzen 8000: 1 x PCIe 4.0 x16 X870 Chipset: 2 x PCIe 4.0 x16 (x1 mode), 1 x PCIe 3.0 x16 (x1 mode) |
| Storage | 3 x M.2 Slots 4 x SATA 6Gb/s Ports M.2_1: PCIe 5.0 (9000/7000) or PCIe 4.0 (8000) M.2_2: PCIe 4.0 (shares bandwidth with USB4) M.2_3: PCIe 4.0 (Chipset) |
| RAID Support | 9000: RAID 0/1/5/10 8000: RAID 0/1 7000: RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2.4/5/6GHz, 2x2) Bluetooth?? v5.4 *Wi-Fi 7 requires Windows 11 24H2 or later |
| Rear USB | 2 x USB4?? Type-C?? (40Gbps) 1 x USB 10Gbps Type-A 3 x USB 5Gbps Type-A 4 x USB 2.0 Type-A |
| Front USB | 1 x USB 20Gbps Type-C?? 2 x USB 5Gbps (via header) 4 x USB 2.0 (via headers) |
| Audio | Realtek 7.1 Surround Sound CODEC Jack detection, Multi-streaming, 24-bit/192 kHz Premium capacitors, shielding |
| Back Panel I/O | USB4?? x2, USB 10Gbps x1, USB 5Gbps x3, USB 2.0 x4 HDMI, Wi-Fi module, 2.5Gb LAN, Audio jacks BIOS FlashBack??? button |
| Internal I/O | 4 x 4-pin fan headers, 1 x AIO Pump 2 x 8-pin +12V CPU power 3 x M.2, 4 x SATA 1 x USB 20Gbps, USB 5Gbps, USB 2.0 headers ARGB Gen 2 headers, Clear CMOS, TPM, COM, SPDIF Out |
| Special Features | ASUS 5X PROTECTION III Q-Design (Q-DIMM, Q-Slot, Q-Antenna, Q-LED Core) Flexible M.2 Heatsink, VRM Heatsinks BIOS FlashBack???, Armoury Crate, Fan Xpert 4 with AI Cooling II |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables, WiFi Q-Antenna M.2 rubber/screw kit Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
