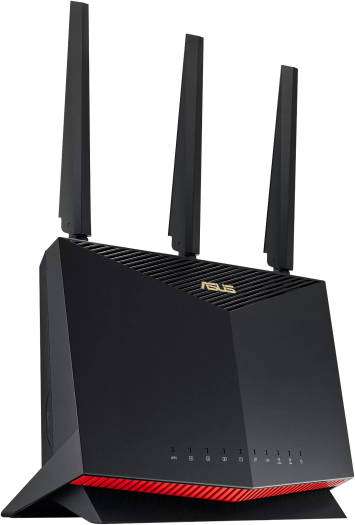

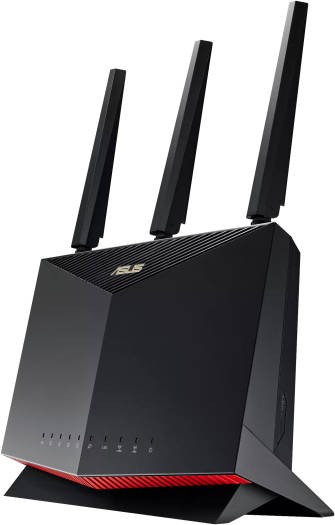

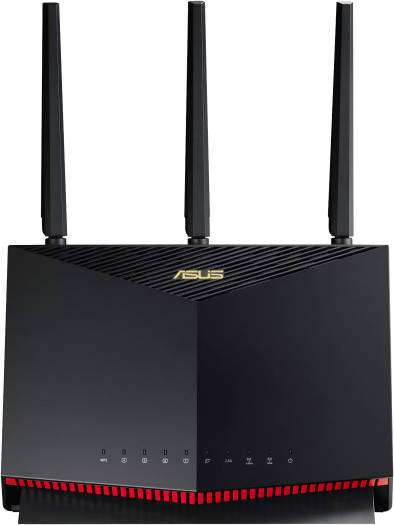

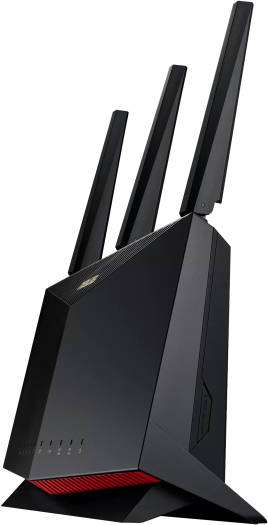

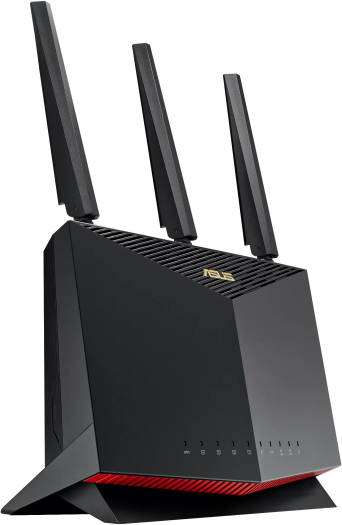

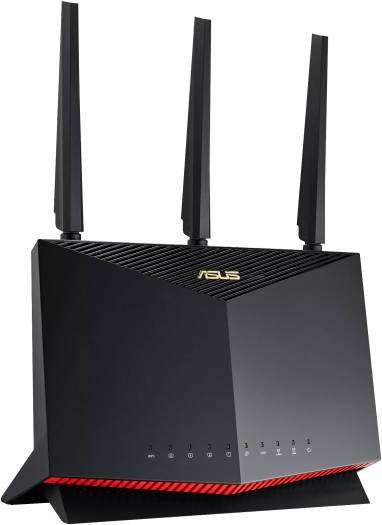

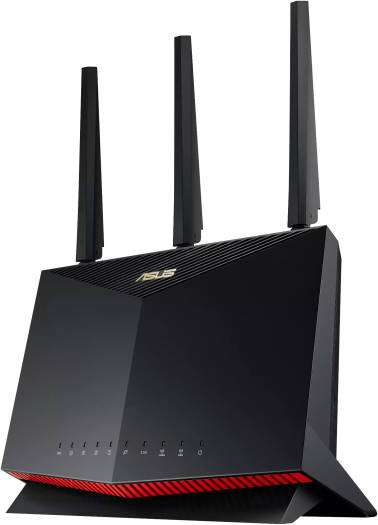

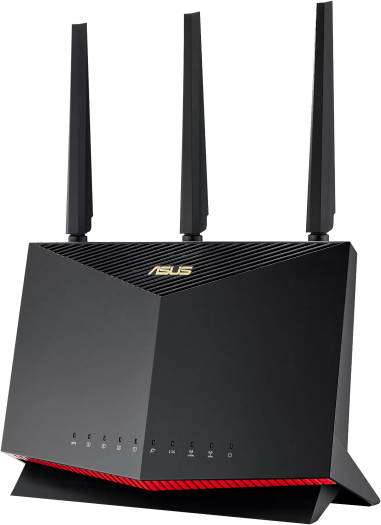

ASUS RT-AX86U Pro AX5700 Wireless Router, Up to 5665 Mb/s, Dual-Band, 4x Ethernet Ports, AiProtection Pro, Red-Black | 90IG07N0-MU2B00
Model :
SKU : WR-ASUS RT-AX86U PRO
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
ASUS RT-AX86U Pro AX5700 Wireless Router, Up to 5665 Mb/s, Dual-Band, 4x Ethernet Ports, 4x Antenna, AiProtection Pro, Red-Black | 90IG07N0-MU2B00
| Model | RT-AX86U Pro |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX5700 ultimate AX performance : 861+4804 Mbps |
| WiFi Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps |
| Antenna | External antenna x 3 Internal PCB antenna x 1 |
| Transmit / Receive | 2.4GHz 3x3 5GHz 4x4 |
| Processor | 2.0GHz quad-core processor |
| Memory | 256 MB Flash and 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Operating Mode | Wireless router mode, Access point mode, Media bridge mode, Repeater mode, AiMesh node mode |

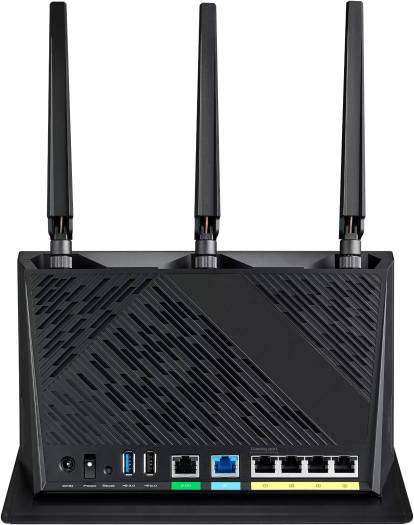

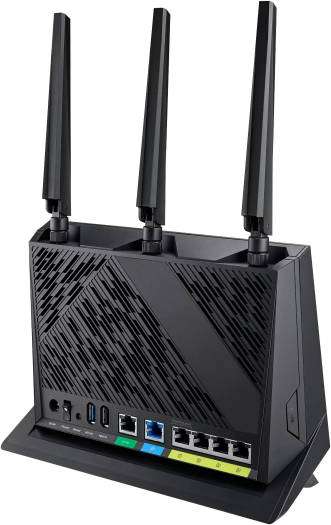

| I/O Ports | RJ45 for 10/100/1000 BaseT for WAN x 1 RJ45 for 10/100/1000 BaseT for LAN x 4 Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1) 2.5G/1Gbps multi-Gig port (configurable) USB 3.2 Gen1 x1, 2.0 x1 |
| Buttons | WPS Button, Reset Button, Power Switch, LED on/off Button |
| LED Indicator | Power x 1 2.4GHz x 1 5GHz x 1 2.5G Port x 1 WAN x 1 LAN x 4 WPS x 1 |
| Power Supply | 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or 12 V with max.3 A current / 19.5 V with max. 2.31 A current |
| Package Content | RT-AX86U Pro WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 814.5 g |
| Product Dimensions | 242 x 100 x 325 (with antenna) 242 x 100 x 164 (without antenna) |
| AiMesh | Primary AiMesh Router AiMesh Node |
| Game | Game Boost / Acceleration Mobile Game Mode Gear Accelerator |
| Parental Control | "Allow you to block access to unwanted websites and apps." Safe Browsing Customized Internet Schedule Maximum Parental Control Profile : 64 Maximum Parental Control Content Cilter Rule : 64 |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network. Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS |
| Security | AiProtection WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support Let's Encrypt DNS-over-TLS SSH Security Scan |
| Firewall | Maximum Firewall Keyword Filter : 64 Maximum Firewall Network Service Filter : 32 Maximum Firewall URL Filter : 64 |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS Bandwidth Monitor Bandwidth Limiter Maximum Bandwidth Limiter Rule : 32 Traditional QoS Maximum Traditional QoS Rule : 32 Traffic Monitor Real-time Traffic Monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic Analysis Period : Daily, Weekly, Monthly Website History |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G / 4G LTE dongle Port forwarding Maximum Port Forwarding Rule : 64 Port triggering Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay |
| LAN | DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
| Administration | Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
Specification
ASUS RT-AX86U Pro AX5700 Wireless Router, Up to 5665 Mb/s, Dual-Band, 4x Ethernet Ports, 4x Antenna, AiProtection Pro, Red-Black | 90IG07N0-MU2B00
| Model | RT-AX86U Pro |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX5700 ultimate AX performance : 861+4804 Mbps |
| WiFi Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps |
| Antenna | External antenna x 3 Internal PCB antenna x 1 |
| Transmit / Receive | 2.4GHz 3x3 5GHz 4x4 |
| Processor | 2.0GHz quad-core processor |
| Memory | 256 MB Flash and 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Operating Mode | Wireless router mode, Access point mode, Media bridge mode, Repeater mode, AiMesh node mode |
| I/O Ports | RJ45 for 10/100/1000 BaseT for WAN x 1 RJ45 for 10/100/1000 BaseT for LAN x 4 Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1) 2.5G/1Gbps multi-Gig port (configurable) USB 3.2 Gen1 x1, 2.0 x1 |
| Buttons | WPS Button, Reset Button, Power Switch, LED on/off Button |
| LED Indicator | Power x 1 2.4GHz x 1 5GHz x 1 2.5G Port x 1 WAN x 1 LAN x 4 WPS x 1 |
| Power Supply | 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or 12 V with max.3 A current / 19.5 V with max. 2.31 A current |
| Package Content | RT-AX86U Pro WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 814.5 g |
| Product Dimensions | 242 x 100 x 325 (with antenna) 242 x 100 x 164 (without antenna) |
| AiMesh | Primary AiMesh Router AiMesh Node |
| Game | Game Boost / Acceleration Mobile Game Mode Gear Accelerator |
| Parental Control | "Allow you to block access to unwanted websites and apps." Safe Browsing Customized Internet Schedule Maximum Parental Control Profile : 64 Maximum Parental Control Content Cilter Rule : 64 |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network. Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS |
| Security | AiProtection WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support Let's Encrypt DNS-over-TLS SSH Security Scan |
| Firewall | Maximum Firewall Keyword Filter : 64 Maximum Firewall Network Service Filter : 32 Maximum Firewall URL Filter : 64 |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS Bandwidth Monitor Bandwidth Limiter Maximum Bandwidth Limiter Rule : 32 Traditional QoS Maximum Traditional QoS Rule : 32 Traffic Monitor Real-time Traffic Monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic Analysis Period : Daily, Weekly, Monthly Website History |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G / 4G LTE dongle Port forwarding Maximum Port Forwarding Rule : 64 Port triggering Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay |
| LAN | DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
| Administration | Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
