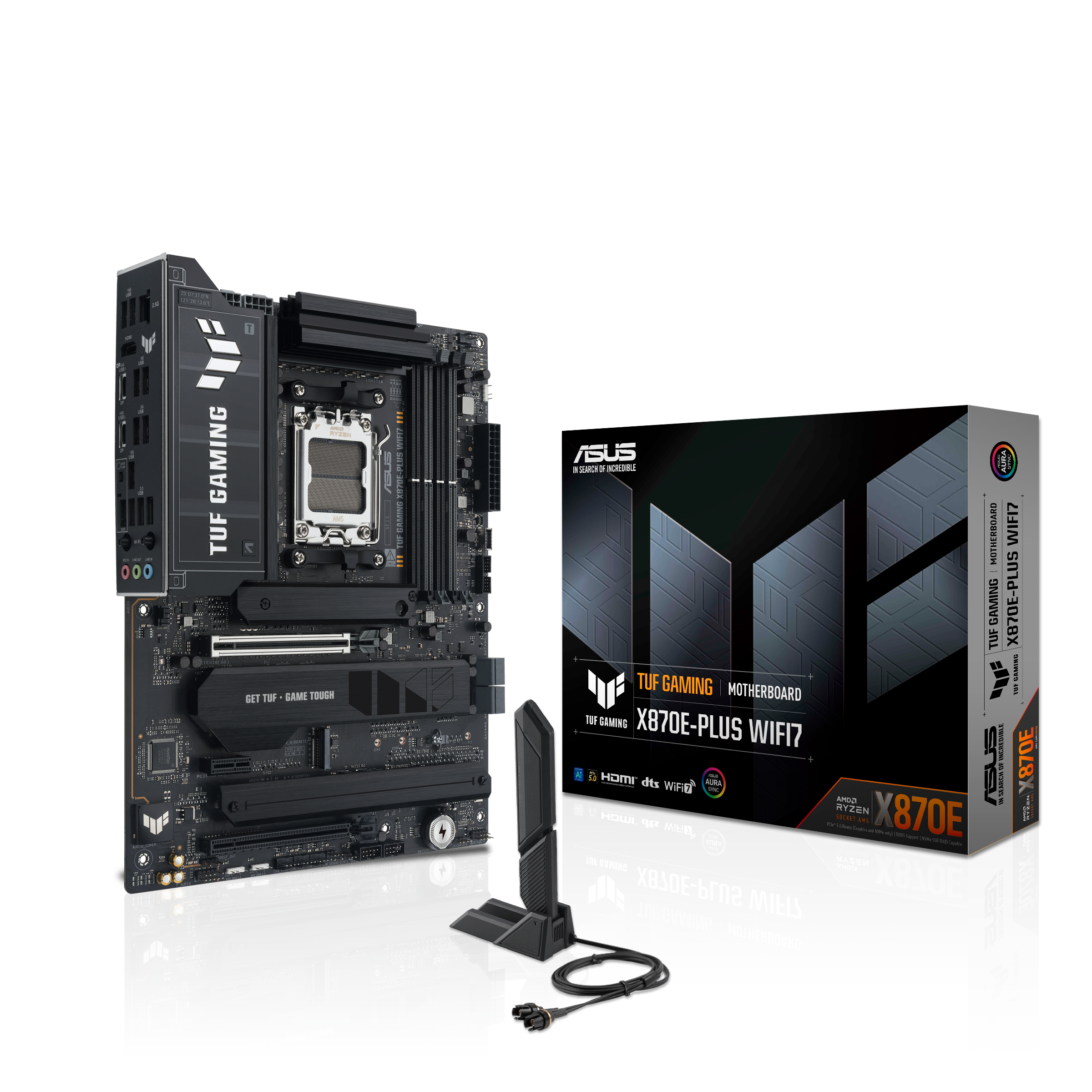

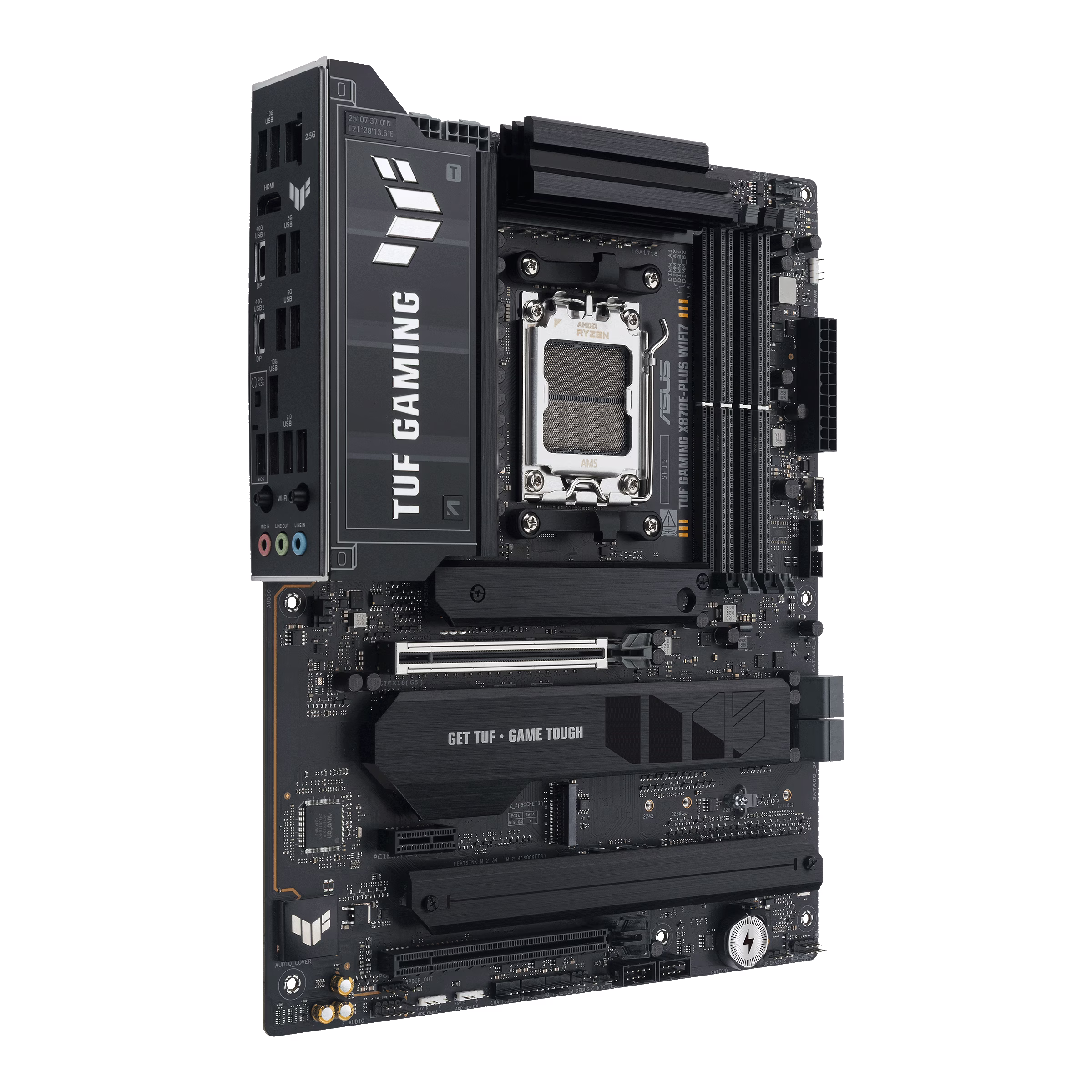

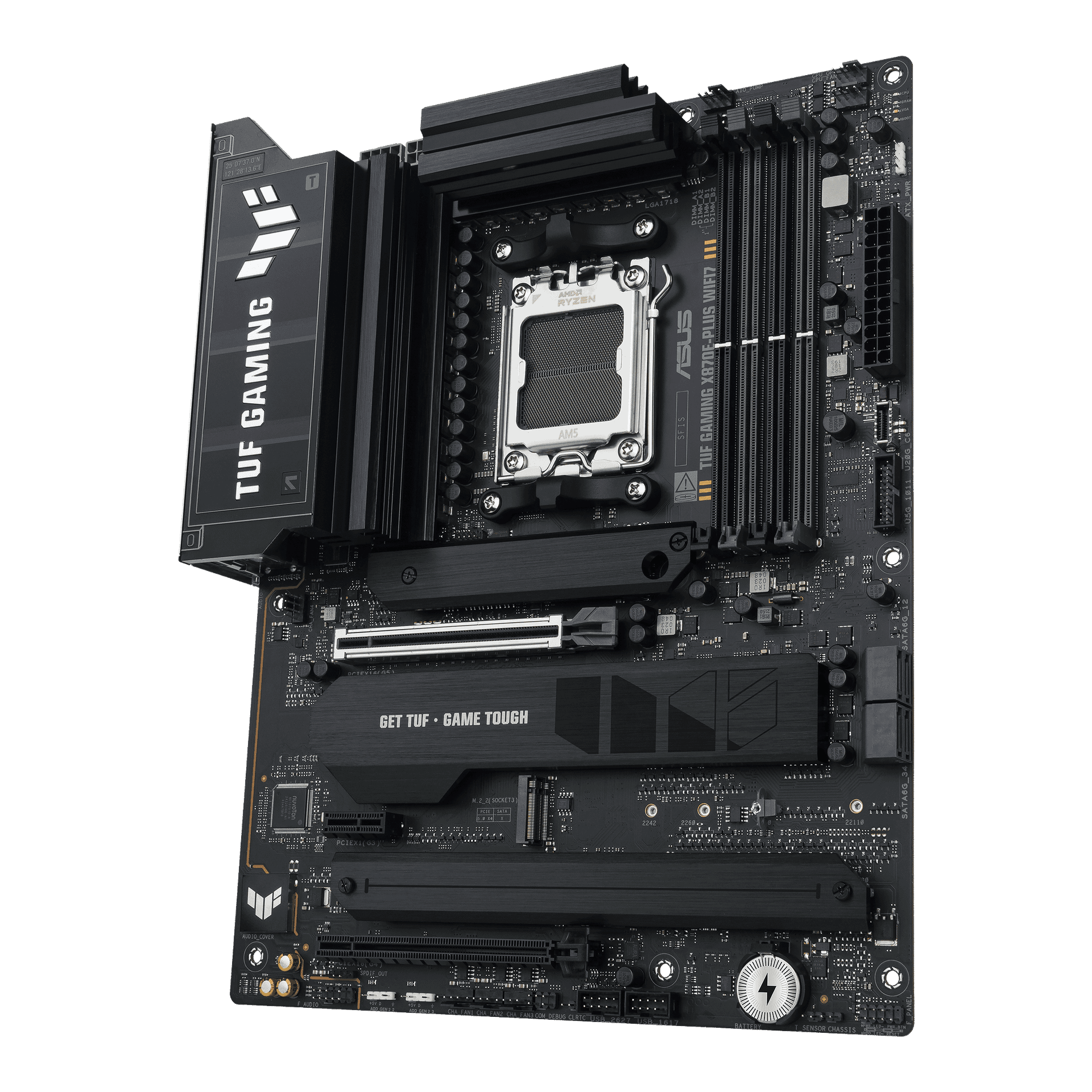

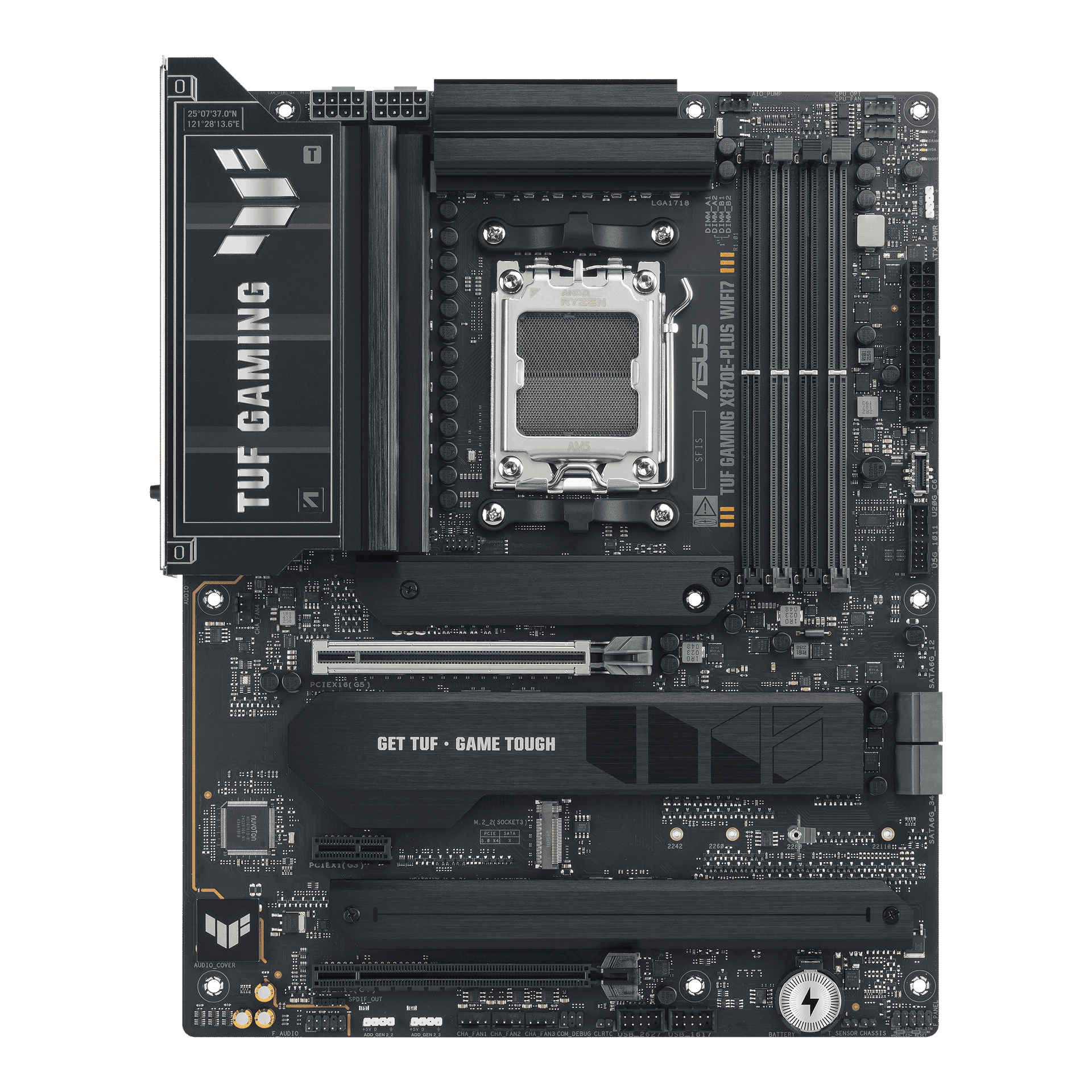

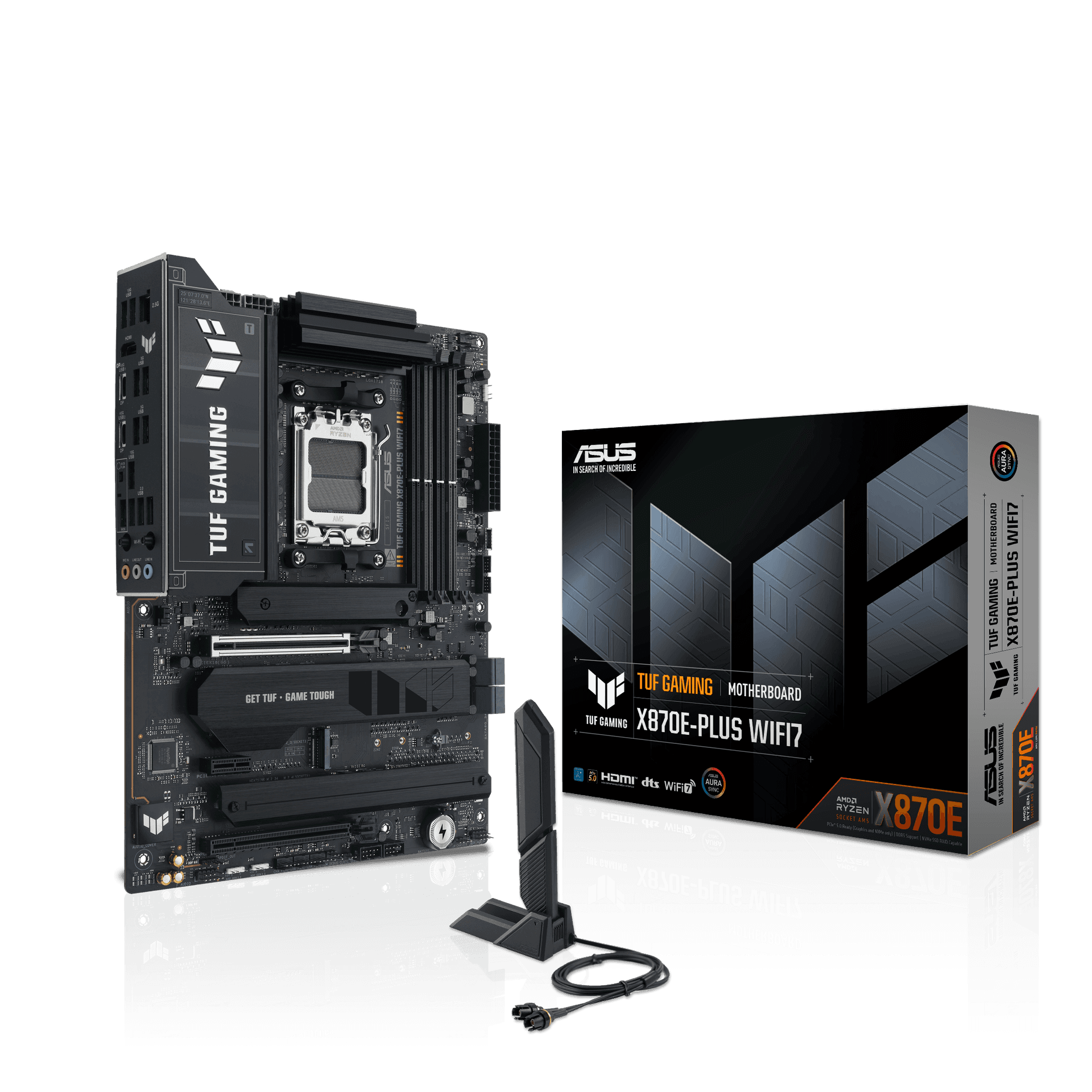

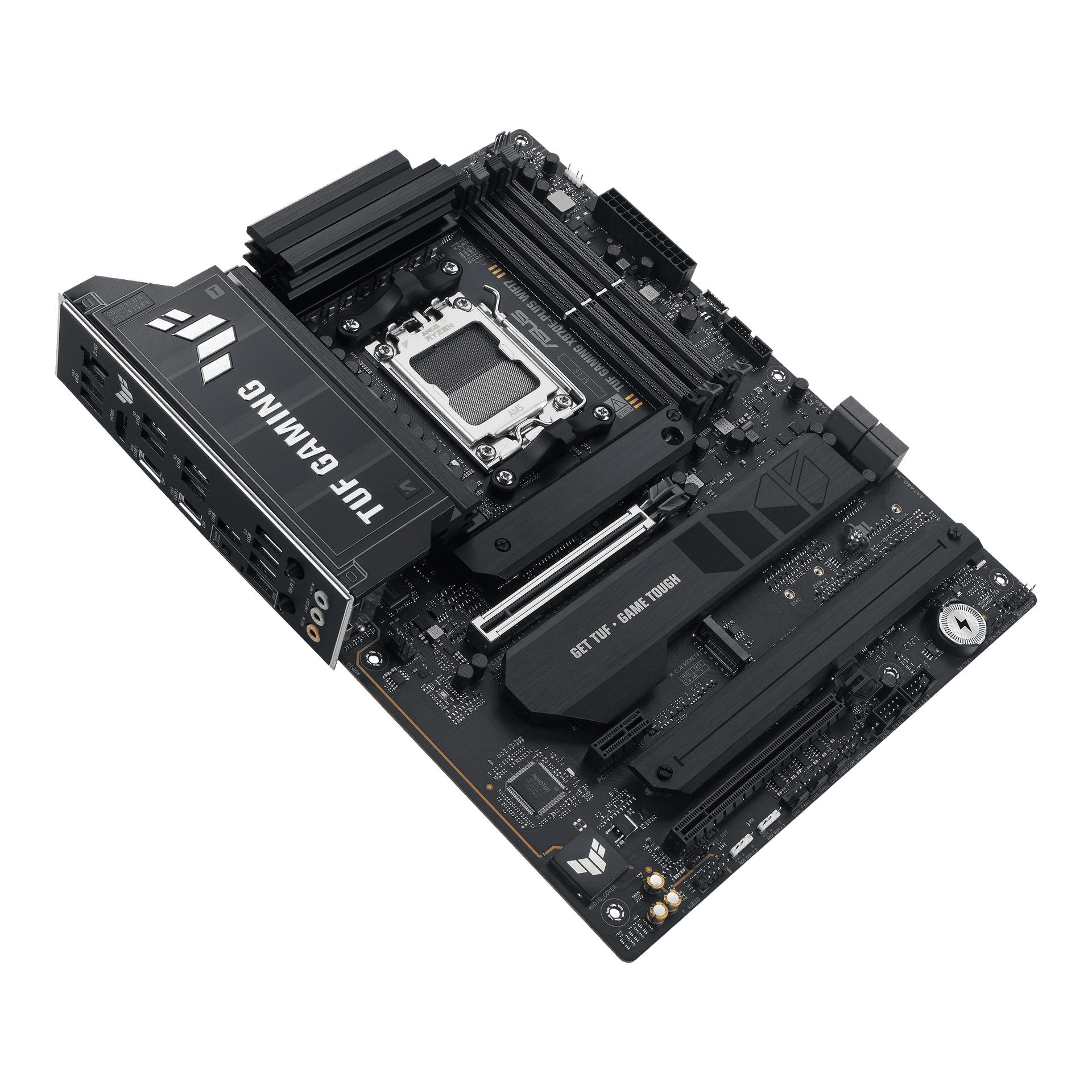

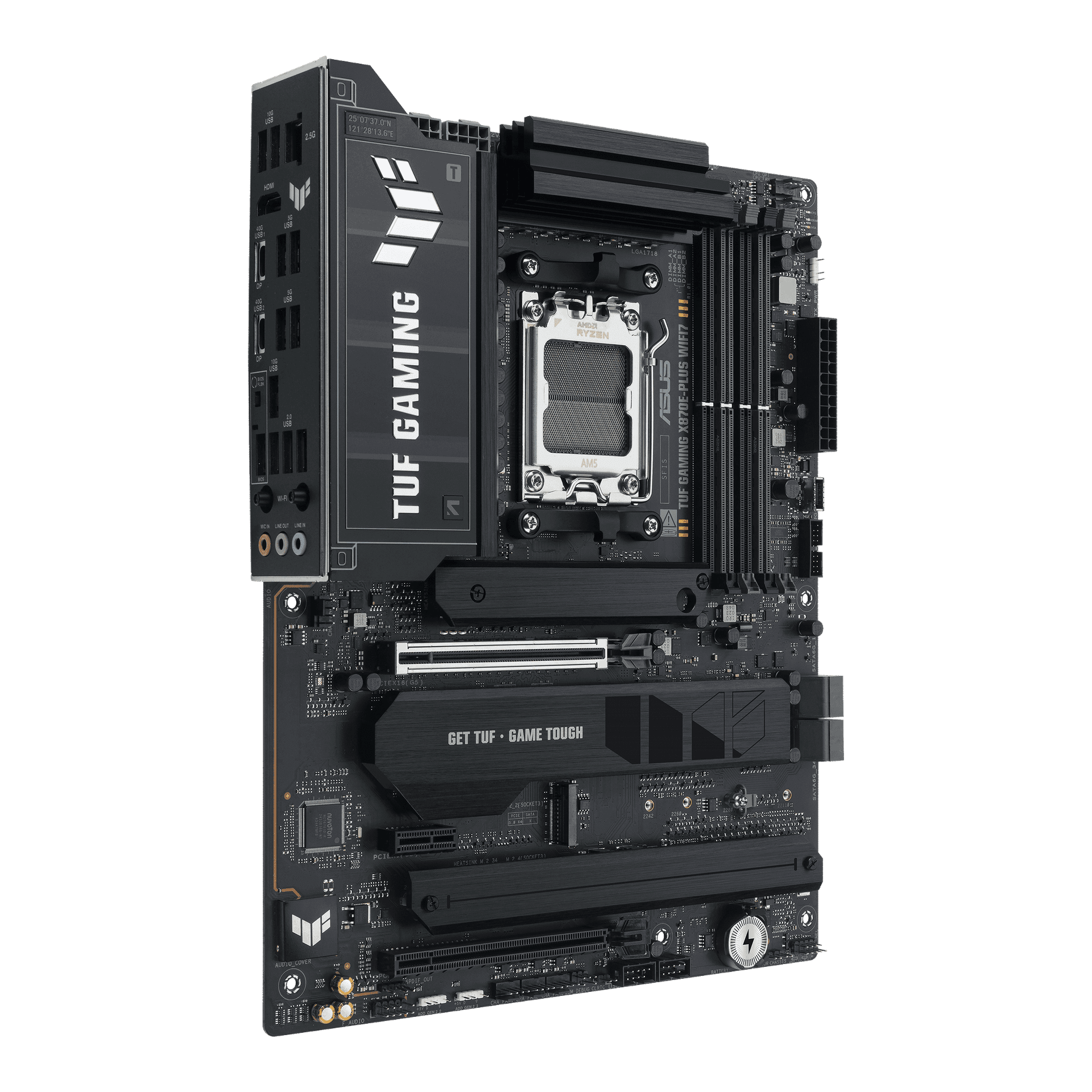

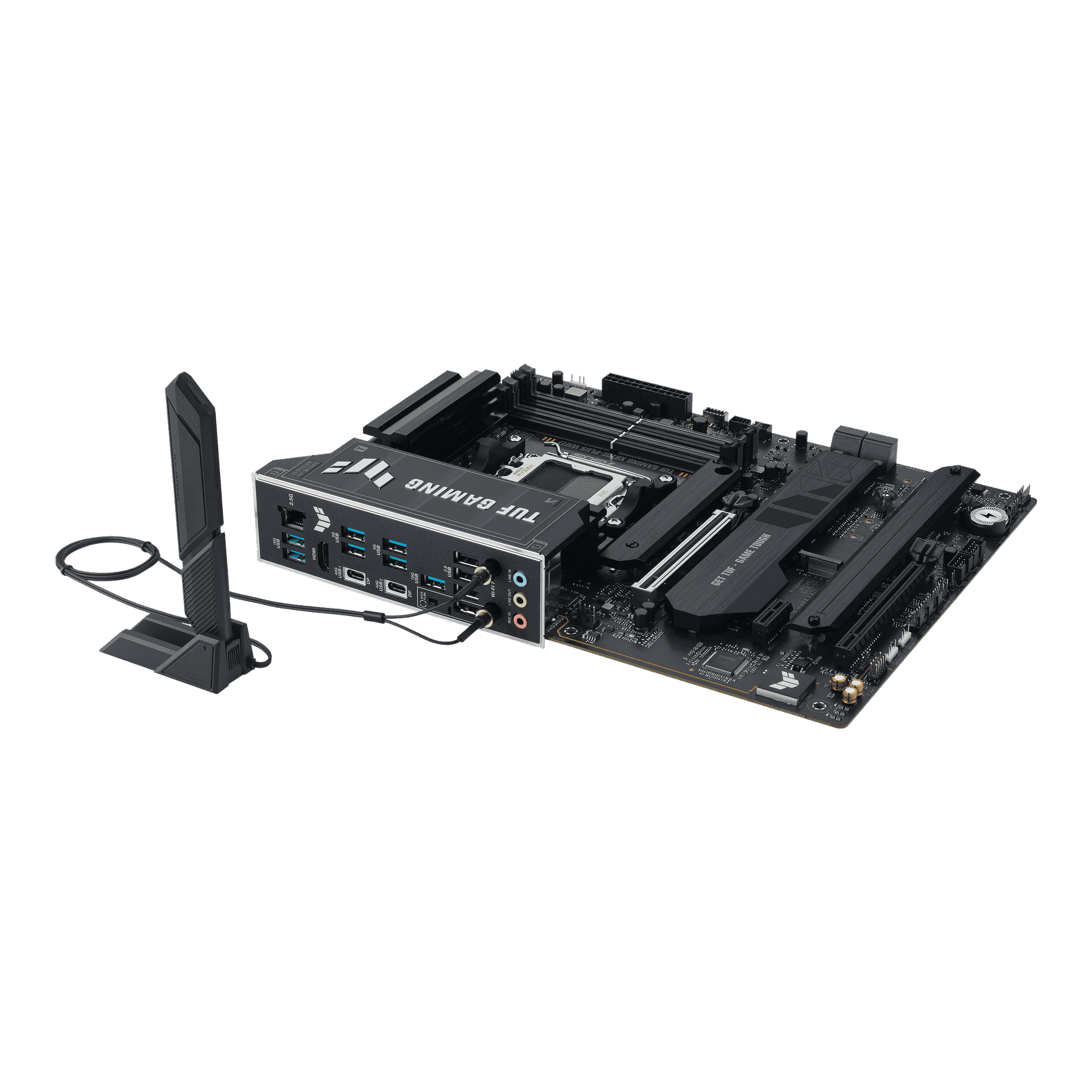

ASUS TUF GAMING AMD X870E AM5 ATX Motherboard, Advanced AI PC ready, DDR5, PCIe 5.0, 4x M.2 slots 2x PCIe 5.0, Wi-Fi 7, BIOS FlashBack&trade, ARGB Gen 2 headers, Aura Sync, Q-Antenna, Q-Dashboard, AI Cooling II, AI Networking II and AI Overclocking | 90MB1M70-M0EAY0
Model :
SKU : MB-ASUS TUF X870E-PLUS W7
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
ASUS TUF GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specification
| Model | TUF GAMING X870E-PLUS WIFI7 |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870E Chipset |
| Memory | 4 x DIMM, Max 256GB DDR5, Dual Channel, Supports up to 8000+MT/s (OC), ECC & Non-ECC Un-buffered, EXPO™ & AEMP |
| Graphics | 1 x HDMI 2.1 port (4K@60Hz), 2 x USB4® (40Gbps) Type-C® display outputs (4K@60Hz) |
| Expansion Slots | AMD Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 AMD Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4) Chipset: 1 x PCIe 4.0 x16 (x4), 1 x PCIe 3.0 x1 |
| Storage | 4 x M.2 slots (PCIe 5.0/4.0 depending on CPU), 4 x SATA 6Gb/s RAID Support: Ryzen 9000 (RAID 0/1/5/10), Ryzen 8000 (RAID 0/1), Ryzen 7000 (RAID 0/1/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2x2, 2.4/5/6GHz, up to 2.9Gbps, Bluetooth® v5.4 |
| USB (Rear) | 2 x USB4 (40Gbps, Type-C), 3 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 4 x USB 2.0 |
| USB (Front) | 1 x USB 20Gbps Type-C (30W PD), 2 x USB 5Gbps, 4 x USB 2.0 |
| Audio | Realtek ALC1220P 7.1 Surround Sound, 120 dB SNR playback, 113 dB recording, 32-Bit/192 kHz playback |

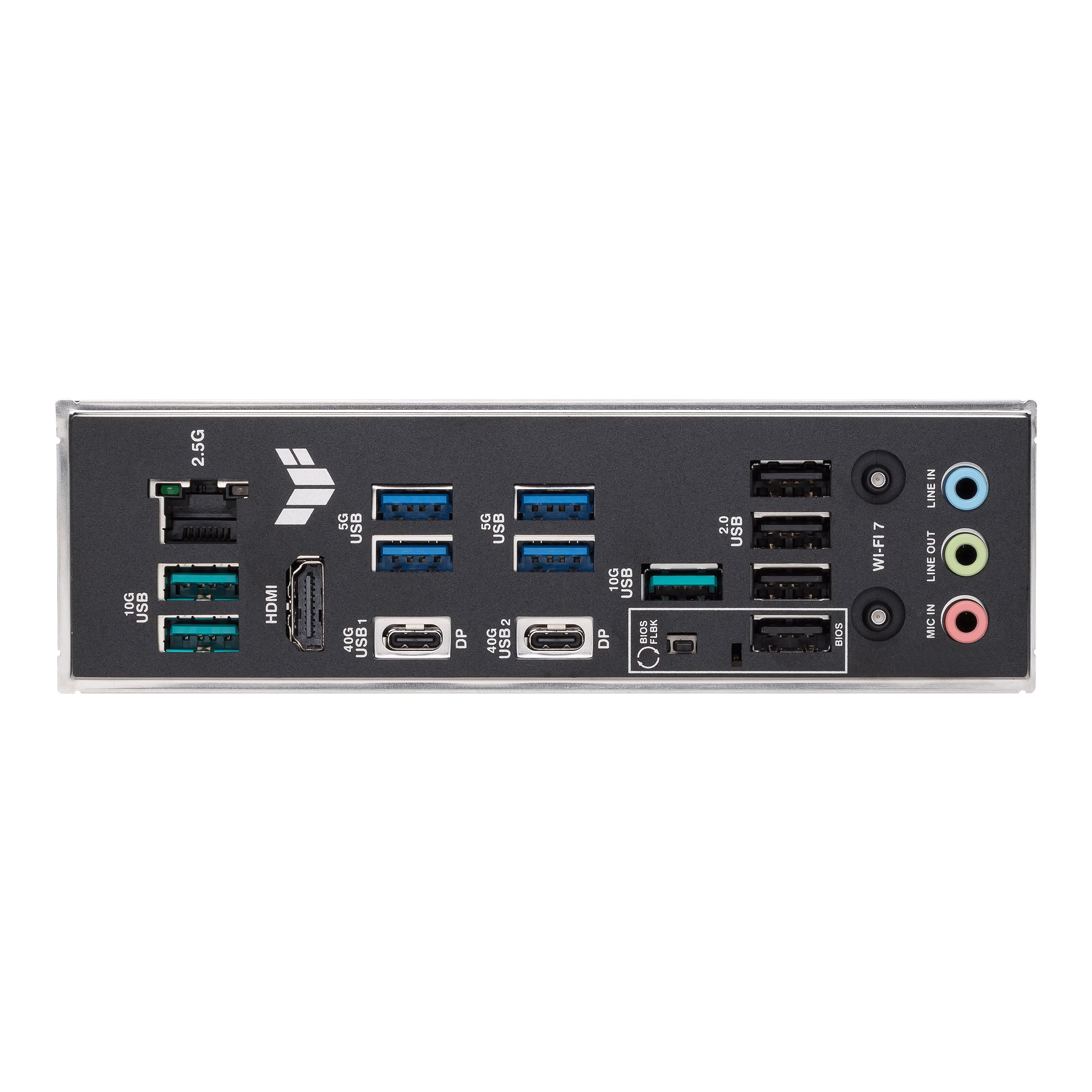

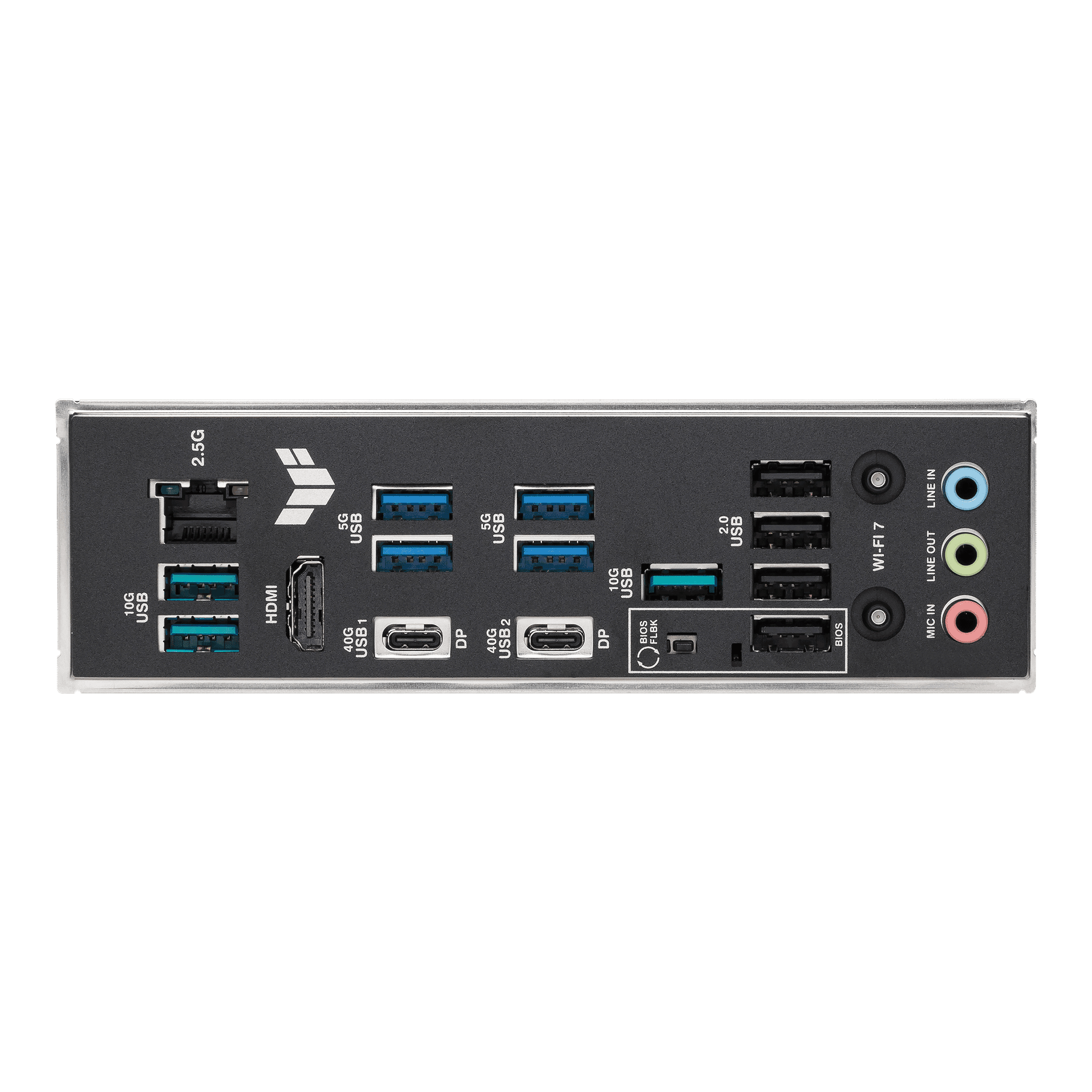

| Back Panel I/O | 2 x USB4 Type-C, 3 x USB 10Gbps, 4 x USB 5Gbps, 4 x USB 2.0 1 x HDMI, 1 x Wi-Fi module, 1 x 2.5Gb LAN, 3 x Audio jacks, 1 x BIOS FlashBack™ button |
| Internal I/O | Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan Power: 24-pin ATX, 2 x 8-pin CPU Storage: 4 x M.2, 4 x SATA USB: 1 x USB 20Gbps Type-C, 1 x USB 5Gbps (2 ports), 2 x USB 2.0 headers (4 ports) Misc: 3 x ARGB Gen 2, CMOS, Intrusion, Audio, Front Panel, Thermal Sensor |
| Special Features | ASUS TUF Protection (DIGI+ VRM, ESD Guards, LANGuard, Overvoltage, SafeSlot) Q-Design (Q-Latch, Q-Release Slim, Q-Antenna, Q-LED, Q-Slot) Thermal: VRM & M.2 Heatsinks EZ DIY: BIOS FlashBack™, Pre-mounted I/O, SafeDIMM Aura Sync Gen 2 |
| Software Features | Armoury Crate, Aura Creator & Sync, Fan Xpert 4 (AI Cooling II), AI Advisor, DriverHub, GlideX, USB Wattage Watcher, TurboV Core, TUF CPU-Z, DTS Audio, Norton 360 (60 days), WinRAR (40 days) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

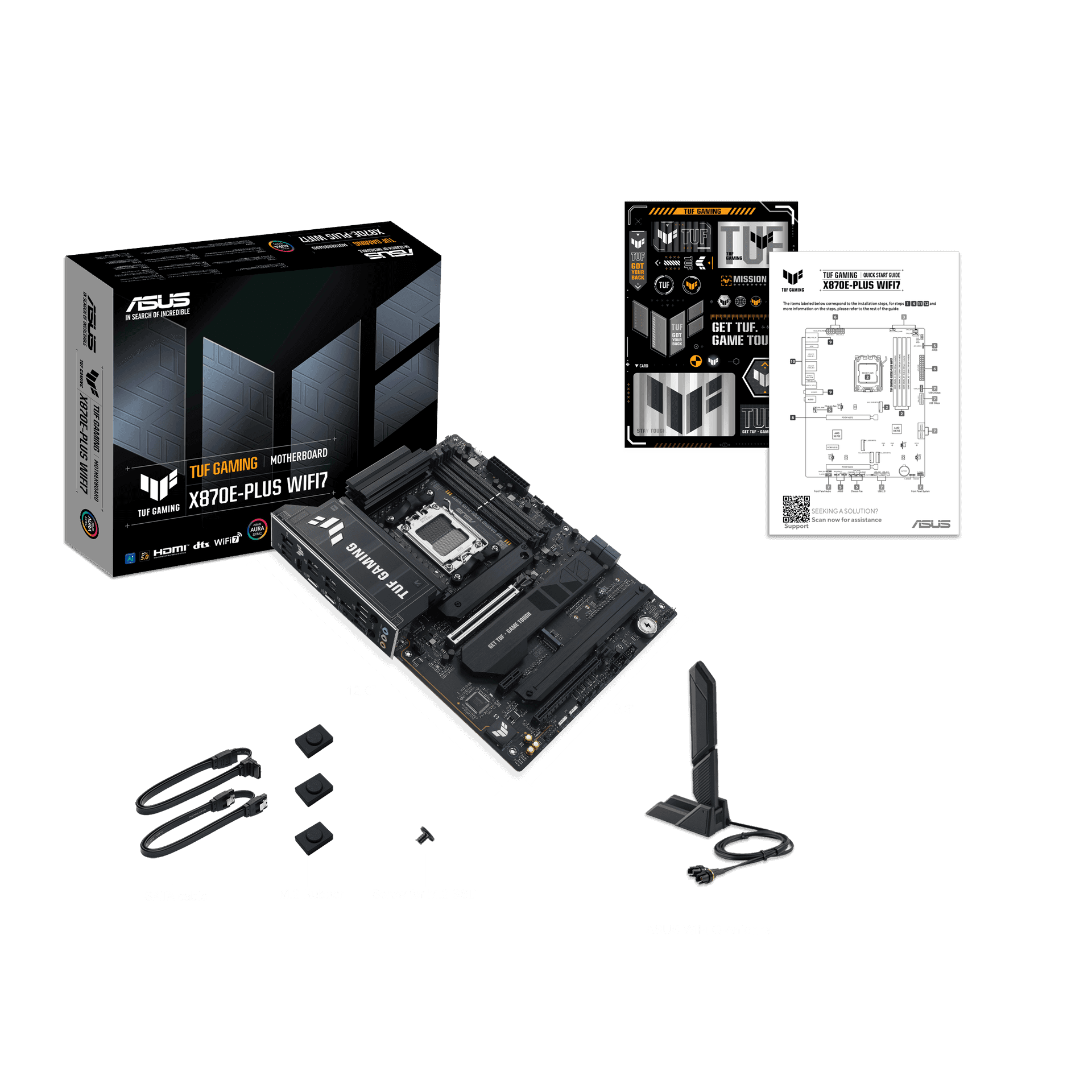

| Accessories | 2 x SATA Cables, 1 x Wi-Fi Q-Antenna, 2 x M.2 Rubber Packages, 1 x M.2 Screw Kit, 1 x TUF Gaming Sticker, 1 x Quick Start Guide |
| Operating System | Windows 11 |
| Form Factor | ATX, 12 x 9.6 in (30.5 x 24.4 cm) |
