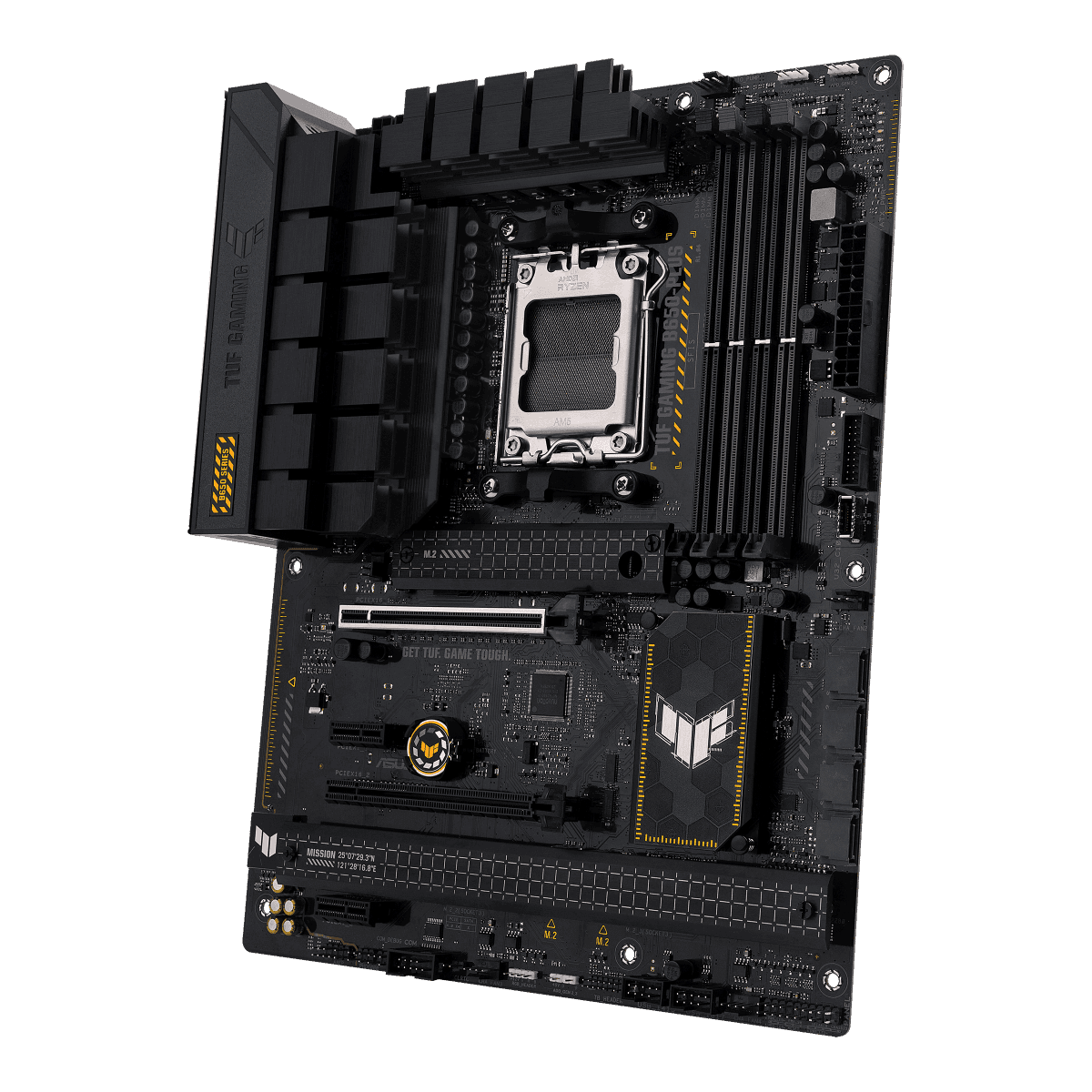

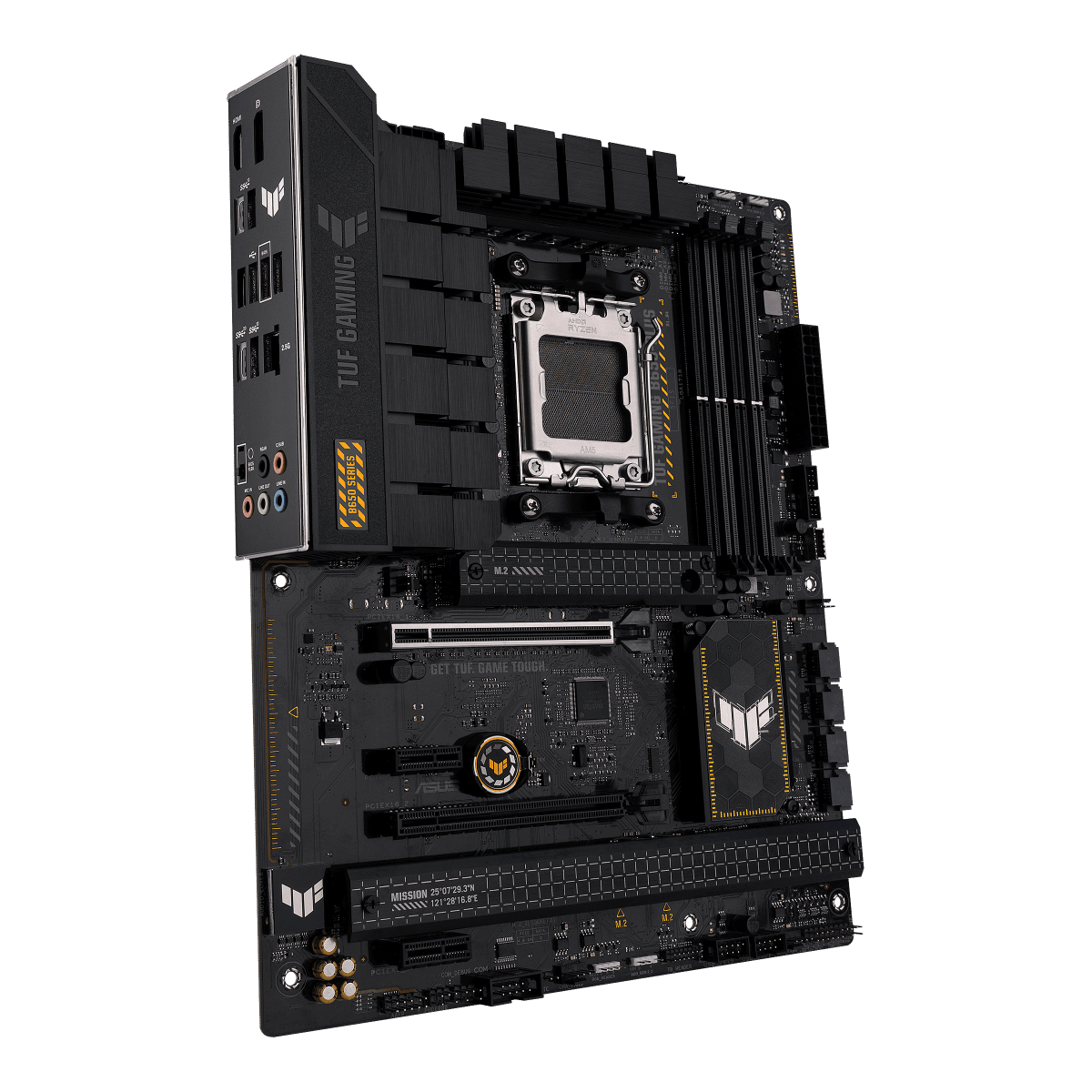

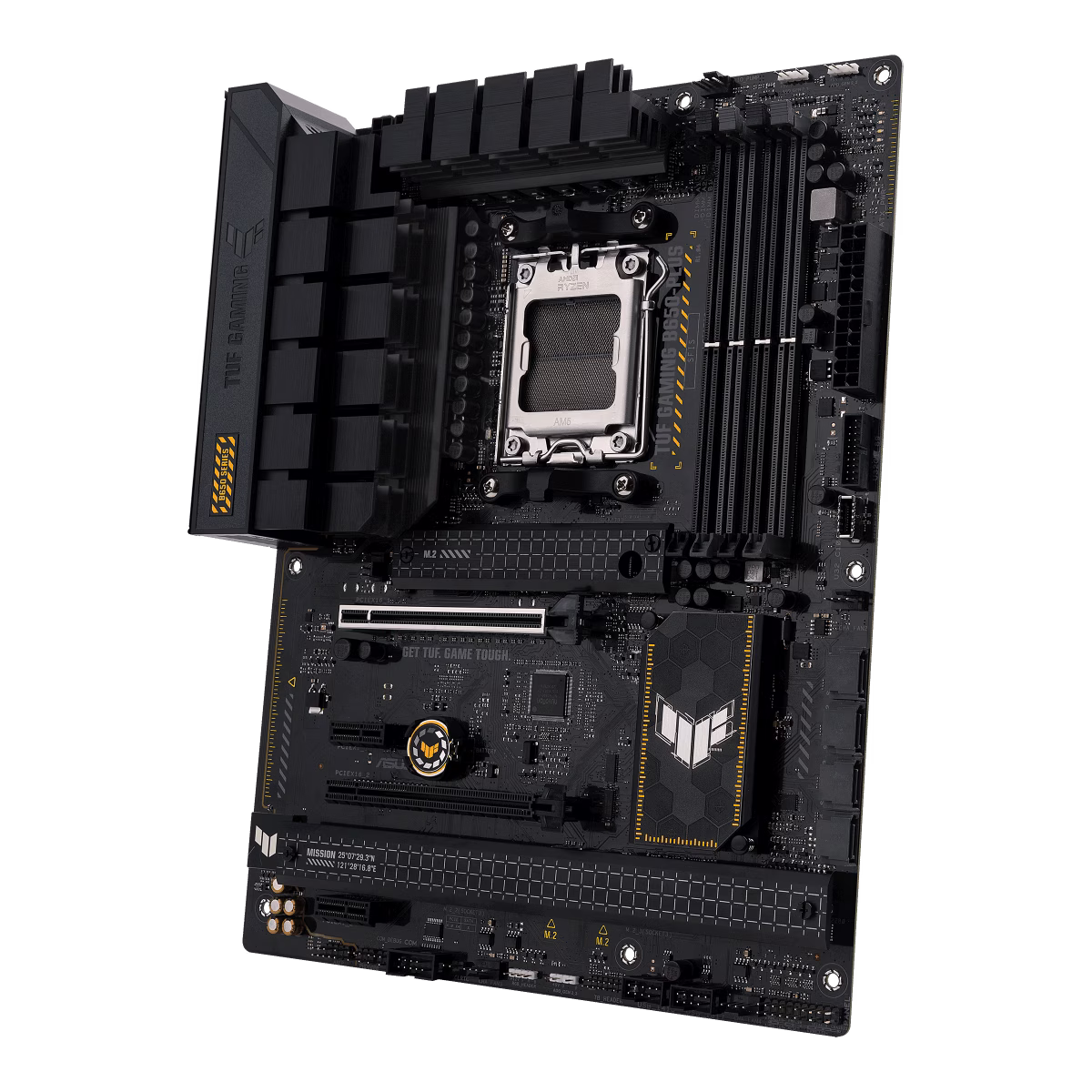

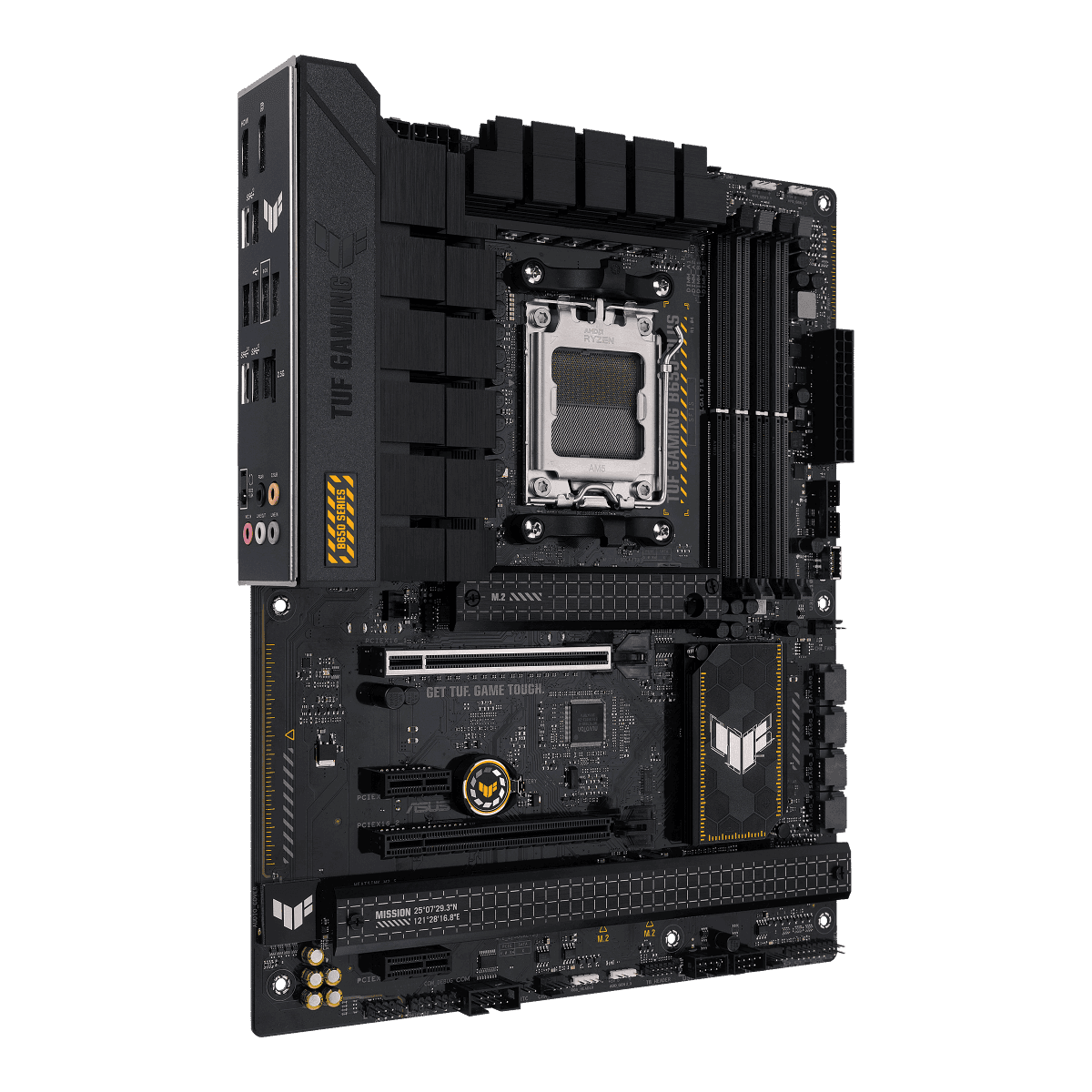

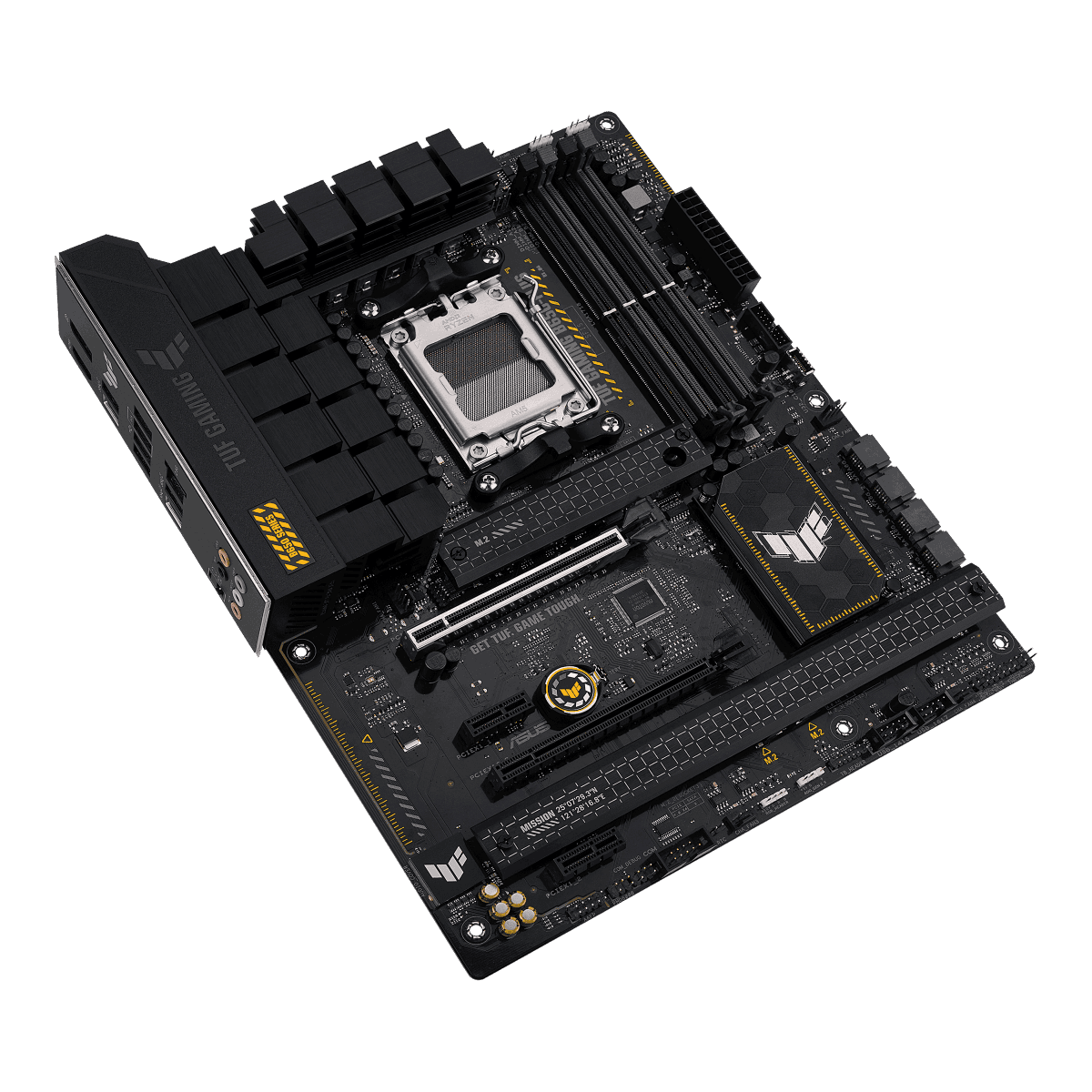

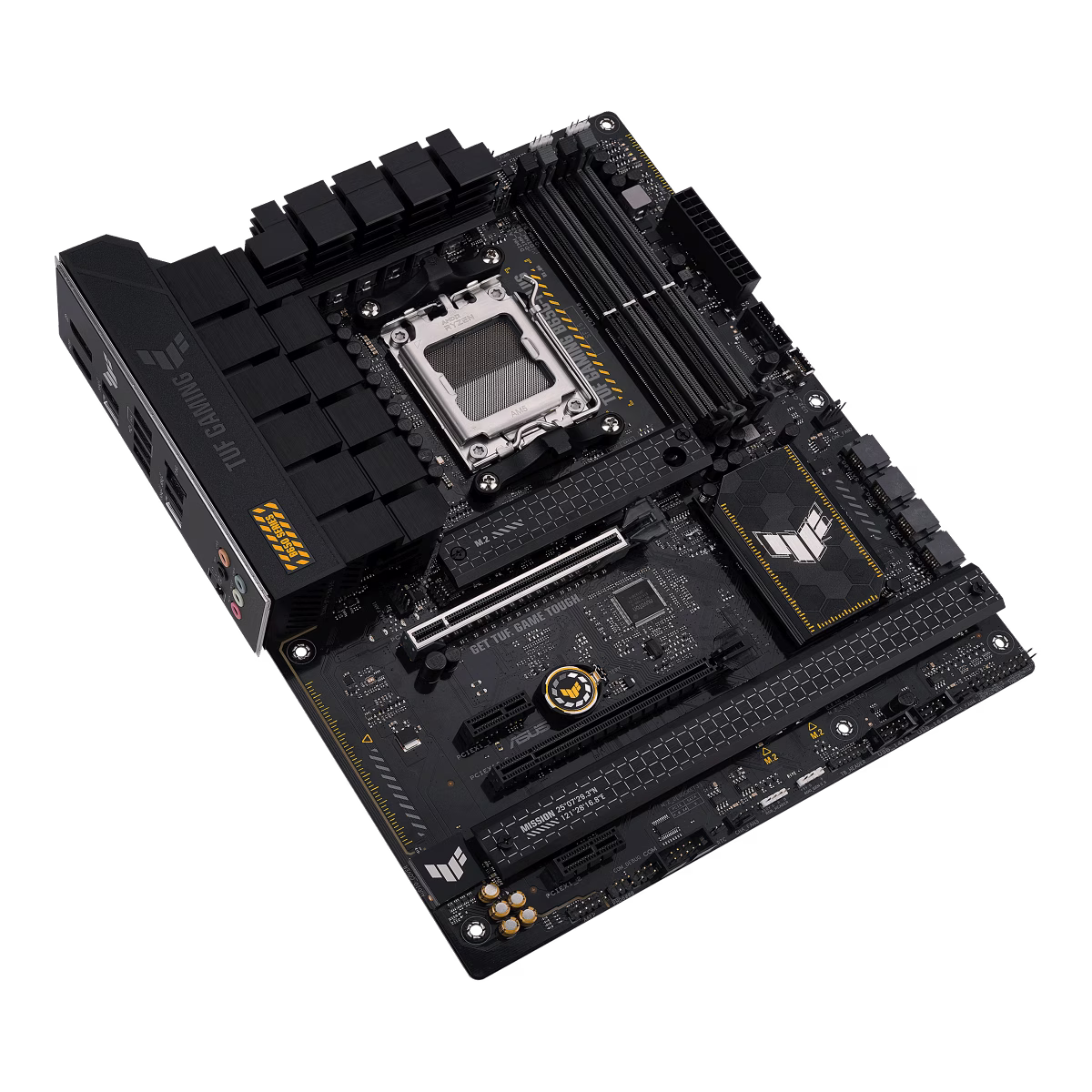

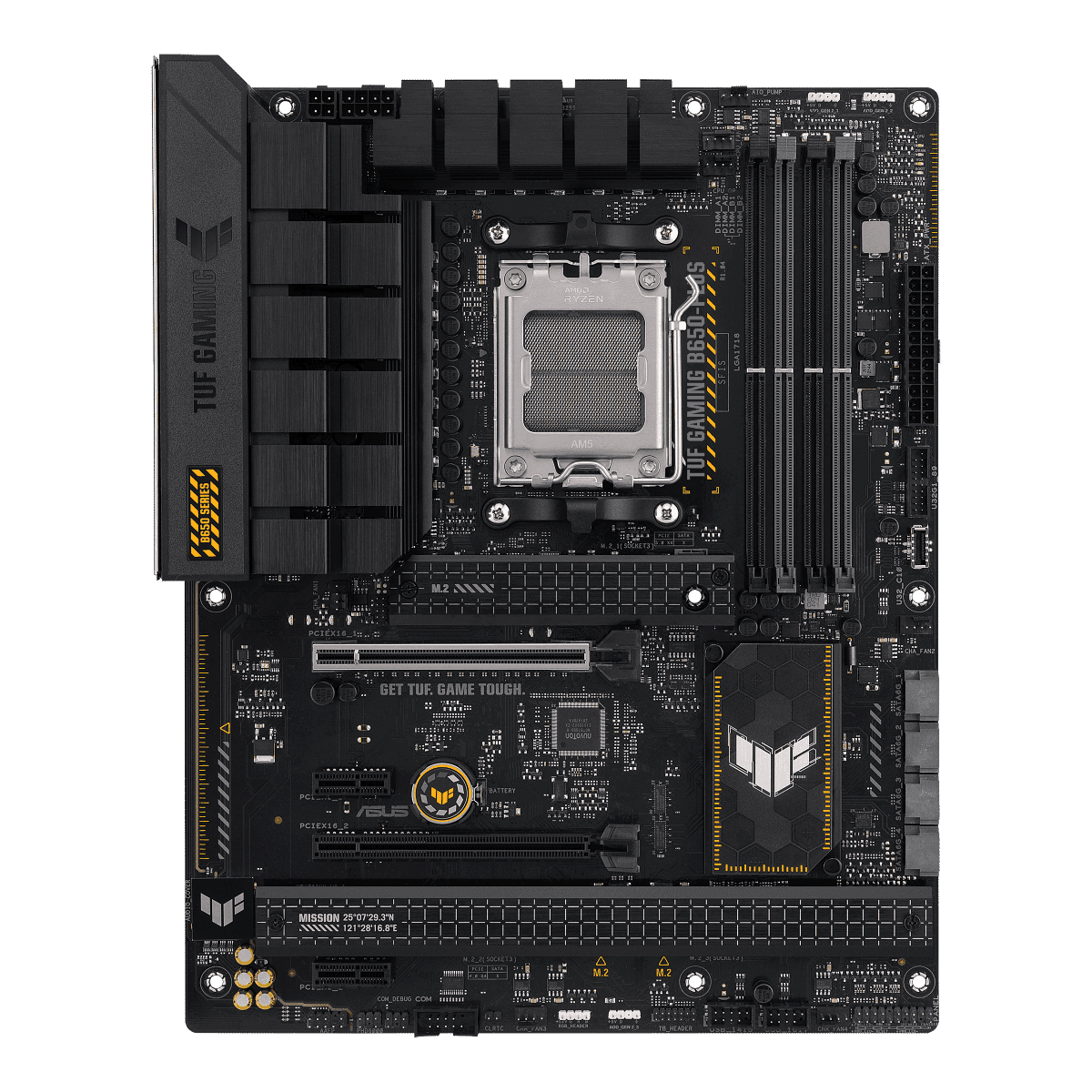

ASUS TUF GAMING B650-PLUS ATX Motherboard, AM5 Socket, AMD B650 Chipset, Realtek 2.5Gb Ethernet, 4 xDIMM DDR5 Memory 128GB Max, 1x PCIe 4.0/3.0 x16, 4x SATA 6Gb/M.2, 1HDMI/DP | 90MB1BY0-M0EAY0
Model :
SKU : MB-ASU TUF B650-PLUS DDR5
About this item
About this item
Description
The TUF Gaming B650-PLUS distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Utilizing the AMD B650 chipset, it is engineered with military-grade components and a comprehensive cooling system to ensure performance that goes the distance. Its signature industrial aesthetic features the new TUF Gaming logo and simple geometric design elements to reflect the dependability that defines the series.
Reliable Power and Thermal Architecture
To extract the full potential of multi-core Ryzen CPUs, the B650-PLUS is equipped with 12+2 DrMOS power stages rated at 60 amperes. This robust power delivery is bolstered by enlarged VRM heatsinks and high-quality thermal pads to keep temperatures in check during heavy workloads. The board also features three M.2 heatsinks and a 6-layer PCB design to maintain signal integrity and prevent thermal throttling of high-speed NVMe SSDs.
Next-Gen Speed: PCIe 5.0 and DDR5
Stay ahead of the hardware curve with native DDR5 support, allowing for extreme memory bandwidth and efficiency. The motherboard includes a flagship-tier PCIe 5.0 M.2 slot, supporting data transfer speeds of up to 128 Gbps—perfect for the newest generation of NVMe storage. For high-speed peripherals, the rear I/O features a USB 3.2 Gen 2x2 Type-C® port, offering 20Gbps of bidirectional bandwidth.
Advanced Gaming Customization
Equipped with Addressable Gen 2 RGB headers, the B650-PLUS allows you to synchronize your lighting across a vast ecosystem of Aura Sync-compatible gear. For crystal-clear communication, the board features Two-Way AI Noise Cancelation, which leverages a massive deep-learning database to reduce background noise from both your microphone and incoming audio, ensuring your team coordination is never interrupted by ambient sounds.
Why the TUF Gaming B650-PLUS Stands Out
AM5 Native Excellence: Built for Ryzen 9000 and backward compatible with 8000/7000 series.
TUF Durability: Military-grade chokes and capacitors for 20% better temperature tolerance.
PCIe 5.0 M.2 Support: Ready for the fastest storage solutions on the market.
Stable Wired Gaming: Realtek 2.5Gb Ethernet for low-latency, high-bandwidth networking.

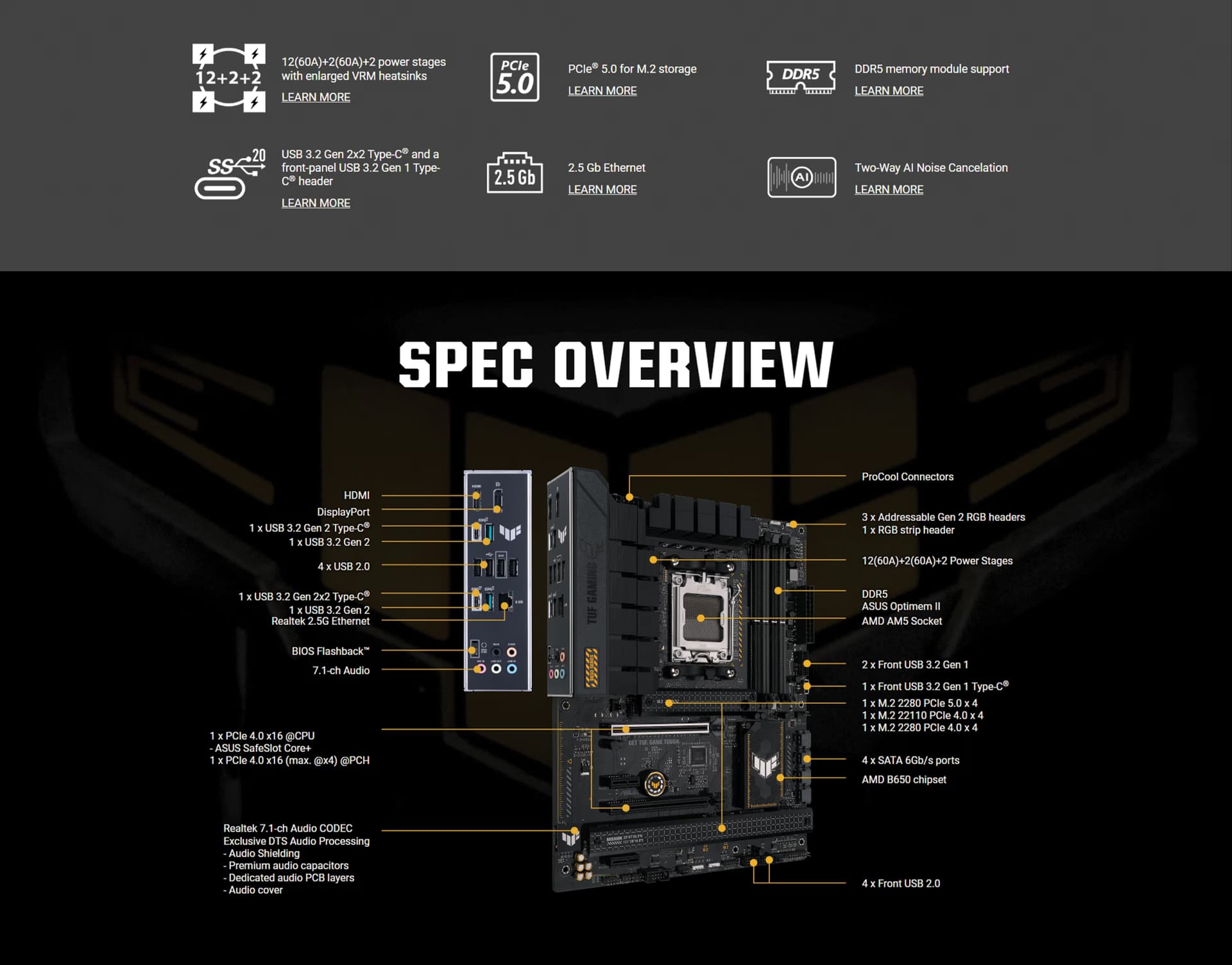

Specification
| Model | TUF GAMING B650-PLUS |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Supports Intel® Turbo Boost Technology 2.0 and 3.0** |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 256GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Supports AMD EXTended Profiles for Overclocking (EXPO™), OptiMem II |
| Graphics | 1 x DisplayPort (Max. 8K@60Hz as specified in DP 1.4) 1 x HDMI® port (Max. 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 x PCIe 4.0/3.0 x16 slot Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset: 1 x PCIe 4.0/3.0 x16 (x4 mode), 2 x PCIe 4.0/3.0 x1 slots |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports *** M.2_3 shares bandwidth with PCIEX16_2. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| USB | Rear: 1 x USB 3.2 Gen 2x2 (Type-C®), 3 x USB 3.2 Gen 2 (2 x Type-A + 1 x Type-C®), 4 x USB 2.0 Front: 1 x USB 3.2 Gen 1 (Type-C®), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Premium audio capacitors, Dedicated PCB layers, Audio cover, De-pop circuit - Supports up to 24-Bit/192 kHz playback |

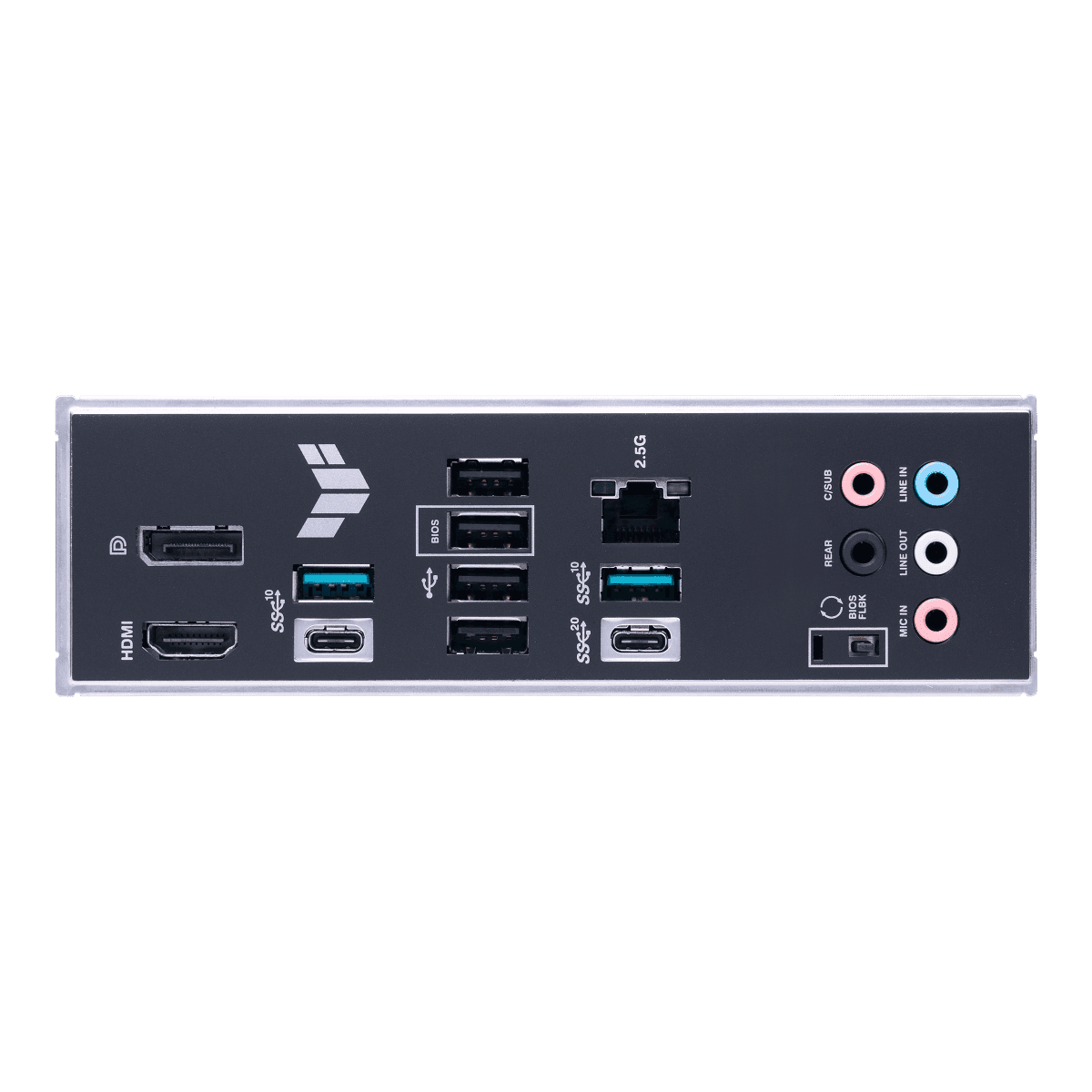

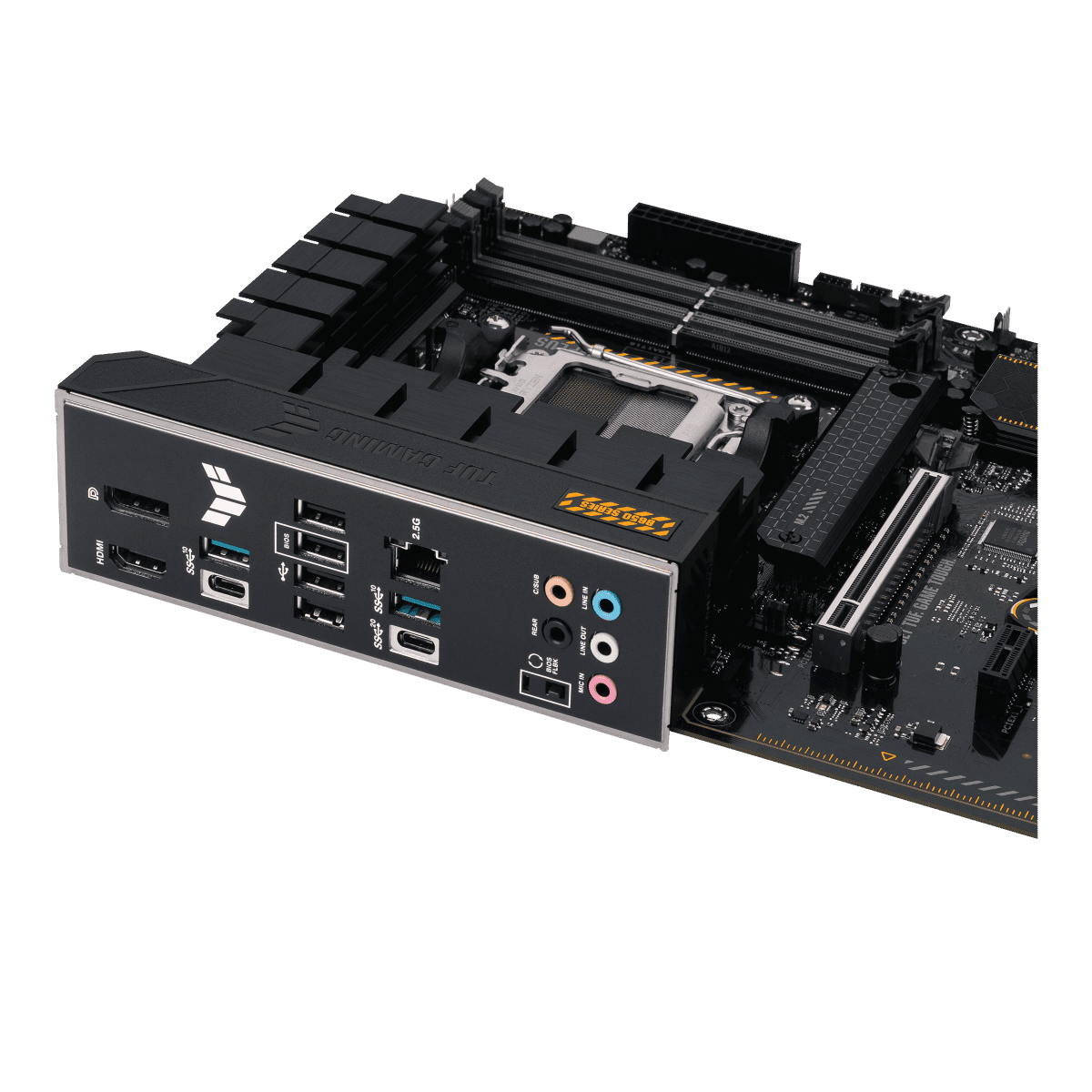

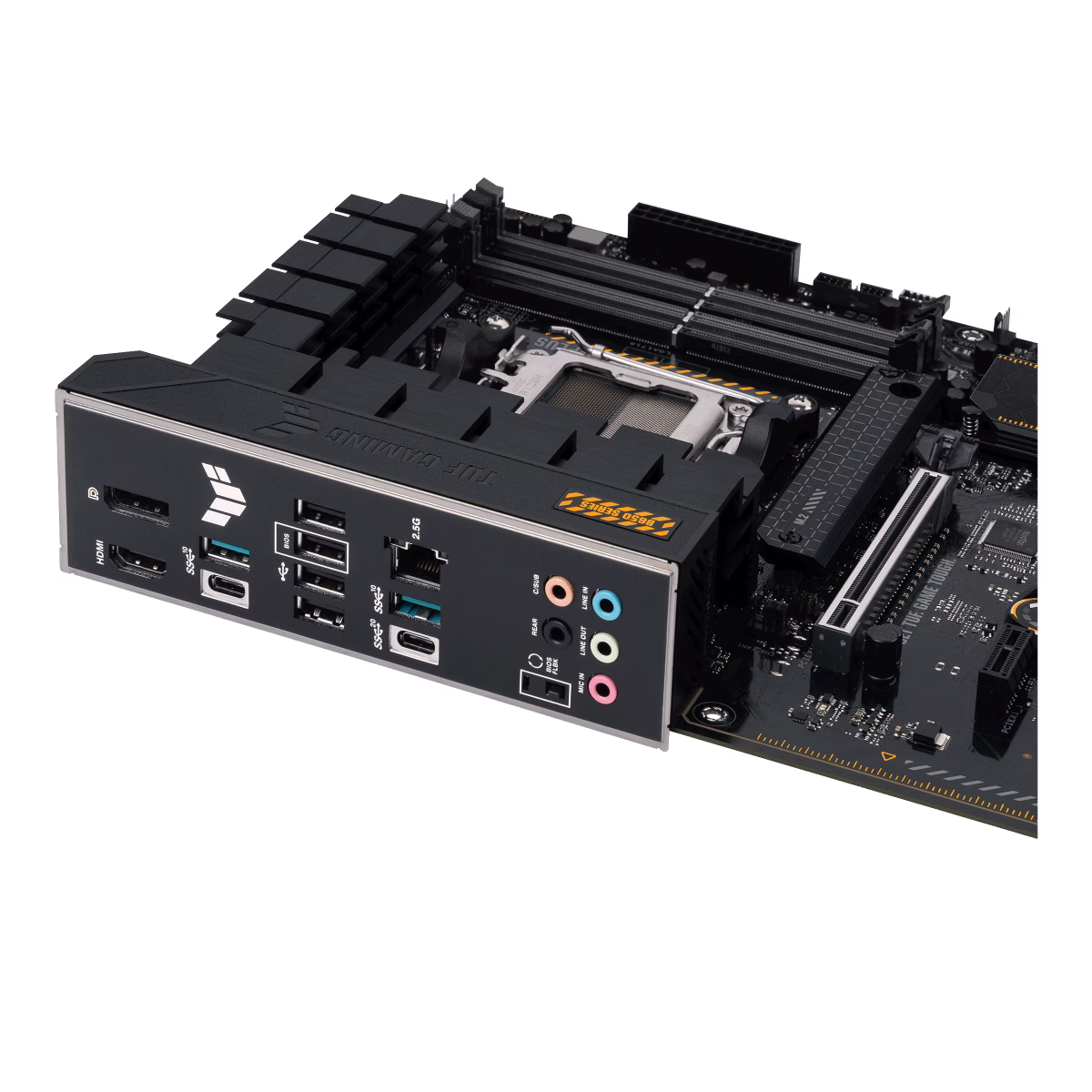

| Back Panel I/O | 1 x USB 3.2 Gen 2x2 (Type-C®), 3 x USB 3.2 Gen 2, 4 x USB 2.0, 1 x DP, 1 x HDMI, 1 x 2.5Gb Ethernet, 5 x Audio jacks, BIOS FlashBack™ button |
| Special Features | ASUS TUF PROTECTION (DIGI+ VRM, SafeSlot Core+), ASUS Q-Design (M.2 Q-Latch, Q-LED, Q-Slot), ASUS Thermal Solution, BIOS FlashBack™, Aura Sync |
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Operating System | Windows® 11, Windows® 10 64-bit |
