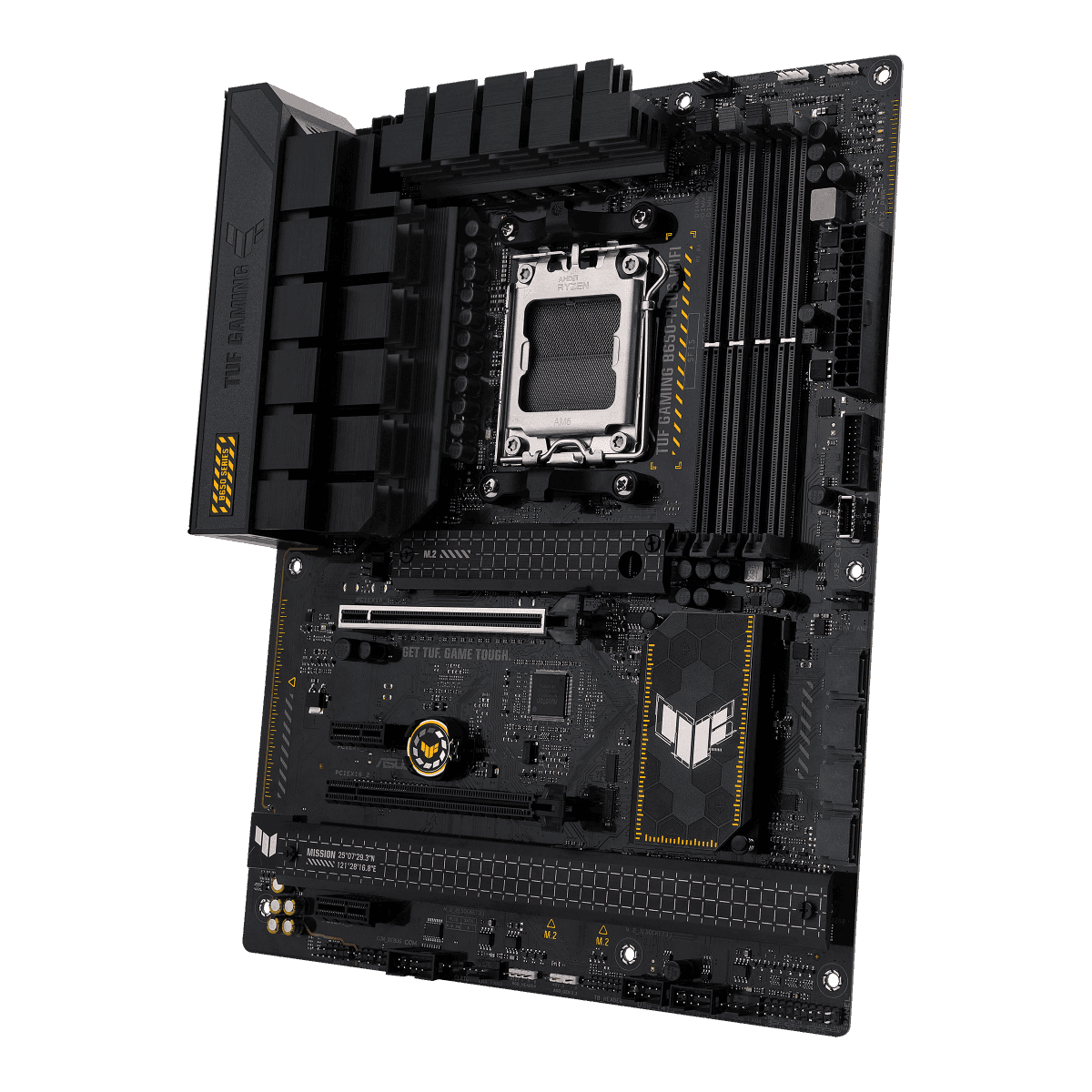

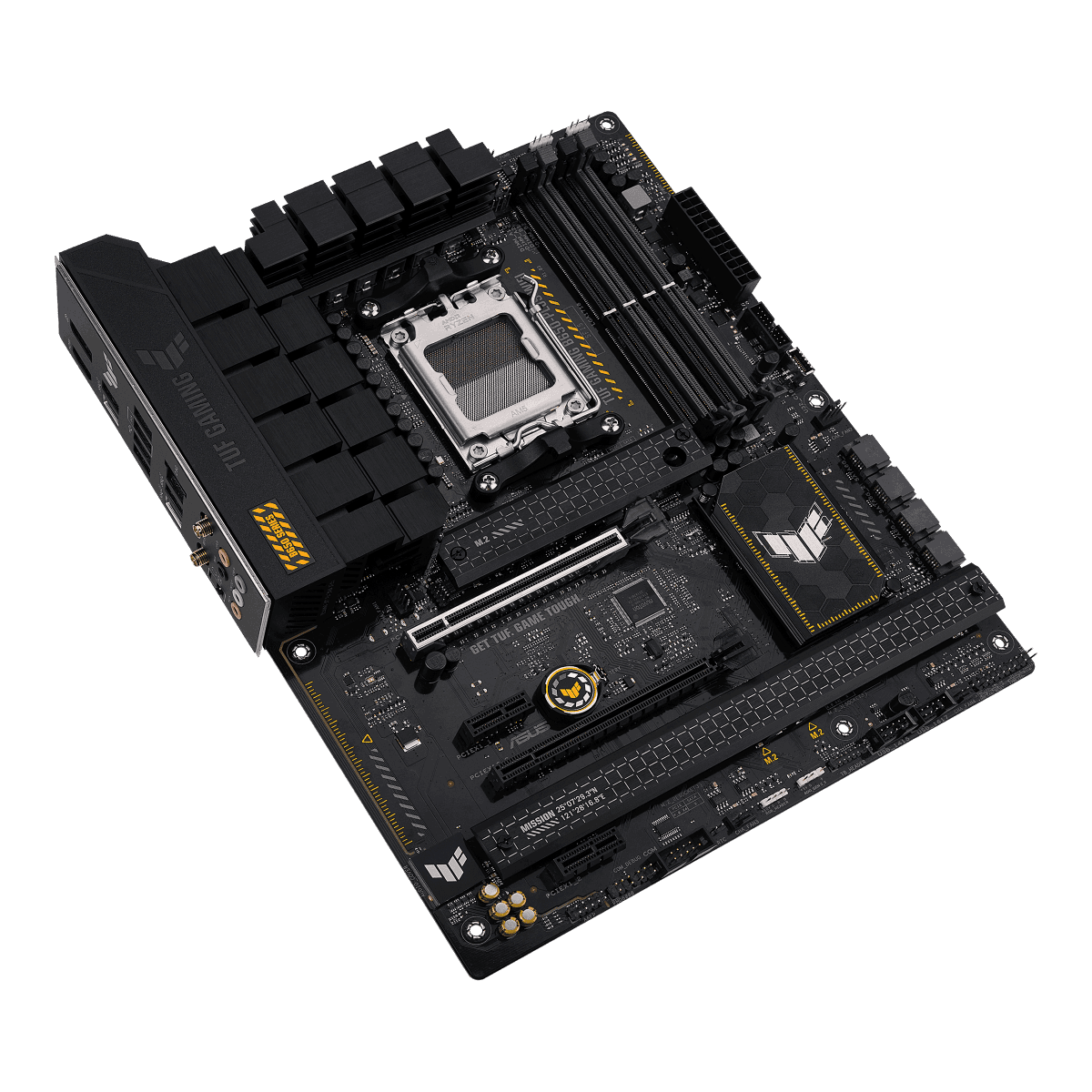

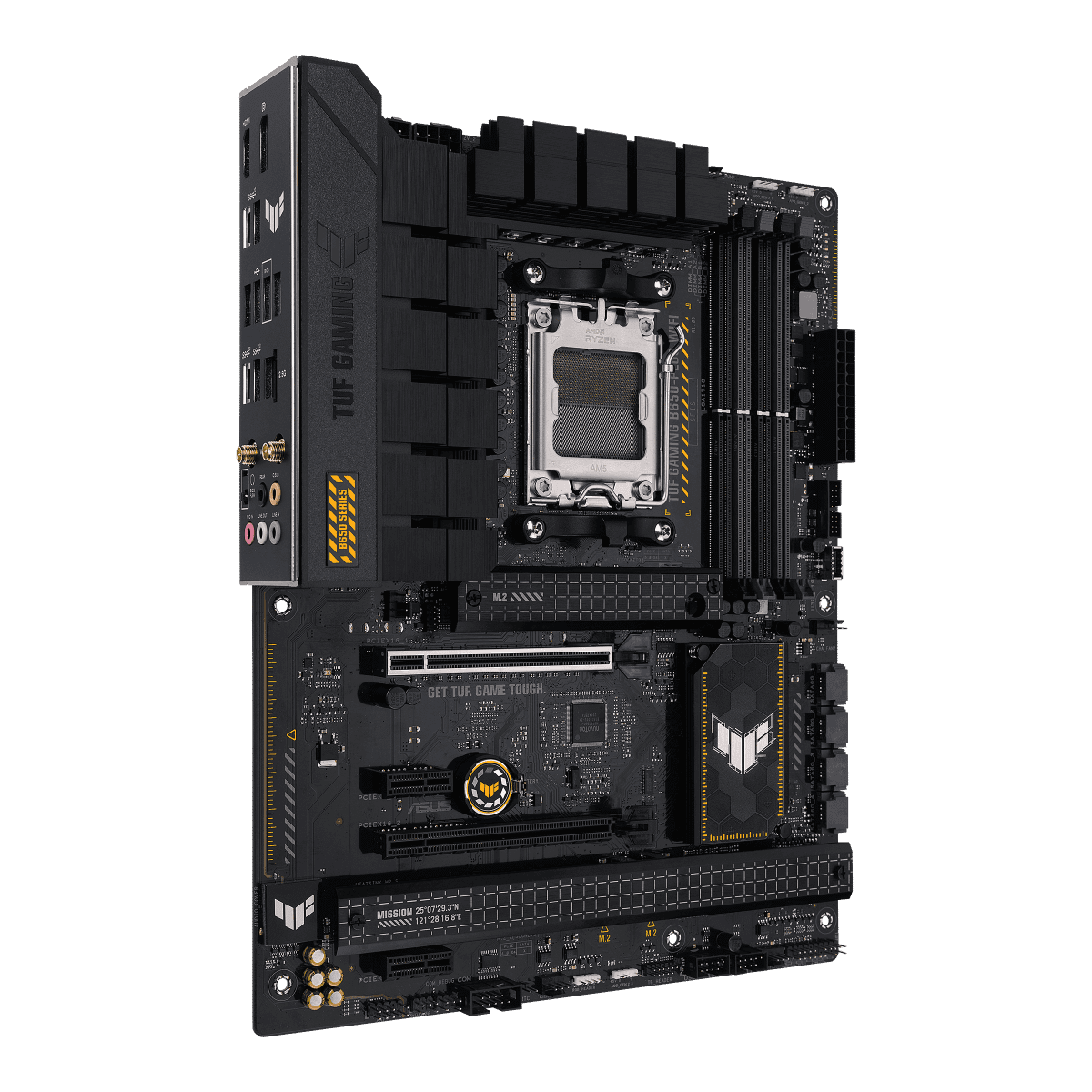

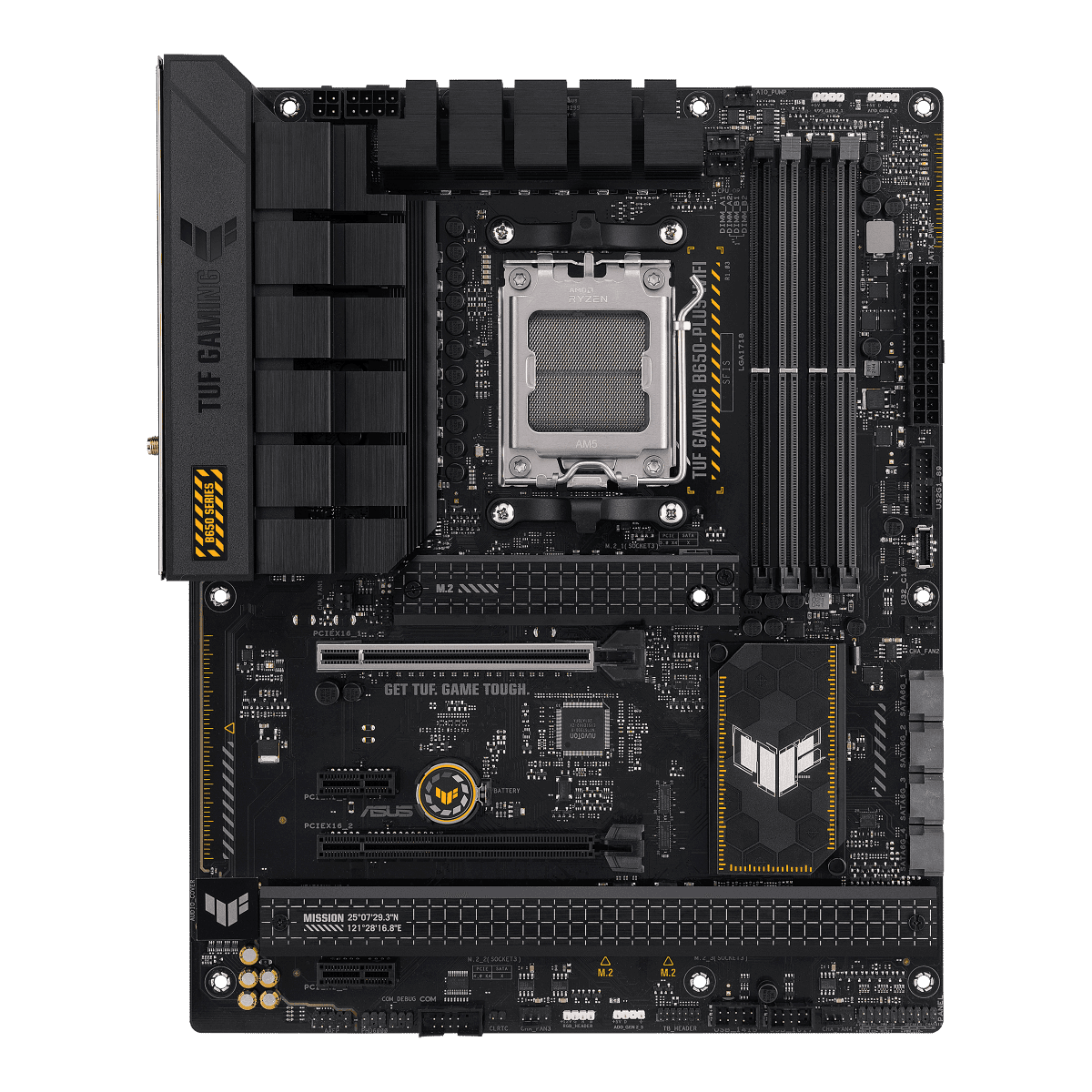

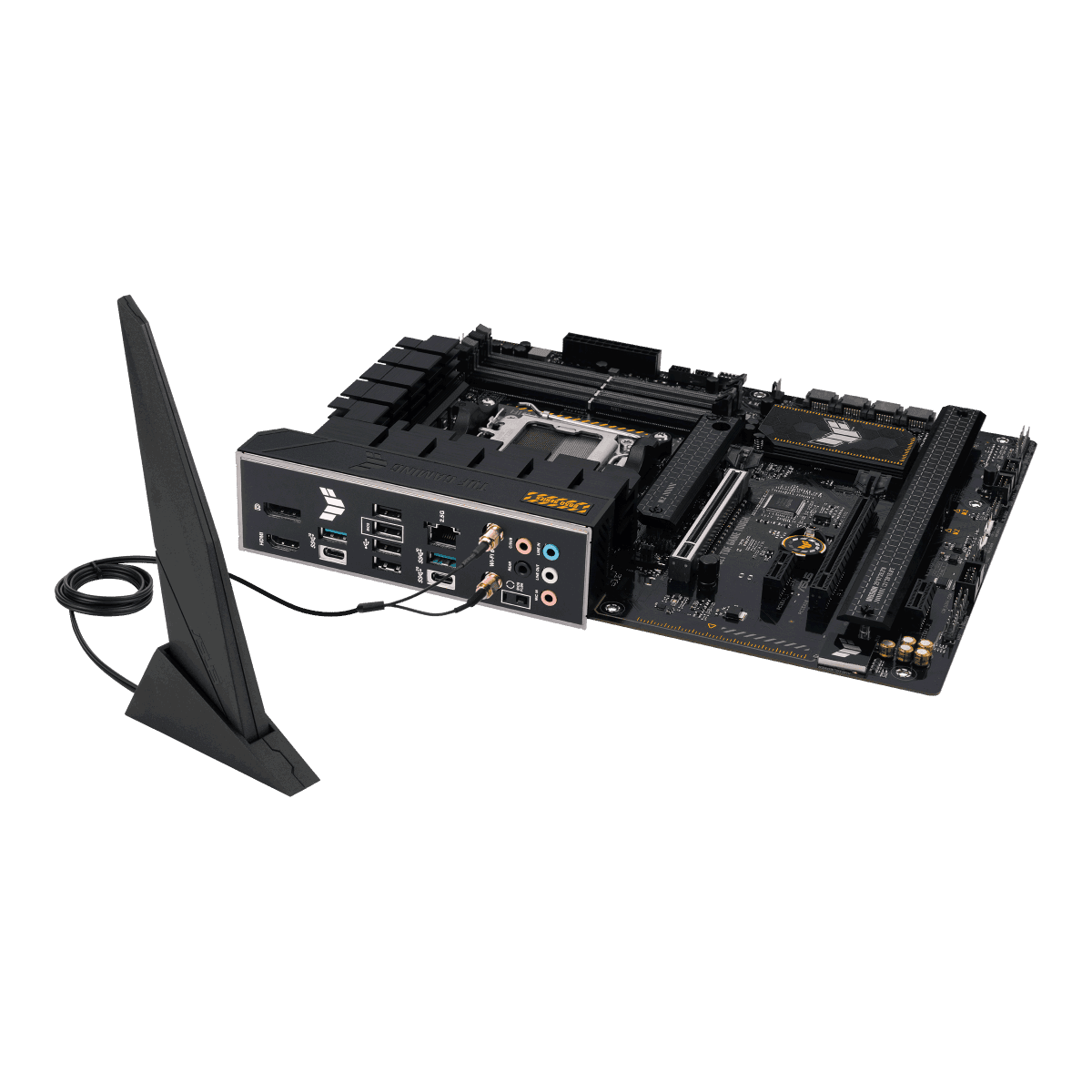

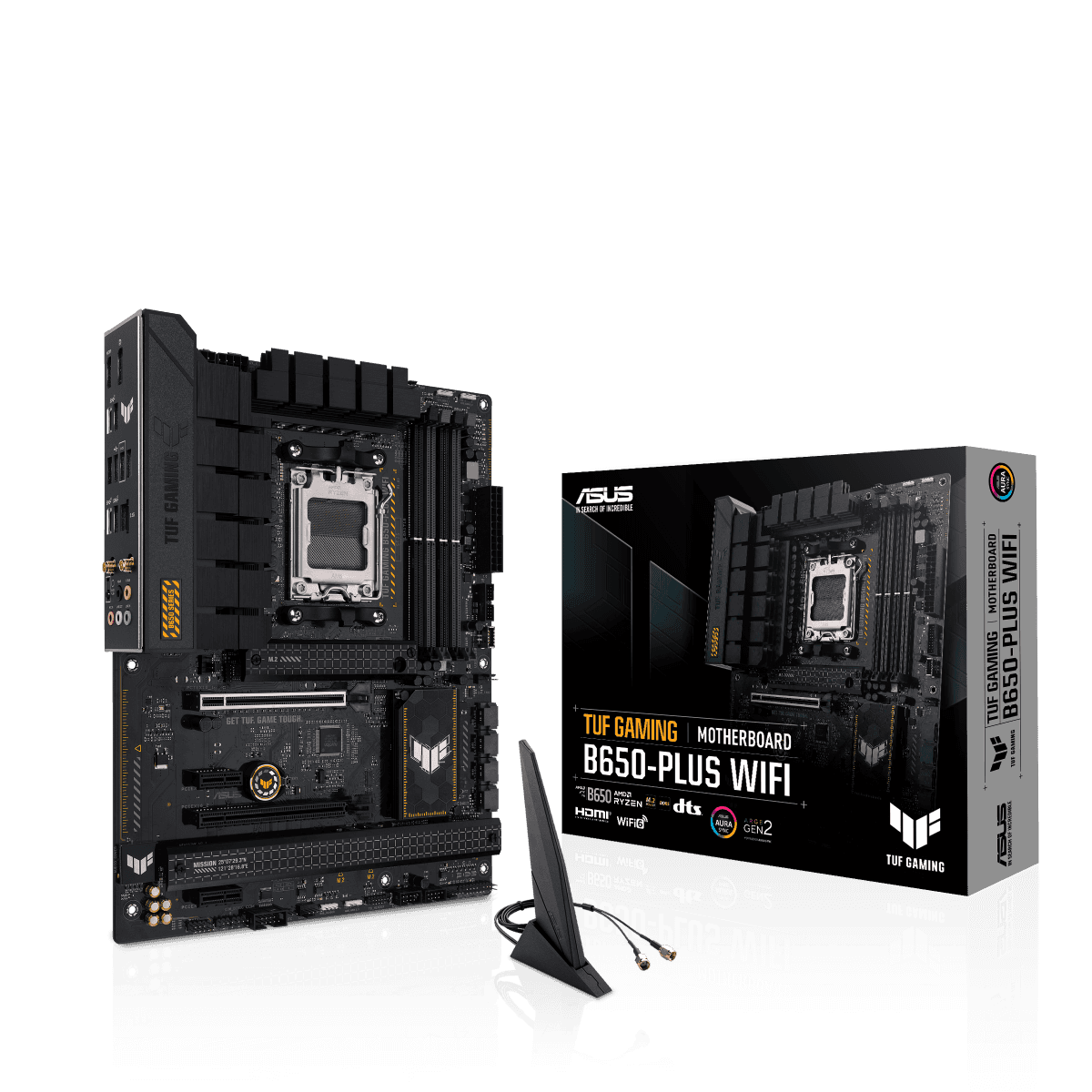

Asus Tuf Gaming B650-Plus Wifi DDR5 ATX Motherboard, AMD Socket AM5, B650 Chipset, 2.5Gb Ethernet, Bluetooth, WiFi 6E 6GHz, Max 128GB 4xDIMM Memory, PCIe 4.0x16, 3xM.2 Slot | 90MB1BZ0-M0EAY0
Model :
SKU : MB-ASUS TUF B650-PLUS WIF
About this item
About this item
Description
The TUF Gaming B650-PLUS WIFI takes the core essentials of the latest AMD platform and combines them with game-ready features and proven durability. Utilizing the AMD B650 chipset, this motherboard provides the bandwidth necessary for high-performance "Zen" architecture CPUs. Its industrial-themed design with yellow accents and a blacked-out PCB reflects the "TUF" philosophy: military-grade components, an upgraded power solution, and a comprehensive cooling system for performance that exceeds expectations.
Military-Grade Power & Cooling
To handle the high-wattage demands of modern Ryzen chips, the B650-PLUS WIFI is equipped with 12+2 DrMOS power stages (rated at 60A). These stages combine high-side and low-side MOSFETs and drivers into a single package to deliver power, efficiency, and stable performance. Thermal management is handled by enlarged VRM heatsinks and three dedicated M.2 heatsinks, ensuring that neither your CPU nor your NVMe storage experiences thermal throttling during extended gaming sessions.
Next-Gen Connectivity: PCIe 5.0 and DDR5
This motherboard is ready for the future of hardware. It features a dedicated PCIe 5.0 M.2 slot, allowing you to install the world's fastest NVMe SSDs for near-instant load times. Memory performance is equally impressive, with DDR5 support and ASUS OptiMem II technology, which improves signal integrity to allow for higher frequency memory overclocking via AMD EXPO™ profiles.
High-Speed Networking and AI Noise Cancelation
Online gaming requires a fast, stable connection. The TUF B650-PLUS WIFI includes WiFi 6 for reliable wireless performance and Realtek 2.5Gb Ethernet for a low-latency wired path. To improve your team communication, ASUS has integrated Two-Way AI Noise Cancelation, which uses a deep-learning database to reduce background noise from your microphone and incoming audio, ensuring your voice is heard clearly in the heat of battle.
Why the TUF Gaming B650-PLUS WIFI Stands Out
AM5 Native: Optimized for Ryzen 9000, 8000, and 7000 series desktop processors.
DDR5 Ready: Enhanced memory bandwidth and efficiency for modern titles.
PCIe 5.0 M.2: Support for next-generation storage speeds (up to 128Gbps).
TUF Protection: SafeSlot Core+, ESD Guards, and a stainless-steel back I/O panel for long-term reliability.
Specification
| Feature | Specification |
|---|---|
| Model | TUF GAMING B650-PLUS WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen??? 7000 & 8000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO???) OptiMem II |
| Graphics | 1 x DisplayPort 1 x HDMI?? port * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen??? 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen??? 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| USB Ports | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C??) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |

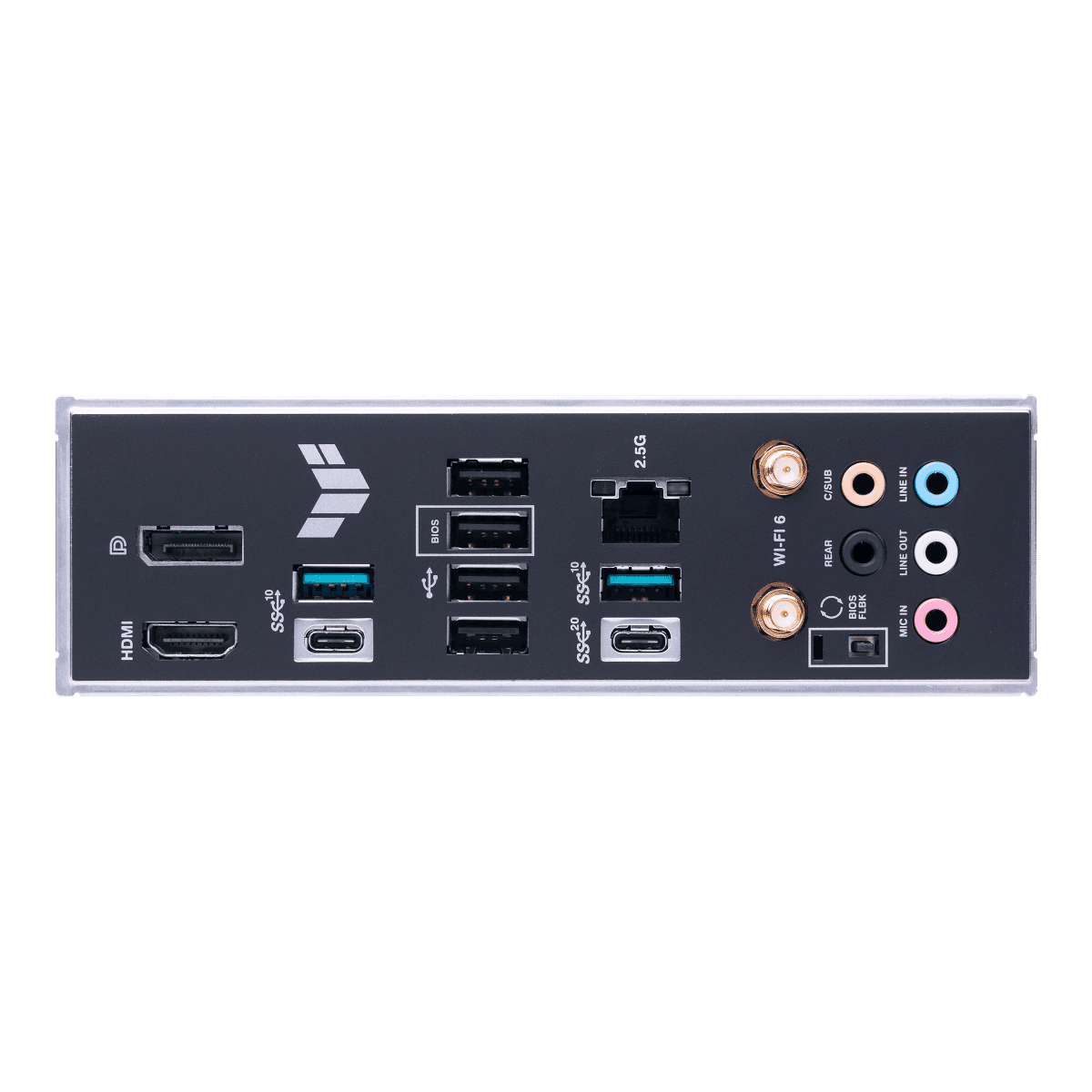

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C??) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI?? port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack??? button |
| Internal I/O Connectors | Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan header Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related: 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt??? (USB4??) header |
| Special Features | ASUS TUF PROTECTION: - DIGI+ VRM (Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design: - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution: - M.2 heatsink - VRM heatsink design ASUS EZ DIY: - BIOS FlashBack??? button - BIOS FlashBack??? LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync: - Aura RGB header - Addressable Gen 2 header |
| Software Features | ASUS Exclusive Software: - Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3: - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
