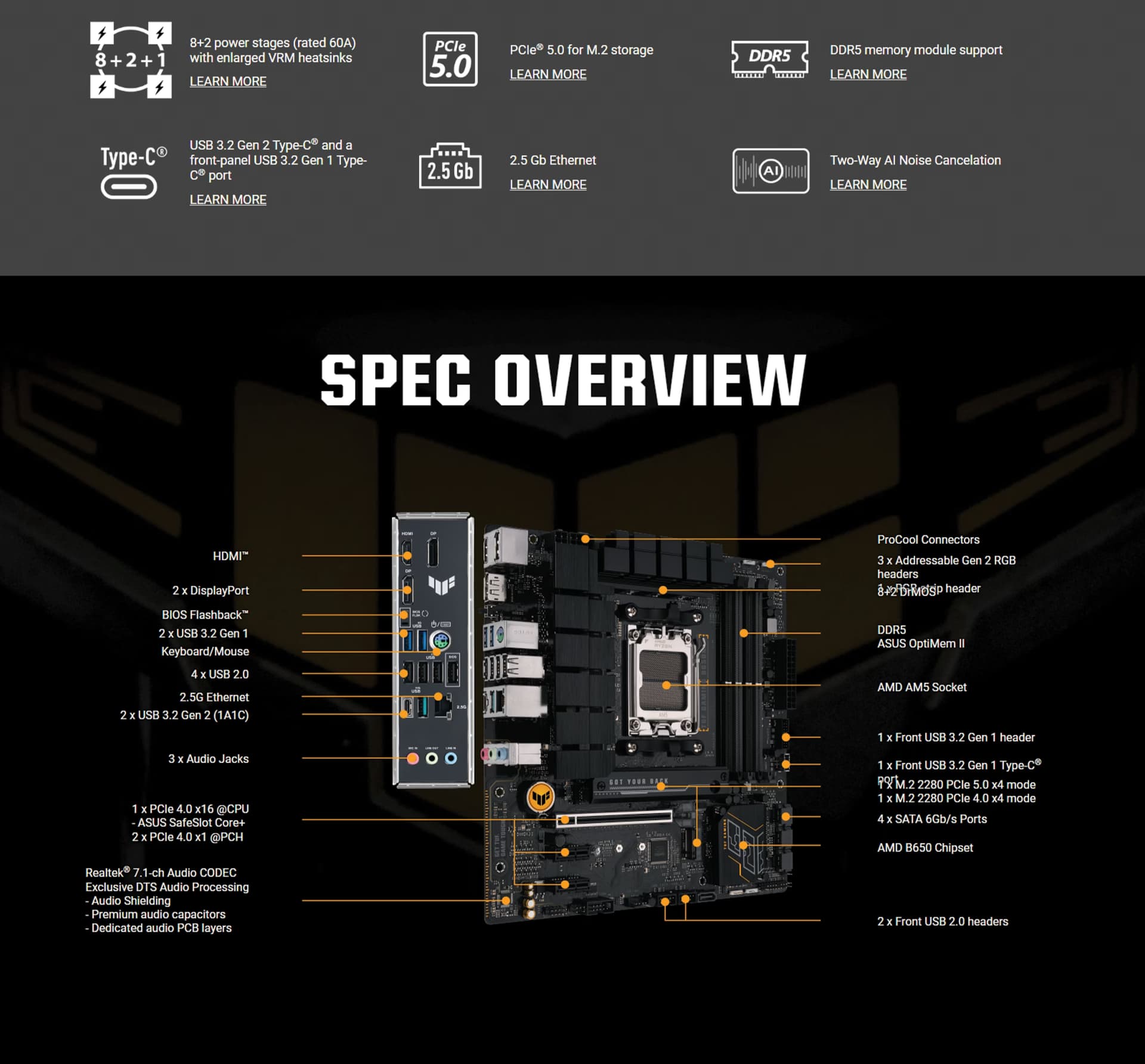

ASUS TUF GAMING B650M-E DDR5 micro-ATX Motherboard Specifications

CPU

• AMD Socket AM5 for AMD Ryzen??? 9000, 8000, & 7000 Series Desktop Processors
• * Refer to www.asus.com for CPU support list.

Chipset

• AMD B650

Memory

• 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800
• ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO???)
• OptiMem II
• * Supported memory types and speeds vary depending on the CPU and memory configuration.

Graphics

• 2 x DisplayPort (Supports max. 8K@60Hz as per DisplayPort 1.4)
• 1 x HDMI??? port (Supports 4K@60Hz as per HDMI 2.1)
• * Graphics specifications may vary between CPU types. Refer to AMD CPU specifications.

Expansion Slots

• AMD Ryzen??? 9000 & 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen??? 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD B650 Chipset: 2 x PCIe 4.0 x1 slots
• * Please check the PCIe bifurcation table on the support site for more details.

Storage

• Total 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen??? 9000 & 7000 Series Desktop Processors:
  • M.2_1 slot: PCIe 5.0 x4 mode
  • M.2_2 slot: PCIe 4.0 x4 mode
• AMD Ryzen??? 8000 Series Desktop Processors:
  • M.2_1 slot: PCIe 4.0 x4 mode
  • M.2_2 slot: PCIe 4.0 x4/x2 mode
• AMD B650 Chipset: 4 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

USB

Rear USB (Total 8 ports)

• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x Type-C??)
• 2 x USB 3.2 Gen 1 (5G) ports (Type-A)
• 4 x USB 2.0 ports (Type-A)

Front USB (Total 7 ports)

• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C??)
• 1 x USB 3.2 Gen 1 (5G) header (supports 2 additional USB 3.2 Gen 1 ports)
• 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
• * A chassis with an HD audio module is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C??)
• 2 x USB 3.2 Gen 1 (5G) ports (Type-A)
• 4 x USB 2.0 ports (Type-A)
• 2 x DisplayPort
• 1 x HDMI??? port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack??? button
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

• 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector
• 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
• 3 x Addressable Gen 2 headers, 1 x Aura RGB header
• 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

• ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O
• ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot
• ASUS Thermal Solution: M.2 heatsink, VRM heatsink design
• ASUS EZ DIY: BIOS FlashBack??? button, BIOS FlashBack??? LED, ProCool, Pre-mounted I/O shield, SafeSlot Core+, SafeDIMM
• Aura Sync: Aura RGB header, Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software: Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancelation
• AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner
• TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 Days Free Trial), WinRAR

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• 2 x SATA 6Gb/s cables
• 1 x I/O Shield, 1 x TUF Gaming sticker, 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• 1 x TUF Certification card, 1 x User guide

Operating System

• Windows?? 11, Windows?? 10 64-bit

Form Factor

• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
