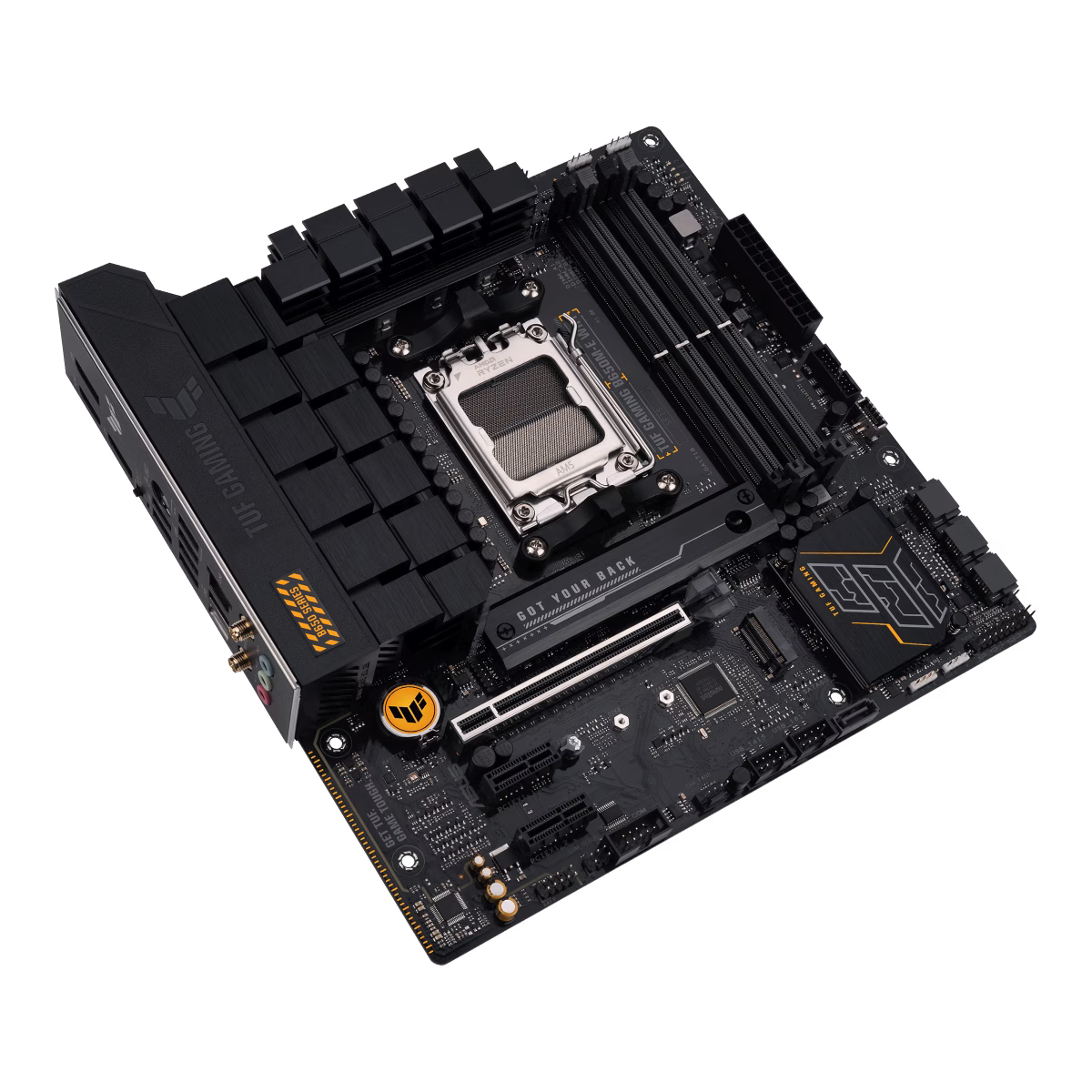

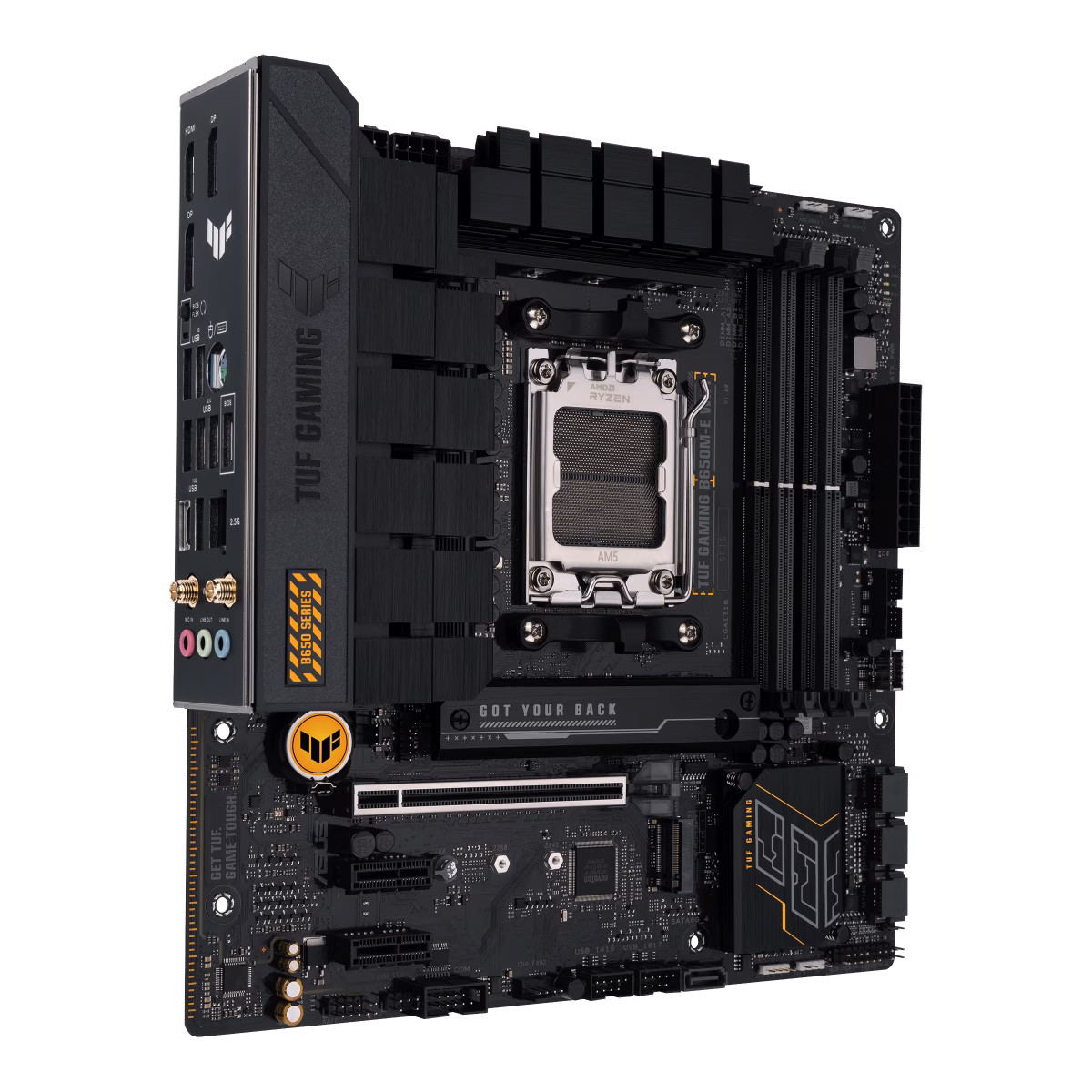

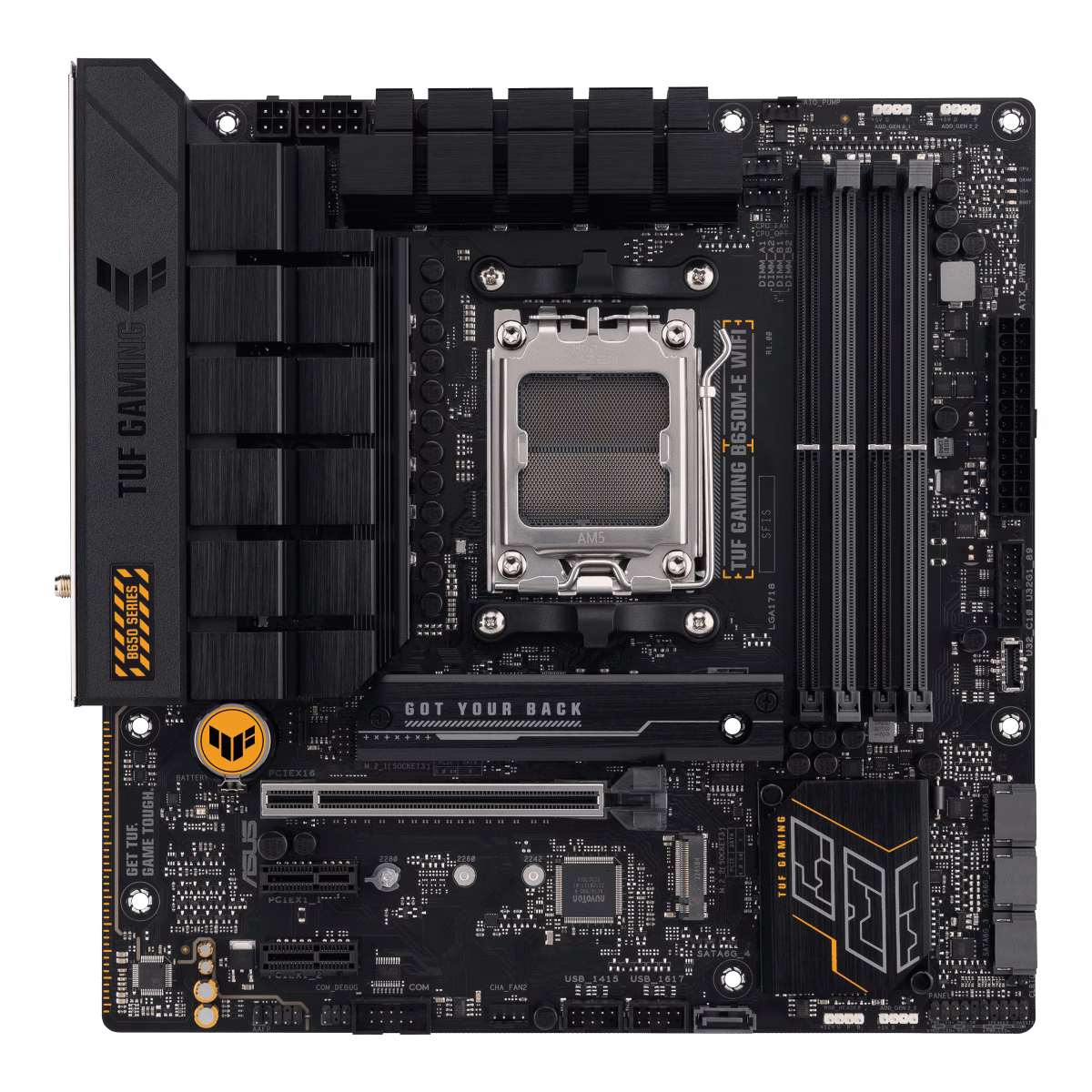

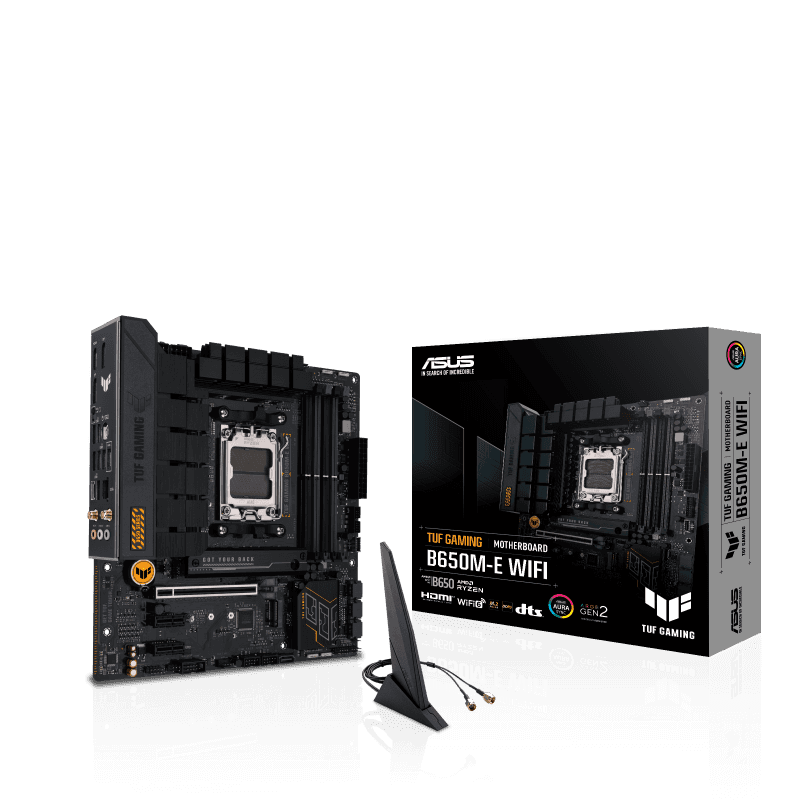

ASUS TUF GAMING B650M-E WIFI micro-ATX Motherboard, 4 x DIMM slots, Max.192GB, DDR5, AM5, PCIe 5.0 for M.2, 2.5 Gb Ethernet, Two-Way AI Noise Cancelation | 90MB1FV0-M0EAY0
Model :
SKU : MB-ASUS TUF B650M-E WIFI
About this item
About this item
Description
The TUF Gaming B650M-E WIFI takes the battle-proven DNA of the TUF series and applies it to the versatile AMD B650 chipset. This board is "Ryzen 9000 Ready," ensuring seamless compatibility with the latest Zen 5 architecture. Built with military-grade components, including TUF Chokes and TUF Capacitors, it is designed to provide 24/7 stability under heavy gaming loads while fitting into space-saving Micro-ATX chassis.
Advanced Thermal Management & Power
To handle the demanding power requirements of multi-core Ryzen CPUs, the B650M-E WIFI features an enhanced power delivery system cooled by enlarged VRM heatsinks. These heatsinks cover the MOSFETs and chokes to improve heat dissipation, while the M.2 heatsink keeps your primary NVMe drive at optimal temperatures. With a 6-layer PCB design, this motherboard ensures better signal integrity and improved cooling for critical components during overclocking.
Next-Gen Storage and Memory Speed
Despite its compact size, this motherboard is built for speed. It features a dedicated PCIe 5.0 M.2 slot, offering bandwidth up to 128Gbps for the newest generation of SSDs. The four DIMM slots support high-frequency DDR5 memory, enhanced by ASUS OptiMem II technology which maps memory signal pathways across different PCB layers to reduce crosstalk. This allows builders to reach higher memory frequencies via AMD EXPO™ profiles with ease.
Wired & Wireless Networking Excellence
Connectivity is critical for competitive play. The TUF B650M-E WIFI includes WiFi 6 for reliable, high-speed wireless networking and Realtek 2.5Gb Ethernet for a rock-solid wired connection that is 2.5x faster than standard Gigabit. To enhance your audio experience, Two-Way AI Noise Cancelation uses a deep-learning database to reduce background noise from both your microphone and incoming audio, ensuring crystal-clear communication with your teammates.
Why the ASUS TUF Gaming B650M-E WIFI Stands Out
AM5 Socket Native: Built for the latest Ryzen 9000/8000/7000 series desktop processors.
PCIe 5.0 M.2 Support: Future-proofed storage speeds for near-instant game loading.
Compact mATX Design: Offers 4 RAM slots and full features in a smaller footprint.
Aura Sync RGB: Sync your lighting via Addressable Gen 2 headers for a custom aesthetic.

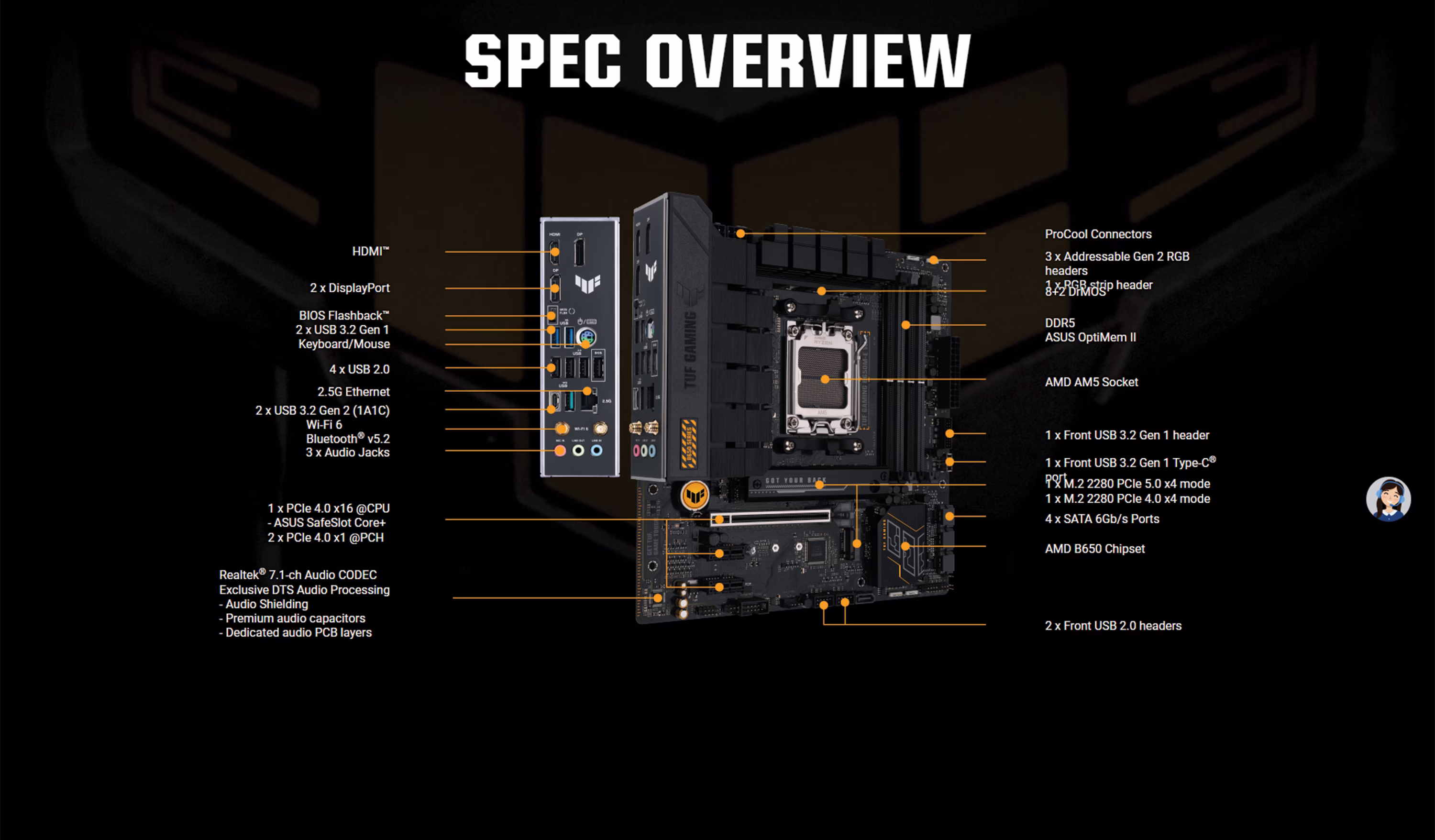

Specification
| Model | |
| Model | TUF GAMING B650M-E WIFI |
| CPU | |
| Socket | AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 |
| Memory | |
| Slots | 4 x DIMM slots, Max. 192GB |
| Type | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory |
| Architecture | Dual Channel Memory Architecture |
| Support | Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| Notes | Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | |
| DisplayPort | 2 x DisplayPort |
| HDMI | 1 x HDMI port |
| Notes | Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | |
| AMD Ryzen 7000 Series Desktop Processors | 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| AMD Ryzen 8000 Series Desktop Processors | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| AMD B650 Chipset | 2 x PCIe 4.0 x1 slots |
| Notes | Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | |
| Total | 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzen 7000 Series Desktop Processors | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| AMD Ryzen 8000 Series Desktop Processors | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) |
| AMD B650 Chipset | 4 x SATA 6Gb/s ports |
| Notes | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. Specifications vary by CPU types. |
| Ethernet | |
| Type | 1 x Realtek 2.5Gb Ethernet |
| Protection | TUF LANGuard |
| Wireless & Bluetooth | |
| Wi-Fi | Wi-Fi 6 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth | |
| USB | |
| Rear USB (Total 8 ports) | 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| Front USB (Total 7 ports) | 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Audio Features | - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

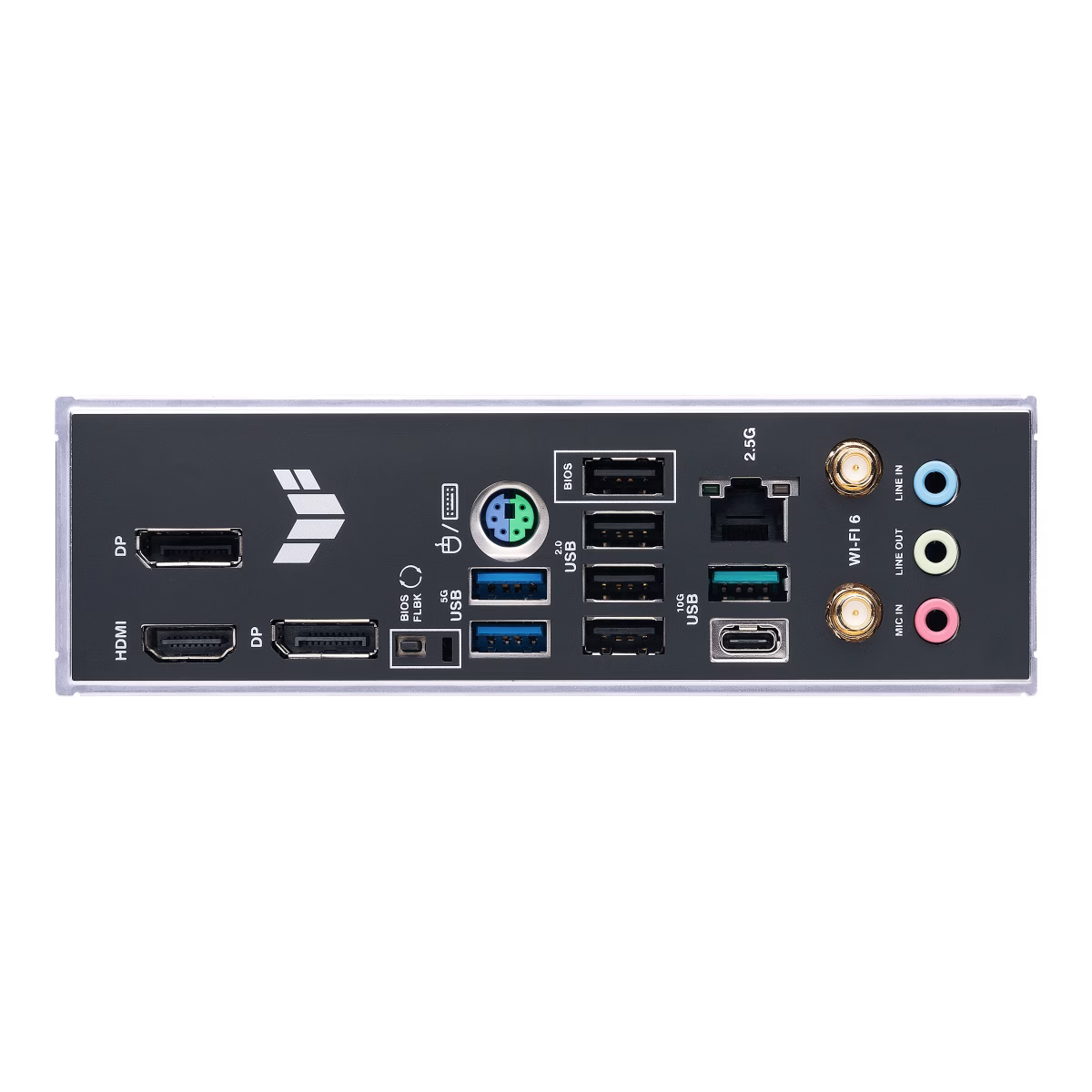

| Back Panel I/O Ports | |
| USB Ports | 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| Display Ports | 2 x DisplayPort 1 x HDMI port |
| Other Ports | 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | |
| Fan and Cooling | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers |
| Power | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
| Storage | 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| USB | 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Special Features | |
| ASUS TUF PROTECTION | - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O |
| ASUS Q-Design | - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot |
| ASUS Thermal Solution | - M.2 heatsink - VRM heatsink design |
| ASUS EZ DIY | - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM |
| Aura Sync | - Aura RGB header - Addressable Gen 2 headers |
| Software Features | |
| ASUS Exclusive Software | Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR |
| UEFI BIOS | ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

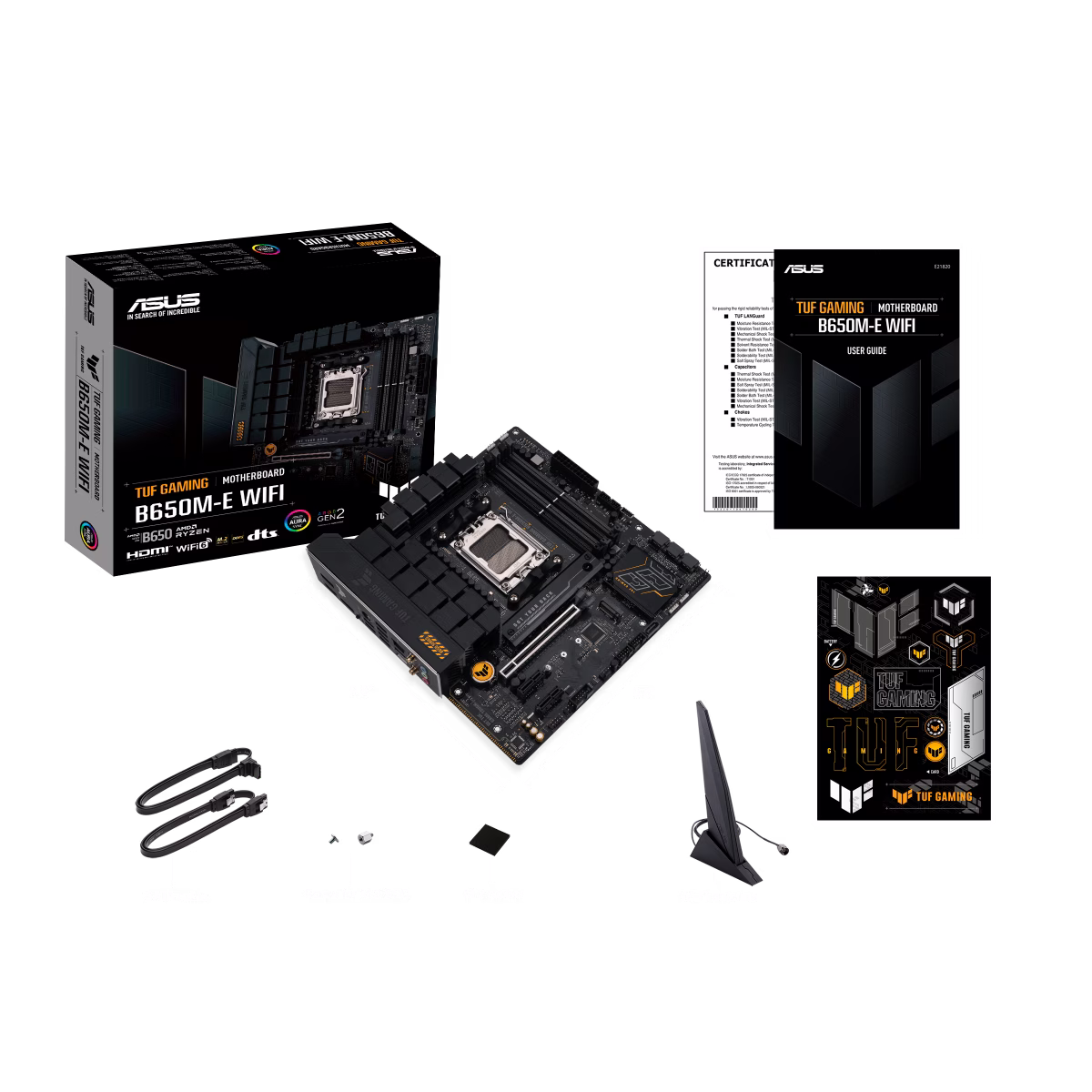

| Accessories | |
| Cables | 2 x SATA 6Gb/s cables |

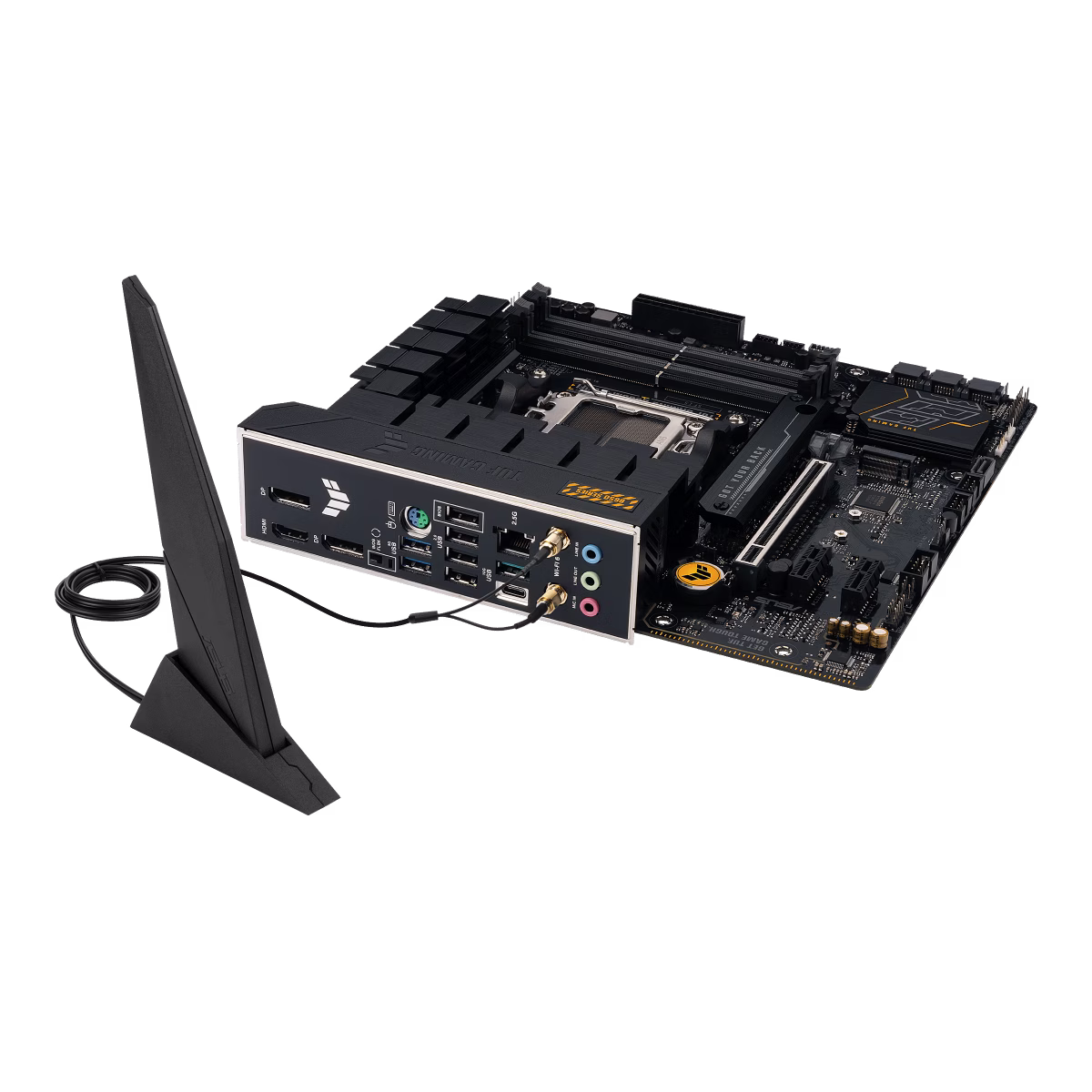

| Miscellaneous | 1 x ASUS Wi-Fi moving antennas 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD |
| Documentation | 1 x TUF Certification card 1 x User guide |
| Operating System | |
| OS Support | Windows 11, Windows 10 64-bit |
| Form Factor | |
| Size | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Unleash the Power of Gaming with the ASUS TUF Gaming B650M-E WIFI Motherboard: The Ultimate Guide to DDR5, AM5, PCIe 5.0, and Two-Way AI Noise Cancelation
Are you ready to take your gaming experience to the next level Look no further than the ASUS TUF Gaming B650M-E WIFI Motherboard. This ultimate guide is your ticket to unleashing the true power of gaming with cutting-edge technologies like DDR5, AM5, PCIe 5.0, and Two-Way AI Noise Cancelation. Designed with gamers in mind, the ASUS TUF Gaming B650M-E WIFI Motherboard delivers unrivaled performance and reliability. With DDR5 support, you can enjoy faster data transfer speeds and improved multitasking capabilities. AM5 compatibility ensures future-proofing for upcoming processors, while PCIe 5.0 offers lightning-fast communication between components for smooth gameplay. But the innovation doesn't stop there. Thanks to Two-Way AI Noise Cancelation, you can immerse yourself in your gaming world without disturbances. Say goodbye to background noise and focus on what matters most winning. Whether you're a casual gamer or a seasoned pro, the ASUS TUF Gaming B650M-E WIFI Motherboard is the ultimate choice for a hassle-free gaming experience. Get ready to dominate the competition and unleash the power of gaming like never before.
