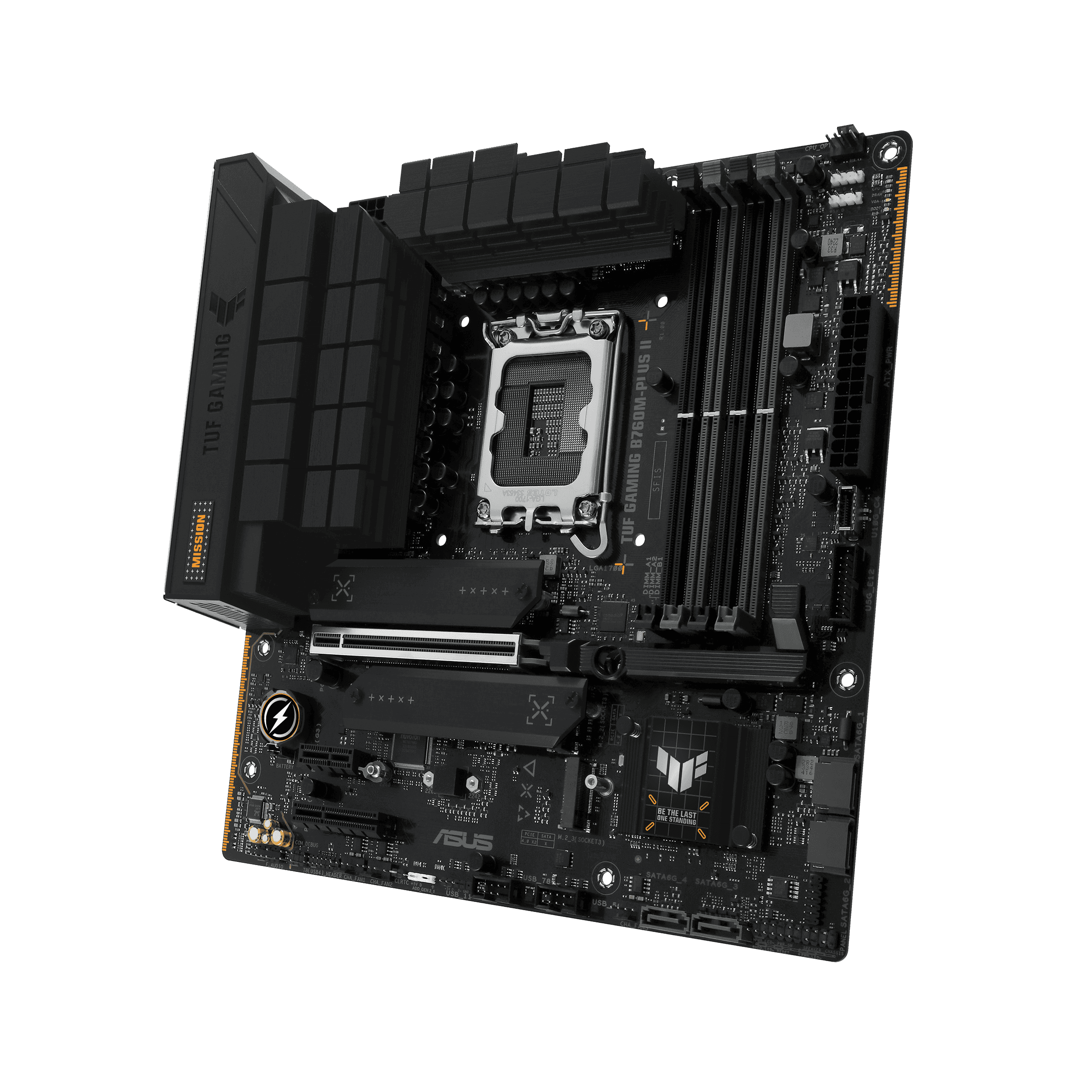

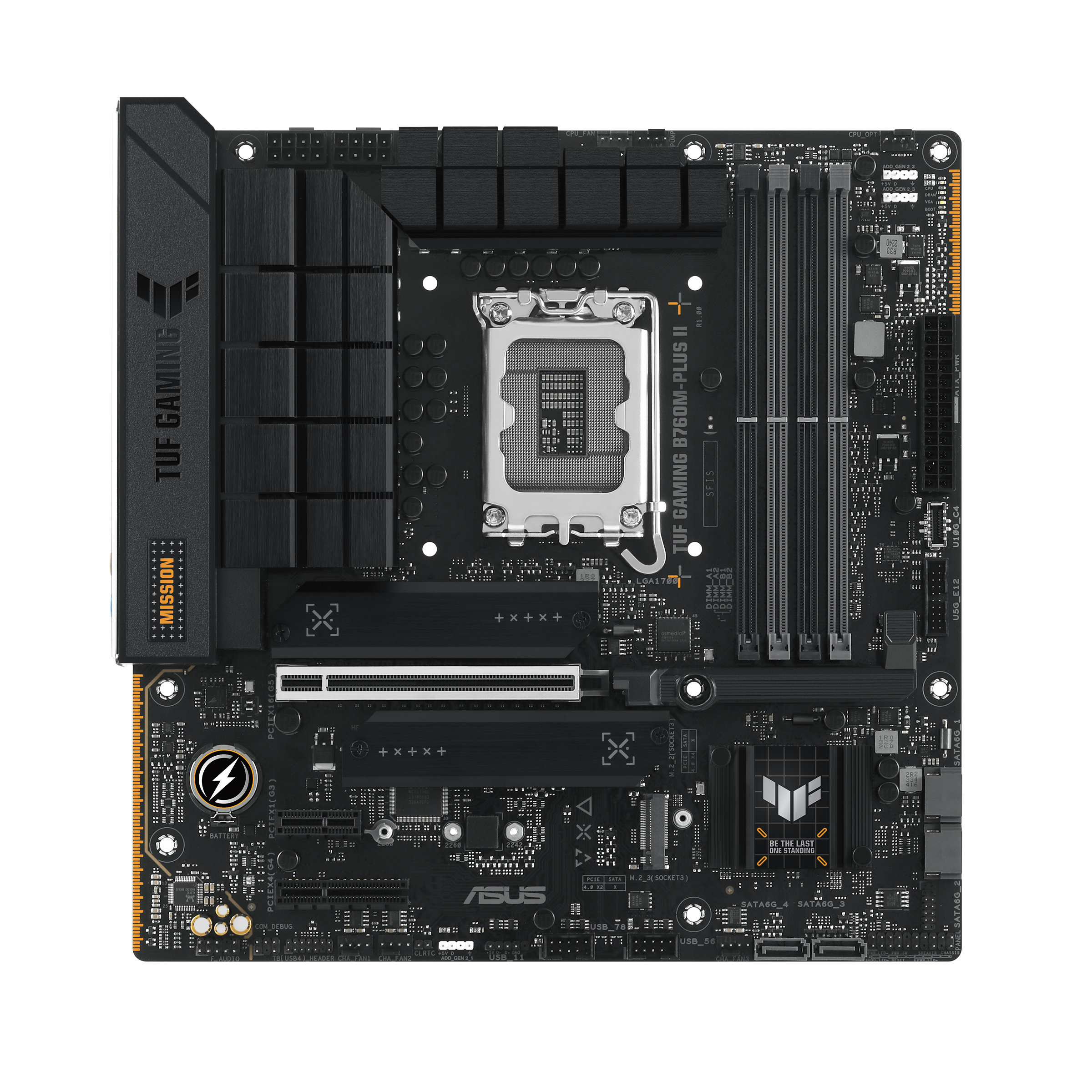

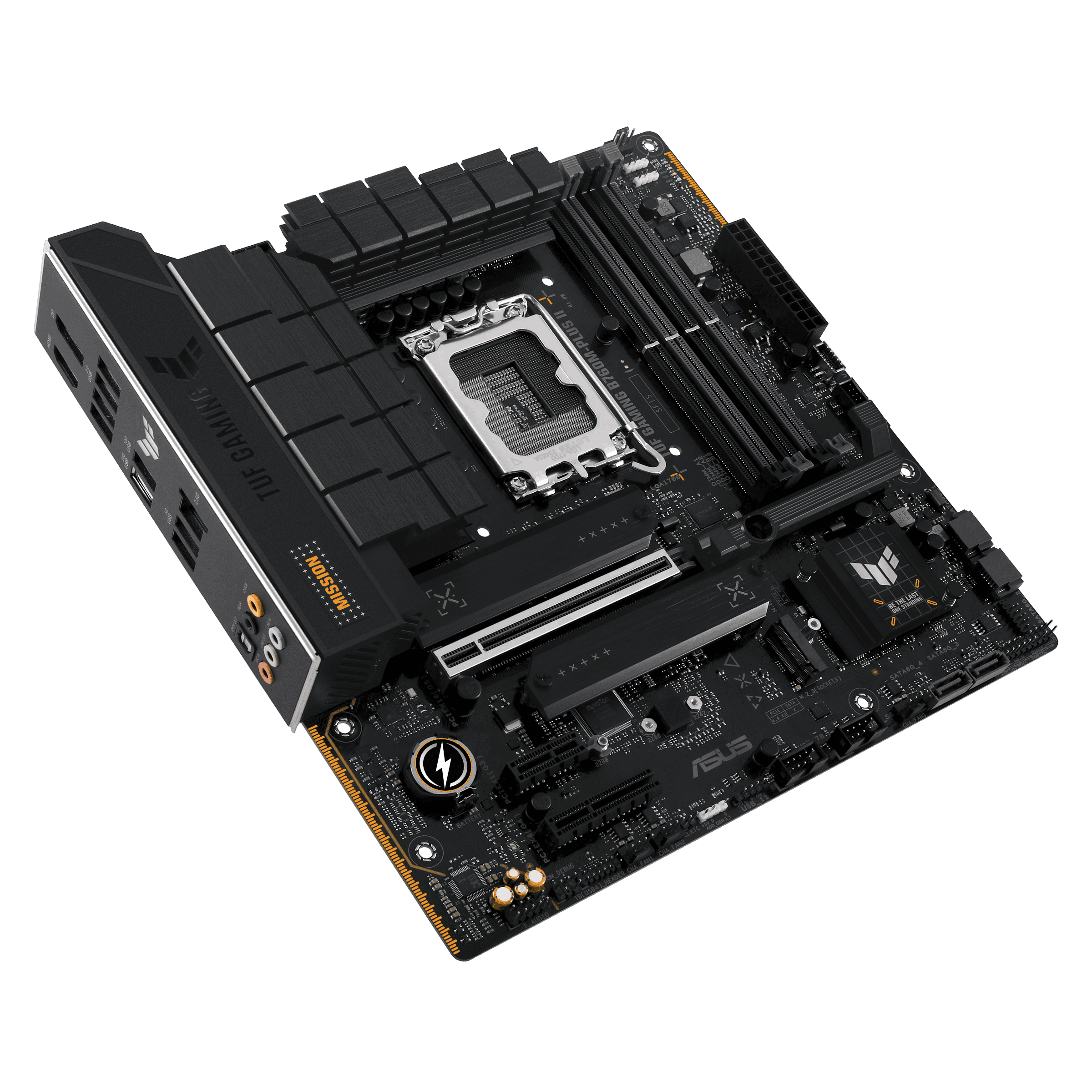

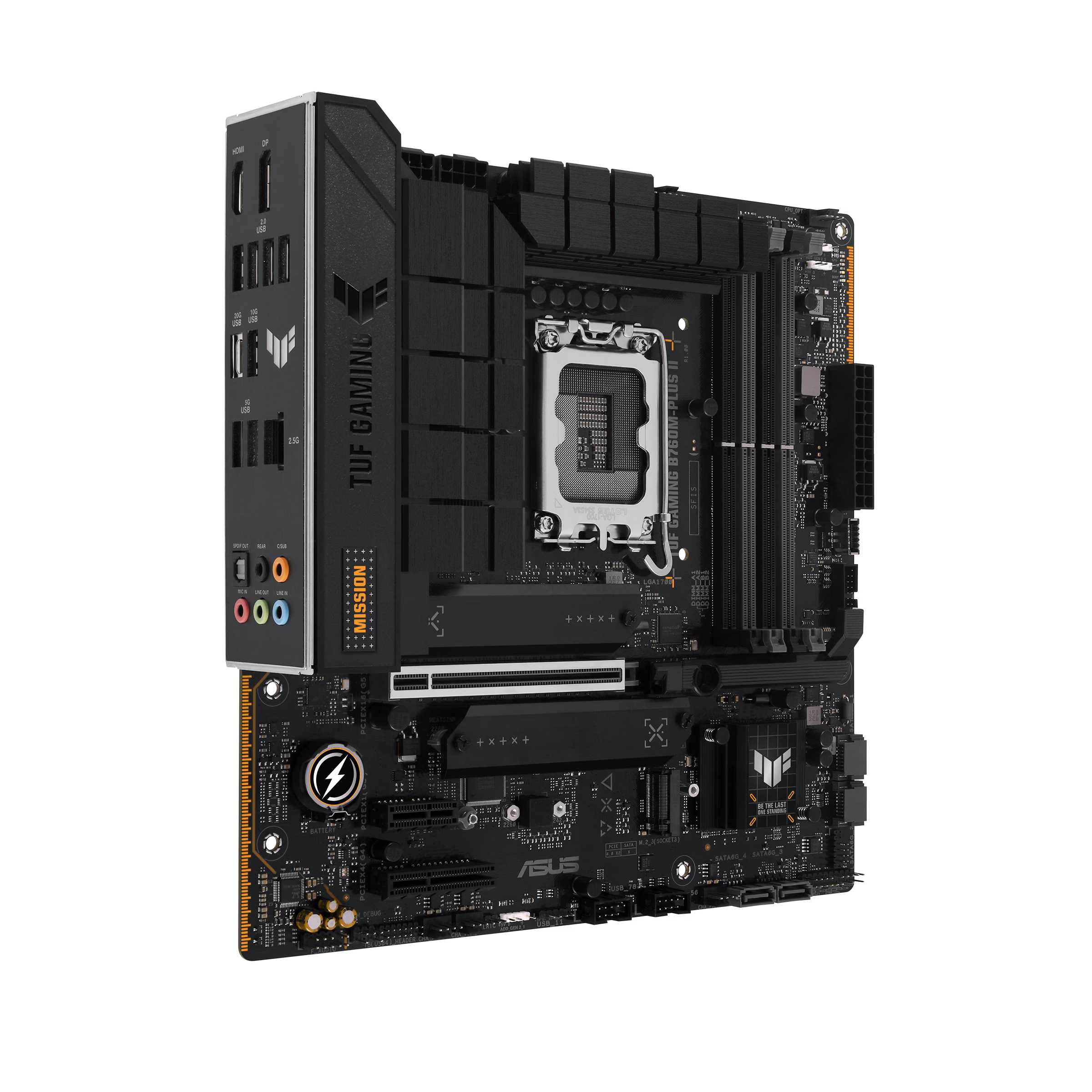

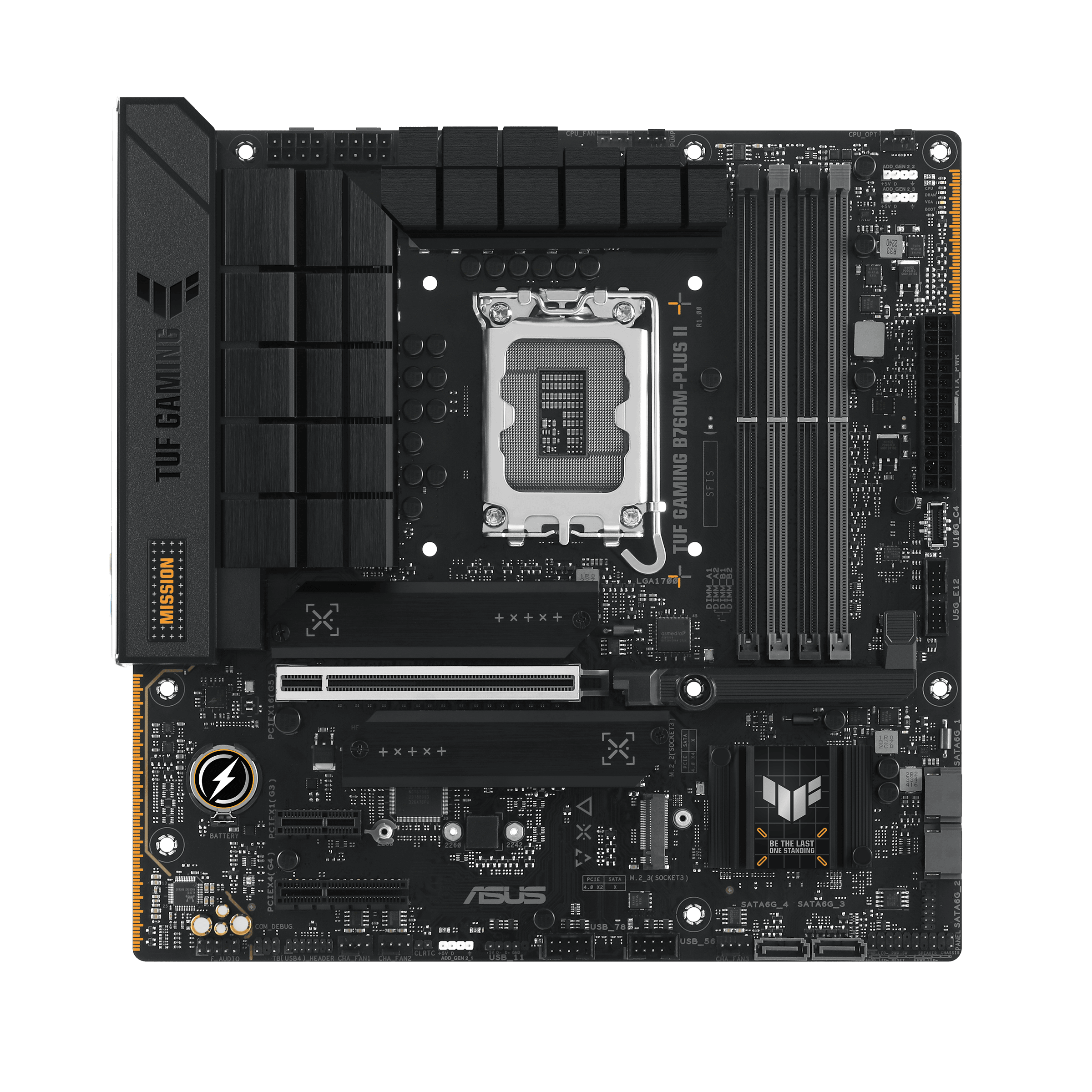

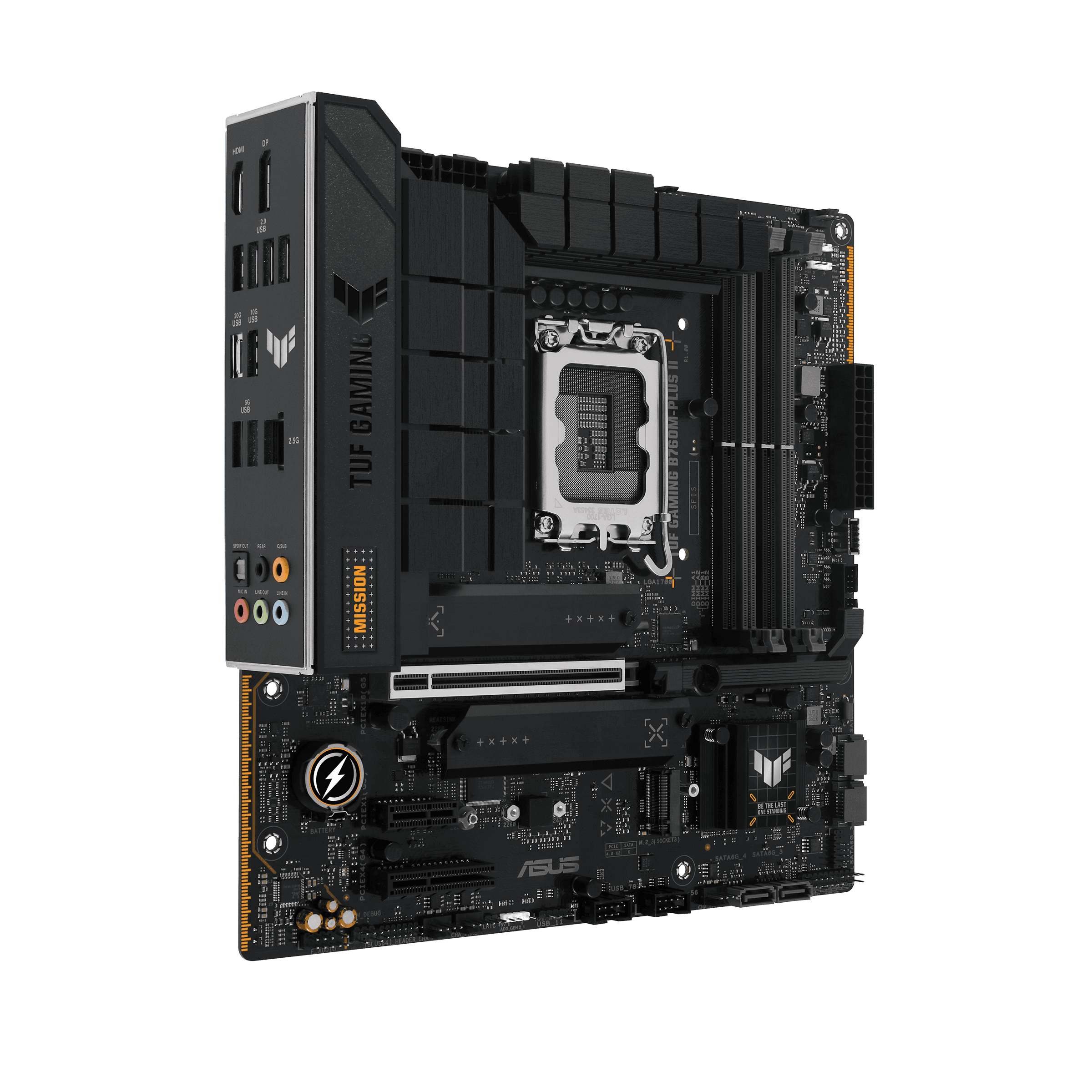

ASUS TUF GAMING B760M-PLUS II Intel micro-ATX Motherboard, LGA1700, 4x DIMM slots, Max. 192GB, DDR5, 3x M.2 slots and 4 x SATA 6Gb/s ports, PCIe 5.0 | 90MB1HD0-M0EAY0
Model :
SKU : MB-ASUS TUF B760M-PLUS II
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Model | TUF GAMING B760M-PLUS II |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on CPU type. |
| Chipset | Intel® B760 Chipset |
| Memory | 4 × DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel architecture Supports Intel® XMP & ASUS AEMP II * Supported types & speeds depend on CPU and configuration. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC. |
| Graphics | 1 × DisplayPort (max. 4K@60Hz, DisplayPort 1.4) 1 × HDMI™ port (4K@60Hz, HDMI 2.1) * Graphics specs vary by CPU type. |
| Expansion Slots | Intel® Core™ (14th/13th/12th Gen): 1 × PCIe 5.0 x16 Intel® B760 Chipset: 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x1 |
| Storage | 3 × M.2 slots and 4 × SATA 6Gb/s ports M.2_1: PCIe 4.0 x4 M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x2 Supports SATA RAID 0/1/5/10 |
| Ethernet | 1 × Realtek 2.5Gb Ethernet, TUF LANGuard |
| USB | Rear USB (8 total): • 1 × USB 20Gbps Type-C • 1 × USB 10Gbps Type-A • 2 × USB 5Gbps Type-A • 4 × USB 2.0 Type-A Front USB (8 total): • 1 × USB 10Gbps (Type-C) • 1 × USB 5Gbps header (2 ports) • 3 × USB 2.0 headers (5 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC • Jack-detection, Multi-streaming, Front Panel Jack-retasking • Up to 24-Bit/192 kHz playback • Audio Shielding, Premium capacitors, Dedicated PCB layers • Rear optical S/PDIF out |

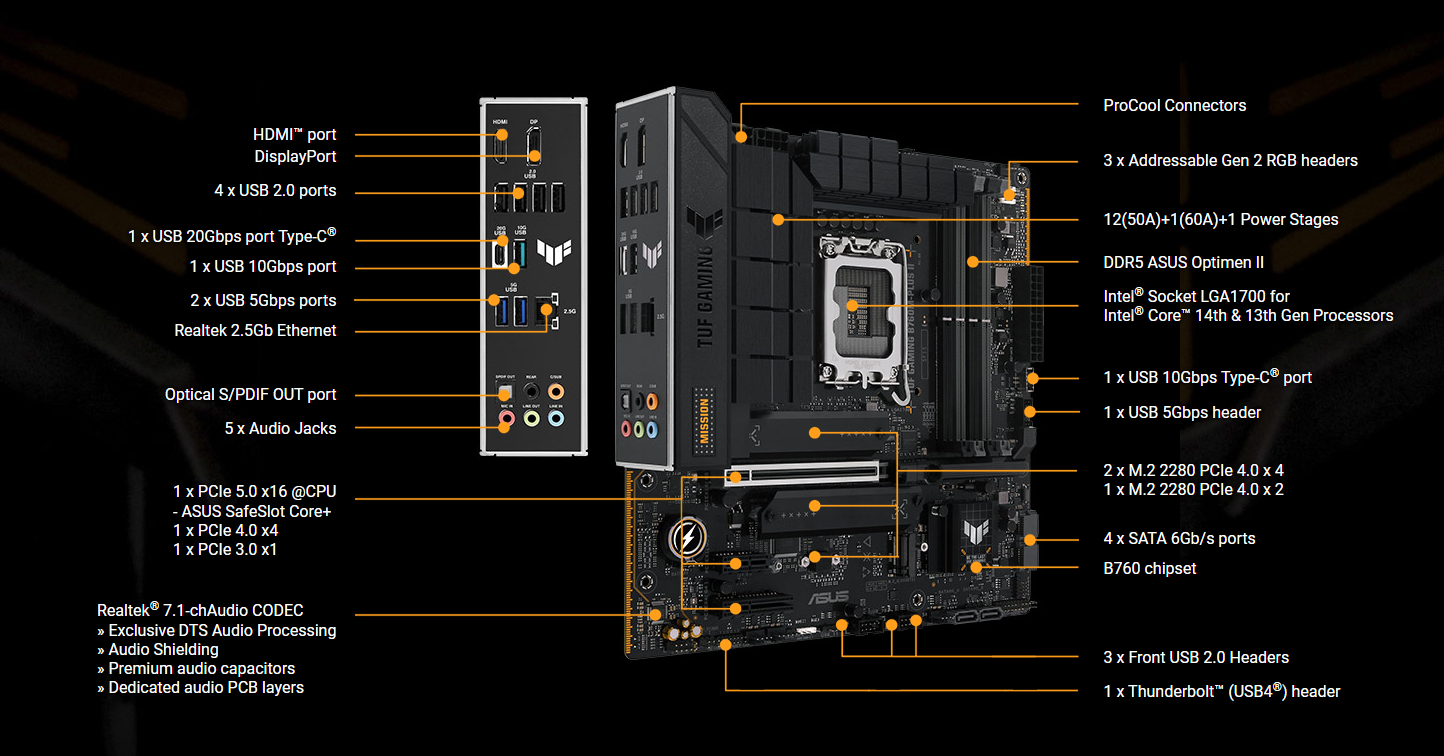

| Back Panel I/O Ports | 1 × USB 20Gbps Type-C 1 × USB 10Gbps Type-A 2 × USB 5Gbps Type-A 4 × USB 2.0 Type-A 1 × DisplayPort 1 × HDMI™ 1 × 2.5Gb Ethernet 5 × Audio jacks 1 × Optical S/PDIF out |
| Internal I/O | Cooling: 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 3 × Chassis Fan headers Power: 1 × 24-pin ATX, 2 × 8-pin 12V Storage: 3 × M.2, 4 × SATA USB: 1 × USB 10Gbps Type-C, 1 × USB 5Gbps (2 ports), 3 × USB 2.0 (5 ports) Misc: 3 × Addressable Gen 2, Clear CMOS, Front Panel Audio, System Panel, Thunderbolt header |
| Special Features | ASUS TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-steel I/O Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED Thermal: M.2 heatsinks, VRM heatsinks EZ DIY: CPU lever protector, ProCool, Pre-mounted I/O, SafeDIMM Aura Sync Gen 2 headers |
| Software Features | Armoury Crate, AURA Creator, AURA Sync, Fan Xpert 2+, Power Saving, AI Noise Cancelation AI Suite 3 (DIGI+ VRM, PC Cleaner, TUF GAMING CPU-Z) DTS Audio Processing, Norton 360 (60 Days), WinRAR (40 Days) |
| UEFI BIOS | ASUS CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 × SATA 6Gb/s cables 1 × M.2 rubber package 1 × TUF GAMING sticker 2 × Screw packages for M.2 SSD 1 × TUF certification card 1 × Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX, 9.6 × 9.6 in (24.4 × 24.4 cm) |
