Adarc Computer established in the year 2007, has emerged as a major constituent of the IT Re-distribution industry in every part of UAE. Currently, Adarc Computer is the authorized dealer of global leading brands.
Connect us:
Shop by Category
Model :
SKU : MB-ASUS TUF B850-E WIFI
Performance / Technology

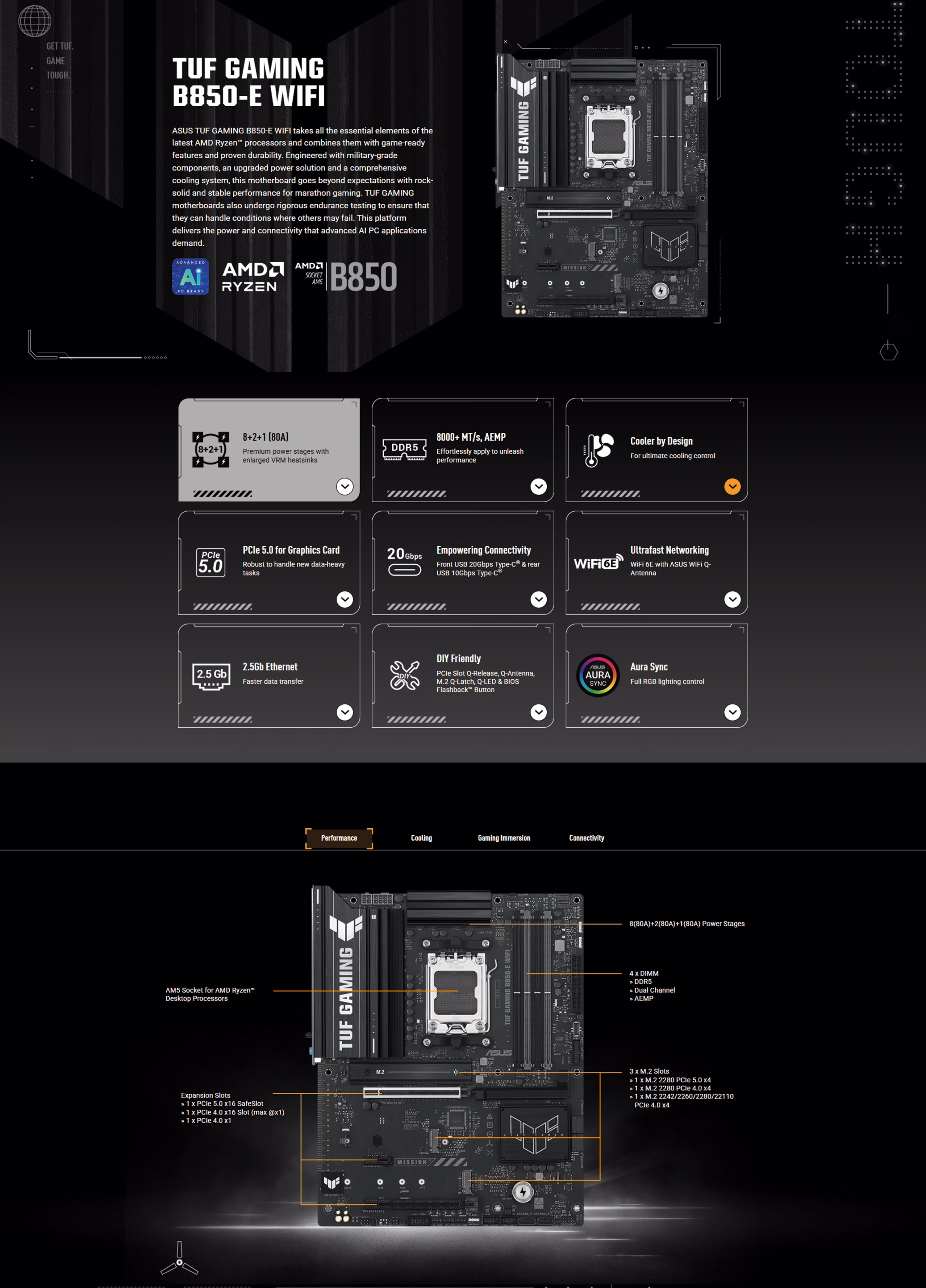

The primary engineering triumph of the TUF GAMING B850-E WIFI lies within its lane management. By leveraging the updated B-series architecture, it delivers the exact bandwidth configuration that power users look for: direct, unshared PCIe 5.0 lines straight to the most vital hardware components. This guarantees that when you install an enthusiast-grade graphics card or an ultra-fast NVMe solid-state drive, your motherboard will never act as a data bottleneck.
Design & Compatibility
When configuring a custom PC around this motherboard, component alignment is simple but specific. Because the AM5 platform relies entirely on modern engineering standards, builders must utilize DDR5 desktop memory modules, as older DDR4 RAM is physically and architecturally incompatible. Furthermore, to maximize the ultra-fast throughput of the integrated WiFi 6E module, ensure your home or studio wireless router supports 6GHz broadcasting channels.
Why This Product Stands Out
The ASUS TUF GAMING B850-E WIFI stands out by offering premium, future-proof lane distribution at a highly competitive tier. While standard mid-range motherboards frequently trim down PCIe 5.0 capabilities to save on manufacturing costs, this TUF board retains dual-channel PCIe 5.0 infrastructure alongside signature, ruggedized physical durability—making it the definitive choice for smart system builders who prioritize absolute stability and hardware longevity.
Feature | Specification |
|---|---|
Model | TUF GAMING B850-E WIFI |
Socket | Socket AM5 |
Chipset | AMD B850 Chipset |
CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
Memory | 4 x DIMM slots, Max. 256GB, DDR5 Supports up to 8000+MT/s(OC), ECC / Non-ECC Un-buffered Dual channel architecture, AMD EXPO™, ASUS Enhanced Memory Profile (AEMP) |
Graphics | 1 x DisplayPort 1.4 (Max. 8K@30Hz) 1 x HDMI™ 2.1 port (Supports 4K@60Hz) |
Expansion Slots | Ryzen™ 9000 & 7000 Processors: 1 x PCIe 5.0 x16 slot (x16 mode) Ryzen™ 8000 Processors: 1 x PCIe 4.0 x16 slot (x8/x4 mode) AMD B850 Chipset: 1 x PCIe 4.0 x16 slot (x1 mode), 1 x PCIe 4.0 x1 slot |
Storage | Total Support: 3 x M.2 slots + 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000 Processors: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4) Ryzen™ 8000 Processors: M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2) AMD B850 Chipset: M.2_3 (PCIe 4.0 x4, type 2242/2260/2280/22110) |
RAID Support | AMD RAIDXpert2 Technology Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10 |
Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
Wireless & Bluetooth | Wi-Fi 6E (2x2, 2.4/5/6GHz bands) Bluetooth® v5.3 |
Rear USB Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) 3 x USB 5Gbps ports (3 x Type-A) 3 x USB 2.0 ports (3 x Type-A) |
Front USB Ports | 1 x USB 20Gbps connector (supports USB Type-C® with max. 5V/3A) 1 x USB 5Gbps header (supports 2 additional ports) 2 x USB 2.0 headers (support 4 additional ports) |
Audio | Realtek 7.1 Surround Sound HD Audio CODEC Supports up to 24-Bit/192 kHz playback Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover |
Back Panel I/O Ports | 2 x USB 10Gbps (1xA, 1xC), 3 x USB 5Gbps (3xA), 3 x USB 2.0 (3xA) 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks, 1 x BIOS FlashBack™ button |
Internal I/O Connectors | Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan Power: 1 x 24-pin Main, 1 x 8-pin +12V CPU, 1 x 4-pin +12V CPU Misc: 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM Port, 1 x Front Panel Audio, 1 x 10-1 pin Front System header |
Special Features | TUF Protection: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot Thermal Solution: Flexible M.2 heatsink, VRM heatsink design EZ DIY: BIOS FlashBack™ button/LED, ProCool, Pre-mounted I/O shield, SafeDIMM, Aura Sync |
Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving), ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing |
UEFI BIOS | 256 Mb Flash ROM, UEFI AMI BIOS ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey |
Manageability | WOL by PME, PXE |
Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF Gaming sticker, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide |
Operating System | Windows 11, Windows 10 64-bit |
Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
