ASUS TUF GAMING B850M-PLUS WIFI7 W Micro-ATX AMD AM5 Motherboard, 4x DIMM slots, max. 256GB DDR5, PCIe 5.0, Wi-Fi 7, 2.5Gb LAN | 90MB1MD0-M0EAY0
998.99Home/PC Components/Motherboards/ASUS TUF GAMING B850-PLUS WIFI AMD ATX Motherboard...

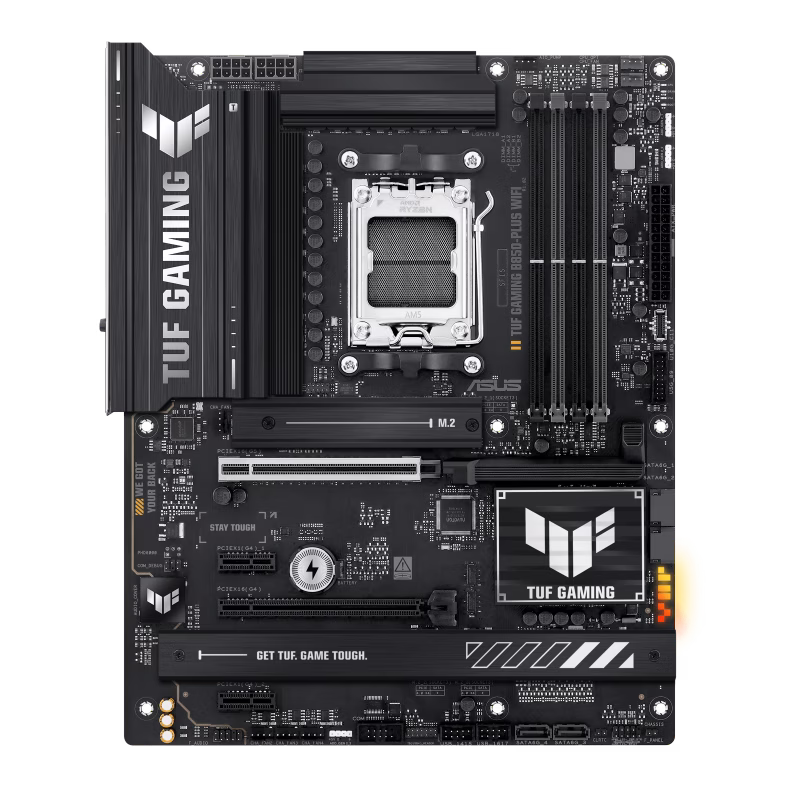

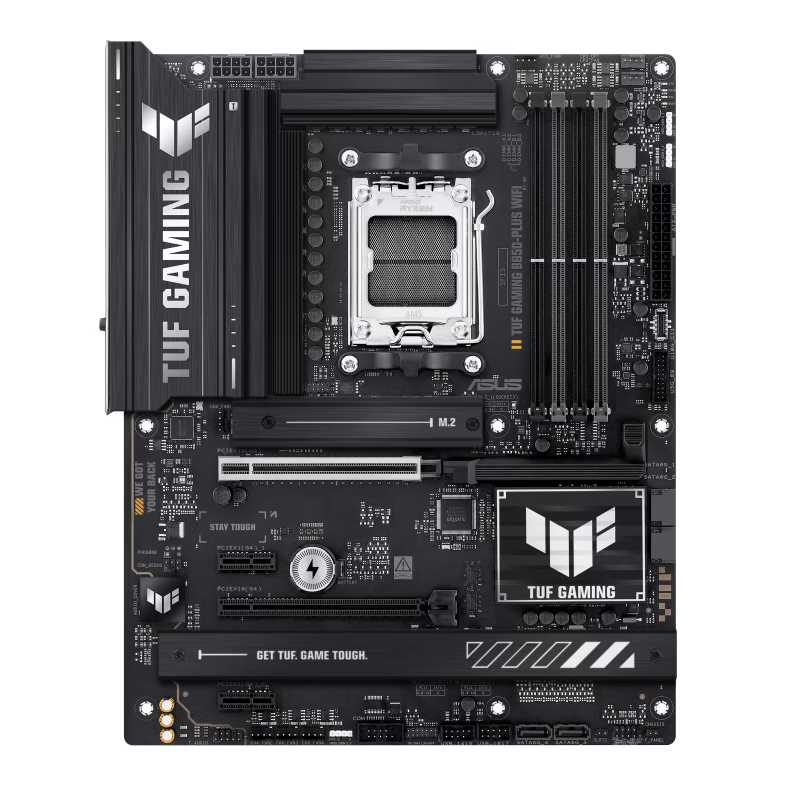

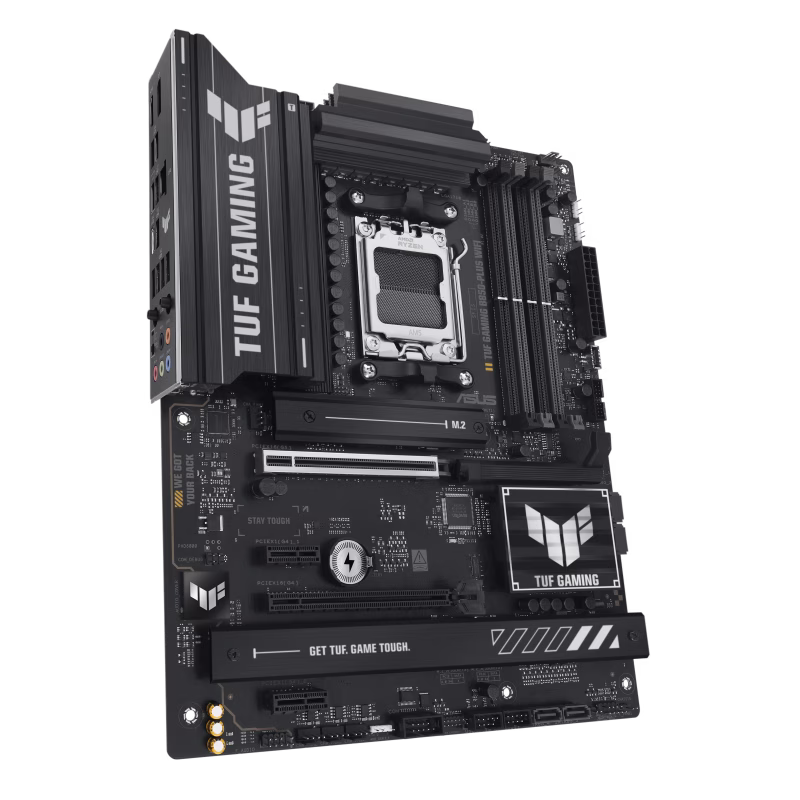

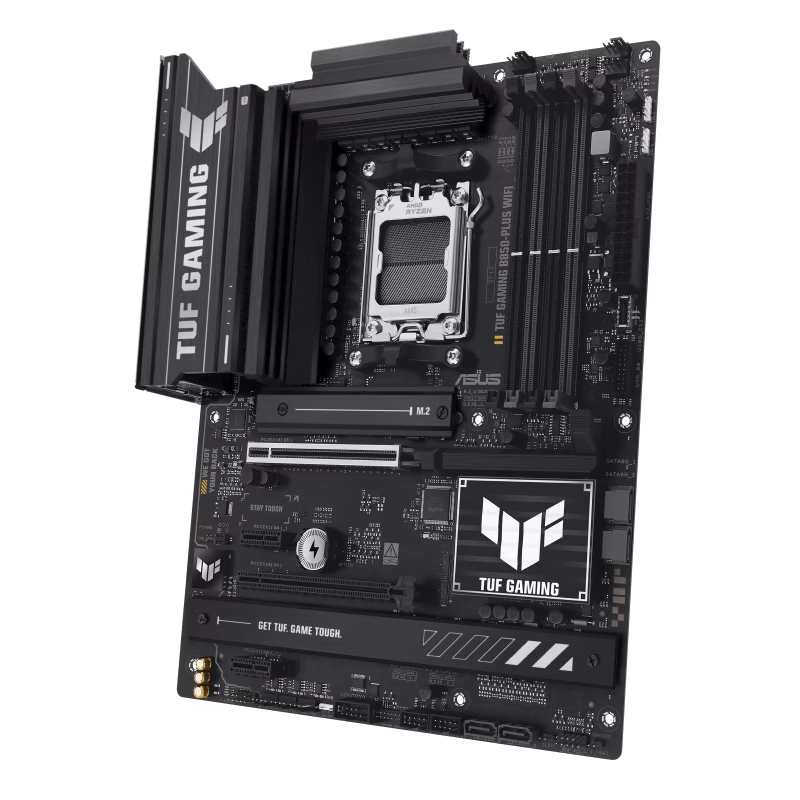

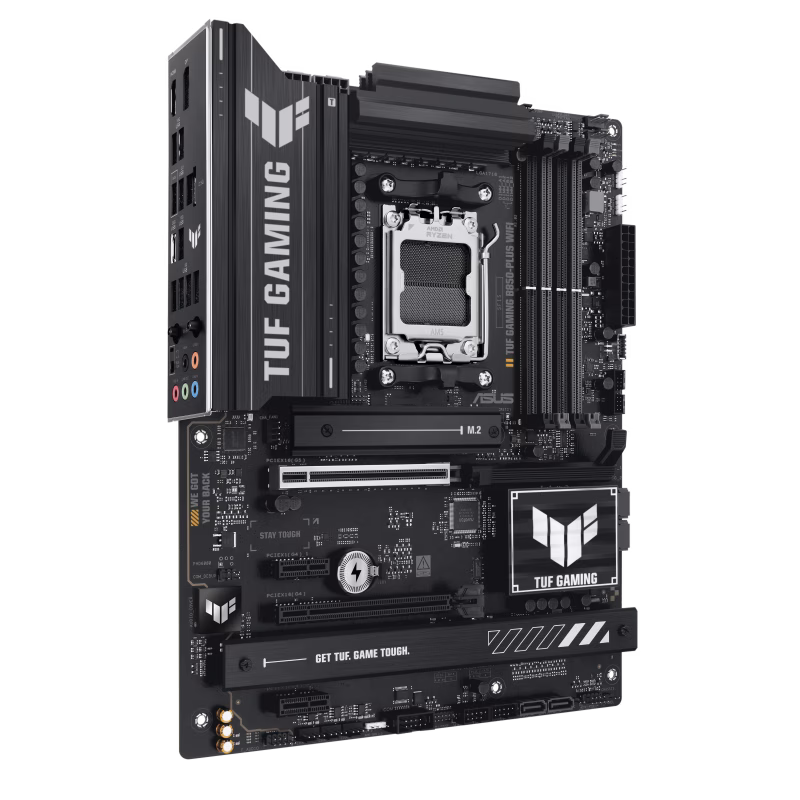

ASUS TUF GAMING B850-PLUS WIFI AMD ATX Motherboard, 14+2+1 DrMOS 80A Power Stages, DDR5, PCIe 5.0, 3 M.2 Slots, WiFi 7, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 20Gbps Type-C, Aura Sync | 90MB1J30-M0EAY0
Model :
SKU : MB-ASUS TUF B850-PLUS WIF
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance
Specification
| Model | TUF GAMING B850-PLUS WIFI |
| CPU Socket | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| Memory | 4 x DIMM, Max 256GB DDR5, Dual Channel, ECC & Non-ECC, Unbuffered Supports up to 8000+ MT/s (OC), AMD EXPO™, ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 1 x DisplayPort (Max 8K@30Hz), 1 x HDMI™ (4K@60Hz) |
| Expansion Slots | Ryzen 9000 & 7000: 1 x PCIe 5.0 x16 (x16 mode) Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4 mode) B850 Chipset: 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1 |
| Storage | 3 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s ports RAID Support: Ryzen 9000 (RAID 0/1/5/10), Ryzen 8000 (RAID 0/1), Ryzen 7000 (RAID 0/1/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 2x2 (802.11be), 2.4/5/6GHz, up to 2.9Gbps Bluetooth® v5.4 |
| Rear USB Ports | 1 x USB 20Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A |
| Front USB Ports | 1 x USB 10Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC, Impedance sense, Internal amplifier, Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 32-Bit/192 kHz |
| Audio Features | Audio Shielding, Premium capacitors, Dedicated PCB layers, Audio cover, Unique de-pop circuit |

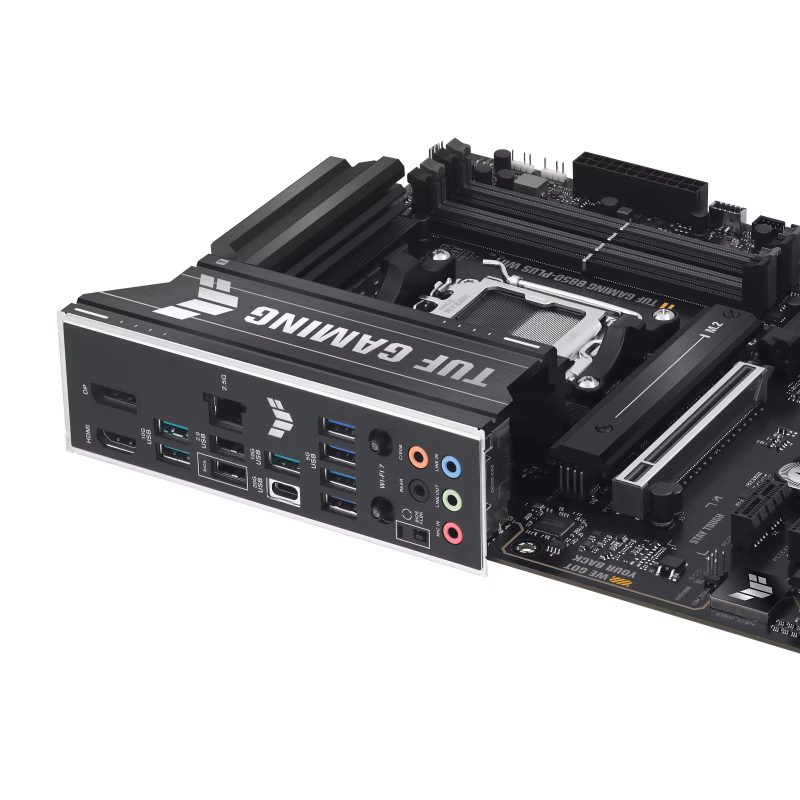

| Back Panel I/O | 1 x USB 20Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan: 1 x CPU, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Power: 1 x 24-pin, 2 x 8-pin CPU Power Storage: 3 x M.2 slots, 4 x SATA 6Gb/s USB: 1 x USB 10Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) Misc: 3 x Addressable Gen2 headers, Clear CMOS, Chassis Intrusion, COM, Front Panel Audio, 10-1 pin Front System Panel, Thunderbolt™ (USB4®) |
| Special Features | TUF PROTECTION (DIGI+ VRM, ESD Guards, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O) Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot) Thermal Solution (M.2 heatsink, VRM heatsink), EZ DIY (BIOS FlashBack™, LED, ProCool, Pre-mounted I/O shield, SafeDIMM), Aura Sync |
| Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving), ASUS DriverHub, GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 (60 Days), WinRAR (40 Days) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, TUF GAMING sticker, 2 x M.2 rubber packages, Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX, 12 in x 9.6 in (30.5 cm x 24.4 cm) |
