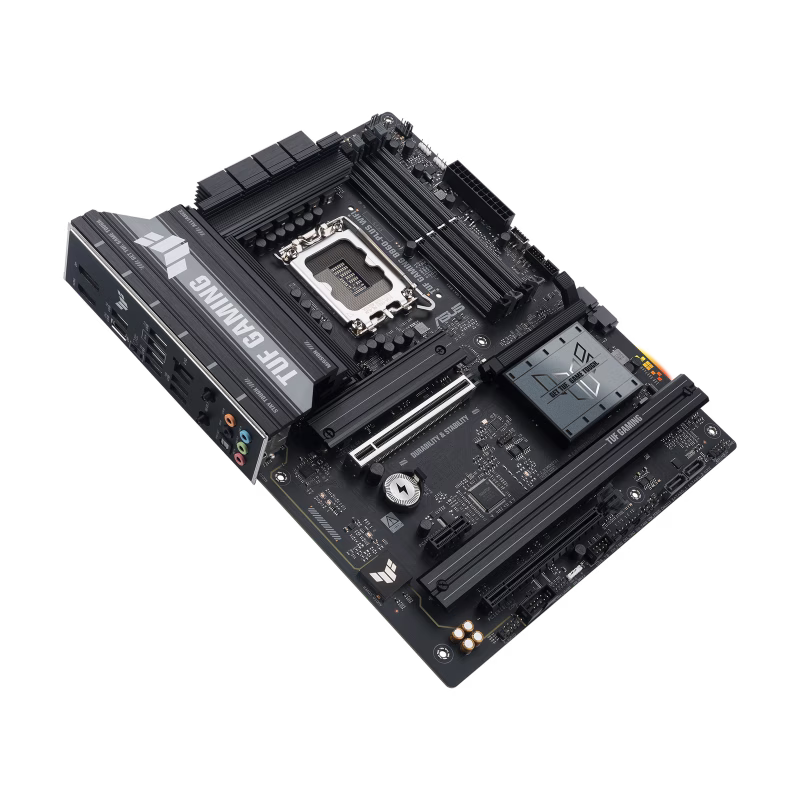

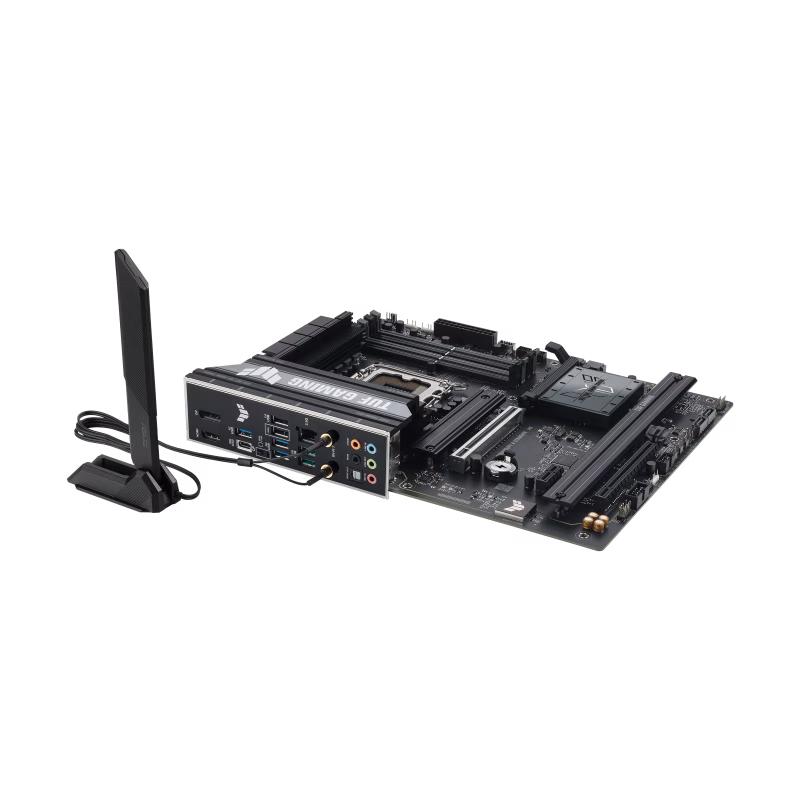

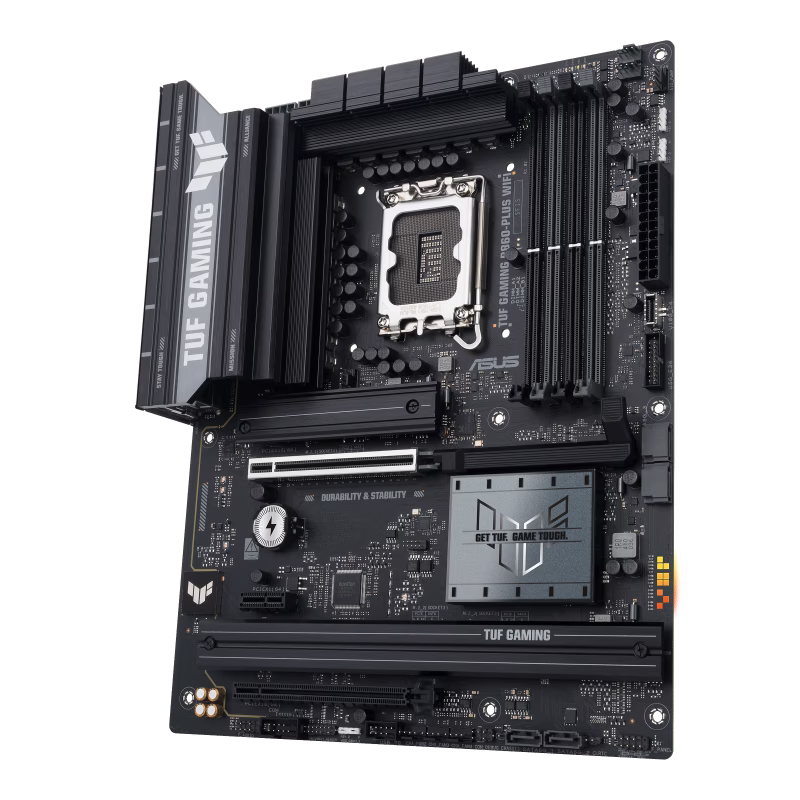

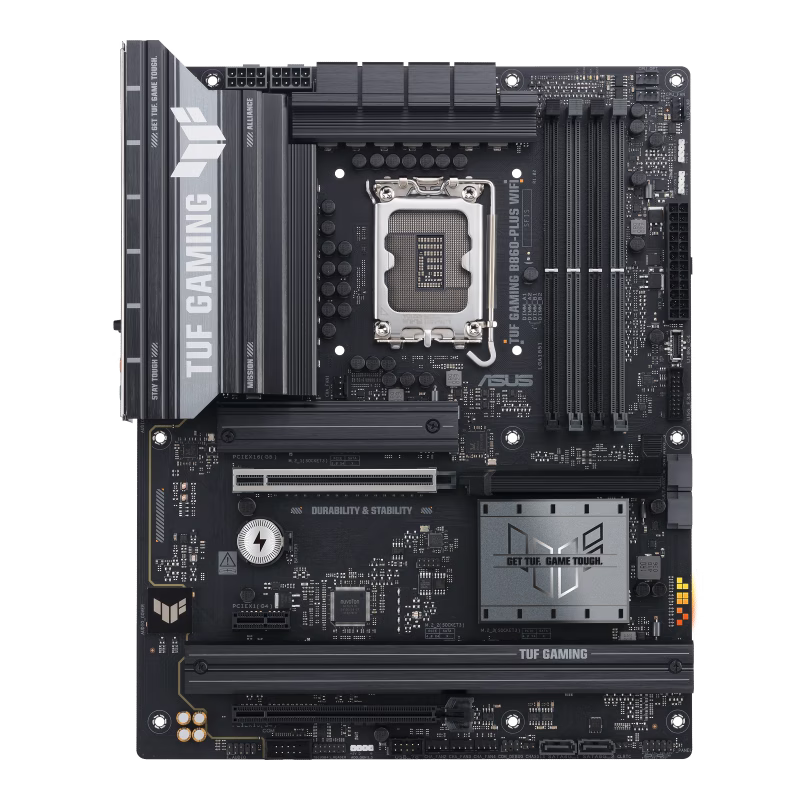

ASUS TUF GAMING B860-PLUS WIFI Intel B860 (LGA 1851) ATX Motherboard, Advanced AI PC ready, DDR5, PCIe 5.0, 3 x M.2 slots, Realtek 2.5Gb Ethernet, DP, HDMI, USB 20Gbps Type-C | 90MB1JL0-M0EAY0
Model :
SKU : MB-ASUS TUF B860-PLUS WIF
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
Specification
| Model | TUF GAMING B860-PLUS WIFI |
| CPU Support | Intel?? Core??? Ultra Processors (Series 2), LGA1851* |
| Turbo Boost Technology | Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0** |
| Chipset | Intel?? B860 Chipset |
| Memory Slots | 4 x DIMM slots, max. 256GB, DDR5 |
| Memory Speed | Supports up to 8666+ MT/s (OC), Non-ECC, Un-buffered |
| Memory Architecture | Dual channel memory architecture |
| Memory Profile | Supports Intel?? Extreme Memory Profile (XMP) memory module |
| Graphics Ports | 1 x DisplayPort, 1 x HDMI??? port, 1 x USB 20Gbps port (USB Type-C??) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot |
| Storage | 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Bluetooth?? v5.4 |
| USB Ports (Rear) | 1 x USB 20Gbps port (1 x USB Type-C??), 2 x USB 10Gbps ports, 3 x USB 5Gbps ports, 2 x USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Features | Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors |

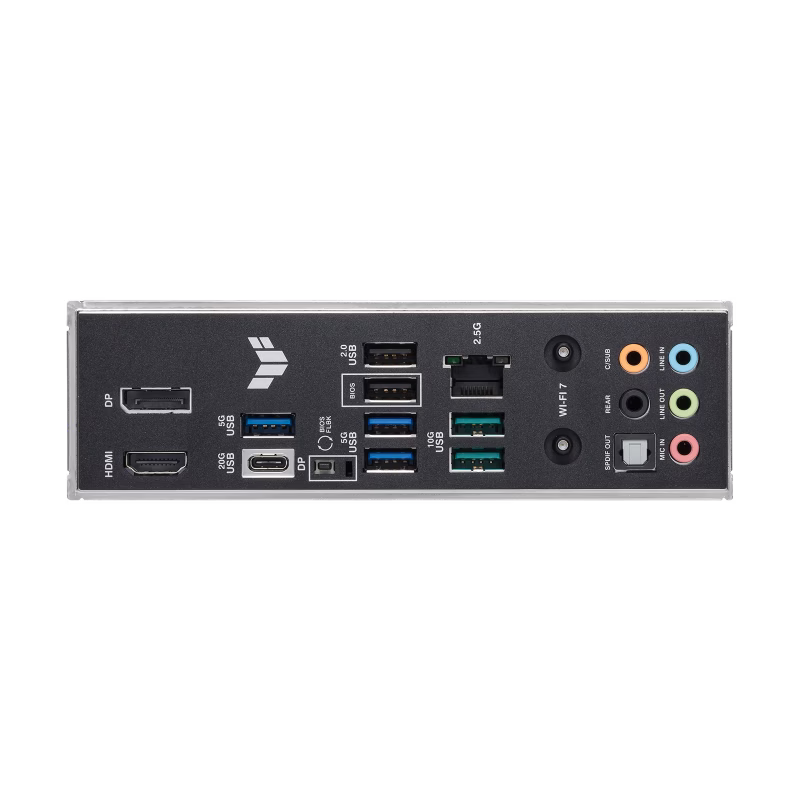

| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C?? with DP Alt mode), 2 x USB 10Gbps ports, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack??? button |
| Internal I/O Connectors | 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, 3 x Addressable Gen 2 headers, 1 x USB 10Gbps connector (supports USB Type-C??) |
| Special Features | ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, Aura Sync |
| Software Features | Armoury Crate, ASUS DriverHub, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 Days Free Trial) |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

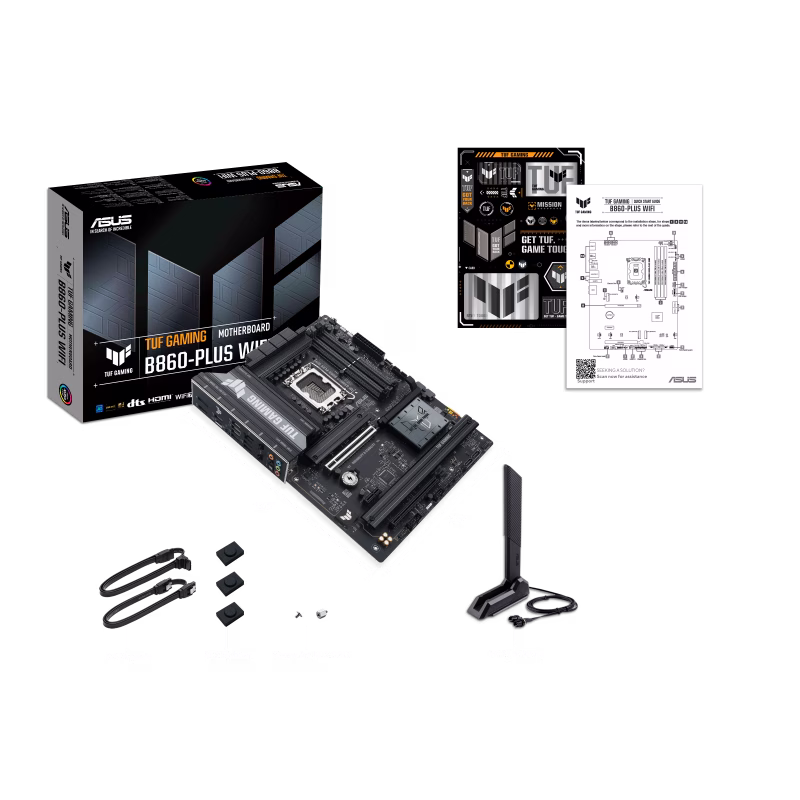

| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF GAMING sticker, 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
