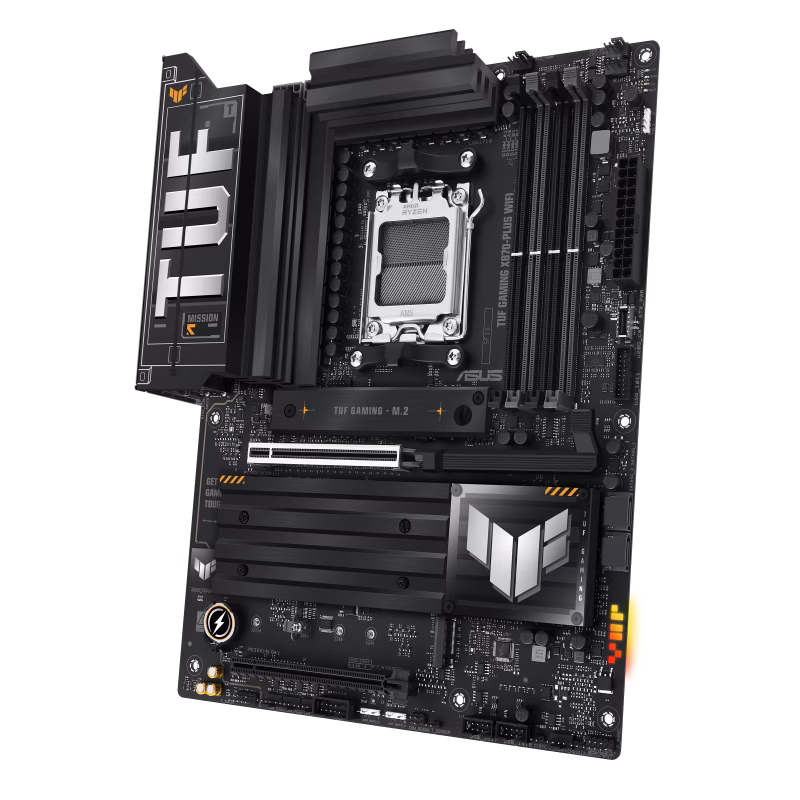

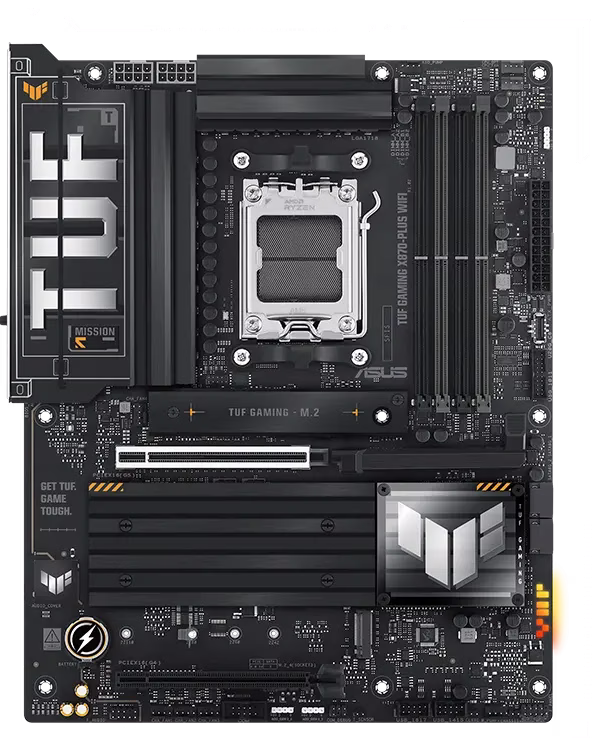

ASUS TUF GAMING X870-PLUS WIFI AM5 DDR5 Motherboard, 4x DIMM slots up to 8000+MT/s, max. 192GB, 4x M.2 and 2 x SATA, PCIe 5.0, 2.5Gb Ethernet, WiFi 7, AI Solution | 90MB1IU0-M0EAY0
Model :
SKU : MB-ASUS TUF X870-PLUS WIF
About this item
About this item
Description
ASUS AI Solutions – including AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart overclocking, efficient cooling and new levels of ultrafast connectivity.
Specification
| Model | TUF GAMING X870-PLUS WIFI |
| CPU Socket | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory Slots | 4 x DIMM, Max 256GB DDR5, Dual Channel, Supports up to 8000+ MT/s (OC), ECC & Non-ECC, Unbuffered |
| Memory Features | AMD EXPO™, ASUS Enhanced Memory Profile (AEMP) |
| Graphics Output | 1 x HDMI™, 2 x USB4® Type-C (40Gbps, DisplayPort support) |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000, shares bandwidth with M.2_2), 1 x PCIe 4.0 x16 (Ryzen 8000), 1 x PCIe 4.0 x16 (X870, x4 mode) |
| Storage | 4 x M.2 slots (PCIe 5.0 & 4.0), 2 x SATA 6Gb/s ports, Supports RAID 0/1/5/10 (RAID 5 only with Ryzen 9000) |
| Ethernet | Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 2x2 (802.11be), up to 2.9Gbps, Bluetooth® v5.4 |
| Rear USB Ports | 2 x USB4® Type-C (40Gbps), 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A |
| Front USB Ports | 1 x USB 20Gbps Type-C (PD Fast-charge up to 30W), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio, Impedance sense, Internal amplifier, Jack-detection, Multi-streaming, Front Panel Jack-retasking, 120 dB SNR playback, 113 dB SNR recording |
| Audio Features | Audio Shielding, Premium capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit |
| Internal I/O Connectors | 1 x 24-pin Main Power, 2 x 8-pin CPU Power, 4 x M.2 slots, 2 x SATA 6Gb/s 1 x USB 20Gbps, 1 x USB 5Gbps header, 2 x USB 2.0 headers 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan headers, 1 x W_PUMP+ header 3 x Addressable Gen 2 headers, Clear CMOS, Chassis Intrusion, COM Port, Front Panel Audio, System Panel header, Thermal Sensor |
| Special Features | ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless steel back I/O), ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot), Thermal Solution (M.2 heatsinks, VRM heatsink), ASUS EZ DIY (BIOS FlashBack™, ProCool, Pre-mounted I/O shield, SafeDIMM), Aura Sync, Front Panel USB 20Gbps PD Fast Charge Support |
| Software Features | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4), ASUS DriverHub, ASUS GlideX, USB Wattage Watcher, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 Trial, WinRAR Trial, AI Overclocking Guide |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Accessories | 2 x SATA 6Gb/s cables, Wi-Fi Q-Antenna, 2 x M.2 rubber packages, Screw package for M.2 SSD, TUF GAMING sticker, Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX, 12 in x 9.6 in (30.5 cm x 24.4 cm) |
