ASUS ROG Rapture GT-AXE16000 Quad-Band WiFi 6E Gaming Router, Quad-Band 6E, Dual 10G Ports, 6GHz Band, Aura RGB, ASUS AiMesh | 90IG06W0-MU2A10
2195.00Home/Networking/Home Networking/Wireless Routers/ASUS ZenWiFi AX6600 (XT8) Tri-Band Mesh WiFi 6 Sys...
ASUS ZenWiFi AX6600 (XT8) Tri-Band Mesh WiFi 6 System , Coverage up to 5500 sq.ft & 6+ Rooms, AiMesh, Included Lifetime Internet Security, Easy Setup, Parental Control, 2 Pack, White | 90IG0590-MO3G40
Model :
SKU : WR-ASUS AX6600 ZEN WIFI W
About this item
Description
| ASUS ZenWiFi AX (XT8) Specifications | |
| Model | XT8 (B-1-PK) |
| Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX6600 ultimate AX performance???574+1201+4804Mbps |
| WiFi Data Rate |
802.11a: up to 54 Mbps 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps WiFi 4 (802.11n): up to 300 Mbps WiFi 5 (802.11ac) (1024QAM): up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps WiFi 6 (802.11ax) (5GHz-1): up to 1201 Mbps WiFi 6 (802.11ax) (5GHz-2): up to 4804 Mbps |
| Antenna | Internal antenna x 6 |
| Transmit / Receive |
2.4GHz 2x2 5GHz-1 2x2 5GHz-2 4x4 |
| Memory | 256 MB Flash 512 MB RAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries due to regulatory restrictions. |
| Operating Frequency | 2.4 GHz, 5 GHz-1, 5 GHz-2 |
| Operating Mode | Wireless router mode Access point mode |

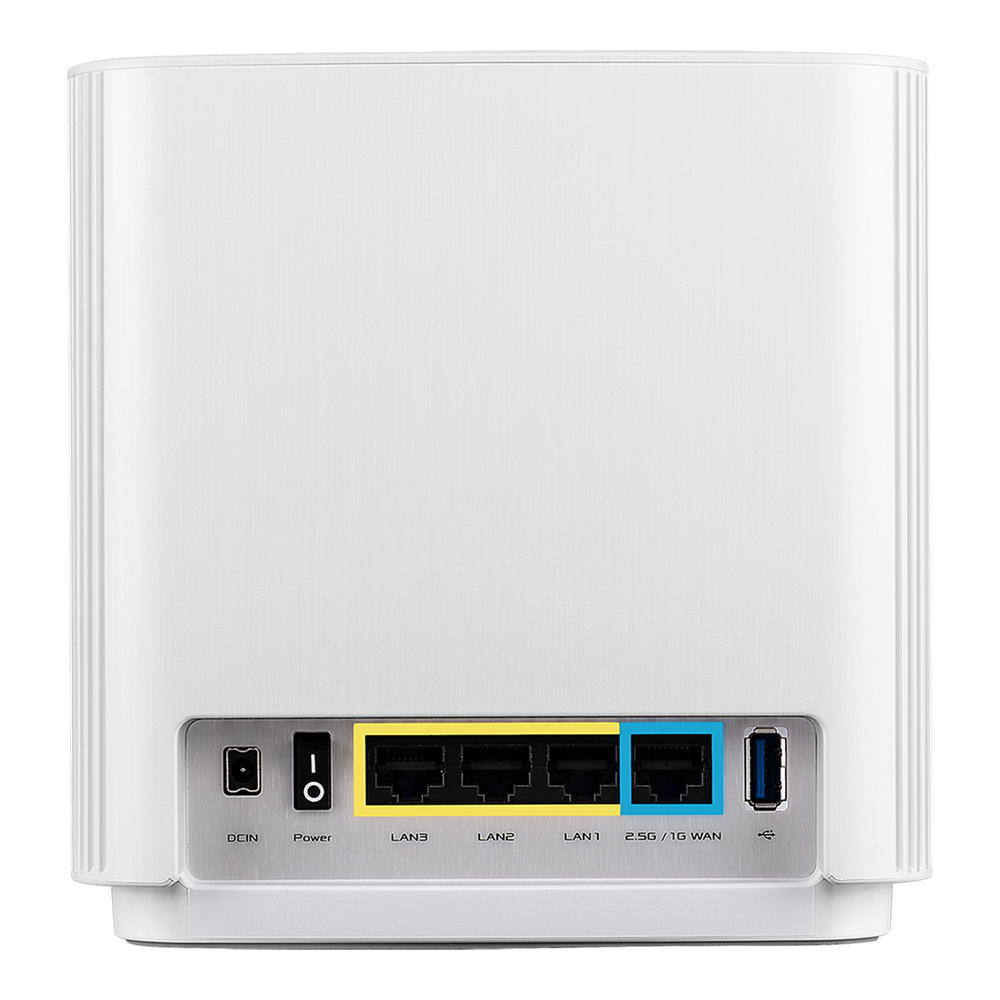

| I/O Ports | RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 USB 3.1 Gen 1 x 1 |
| Buttons | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 |
| Power Supply |
AC Input: 110V~240V(50~60Hz) DC Output: 19 V with max. 1.75 A current DC Output: 12 V with max. 3 A current |
| Package Content |
ZenWiFi AX RJ-45 Cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight (g) | 716 g |
| AiMesh | Primary AiMesh Router AiMesh Node |
| Parental Control | "Allow you to block access to unwanted websites and apps." |
| Parental Control - Safe Browsing | Router APP |
| Guest Network | Support Guest Network Maximum Guest Network Rule: Max 9 rules |
| Security |
WPA2-PSK, WPA-PSK, WPA-Enterprise WPA2-Enterprise, WPS support |
| WPS | Let's Encrypt DNS-over-TLS |
| Security Scan | Firewall |
| Firewall |
Maximum Firewall Keyword Filter: Max 64 rules Maximum Firewall Network Service Filter: Max 32 rules Maximum Firewall URL Filter: Max 64 rules |
| AiProtection |
AiProtection Pro Malicious Site Blocking Two-Way IPS Infected Device Prevention and Blocking |
| VPN |
VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS Traffic Monitor Traffic Analyzer |
| WAN | Dual WAN 3G / 4G LTE Dongle |
| DMZ | DDNS |
| LAN | IGMP Snooping IPTV Wake on LAN (WOL) |
| Wireless |
UTF-8 SSID WiFi MAC Address Filter: Maximum MAC Filters: Max 64 rules Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application |
File System: FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4 AiCloud Download Master AiDisk Media Server Time Machine Samba Server |
| Administration |
Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
Specification
| ASUS ZenWiFi AX (XT8) Specifications | |
| Model | XT8 (B-1-PK) |
| Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX6600 ultimate AX performance???574+1201+4804Mbps |
| WiFi Data Rate |
802.11a: up to 54 Mbps 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps WiFi 4 (802.11n): up to 300 Mbps WiFi 5 (802.11ac) (1024QAM): up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps WiFi 6 (802.11ax) (5GHz-1): up to 1201 Mbps WiFi 6 (802.11ax) (5GHz-2): up to 4804 Mbps |
| Antenna | Internal antenna x 6 |
| Transmit / Receive |
2.4GHz 2x2 5GHz-1 2x2 5GHz-2 4x4 |
| Memory | 256 MB Flash 512 MB RAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries due to regulatory restrictions. |
| Operating Frequency | 2.4 GHz, 5 GHz-1, 5 GHz-2 |
| Operating Mode | Wireless router mode Access point mode |
| I/O Ports | RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 USB 3.1 Gen 1 x 1 |
| Buttons | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 |
| Power Supply |
AC Input: 110V~240V(50~60Hz) DC Output: 19 V with max. 1.75 A current DC Output: 12 V with max. 3 A current |
| Package Content |
ZenWiFi AX RJ-45 Cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight (g) | 716 g |
| AiMesh | Primary AiMesh Router AiMesh Node |
| Parental Control | "Allow you to block access to unwanted websites and apps." |
| Parental Control - Safe Browsing | Router APP |
| Guest Network | Support Guest Network Maximum Guest Network Rule: Max 9 rules |
| Security |
WPA2-PSK, WPA-PSK, WPA-Enterprise WPA2-Enterprise, WPS support |
| WPS | Let's Encrypt DNS-over-TLS |
| Security Scan | Firewall |
| Firewall |
Maximum Firewall Keyword Filter: Max 64 rules Maximum Firewall Network Service Filter: Max 32 rules Maximum Firewall URL Filter: Max 64 rules |
| AiProtection |
AiProtection Pro Malicious Site Blocking Two-Way IPS Infected Device Prevention and Blocking |
| VPN |
VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS Traffic Monitor Traffic Analyzer |
| WAN | Dual WAN 3G / 4G LTE Dongle |
| DMZ | DDNS |
| LAN | IGMP Snooping IPTV Wake on LAN (WOL) |
| Wireless |
UTF-8 SSID WiFi MAC Address Filter: Maximum MAC Filters: Max 64 rules Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application |
File System: FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4 AiCloud Download Master AiDisk Media Server Time Machine Samba Server |
| Administration |
Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
