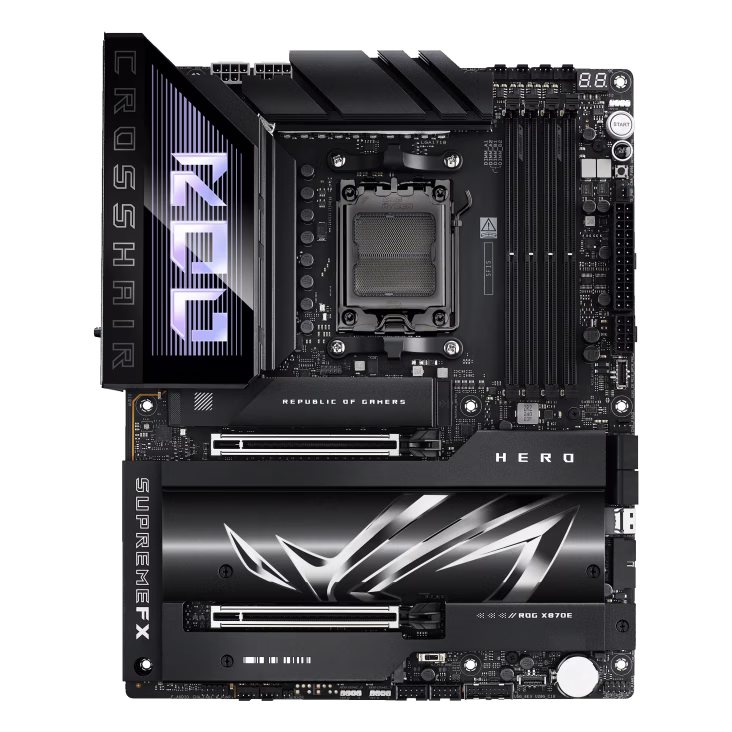

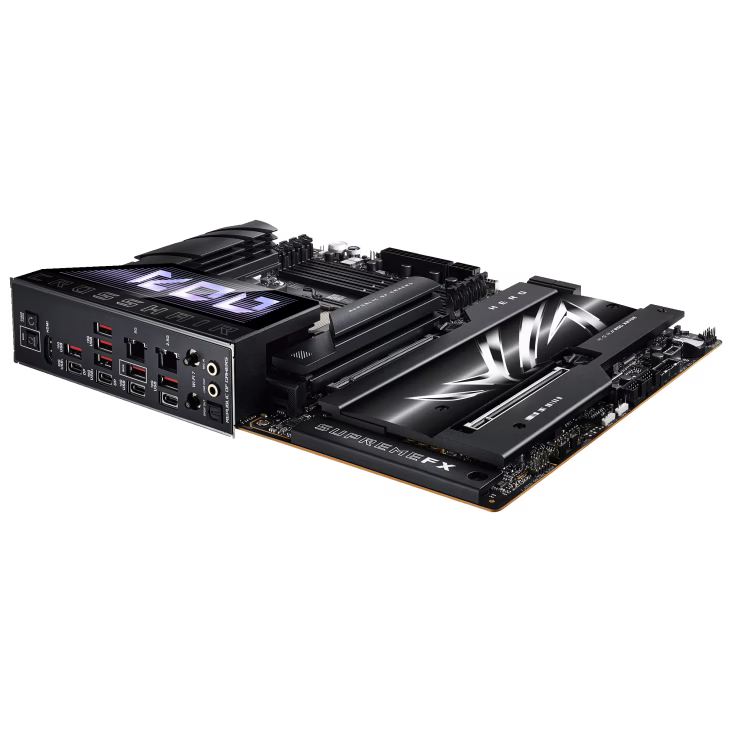

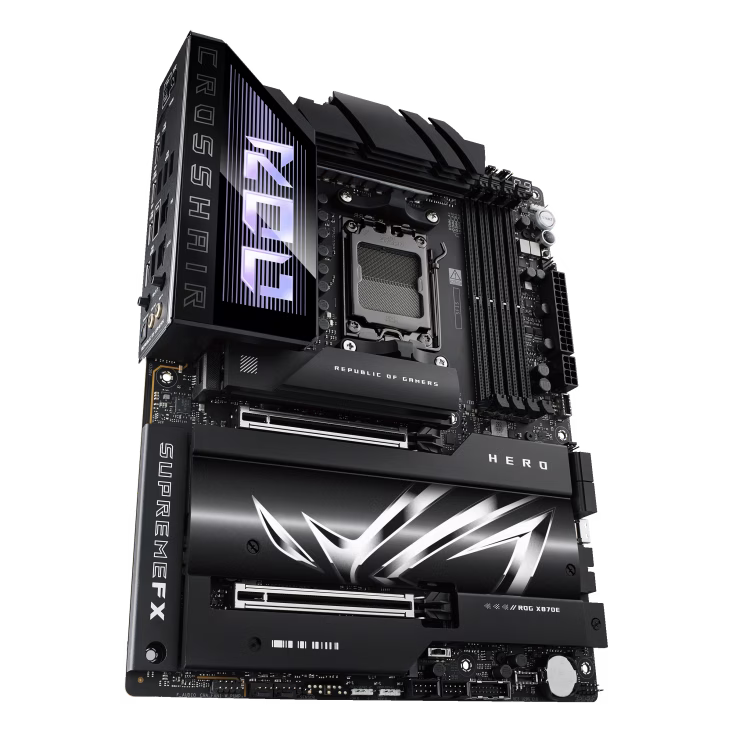

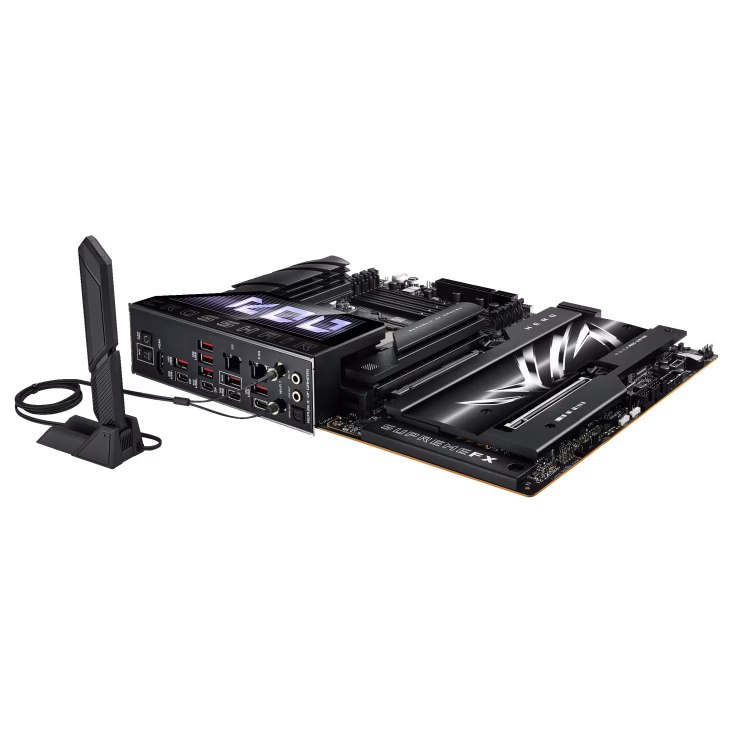

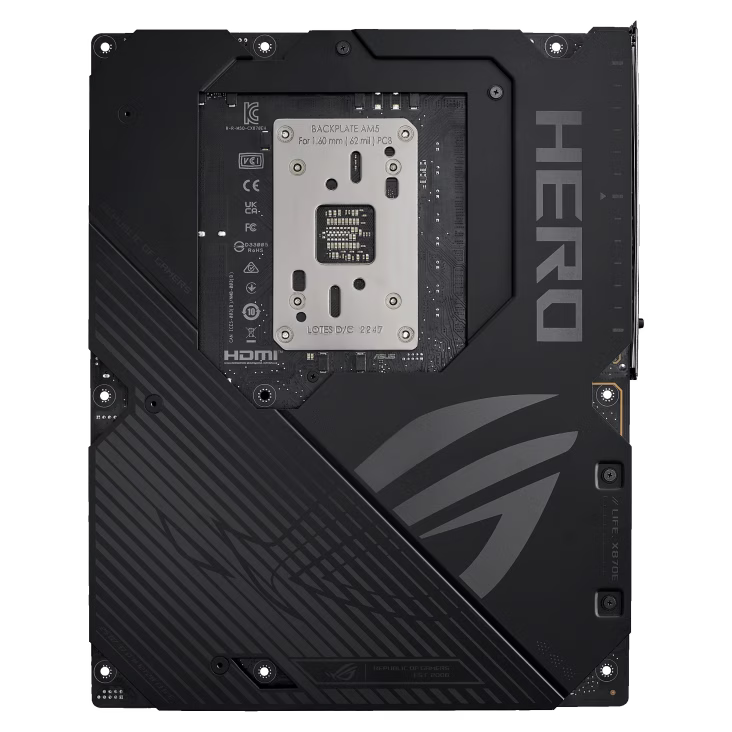

ASUS ROG CROSSHAIR X870E HERO AM5 DDR5 ATX Motherboard, 4 x DIMM slots, max.192GB up to 8200+MT/s, 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA, PCIe 5.0, Wi-Fi 7, 2.5Gb Ethernet, AI Networking | 90MB1IE0-M0EAY0 ASUS AMD MOTHERBOARD
Model :
SKU : MB-ASU ROG CROSS X870E H-
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
Specification
| Model | ROG CROSSHAIR X870E HERO |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors * Refer to CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 × DIMM slots, max. 256GB, DDR5 Supports up to: - 8200+MT/s (OC) with Ryzen™ 9000 Series - 8600+MT/s (OC) with Ryzen™ 8000 Series - 8000+MT/s (OC) with Ryzen™ 7000 Series ECC & Non-ECC, Un-buffered Memory Dual channel memory architecture Supports EXPO™, NitroPath DRAM Technology, AEMP |
| Graphics | 1 × HDMI™ port (4K@60Hz) 2 × USB4® (40Gbps) Type-C display outputs (4K@60Hz) |
| Expansion Slots | 2 × PCIe 5.0 x16 with Q-Release Slim (x16 / x8+x8 / x8+x4+x4) Modes vary by CPU series (Ryzen™ 9000, 8000, 7000, 8700, 8500, etc.) * See PCIe bifurcation table. |
| Storage | 5 × M.2 slots (PCIe 5.0 & 4.0 depending on CPU) 1 × SlimSAS connector (PCIe 4.0 x4) 4 × SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10 |
| Ethernet | 1 × Intel® 2.5Gb Ethernet 1 × Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (Qualcomm or MediaTek, 2×2) Supports 2.4 / 5 / 6GHz, 320MHz bandwidth Bluetooth® v5.4 |
| USB Ports | Rear (10 ports) 2 × USB4® (40Gbps) Type-C 8 × USB 10Gbps (6 × Type-A + 2 × Type-C) Front (10 ports) 1 × USB 20Gbps Type-C (60W PD/QC4+) 1 × USB 20Gbps Type-C header 2 × USB 5Gbps headers (4 ports) 2 × USB 2.0 headers (4 ports) |
| Audio | ROG SupremeFX 7.1 HD Audio CODEC ALC4082 ESS® ES9219 QUAD DAC Gold-plated jacks, optical S/PDIF out, premium capacitors 32-Bit / 384 kHz playback (front panel) |
| Back Panel I/O | 2 × USB4® (40Gbps) Type-C 8 × USB 10Gbps (6 × Type-A + 2 × Type-C) 1 × HDMI™, Wi-Fi module, 2.5Gb & 5Gb Ethernet 2 × Audio jacks, 1 × Optical S/PDIF BIOS FlashBack™, Clear CMOS |
| Internal I/O | Multiple fan headers (CPU, AIO, chassis) 24-pin + dual 8-pin power connectors 5 × M.2 slots, 4 × SATA Multiple USB headers, thermal sensor, LN2 jumper, FlexKey |
| Special Features | Extreme OC Kit (FlexKey, LN2, ReTry, Start) Extreme Engine Digi+ ASUS Q-Design (Q-Latch, Q-Release, Q-Code, etc.) ASUS Thermal Solution & EZ DIY features Aura Sync Gen2 RGB Front USB 20Gbps with QC4+ (60W) |
| Software | ROG Exclusive: CPU-Z, Dolby Atmos, Polymo Lighting II ASUS Armoury Crate, Aura Sync, AIDA64 (1yr), HWiNFO, Fan Xpert 4, GameFirst TurboV Core, ASUS DriverHub, GlideX, WinRAR, Adobe CC trial |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS AI Overclocking Guide, CrashFree BIOS 3, EZ Flash 3, MyHotkey, FlexKey |
| Manageability | WOL by PME, PXE |
| Accessories | 1 × ARGB extension cable 4 × SATA cables WiFi Q-Antenna, Q-connector M.2 accessories, ROG stickers, thank you card, bottle opener USB drive with drivers Quick start guide |
| Operating System | Windows® 11 |
| Form Factor | ATX — 12 in × 9.6 in (30.5 cm × 24.4 cm) |
