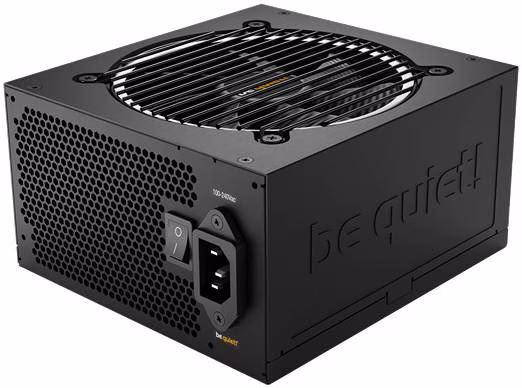

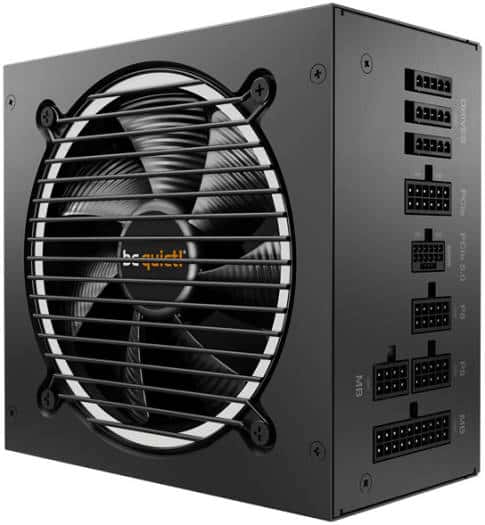

Be Quiet! Pure Power 12 M Fully Modular Power Supply, 650W Power, 80 Plus Gold Efficiency, 120mm Be Quiet! Fan, 2x Strong 12V-Rails, Active PFC, LLC + SR + DC/DC Technology, Black | BN342
Model :
SKU : PS-BE QUIET 650W BN342
About this item
About this item
Description
Be Quiet! Pure Power 12 M 650W Fully Modular PSU: 80+ Gold, Whisper-Quiet Fan, 2x 12V Rails (BN342)
Unleash your PC's true potential with Be Quiet! Pure Power 12 M. This 650W, 80+ Gold PSU delivers ultimate efficiency & whisper-quiet operation. 2x 12V rails, fully modular cables, & advanced tech for demanding builds. Upgrade & enjoy superior performance without the noise. Buy now!
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | 73.3 |
| Efficiency (%) at 230V, 10% load | 86.4 |
| Efficiency (%) at 230V, 20% load | 90 |
| Efficiency (%) at 230V, 50% load | 92.7 |
| Efficiency (%) at 230V, 100% load | 90.5 |
| Fan and cooling technology | |

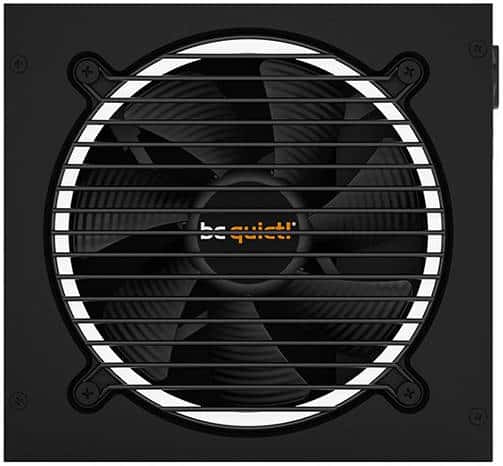

| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 1800 |
| dB(A) at 10% load | 8.1 |
| dB(A) at 20% load | 8.2 |
| dB(A) at 50% load | 9.1 |
| dB(A) at 100% load | 19.9 |
| Output | |
| Multi-rail operation (12V rails) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 20 |
| +5V (A) | 20 |
| +12V1 (A) | 32 |
| +12V2 (A) | 28 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 650 |
| Max. combined power 12VHPWR (W) | 450 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 20.4 |
| Power good signal (ms) | 100 - 150 |
| Cables and connectors | |
| Modular cables | ??? |
| Sleeved cables | P24, 12VHPWR |
| Flat cables | P4+4, P4, PCIe, drives |
| Maximum cable length (cm) | 95 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | - |
| P4 (CPU) | 1 |
| 12VHPWR cables | 1 |
| PCI-e 6+2-pin (GPU) | 2 |
| PCI-e 6-pin (GPU) | - |
| SATA | 5 |
| PATA | 2 |
| FDD (Floppy) | - |
| Protection | |
| OTP (over temperature protection) | ??? |
| OCP (over current protection) | ??? |
| OPP (over power protection) | ??? |
| SCP (short circuit protection) | ??? |
| OVP (over Voltage protection) | ??? |
| UVP (under Voltage protection) | ??? |
| SIP (Surge & Inrush Protection) | ??? |
| Safety certification | |
| BSMI | ??? |
| CB | ??? |
| CCC | ??? |
| CE | ??? |
| cRUus | - |
| cTUVus | ??? |
| CU | ??? |
| FCC | ??? |
| RCM | ??? |
| T??V | ??? |
| UKCA | ??? |
