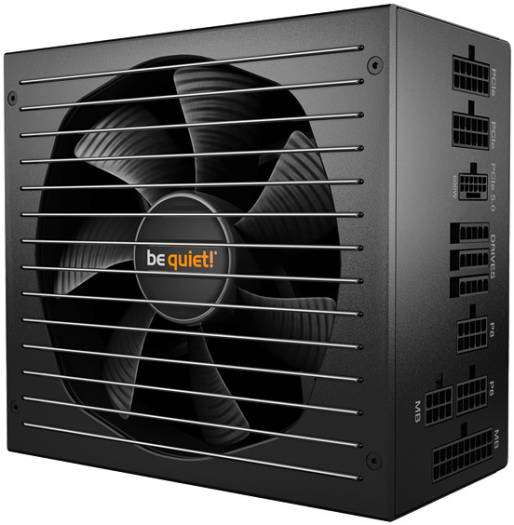

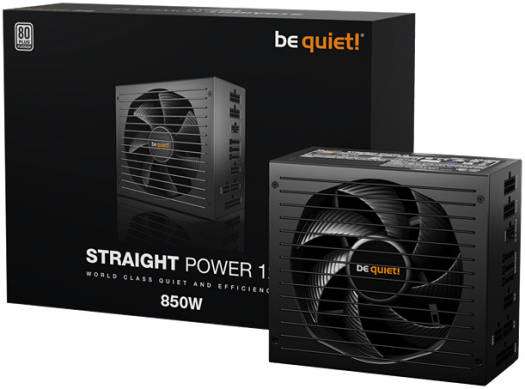

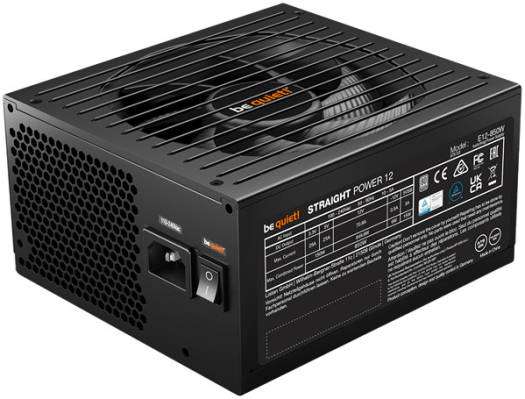

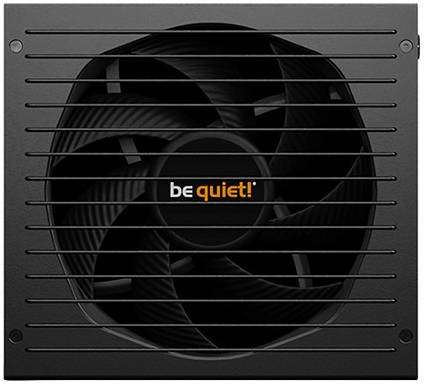

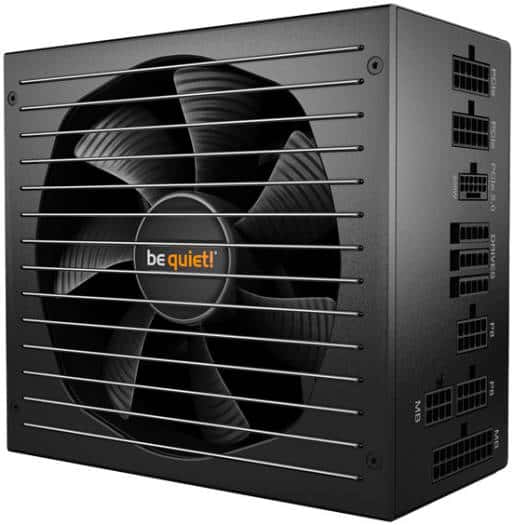

Be Quiet! Straight Power 12 Fully Modular Power Supply, 850W Power, 80 Plus Platinum Efficiency, 135mm Silent Wings Fan, 12V-Rail, Active PFC, Full bridge + LLC + SR + DC/DC Technology, Black | BN337
Model :
SKU : PS-BE QUIET 850W BN337
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Be Quiet! Straight Power 12: 850W Platinum Efficiency & Unrivaled Silence (BN337)
Experience true power & unmatched silence! Be Quiet! Straight Power 12 packs 850W of 80+ Platinum efficiency in a whisper-quiet design (22.1dB max!). Full modularity & advanced tech handle demanding tasks. Build a beastly PC that stays silent. Upgrade now!
| Power Supply Information | |
| Model | Straight Power 12 850W |
| Continuous power (W) | 850 |
| Peak power (W) | 920 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | - |

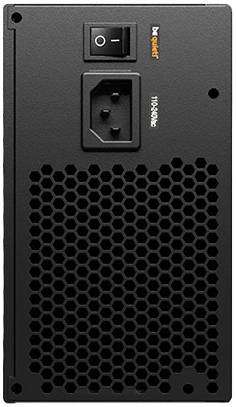

| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 10 / 5 |
| Power factor at 100% load | >0.99 |
| Modern standby | ??? |
| Power consumption in standby (W) | 0.17 |
| Average life time (h / 25??C) | >100,000 |
| Operating temperature up to (??C) | 40 |

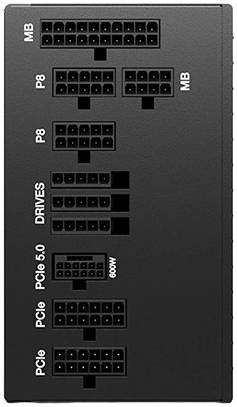

| Cables and Connectors | |
| Modular cables | ??? |
| Sleeved cables | ??? |
| Flat cables | - |
| Maximum cable length (cm) | 100 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 9 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 1 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 9 |
| PATA | 2 |
| FDD (Floppy) | - |
Specification
Be Quiet! Straight Power 12: 850W Platinum Efficiency & Unrivaled Silence (BN337)
Experience true power & unmatched silence! Be Quiet! Straight Power 12 packs 850W of 80+ Platinum efficiency in a whisper-quiet design (22.1dB max!). Full modularity & advanced tech handle demanding tasks. Build a beastly PC that stays silent. Upgrade now!
| Power Supply Information | |
| Model | Straight Power 12 850W |
| Continuous power (W) | 850 |
| Peak power (W) | 920 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 10 / 5 |
| Power factor at 100% load | >0.99 |
| Modern standby | ??? |
| Power consumption in standby (W) | 0.17 |
| Average life time (h / 25??C) | >100,000 |
| Operating temperature up to (??C) | 40 |
| Cables and Connectors | |
| Modular cables | ??? |
| Sleeved cables | ??? |
| Flat cables | - |
| Maximum cable length (cm) | 100 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 9 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 1 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 9 |
| PATA | 2 |
| FDD (Floppy) | - |
