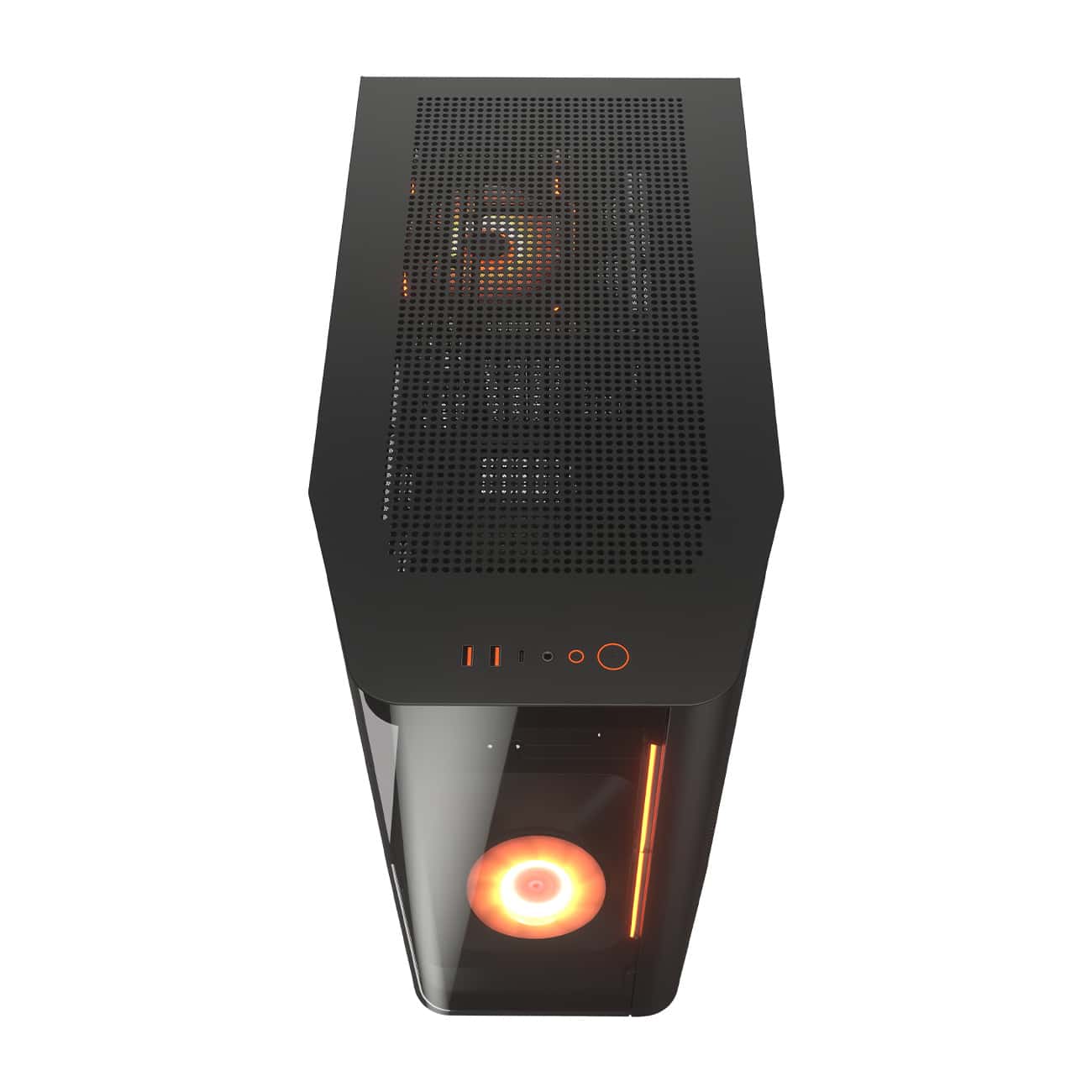

Cougar FV270 RGB Mid Tower Case, 4x Pre-installed Fans. Supports E-ATX Motherboard, 360mm Radiator, 420mm GPUs | 3858M60.0005
Model :
SKU : ATX-COUGER FV270 BLACK RG
About this item
Description

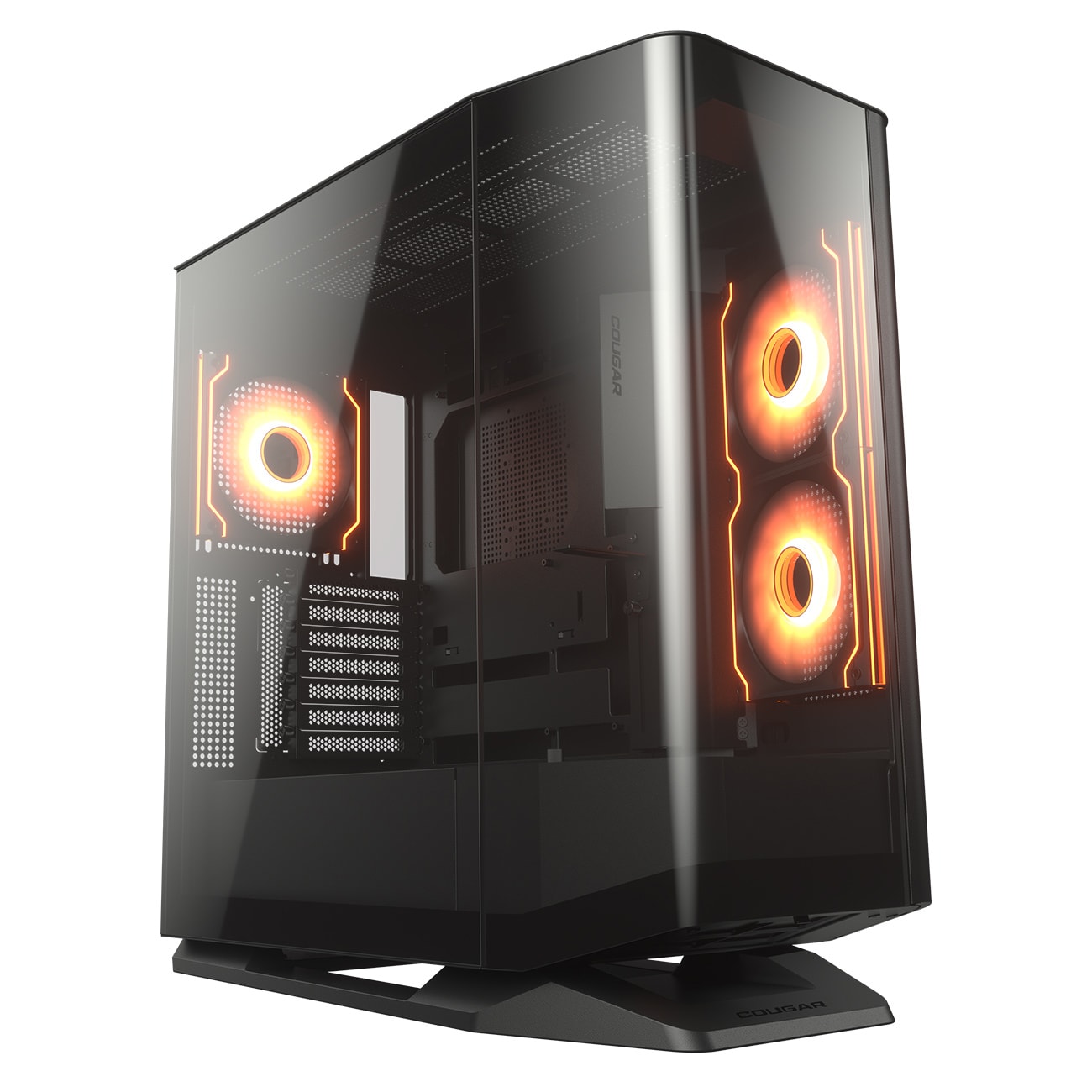

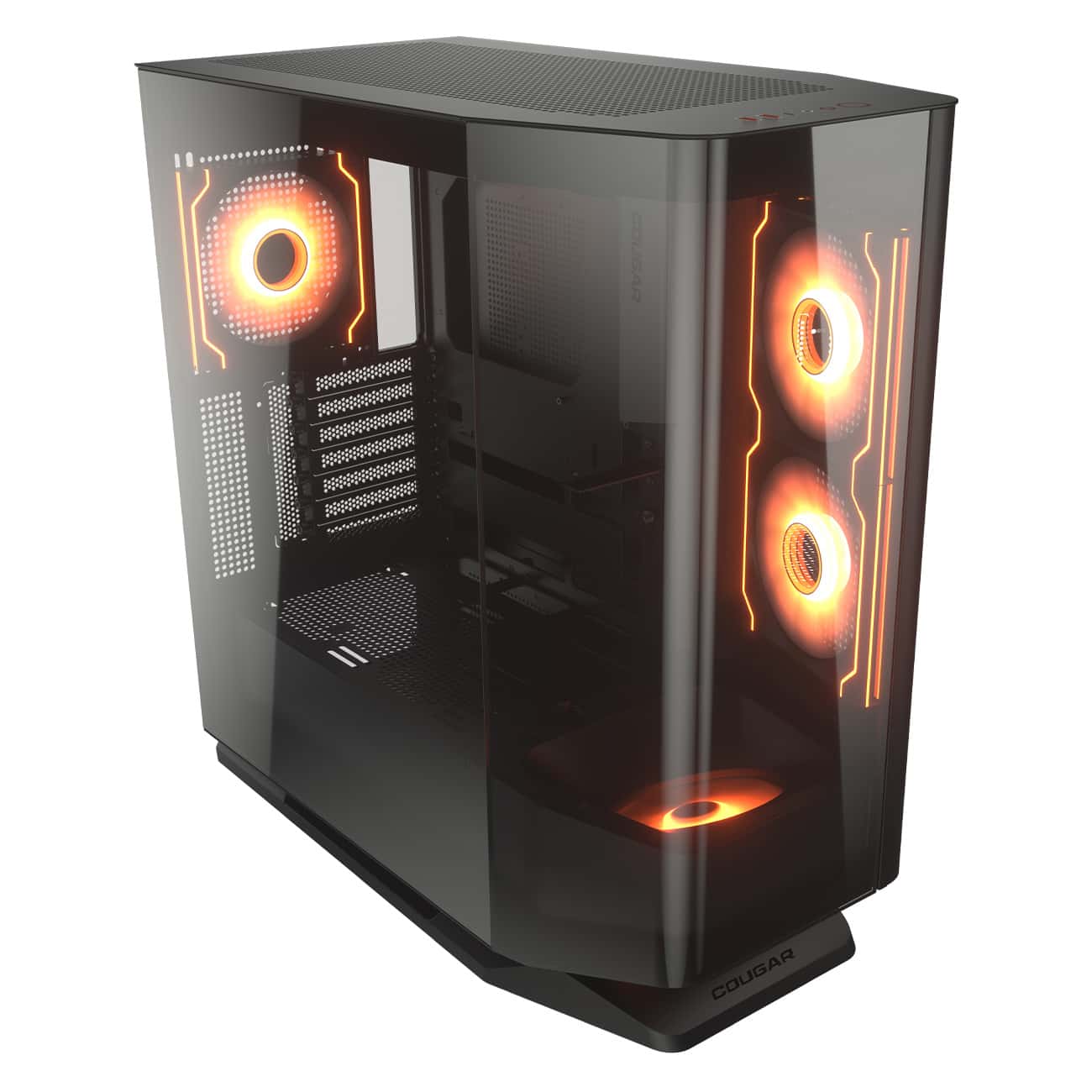

Tempered, curved glass panoramic perimeter amplifies transparency and brilliance for an epic view.
Angled cooling fan placements focus airflow in uninterrupted, continuous streams.

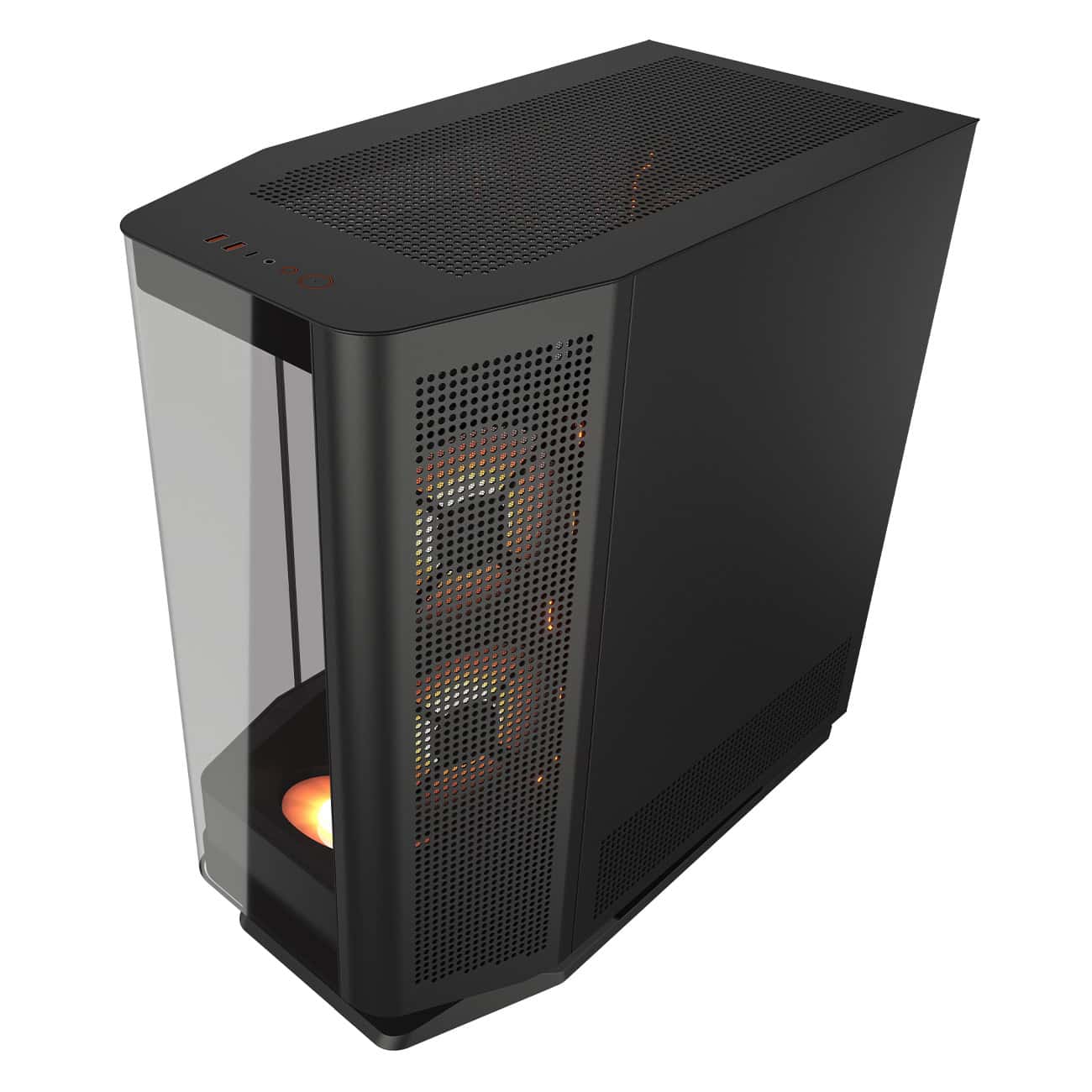

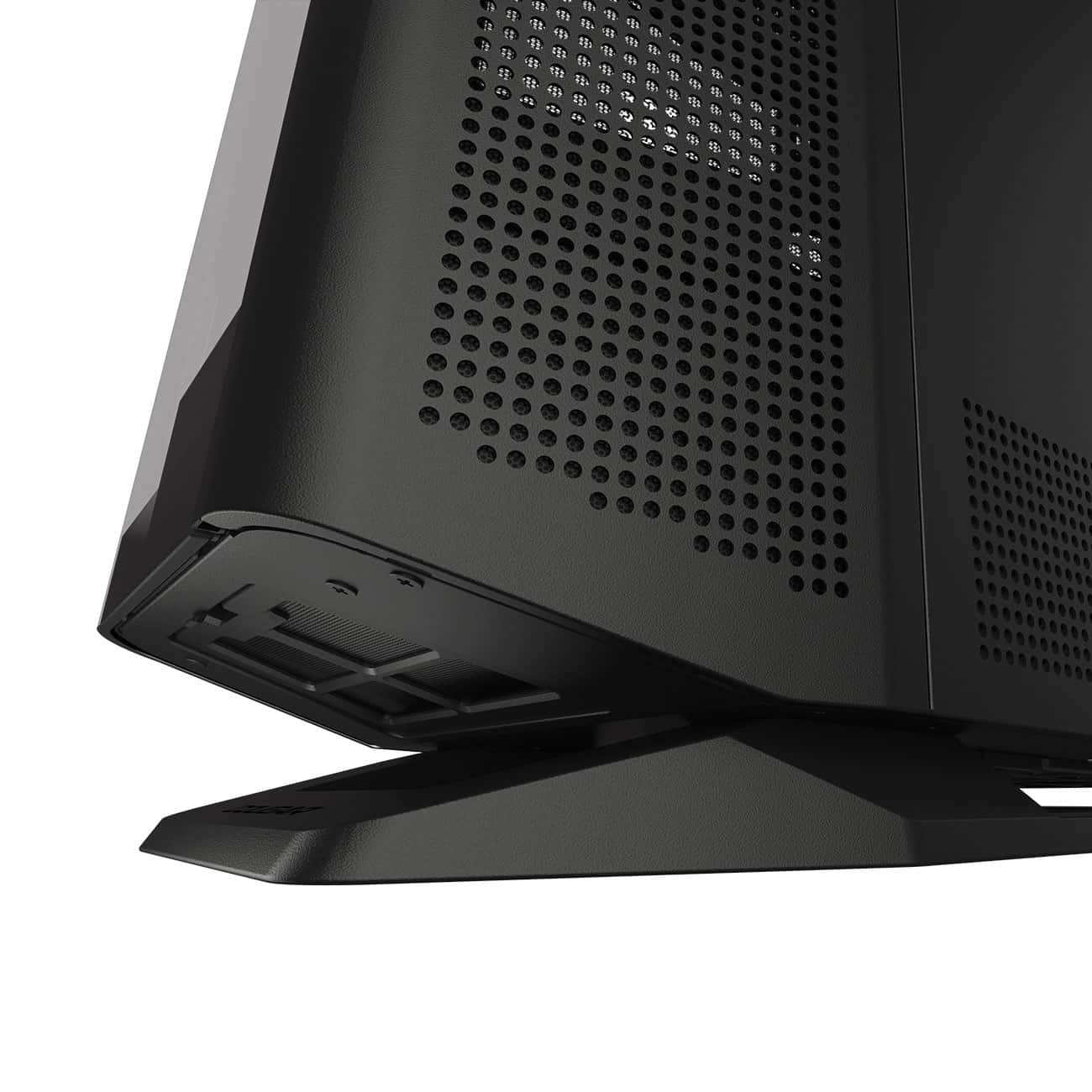

Additional air intake accessed by lifted front

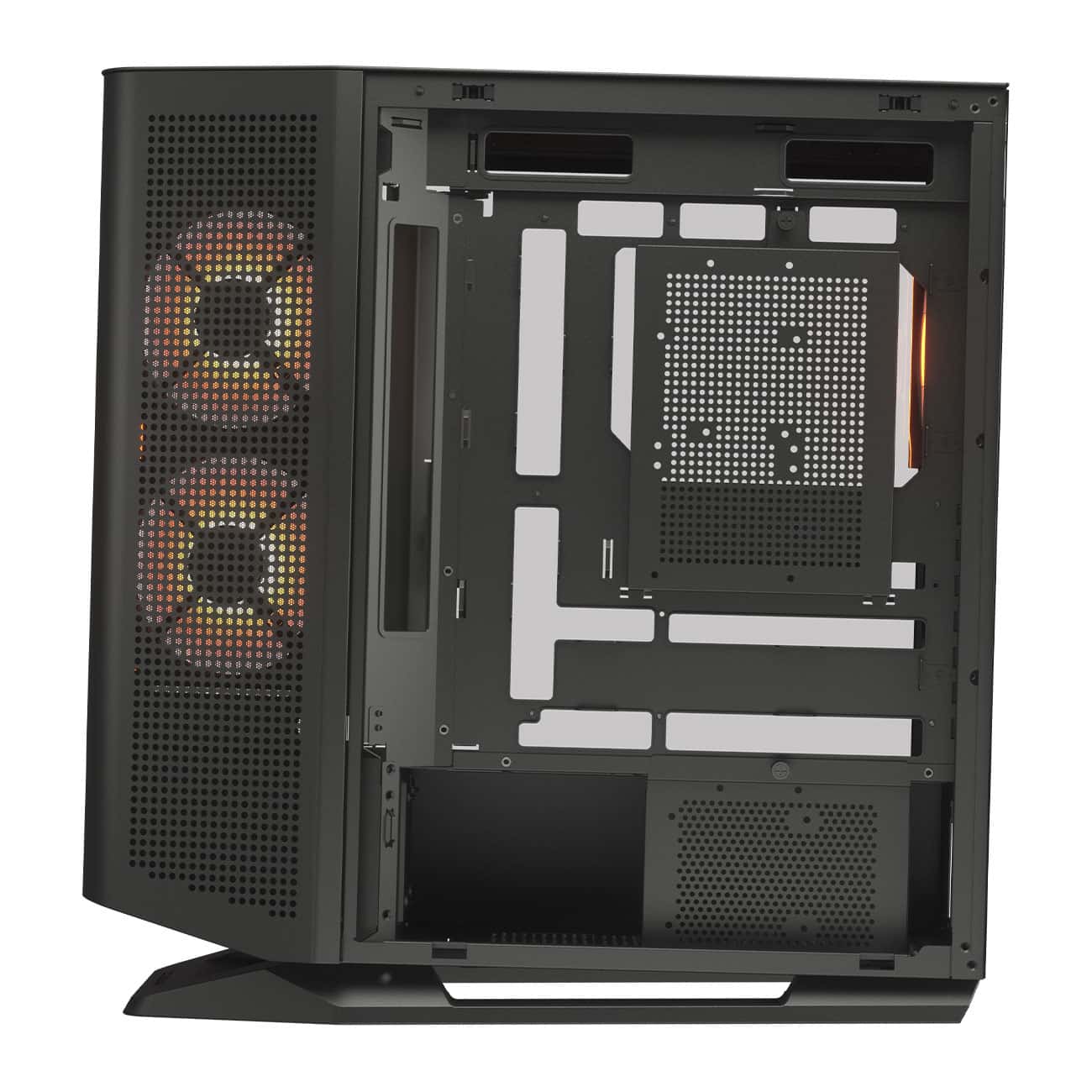

Reverse cable management eliminates clutter
Compatible with bleeding-edge E-ATX motherboards and accommodates 420mm GPUs, with rotatable brackets for horizontal/vertical orientation options.
Strategically positioned and easily removable filters guard against dust.
Easily detachable top and bottom brackets streamlines setup.
Specification
FV270 RGB / FV270 RGB (White) Specifications
General
| Product Name | FV270 RGB / FV270 RGB (White) |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX |
| Dimensions (WxHxD) | 268 x 530 x 512 mm 10.6 x 20.9 x 20.2 in |

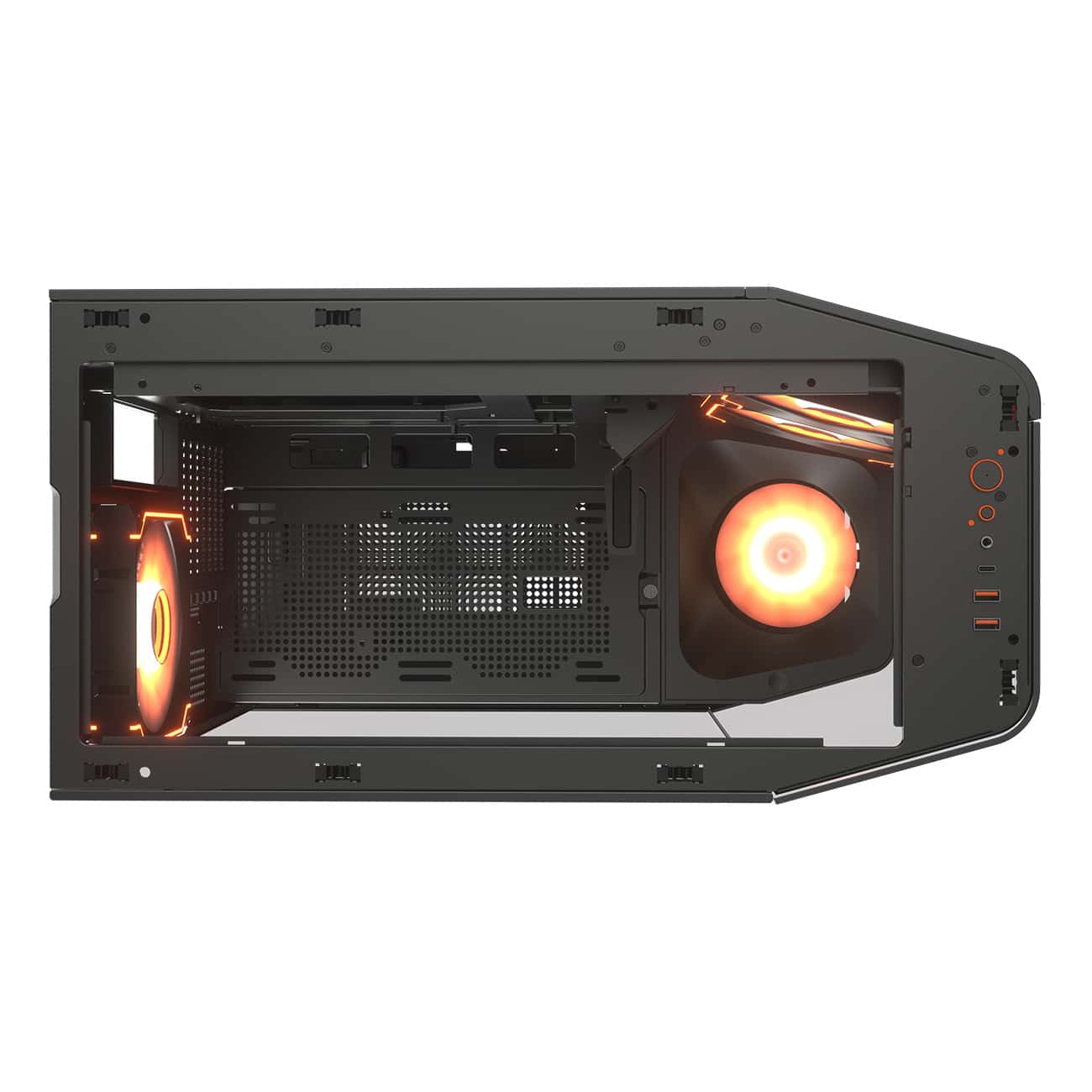

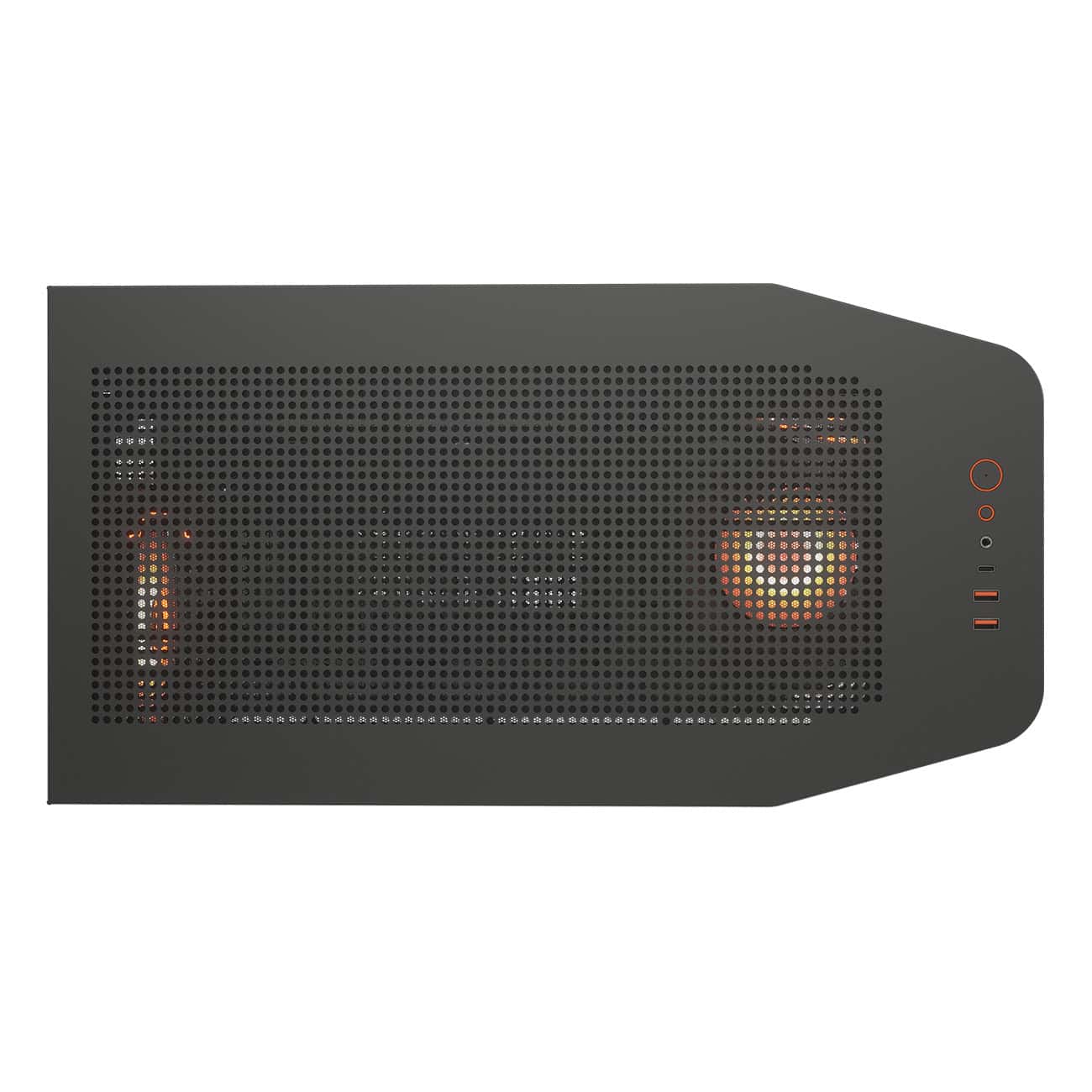

| I/O Panel | Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack, RGB Button |
Storage
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) |
Expansion

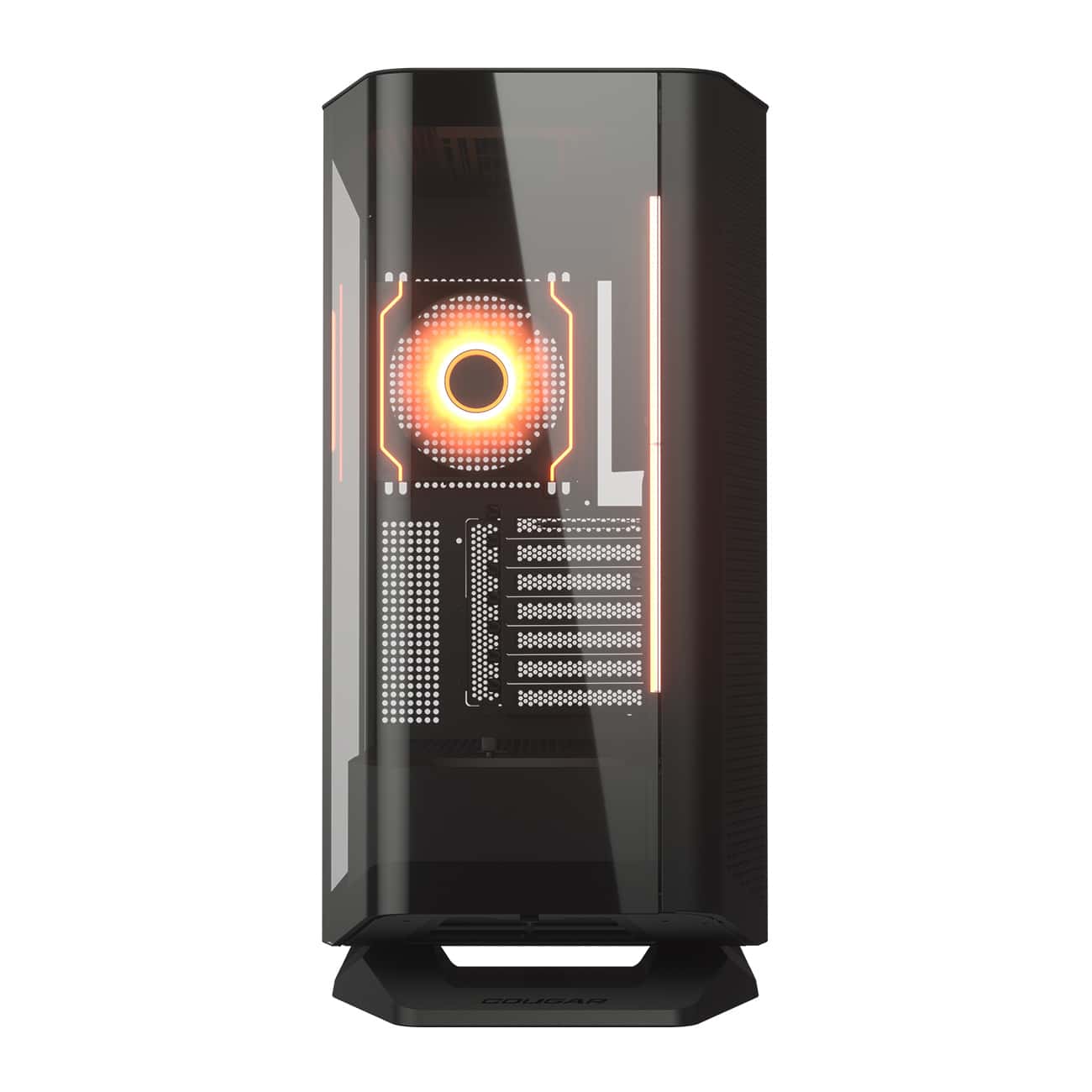

| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) |
| Vertical GPU Support | Yes |
Cooling Fan Support
| Top | 120mm x 3 / 140mm x 2 |
| M/B Side | 120mm x 2 / 140mm x 2 |
| PSU Shroud | 120mm x 2 / 140mm x 2 |
| Bottom | 120mm x 1 |
| Rear | 120mm x 1 / 140mm x 1 |
Pre-installed Fans

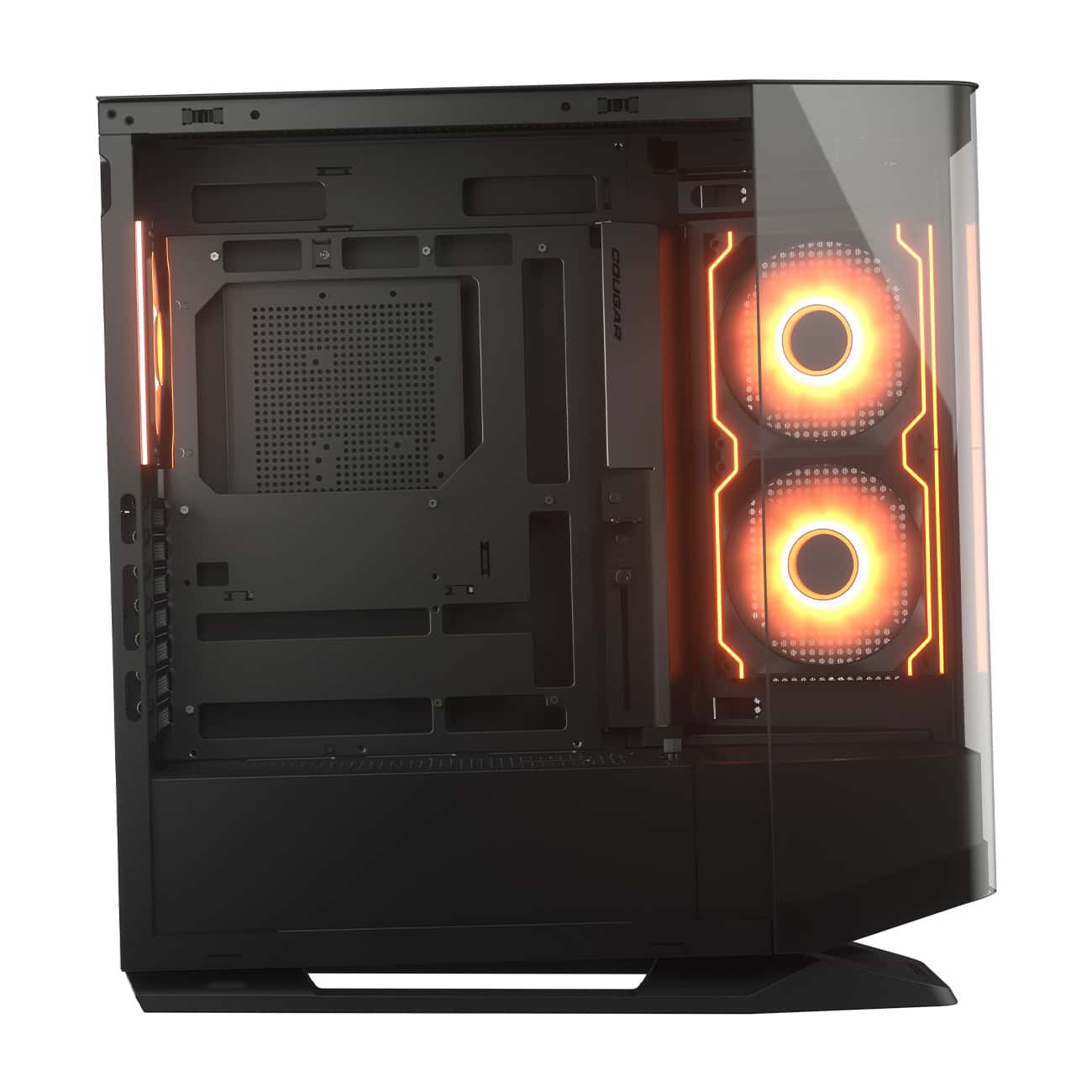

| M/B Side | 140mm Reversed ARGB PWM fan x 2 |

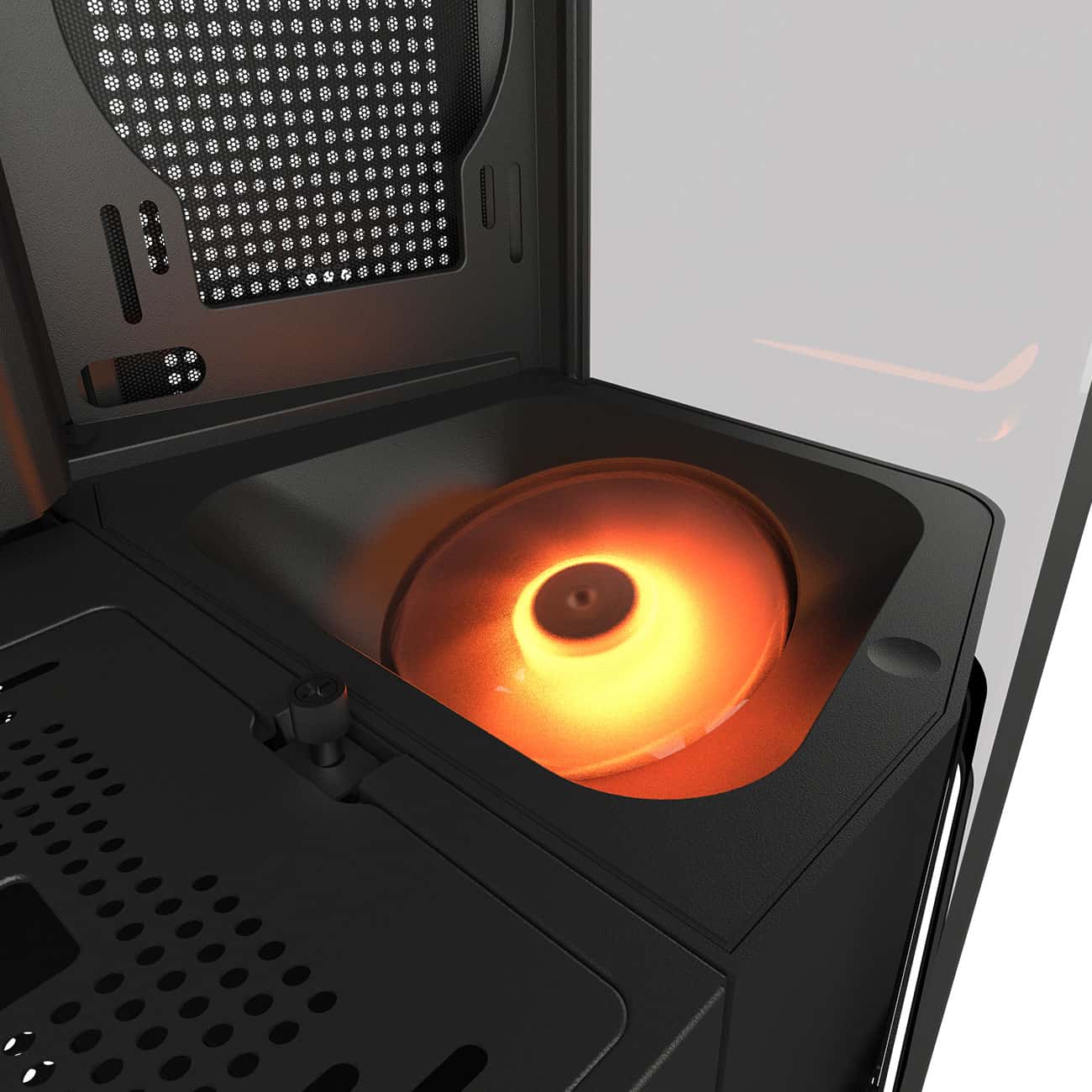

| Bottom | 120mm Reversed ARGB PWM fan x 1 |
| Rear | 140mm ARGB PWM fan x 1 |
| Speed | 500 (±200) - 1200 (±10%) RPM |
| Connector | 5V 3 Pin (ARGB) / 4 Pin (Fan) |
| Maximum Number of Fans | 9 |
Water Cooling Support
| Top | 360mm / 280mm / 240mm / 140mm / 120mm |
| M/B Side | 280mm / 240mm / 140mm / 120mm |
| PSU Shroud | 240mm / 120mm |
| Bottom | - |
| Rear | 140mm / 120mm |
| PWM and RGB Hub Sync with M/B | Yes |
Clearance
| Max. Graphics Card Length | Horizontal: 420 mm / 16.5 in (Only fans at the M/B Side) 330 mm / 13 in (Radiator with fans at the M/B Side) Vertical: 450 mm / 17.7 in |
| Max. CPU Cooler Height | 180 mm / 7.1 in |
| Max. PSU Length | 250 mm / 9.8 in |
