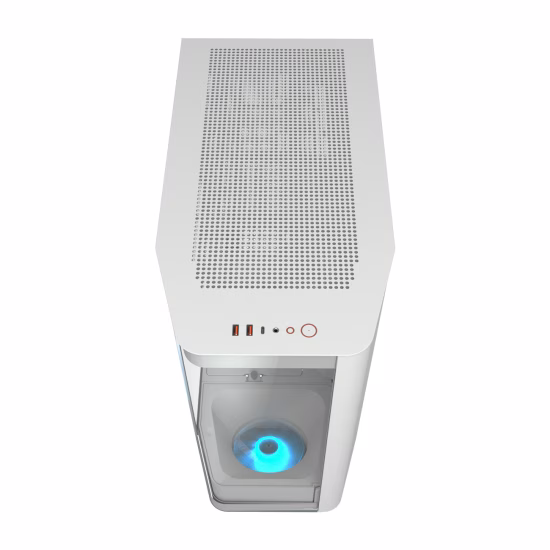

COUGAR FV270 White Mid Tower Gaming Case with Tempered Curved Glass, 120mm Reversed ARGB PWM Bottom Fan pre-installed, Compatible with reverse cable/connector motherboard | 3858M60.0002

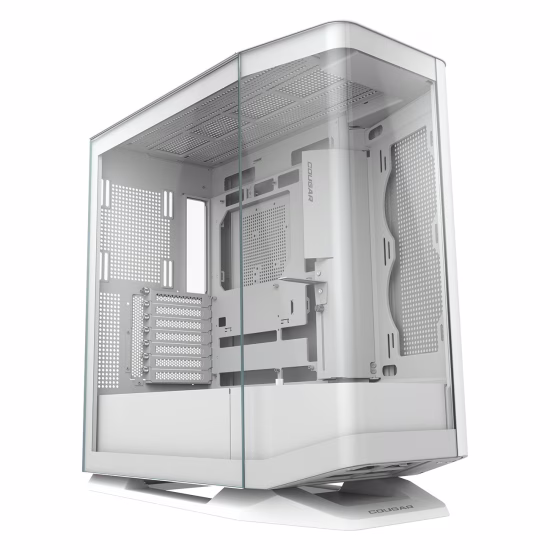

Show off your powerful components in style with the COUGAR FV270 Mid-Tower Gaming Cas! This case features a beautiful curved tempered glass side panel, offering a panoramic view of your interior.

The FV270 is built for performance, with excellent airflow thanks to support for up to 9 case fans and a pre-installed 120mm ARGB PWM fan. It can accommodate even the beefiest graphics cards, with a maximum GPU length of 420mm horizontally and 450mm vertically.

The COUGAR FV270 is versatile and spacious. It supports various motherboard sizes, including E-ATX, and offers multiple drive bays for both hard drives and solid-state drives. Plus, a reverse cable management system ensures a clean and clutter-free interior. For an extra touch of personalization, the FV270 boasts built-in ARGB lighting with support for motherboard RGB synchronization.

COUGAR FV270 Black Mid Tower Gaming Case with Tempered Curved Glass, 120mm Reversed ARGB PWM Bottom Fan pre-installed, Compatible with reverse cable/connector motherboard Specifications

Product Name	FV270 / FV270 (White)
Case Form Factor	Mid Tower
Motherboard Type	Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD)	268 x 530 x 512 (mm); 10.6 x 20.9 x 20.2 (in)

I/O Panel

Ports

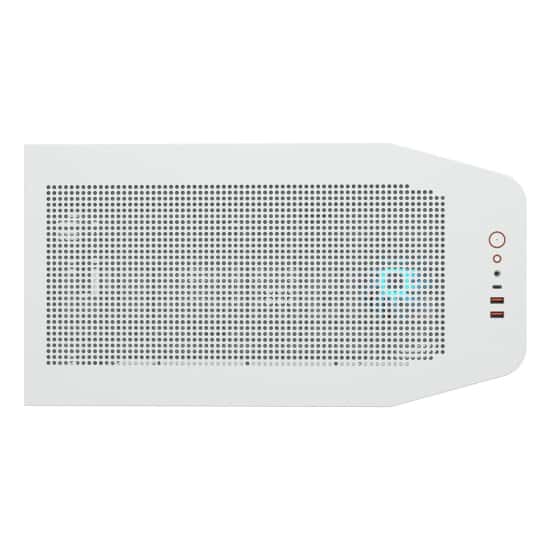

Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack, Reset Button

Drive Bays

3.5" Drive Bay	2
2.5" Drive Bay	2+2 (converted from 3.5" drive bays)

Expansion Slots

Slots

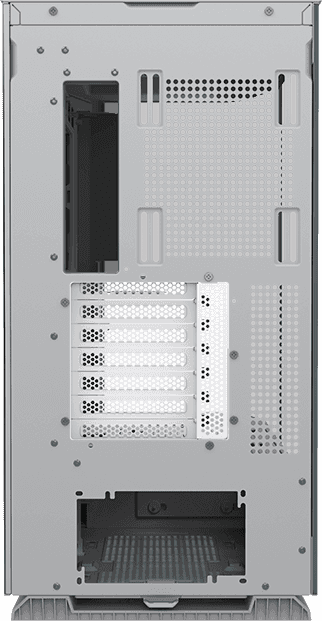

7 (horizontal slots can be converted into vertical slots)

Vertical GPU Support

Support

Yes

Cooling Fan Support

Top	120mm x 3 / 140mm x 2
M/B Side	120mm x 2 / 140mm x 2
PSU Shroud	120mm x 2 / 140mm x 2
Bottom	120mm x 1
Rear	120mm x 1 / 140mm x 1

Pre-installed Fans

Location	Bottom
Fan	120mm Reversed ARGB PWM fan x 1
Speed	500-1200 ?? 10%
Connector	5V 3 Pin (ARGB) / 4 Pin (Fan)

Maximum Number of Fans

Fans

9

Water Cooling Support

Top	360mm / 280mm / 240mm / 140mm / 120mm
M/B Side	280mm / 240mm / 140mm / 120mm
PSU Shroud	240mm / 120mm
Bottom	-
Rear	140mm / 120mm

RGB Sync with M/B

Support

Yes

Max. Graphics Card Length

Horizontal	420 (mm) / 16.5 (in) (Only fans at the M/B Side); 330 (mm) / 13 (in) (Radiator with fans at the M/B Side)
Vertical	450 (mm) / 17.7 (in)

Max. CPU Cooler Height

Height

180 (mm) / 7.1 (in)

Max. PSU Length

Length

250 (mm) / 9.8 (in)
