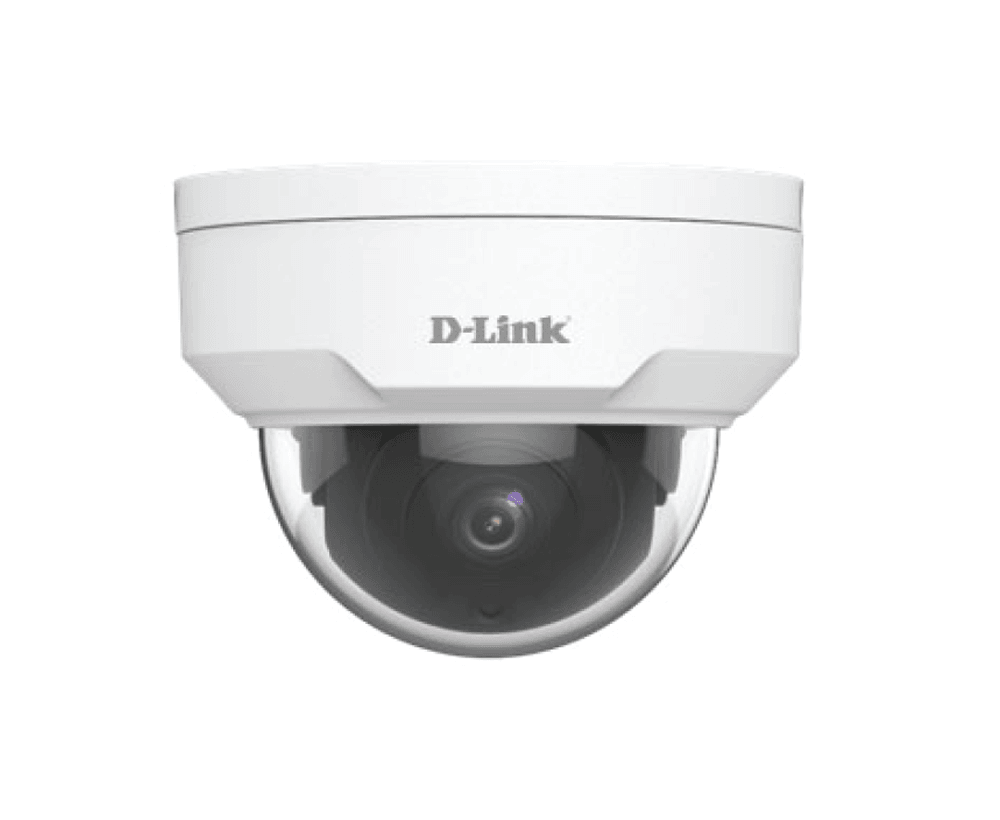

D-Link 2MP WDR Vandal-Resistant Network IR Fixed Dome Camera, 1/2.7" 2 Megapixel Progressive Scan CMOS sensor, Fixed Lens 2.8, Ultra H.265/H.265/264,10/100 Mbps PoE Port, Smart IR Range 30m, Vandal Resistant IK10, IP67 | DCS-F5602/D
Model :
SKU : CC-D DCS-F5602/D DOME WDR
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
D-Link 2MP WDR Vandal-Resistant Network IR Fixed Dome Camera, 1/2.7" 2 Megapixel Progressive Scan CMOS sensor, Fixed Lens 2.8, Ultra H.265/H.265/264,10/100 Mbps PoE Port, Smart IR Range 30m, Vandal Resistant IK10, IP67 | DCS-F5602/D
| Camera | |
| Sensor | 1/2.8", 2.0-megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F1.6 |
| DORI Distance | |
| Lens (mm) | Detect (m): 42, Observe (m): 16.8, Recognize (m): 8.4, Identify (m): 4.2 |
| Angle of View (H) | 112.7?? |
| Angle of View (V) | 60.1?? |
| Angle of View (O) | 146.5?? |
| Adjustment Angle | Pan: 0?? ~ 360??, Tilt: 0?? ~ 75??, Rotate: 0?? ~ 360?? |
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s |
| Minimum Illumination | Colour : 0.003 Lux (F2.0, AGC ON), 0lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Mainstream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180??/90??Clockwise/90??Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
Specification
D-Link 2MP WDR Vandal-Resistant Network IR Fixed Dome Camera, 1/2.7" 2 Megapixel Progressive Scan CMOS sensor, Fixed Lens 2.8, Ultra H.265/H.265/264,10/100 Mbps PoE Port, Smart IR Range 30m, Vandal Resistant IK10, IP67 | DCS-F5602/D
| Camera | |
| Sensor | 1/2.8", 2.0-megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F1.6 |
| DORI Distance | |
| Lens (mm) | Detect (m): 42, Observe (m): 16.8, Recognize (m): 8.4, Identify (m): 4.2 |
| Angle of View (H) | 112.7?? |
| Angle of View (V) | 60.1?? |
| Angle of View (O) | 146.5?? |
| Adjustment Angle | Pan: 0?? ~ 360??, Tilt: 0?? ~ 75??, Rotate: 0?? ~ 360?? |
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s |
| Minimum Illumination | Colour : 0.003 Lux (F2.0, AGC ON), 0lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Mainstream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180??/90??Clockwise/90??Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
