Model :

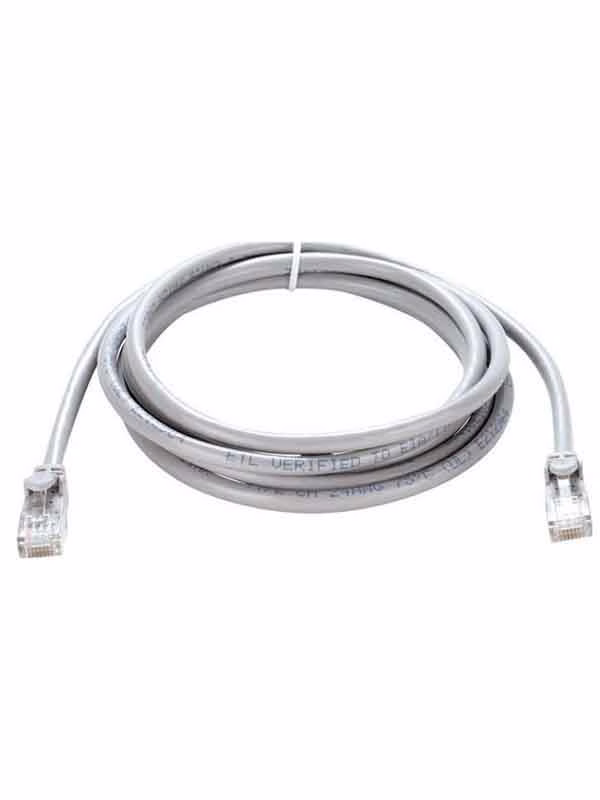

SKU : CAT6 DLINK 3M
| Number of Pairs | 4 Pairs Unshielded Twisted Pair (UTP) Cable |
| Conductor Metal | Bare Copper |
| Conductor | 24 AWG |
| Insulation Material | HD-PE |
| Jacket Material | PVC UL94V-0 |
| Heat-resistant | 60??C minimum (Temperature limited) |
| Flame Property | The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL) and FT-1 (CSA) standards. |
| Modular Connector/Plug Color Code | RJ-45 8P for Transparence color |
| Gold Plated | 30U" |
| Contact Blade | Phosphor Bronze |
| Temperature Range | -10 ~ 80??C |
| Dielectric Withstanding Voltage | 500V AC |
| Insulation Resistance | 35M Ohm (max.) |
| Durability | 750 matching cycles |
| Cable-to-Plug Tensile Strength | 20lbs (89N) (min.) |
| UL Applications | 250V AC, 2A (max.) Polycarbonate (PC) UL94-V-0 |
| Application |
10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3) 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) |
| Number of Pairs | 4 Pairs Unshielded Twisted Pair (UTP) Cable |
| Conductor Metal | Bare Copper |
| Conductor | 24 AWG |
| Insulation Material | HD-PE |
| Jacket Material | PVC UL94V-0 |
| Heat-resistant | 60??C minimum (Temperature limited) |
| Flame Property | The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL) and FT-1 (CSA) standards. |
| Modular Connector/Plug Color Code | RJ-45 8P for Transparence color |
| Gold Plated | 30U" |
| Contact Blade | Phosphor Bronze |
| Temperature Range | -10 ~ 80??C |
| Dielectric Withstanding Voltage | 500V AC |
| Insulation Resistance | 35M Ohm (max.) |
| Durability | 750 matching cycles |
| Cable-to-Plug Tensile Strength | 20lbs (89N) (min.) |
| UL Applications | 250V AC, 2A (max.) Polycarbonate (PC) UL94-V-0 |
| Application |
10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3) 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) |
