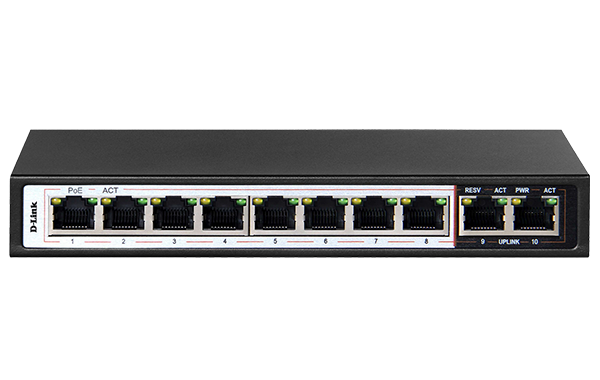

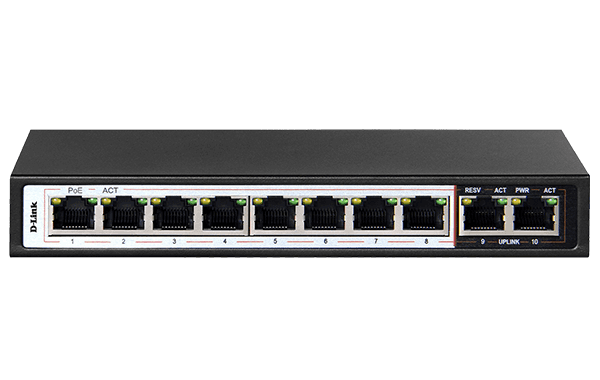

D-Link DES-F1010P-E 8-Port PoE Switch 10/100 SPEED , with 8 Long Reach 250m PoE Ports and 2 Uplink Ports | DES-F1010P-E

The D-Link DES-F1010P-E is an unmanaged PoE+ switch engineered specifically to meet the demands of modern IP surveillance and small business networking. By providing eight dedicated Power over Ethernet ports, it eliminates the need for separate power adapters for your connected devices, such as IP cameras, VoIP phones, and access points. This compact and durable switch is a plug-and-play solution that brings professional-grade power delivery to any environment.

Key Features
A standout feature of the DES-F1010P-E is its four specialized DIP switch modes: Extend, VLAN, QoS, and Intelligent PoE. In "Extend" mode, the switch supports transmission distances of up to 250 meters, making it ideal for large-scale camera installations. The "VLAN" mode isolates ports to prevent broadcast storms and enhance security, while "QoS" prioritizes video traffic to ensure smooth, stutter-free surveillance footage.

Performance / Technology
Equipped with a 96W total PoE power budget, this switch can deliver up to 30W on a single port, adhering to the IEEE 802.3at PoE+ standard. To protect your investment, D-Link has integrated 6kV lightning protection to safeguard the switch and connected devices from sudden electrical surges. The two dedicated 10/100 Mbps uplink ports allow you to connect to a Network Video Recorder (NVR) and a router simultaneously without sacrificing any of the PoE ports.

Design & Ergonomics
The DES-F1010P-E features a rugged metal housing that provides excellent heat dissipation and physical durability. Its fanless design ensures completely silent operation, making it suitable for placement in quiet office areas or retail spaces. The front panel includes intuitive LED indicators for power, link/activity, and PoE status, allowing for rapid at-a-glance monitoring and simplified troubleshooting of the entire network.

Compatibility / Use Cases
This 10-port switch is the definitive choice for small-scale CCTV systems in homes, offices, or warehouses. It is fully compatible with any IEEE 802.3af/at compliant device, providing a reliable power source for a variety of PoE hardware. Whether you are setting up a new security perimeter or expanding a wired network for a small workgroup, the DES-F1010P-E offers the flexibility and range needed for challenging installation environments.

Why This Product Stands Out
The D-Link DES-F1010P-E stands out by offering advanced "Extended Range" technology that goes far beyond the standard 100-meter Ethernet limit. While other entry-level switches require expensive repeaters for long cable runs, this unit handles them natively via a simple toggle. Combined with its high-capacity power budget and specialized surveillance optimization modes, it represents an exceptional value for security professionals and business owners alike.
