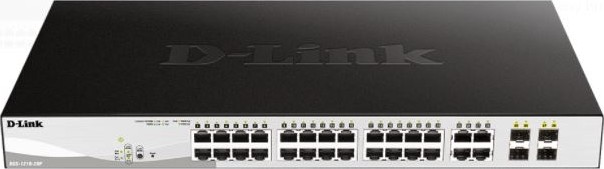

D-Link DGS-1210-28P 28-Port Gigabit Smart Managed PoE+ Switch, 24x PoE Ports, 4x SFP Combos, L2+ Static Routing

Flexible Power and Smart Management: D-Link DGS-1210-28P PoE Switch

The DGS-1210-28P is part of D-Link's latest generation of Smart Managed Switches, combining powerful performance, advanced feature sets, and D-Link Green technology for high energy efficiency. This switch is designed for businesses looking for a scalable and robust networking solution.

High-Density PoE for Powered Devices:

24 PoE Ports: Features 24 Gigabit ports with Power over Ethernet support, simplifying deployment of network-powered devices.

PoE+ Compliance: Ports 1-4 support the IEEE 802.3at (PoE+) standard, delivering up to 30W of power per port for demanding devices. Ports 5-24 support IEEE 802.3af (up to 15.4W).

193W Total Power Budget: A generous PoE budget ensures sufficient power for a substantial number of surveillance cameras, VoIP phones, and WAPs.

Time-Based PoE: Allows administrators to set time windows for PoE power to turn on/off, maximizing energy savings.

Advanced Features for Network Segmentation and Control:

L2+ Static Routing: Enables the switch to handle inter-VLAN routing, offloading the router and improving network speed and efficiency for communication between different user groups.

Flexible Uplinks: The 4 x Gigabit RJ45/SFP Combo ports provide flexible options for either copper or fiber-optic connections for longer-distance uplinks.

56 Gbps Switching Capacity: Delivers high performance with a maximum forwarding rate of 41.7 Mpps, ensuring smooth traffic flow even under heavy load.

Specialized Surveillance and Voice Support:

Surveillance Mode: Offers an optional, simplified Web UI optimized for surveillance networks, featuring Auto Surveillance VLAN to automatically prioritize and segment surveillance traffic. It also includes functions like remotely rebooting IP cameras.

Auto Voice VLAN: Automatically detects Voice over IP (VoIP) traffic and segments it into a dedicated VLAN, ensuring proper Quality of Service (QoS) for crystal-clear voice communication.

The D-Link DGS-1210-28P is a cost-efficient, 28-port Gigabit Smart Managed Switch featuring 24 x 10/100/1000BASE-T PoE ports and 4 x Gigabit RJ45/SFP Combo ports for flexible fiber uplinks. With a substantial 193W PoE budget, it is ideal for powering IP cameras, VoIP phones, and Wireless Access Points (WAPs). The switch offers advanced L2 switching and security features and includes L2+ Static Routing for enhanced network segmentation. Its unique Surveillance Mode Web UI simplifies management for IP surveillance networks, making it a versatile backbone for small-to-medium business networks.

Feature    Specification
Model Number    DGS-1210-28P
Total Ports    28 (24x PoE + 4x Combo)
PoE Ports    24 x 10/100/1000BASE-T
Uplink Ports    4 x Gigabit RJ45/SFP Combo
PoE Standards    IEEE 802.3af/at (PoE / PoE+)
PoE Budget    193 W
Switching Capacity    56 Gbps
Forwarding Rate    41.7 Mpps
Layer Features    Smart Managed L2/L2+ Static Routing
Special Modes    Standard Mode / Surveillance Mode UI
QoS    802.1p, DSCP, Auto Voice/Surveillance VLAN
Dimensions (W x D x H)    440 x 210 x 44 mm (1U Rackmount)
MTBF    239,236 hours
