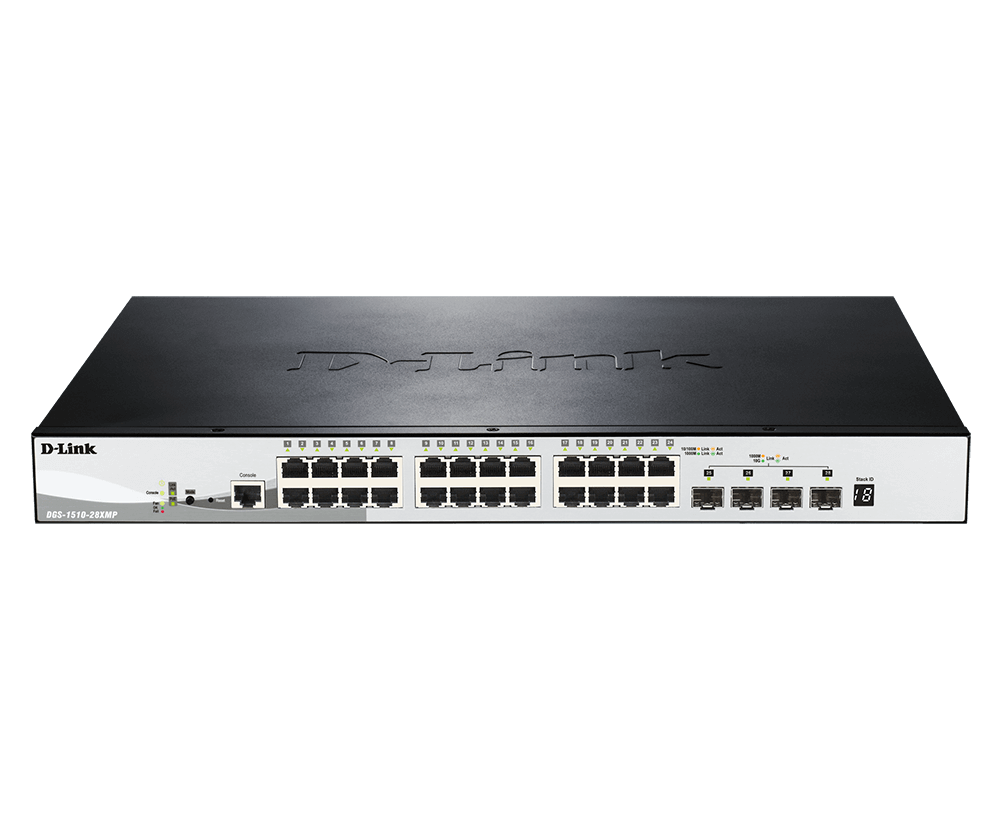

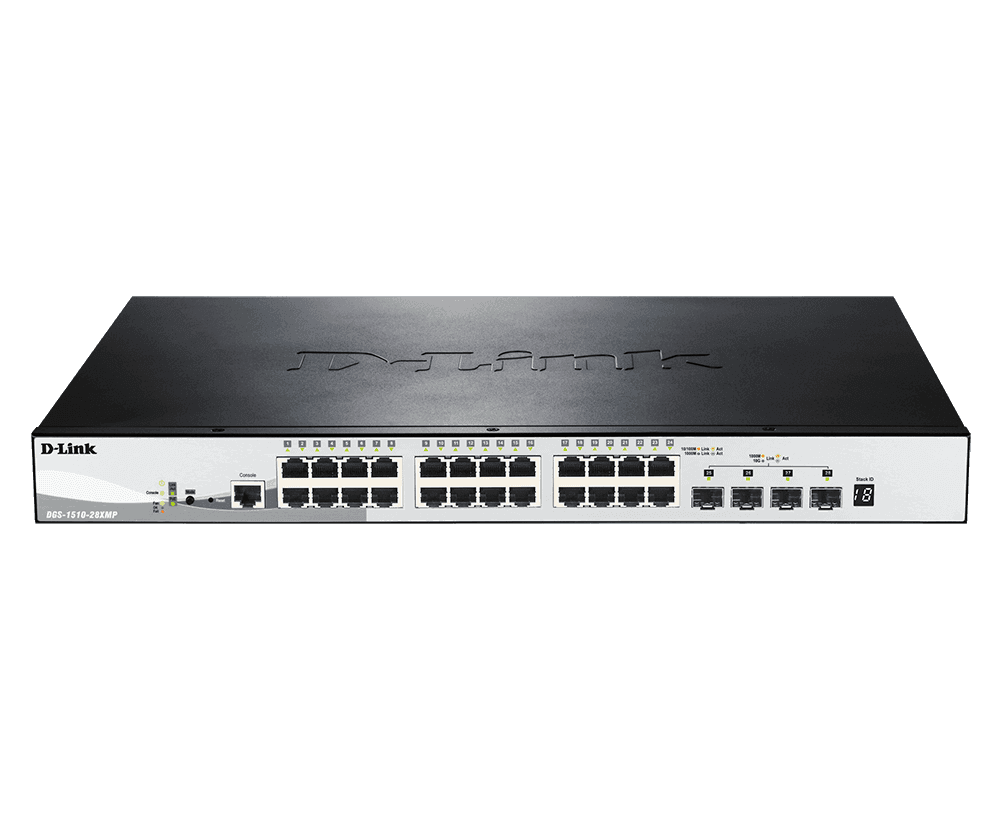

D-Link DGS-1510-28XMP Smart Managed Switch, 24-Port Gigabit PoE, 4x 10G SFP+ Uplinks, 370W PoE Budget, L2/L3 Static Routing, Stackable
Model :
SKU : NS-DLINK DGS-1510-28XMP
The D-Link DGS-1510-28XMP is a high-performance, stackable Smart Managed Switch designed to serve as the perfect core or access layer for SME networks. It features 24 Gigabit PoE ports with a generous 370W power budget, complemented by four 10G SFP+ ports for high-speed stacking or uplinks. Combining the ease of use of a smart switch with advanced Layer 3 functions like static routing, this switch ensures your network remains scalable, secure, and ready for high-bandwidth demands.
Description
Empower your business network with the D-Link DGS-1510-28XMP, part of the acclaimed DGS-1510 Series. This switch is engineered to bridge the gap between traditional Smart Managed switches and fully managed enterprise solutions. With its unique combination of 10G connectivity and high-density Power over Ethernet, it provides the bandwidth necessary for 2026-standard Wi-Fi 6/7 access points, high-definition IP surveillance, and rapid data server communication.
Key Features
- 10G SFP+ Uplinks & Stacking: Future-proof your infrastructure with four dedicated 10G SFP+ ports. These ports can be used for ultra-high-speed uplinks to your core network or to stack up to six units together, creating a high-density, single-management-point architecture with up to 40Gbps of stacking bandwidth.
- High-Capacity 370W PoE Budget: Supporting IEEE 802.3at and 802.3af, this switch delivers up to 30W per port. The 370W total budget allows you to power a full suite of VoIP phones, pan-tilt-zoom (PTZ) cameras, and wireless hardware without the need for additional power injectors.
- Advanced Layer 3 Capabilities: While designed for ease of use, the DGS-1510-28XMP doesn't skimp on technical depth. It supports Static Routing to reduce the load on your main router by segmenting internal traffic, alongside MSTP and Dual Images for superior network redundancy.
- Comprehensive Security & Management: Protect your data with features like Access Control Lists (ACL), D-Link Safeguard Engine, and IP-MAC-Port Binding. Management is flexible, offering a web-based GUI, a full Command Line Interface (CLI) via Telnet/Console, and D-View 7 support.
Performance / Engineering With a massive 128 Gbps switching capacity and a forwarding rate of 95.24 Mpps, this switch ensures that data bottlenecks are a thing of the past. The internal architecture is cooled by two DC fans and is built to withstand varied environments, operating reliably in temperatures ranging from -5°C to 50°C.
Specification
24-Port Gigabit PoE+ Switch with 10G SFP+ Uplinks
| Interfaces | |
| SFP+ Ports | 4 x 10G SFP+ |
| RJ45 PoE Ports | 24 x 10/100/1000BASE-T PoE |
| Performance | |
| Switch Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.24 Mpps |
| Packet Buffer Size | 1.5 MB |
| PoE | |
| PoE Power Budget | 370 W |
| Power | |
| Power Input | AC 100 – 240 V |
| Max Power Consumption (PoE On) | 436.3 W |
| Max Power Consumption (PoE Off) | 38.4 W |
| Maximum Heat Dissipation | 1,487.78 BTU/hr |
| Hardware | |
| CPU Speed | 400 MHz |
| Flash Memory | 32 MB |
| DRAM | 256 MB |
| Cooling Fan | 2 x DC Fans |
| Reliability | |
| MTBF | 274,796 hours |
| Environmental | |
| Operating Temperature | -5°C to 50°C (23°F to 122°F) |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 0% – 95% RH |
| Storage Humidity | 0% – 95% RH |
| Physical | |
| Dimensions (W x D x H) | 440 x 308.5 x 44 mm |
| Weight | 4.25 kg |
