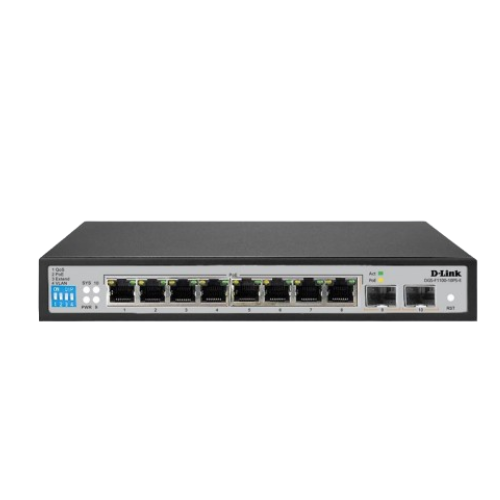

D-Link DGS-F1100-10PS-E PoE Gigabit ManagedSwitch, 6kv Surge Protection, 8x 10/100/100 BASE-T PoE Ports (802.3af/at complaint), 2 Gigabit SFP Ports, Fanless design for silent operation
Model :
SKU : NS-DLINK DGS-F1100-10PS-E
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
D-Link DGS-F1100-10PS-E PoE Gigabit ManagedSwitch, 6kv Surge Protection, 8x 10/100/100 BASE-T PoE Ports (802.3af/at complaint), 2 Gigabit SFP Ports, Fanless design for silent operation
| Model | DGS-F1100-10PS-E |
| Interfaces | 8 x 10/100/1000BASE-T 2 x 100/1000 Mbps SFP ports |
| Port Standards | IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX fast Ethernet IEEE 802.3ab: 1000BASE-T gigabit Ethernet IEEE 802.3z: 1000BASE-X gigabit Ethernet fiber IEEE 802.3ad: comply link aggregation standard IEEE 802.3x: flow control IEEE 802.1p: About the traffic priority of the second layer of QoS / Cos protocol (multicast filtering) IEEE 802.1q: VLAN Bridge operation IEEE 802.1d: STP spanning tree IEEE 802.1s: MSTP spanning tree IEEE 802.1w: RSTP spanning tree |
| PoE | PoE Standards: IEEE 802.3af/at PoE Capable Ports: Port 1-8 can support up to 250m @10Mbps with Extend Enable Power Budget: 96W (30W max. per port) |
| Uplink Port Settings | From Port: Specifies the start port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches. To Port: Specifies the end port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches |
| Network Cables | UTP Cat. 5, Cat. 5e (100 m max.) |
| Duplex Mode | Full/Half-duplex for 10/100 Mbps Full duplex for 1000 Mbps |
| Performance | Switching Capacity: 20 Gbps Transmission Method: Store-and-forward MAC Address Table: 8K entries Maximum 64 Byte Packet Forwarding Rate: 14.88 Mpps |
| LED???s | Power: ??? System: ??? |
| Physical/Environmental | Power Input: DC:12V 1A Operating Temperature: 0??C ~ 50??C Storage Temperature: -40??C to 70??C Operating Humidity: 10% to 95% relative humidity no condensation Storage Humidity: 5% to 90% relative humidity no condensation Dimensions (L x W x H): 225 x 120 x 35 mm |
Specification
table { border-collapse: collapse; width: 100%; margin-top: 20px; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
D-Link DGS-F1100-10PS-E PoE Gigabit ManagedSwitch, 6kv Surge Protection, 8x 10/100/100 BASE-T PoE Ports (802.3af/at complaint), 2 Gigabit SFP Ports, Fanless design for silent operation
| Model | DGS-F1100-10PS-E |
| Interfaces | 8 x 10/100/1000BASE-T 2 x 100/1000 Mbps SFP ports |
| Port Standards | IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX fast Ethernet IEEE 802.3ab: 1000BASE-T gigabit Ethernet IEEE 802.3z: 1000BASE-X gigabit Ethernet fiber IEEE 802.3ad: comply link aggregation standard IEEE 802.3x: flow control IEEE 802.1p: About the traffic priority of the second layer of QoS / Cos protocol (multicast filtering) IEEE 802.1q: VLAN Bridge operation IEEE 802.1d: STP spanning tree IEEE 802.1s: MSTP spanning tree IEEE 802.1w: RSTP spanning tree |
| PoE | PoE Standards: IEEE 802.3af/at PoE Capable Ports: Port 1-8 can support up to 250m @10Mbps with Extend Enable Power Budget: 96W (30W max. per port) |
| Uplink Port Settings | From Port: Specifies the start port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches. To Port: Specifies the end port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches |
| Network Cables | UTP Cat. 5, Cat. 5e (100 m max.) |
| Duplex Mode | Full/Half-duplex for 10/100 Mbps Full duplex for 1000 Mbps |
| Performance | Switching Capacity: 20 Gbps Transmission Method: Store-and-forward MAC Address Table: 8K entries Maximum 64 Byte Packet Forwarding Rate: 14.88 Mpps |
| LED???s | Power: ??? System: ??? |
| Physical/Environmental | Power Input: DC:12V 1A Operating Temperature: 0??C ~ 50??C Storage Temperature: -40??C to 70??C Operating Humidity: 10% to 95% relative humidity no condensation Storage Humidity: 5% to 90% relative humidity no condensation Dimensions (L x W x H): 225 x 120 x 35 mm |
