Home/Networking/Commercial Networking/Switches/D-Link DGS-F3004P-2S, Layer 2 Gigabit Outdoor Smar...

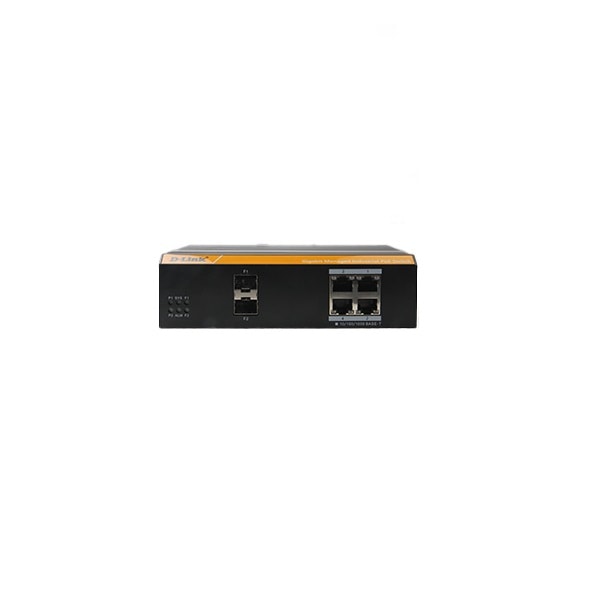

D-Link DGS-F3004P-2S, Layer 2 Gigabit Outdoor Smart Managed Switches, equipped with 4 PORT 100/1000BASE-T PoE ports & 2SFP Industrial Switch
Model :
SKU : NS-DLINK DGS-F3004P-2S
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Technical Specifications
| Model Number | DGS-F3000 Series Layer 2 Gigabit Outdoor Managed Switches |
| General | |
| Interfaces | 4x 10/100/1000Base-T PoE/PoE+ Ports & 2 x 1000Base-X SFP Ports |
| Other Interfaces | 1x RS-232 Console Port (RJ-45) |
| Media Interface | Auto MDI/MDIX adjustment for all twisted-pair ports |
| Exchange | 12Gbps |
| Other Port Standards & Functions | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3az compliance, Auto-negotiation, IEEE 8023x Flow Control, IEEE 802.3z |
| Duplex Mode | Full/Half-duplex for 10/100 Mbps, Full-duplex for 1000 Mbps |
| Performance | |
| Switching Capacity | 20Gbps |
| MAC Address table | 16K |
| Transmission Method | Store-and-forward |
| Packet Buffer Size | 1.5MB |
| Physical/Environmental | |
| Diagnostic LED | PWR1, PWR2, Alarm, SYS, LINK/ACT, POE Status |
| Weight | 870g (DGS-F3004P-2S), 1kg (DGS-F3008P-25) |
| Dimension (LxWxH) | Not specified (DGS-F3004P-2S), 163 x 46.5 x 110 mm (DGS-F3008P-25) |
| Operating Temperature | 40??C-75??C (-40??F-167??F) |
| Storage Temperature | -40??C-85??C (-40??F-185??F) |
| Ambient Relative Humidity | 5%-95%, 55??C (Non-condensing) |
| Housing | IP40-rated metal casing |
| Installation | DIN rail / wall mountable |
| Power Requirements | |
| Power Input | 5.0A @ 51VDC (DGS-F3004P-2S), 48-56V DC Redundant inputs with power supply included (DGS-F3008P-25) |
| Input Current | Not specified |
| Reverse Polarity Protection | Yes |
Specification
Technical Specifications
| Model Number | DGS-F3000 Series Layer 2 Gigabit Outdoor Managed Switches |
| General | |
| Interfaces | 4x 10/100/1000Base-T PoE/PoE+ Ports & 2 x 1000Base-X SFP Ports |
| Other Interfaces | 1x RS-232 Console Port (RJ-45) |
| Media Interface | Auto MDI/MDIX adjustment for all twisted-pair ports |
| Exchange | 12Gbps |
| Other Port Standards & Functions | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3az compliance, Auto-negotiation, IEEE 8023x Flow Control, IEEE 802.3z |
| Duplex Mode | Full/Half-duplex for 10/100 Mbps, Full-duplex for 1000 Mbps |
| Performance | |
| Switching Capacity | 20Gbps |
| MAC Address table | 16K |
| Transmission Method | Store-and-forward |
| Packet Buffer Size | 1.5MB |
| Physical/Environmental | |
| Diagnostic LED | PWR1, PWR2, Alarm, SYS, LINK/ACT, POE Status |
| Weight | 870g (DGS-F3004P-2S), 1kg (DGS-F3008P-25) |
| Dimension (LxWxH) | Not specified (DGS-F3004P-2S), 163 x 46.5 x 110 mm (DGS-F3008P-25) |
| Operating Temperature | 40??C-75??C (-40??F-167??F) |
| Storage Temperature | -40??C-85??C (-40??F-185??F) |
| Ambient Relative Humidity | 5%-95%, 55??C (Non-condensing) |
| Housing | IP40-rated metal casing |
| Installation | DIN rail / wall mountable |
| Power Requirements | |
| Power Input | 5.0A @ 51VDC (DGS-F3004P-2S), 48-56V DC Redundant inputs with power supply included (DGS-F3008P-25) |
| Input Current | Not specified |
| Reverse Polarity Protection | Yes |
