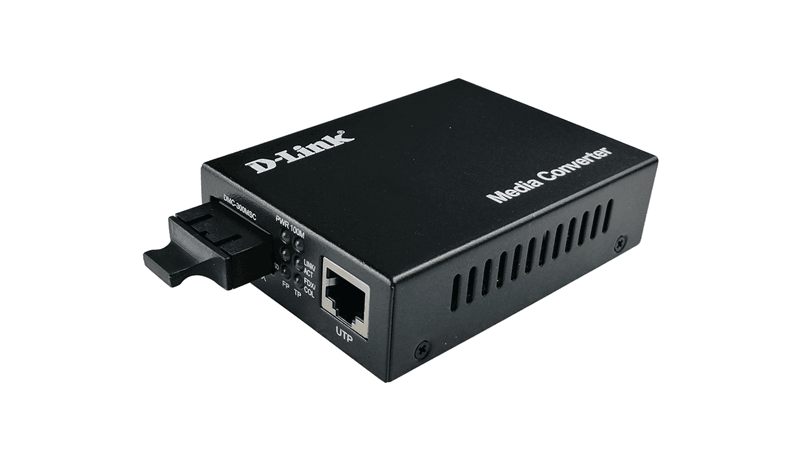

D-Link DMC-540SSC 100Base-TX to 100Base-FX Single-mode Fiber (SC) Media Converter
Model :
SKU : MC-DLINK DMC-540SSC
About this item
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
D-Link DMC-540SSC 100Base-TX to 100Base-FX Single-mode Fiber (SC) Media Converter
| Number of Ports | 1x 10/100BASE-TX RJ-45 port |
| Standards | 1 x 100BASE-FX SC port IEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FX |
| Data Transfer Rate | Ethernet: 10Mbps/20 Mbps (half-duplex/full-duplex) Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex) |
| Duplex Mode | Half-duplex/full-duplex |
| Media Types | ??? 10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) ??? 10/100BASE-TX: 2-pair Cat.5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) ??? 100BASE-FX: Multi-mode fiber optic cable with SC connector (up to 40 km) |
Media Exchange Interface
| Functionality | Transmission Mode: Auto-MDI/MDIX Store-and-forward Forwarding Rate: Full wire-speed forwarding rate |
Physical
| Diagnostic LEDs | Power Speed (for twisted pair ports) Full-duplex/Collision (for twisted pair and fiber ports) LINK/ACT (for twisted pair ports) |
| AC Input | 5V/1A external power adapter |
| Temperature | Operating: 0 ??C to 50??C Storage: -20??C to 70??C |
| Humidity | 5% to 90% RH, non-condensing |
| Dimensions | 95x70x26 mm |
Fiber
| Wavelength | 1310 nm |
| Supported Fiber Cable Length | Up to 40 km |
Emission Certifications (EMI)
| FCC |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
D-Link DMC-540SSC 100Base-TX to 100Base-FX Single-mode Fiber (SC) Media Converter
| Number of Ports | 1x 10/100BASE-TX RJ-45 port |
| Standards | 1 x 100BASE-FX SC port IEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FX |
| Data Transfer Rate | Ethernet: 10Mbps/20 Mbps (half-duplex/full-duplex) Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex) |
| Duplex Mode | Half-duplex/full-duplex |
| Media Types | ??? 10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) ??? 10/100BASE-TX: 2-pair Cat.5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) ??? 100BASE-FX: Multi-mode fiber optic cable with SC connector (up to 40 km) |
Media Exchange Interface
| Functionality | Transmission Mode: Auto-MDI/MDIX Store-and-forward Forwarding Rate: Full wire-speed forwarding rate |
Physical
| Diagnostic LEDs | Power Speed (for twisted pair ports) Full-duplex/Collision (for twisted pair and fiber ports) LINK/ACT (for twisted pair ports) |
| AC Input | 5V/1A external power adapter |
| Temperature | Operating: 0 ??C to 50??C Storage: -20??C to 70??C |
| Humidity | 5% to 90% RH, non-condensing |
| Dimensions | 95x70x26 mm |
Fiber
| Wavelength | 1310 nm |
| Supported Fiber Cable Length | Up to 40 km |
Emission Certifications (EMI)
| FCC |
