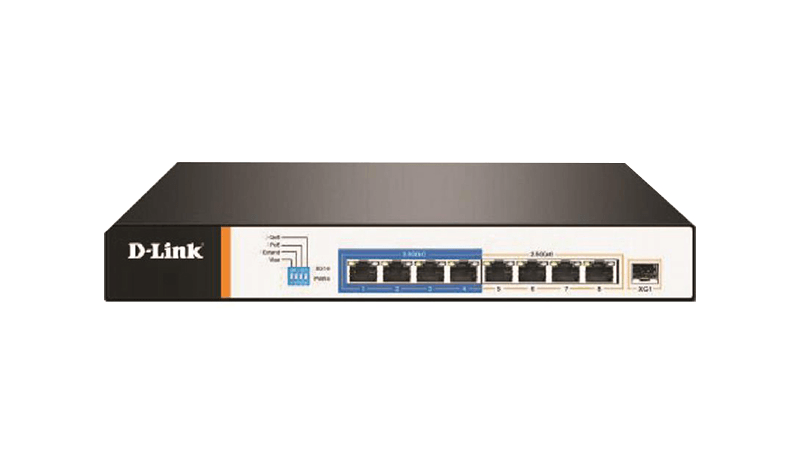

D-Link DMS-F109TP 8 Port Multi-Gigabit PoE Switch, 8-Port 2.5G PoE++ (150W), 1-Port 10G SFP+ Uplink, 90W Ultra PoE Support, 250m Extended Range | DMS-F109TP

Model :

SKU : NS-DLINK DMS-F109TP 10G

About this item

The D-Link DMS-F109TP is a high-performance Multi-Gigabit PoE switch designed to power the next generation of network infrastructure. Featuring eight 2.5Gbps PoE ports and a blistering 10G SFP+ uplink, this switch is the ideal solution for WiFi 7 access points, 4K IP cameras, and high-speed IoT deployments. With a total power budget of 150W and support for up to 90W PoE++ on select ports, it delivers both extreme data throughput and heavy-duty power delivery in a single, robust unit.

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

As network demands evolve toward WiFi 7 and high-resolution surveillance, the D-Link DMS-F109TP emerges as a critical backbone component. This switch bridges the gap between standard Gigabit networking and high-speed fiber backbones. By providing eight 2.5Gbps downlink ports, it ensures that your high-bandwidth devices—like high-definition PTZ cameras or advanced wireless APs—are never throttled by 1Gbps bottlenecks.

Key Features

  • Massive PoE Power Delivery: With a 150W total PoE budget, this switch is built for power-hungry devices. Ports 1–4 support the IEEE 802.3bt (PoE++) standard, delivering up to 90W per port, while ports 5–8 provide up to 30W (802.3at), offering maximum flexibility for diverse hardware.
  • 10G SFP+ Fiber Uplink: Eliminate congestion at the core. The dedicated 10Gbps SFP+ slot provides a high-speed "superhighway" to connect to your primary server, NAS, or core switch, ensuring seamless data flow across your entire organization.
  • 2.5G Multi-Gigabit Ports: All eight downlink ports support 2.5G/1Gbps auto-negotiation, providing the necessary speed for modern devices that exceed traditional Gigabit limits.
  • Long-Distance Mode: Breakthrough the standard 100-meter Ethernet limit. The DMS-F109TP supports 250-meter long-distance PoE transmission, making it perfect for sprawling warehouses, parking lots, or large-scale office deployments.

Performance / Technology The DMS-F109TP is engineered for reliability in demanding environments. It features a built-in industrial-grade power supply, eliminating the need for bulky external adapters. To ensure uptime during adverse weather or electrical fluctuations, it includes embedded 6kV surge protection, shielding your expensive connected hardware from electrical spikes.

Design & Reliability The switch's compact design and integrated power system allow for clean installations in racks or on desktops. Its silent operation and "plug-and-play" architecture make it accessible for small businesses while maintaining the specifications required by enterprise-level installers. The inclusion of the 10G uplink ensures that as your network grows, your switch won't become the weakest link

Specification

FeatureSpecification
ModelDMS-F109TP
PoE Ports8 x 2.5G/1Gbps RJ45
Uplink Port1 x 10Gbps SFP+
Total PoE Budget150 Watts
PoE++ Support (Ports 1-4)IEEE 802.3bt (Up to 90W per port)
PoE+ Support (Ports 5-8)IEEE 802.3at (Up to 30W per port)
Long Distance PoEUp to 250 Meters
Surge Protection6kV Embedded
Power SupplyBuilt-in (Internal)
Switching ArchitectureMulti-Gigabit Non-blocking
