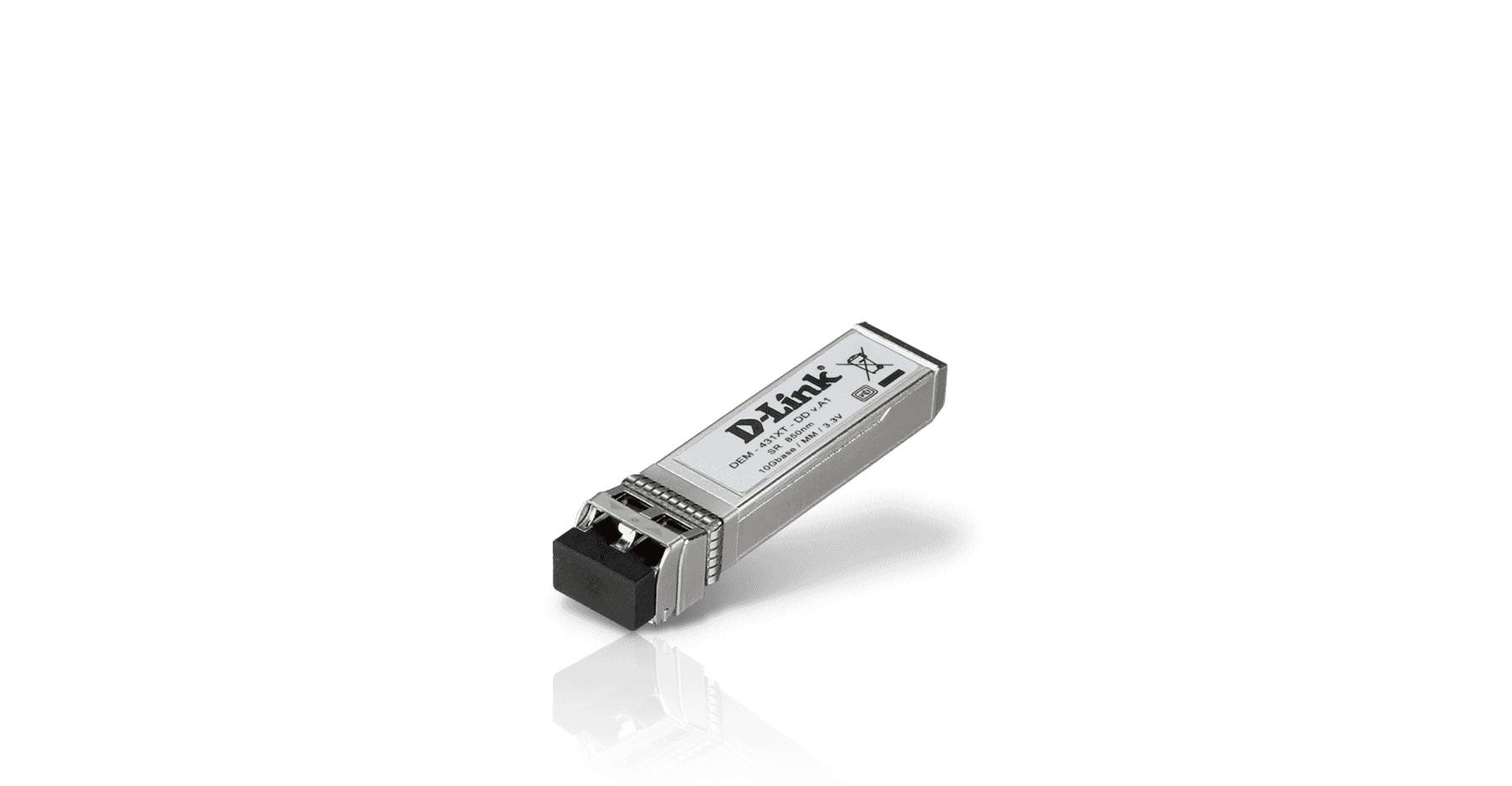

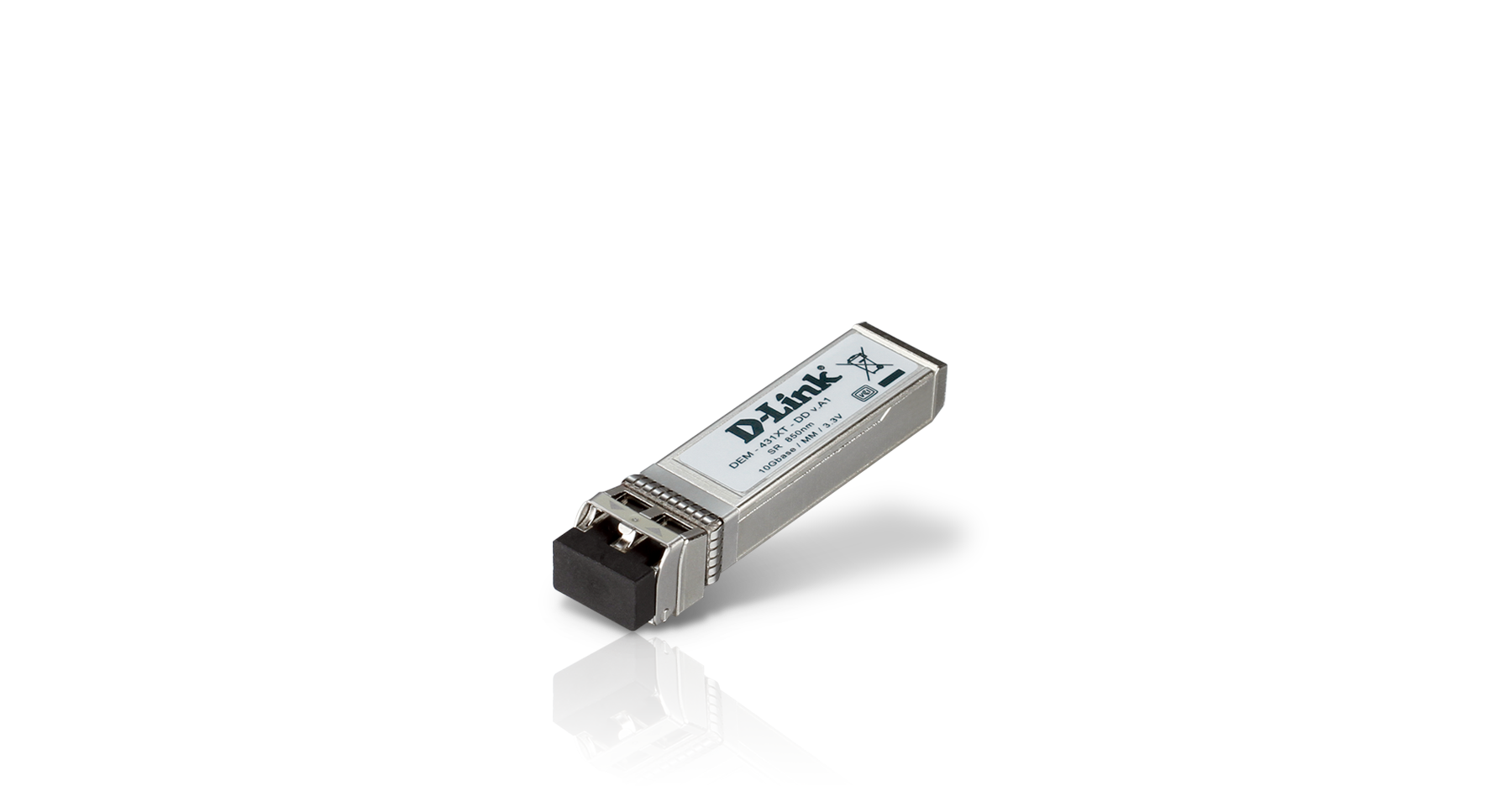

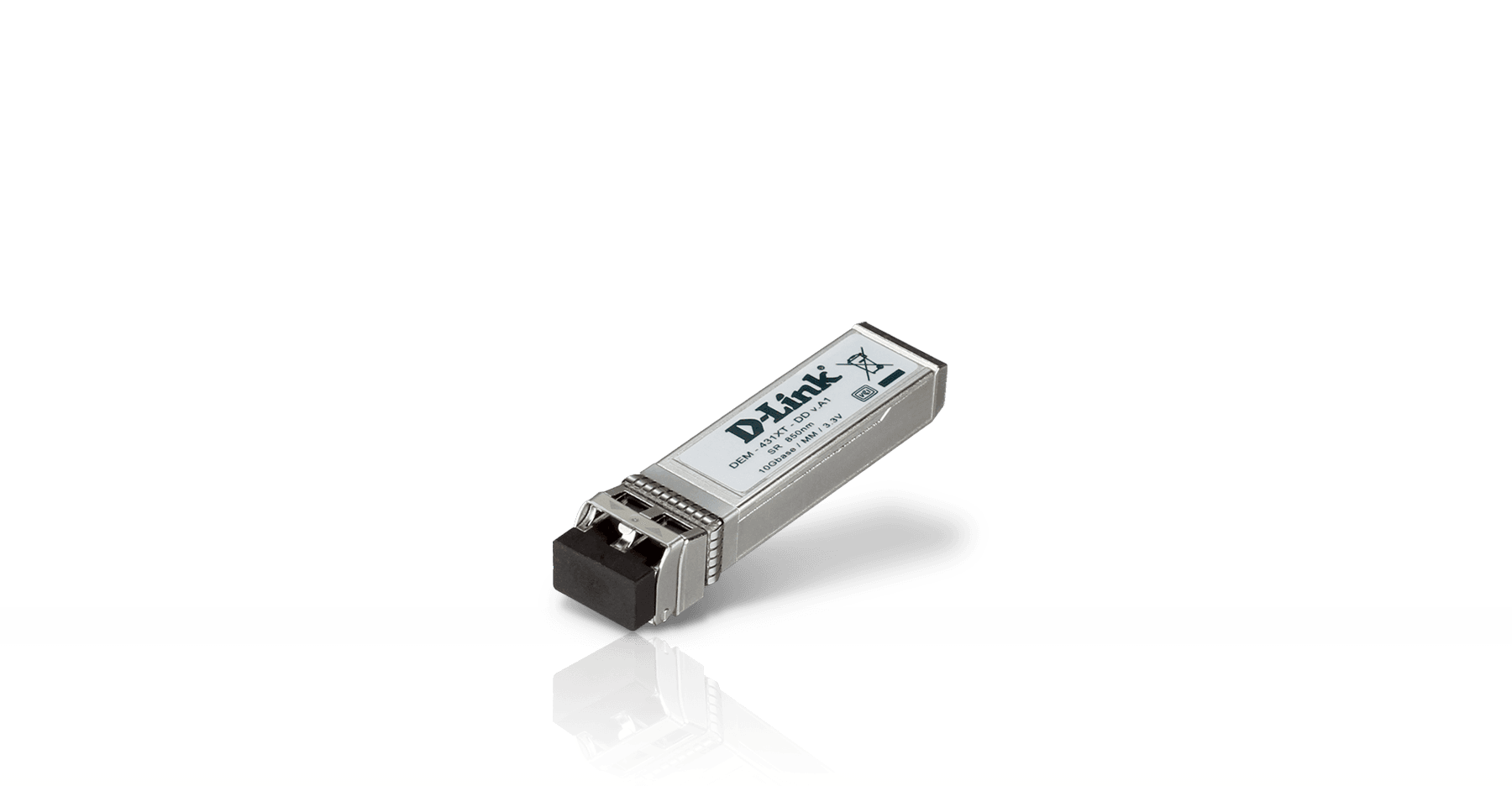

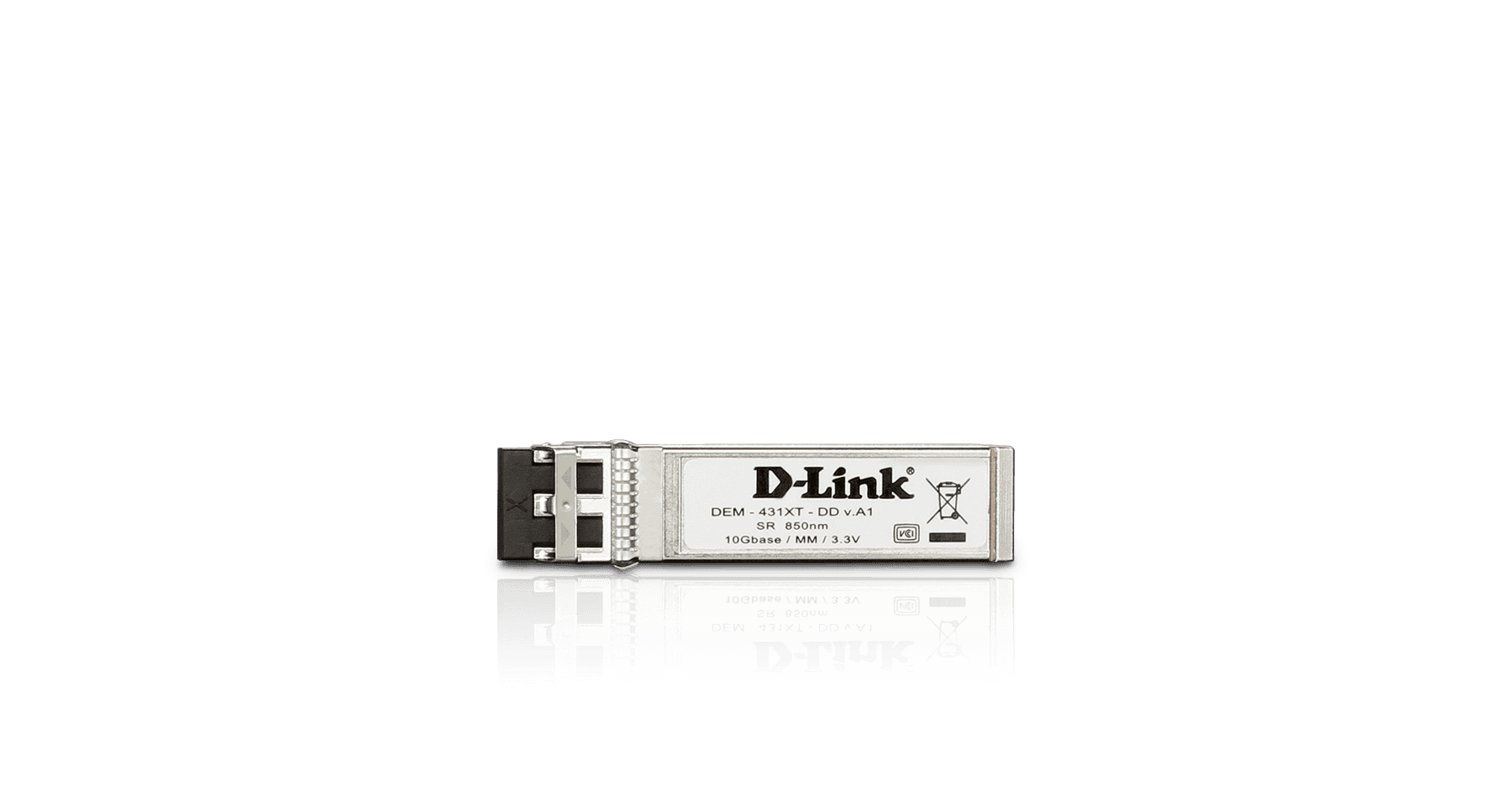

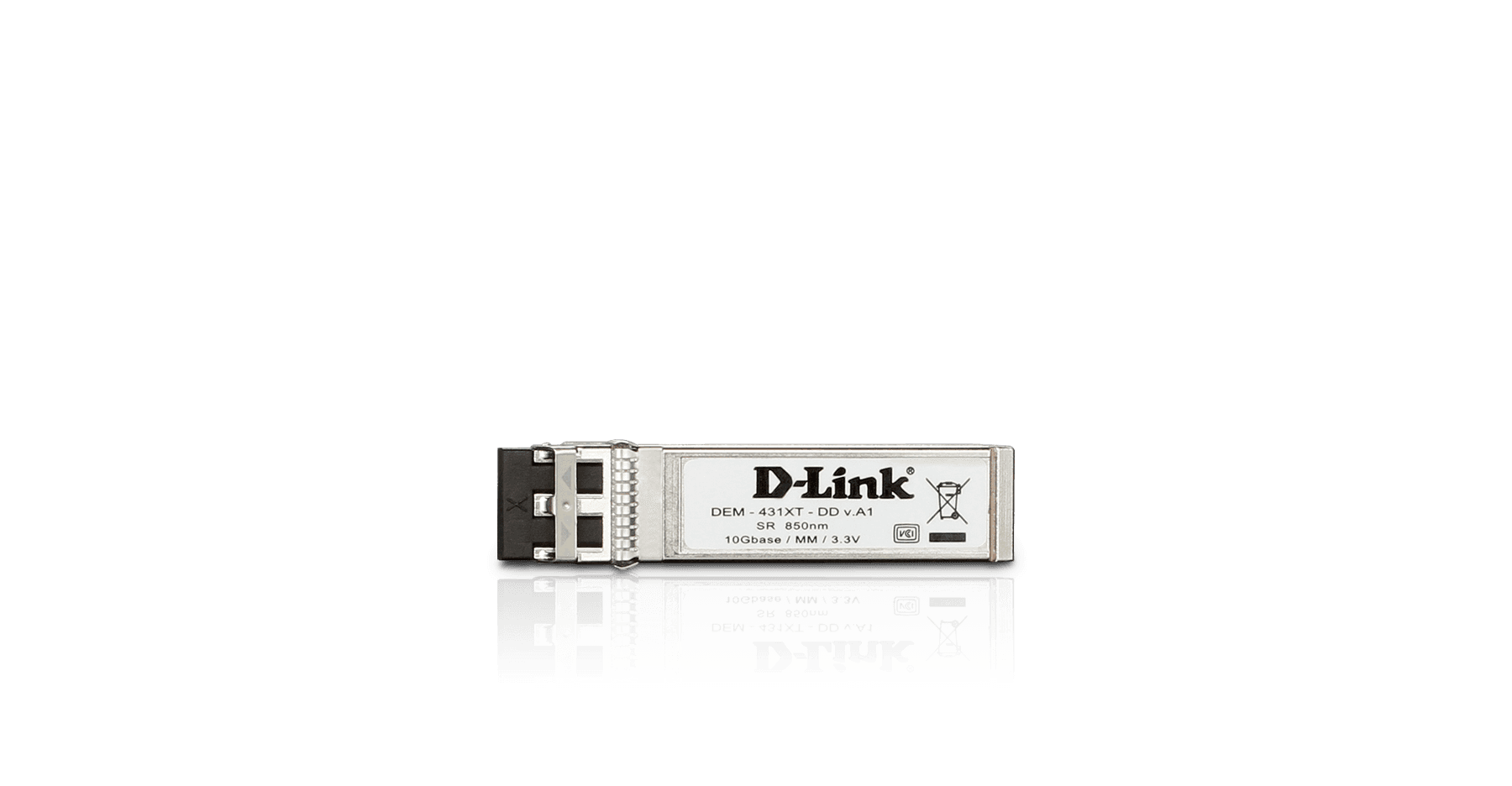

D-Link10GBase-SR SFP+ Transceiver, DDM, 80/300m | DEM-431XT-DD

Model :

SKU : DLINK DEM-431XT-DD

About this item

Description

DEM-431XT-DD 10GBase-SR SFP+ Transceiver, DDM

Standard Compliance IEEE-802.3ae, 10GBASE-SR
Form Factor Type SFP+
Fibre Channel FC-PI Standard 1200-Mx-SN-I
Fiber Media Support Multi-Mode
Distance Capacity 62.5 ??m, 160MHz-km: 220 m
62.5 ??m, OM1, 200MHz-km: 33 m
50 ??m, 400MHz-km: 66 m
50 ??m, OM2, 500MHz-km: 82 m
50 ??m, OM3, 2000MHz-km: 300 m
Features
  • Hot Pluggable: Yes
  • MSA Compliant: Yes
  • RoHS Compliant: Yes
  • MAC Address Update: Yes
  • DDM (Digital Diagnostics Monitoring): Yes
  • Speed: 10 Gbps
Interface
  • Connector: Duplex LC Connector
  • Single/Bi-Directional: Single Direction
  • Wavelength: 1310nm
  • Output Optical Power (TX Optical Power): Max.: -1 dBm, Min.: -5 dBm
  • Input Optical Power (RX Optical Power): Max.: 0.5 dBm, Min.: -11.1 dBm
  • Sensitivity: -6.5 dBm
  • Cable Type: Multi-mode 50/125 ??m or 62.5/125 um fiber
Operating
  • Power: 3.3 V
  • Maximum Input Current: 250 mA
  • Minimum Power Budget: 6.1 dB
  • Maximum Power Budget: 10.1 dB
  • Heat Generated: 2.9 kJ/h

Specification

DEM-431XT-DD 10GBase-SR SFP+ Transceiver, DDM

Standard Compliance IEEE-802.3ae, 10GBASE-SR
Form Factor Type SFP+
Fibre Channel FC-PI Standard 1200-Mx-SN-I
Fiber Media Support Multi-Mode
Distance Capacity 62.5 ??m, 160MHz-km: 220 m
62.5 ??m, OM1, 200MHz-km: 33 m
50 ??m, 400MHz-km: 66 m
50 ??m, OM2, 500MHz-km: 82 m
50 ??m, OM3, 2000MHz-km: 300 m
Features
  • Hot Pluggable: Yes
  • MSA Compliant: Yes
  • RoHS Compliant: Yes
  • MAC Address Update: Yes
  • DDM (Digital Diagnostics Monitoring): Yes
  • Speed: 10 Gbps
Interface
  • Connector: Duplex LC Connector
  • Single/Bi-Directional: Single Direction
  • Wavelength: 1310nm
  • Output Optical Power (TX Optical Power): Max.: -1 dBm, Min.: -5 dBm
  • Input Optical Power (RX Optical Power): Max.: 0.5 dBm, Min.: -11.1 dBm
  • Sensitivity: -6.5 dBm
  • Cable Type: Multi-mode 50/125 ??m or 62.5/125 um fiber
Operating
  • Power: 3.3 V
  • Maximum Input Current: 250 mA
  • Minimum Power Budget: 6.1 dB
  • Maximum Power Budget: 10.1 dB
  • Heat Generated: 2.9 kJ/h
