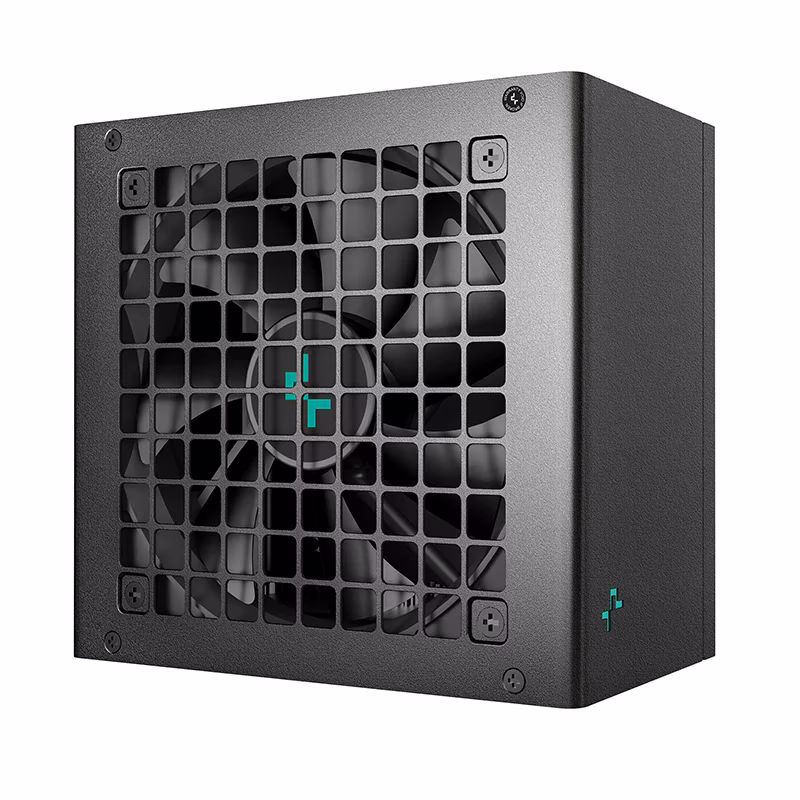

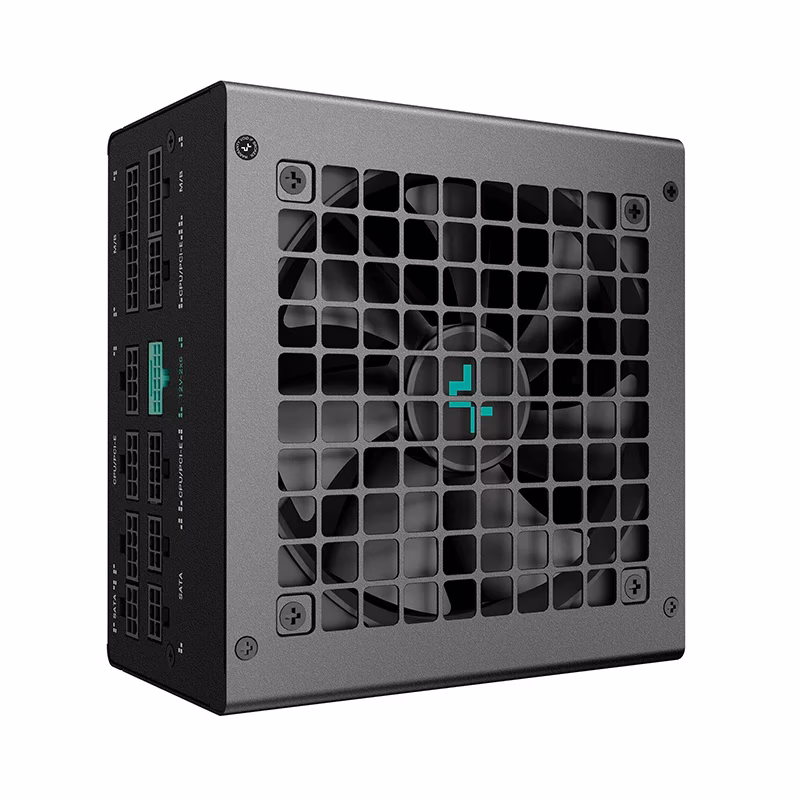

DeepCool PN750M Fully Modular Power Supply, 750W Power, 80 Plus Gold Certified, Active PFC + Full Bridge SRC LLC + DC to DC, Japanese Bulk Capacitor, FDB Fans, 120mm Fan Size, Black | R-PN750M-FC0B-UK
Model :
SKU : PS-DEEPCOOL PN750M
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
DeepCool PN750M Fully Modular Power Supply, 750W Power, 80 Plus Gold Certified, Active PFC + Full Bridge SRC LLC + DC to DC, Japanese Bulk Capacitor, FDB Fans, 120mm Fan Size, Black | R-PN750M-FC0B-UK
| Type | ATX12V V3.1 |
| Product Dimensions | 150??140??86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ???16ms(80% Load) |
| Efficiency | ???90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40??? |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/?????? RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
EAN / P/N
| 6933412719373 | R-PN750M-FC0B-CN |
| 6933412719380 | R-PN750M-FC0B-AU |
| 6933412719397 | R-PN750M-FC0B-EU |
| 6933412719403 | R-PN750M-FC0B-JP |
| 6933412719410 | R-PN750M-FC0B-UK |
| 6933412719427 | R-PN750M-FC0B-US |
| 6933412719434 | R-PN750M-FC0B-IN |
| 6933412719441 | R-PN750M-FC0B-WO |
| 6933412719458 | R-PN750M-FC0B-BP |
