DLINK DGS-F1010P-E 10 PORT GIGABIT LONG RANGE POE+SURVEILLANCE SWITCH

The D-Link DGS-F1010P-E is a specialized Gigabit PoE+ switch engineered to meet the high-bandwidth requirements of modern 4K IP surveillance systems. By providing eight dedicated Power over Ethernet ports, it eliminates the need for localized power sources at each camera position, significantly reducing installation costs. This switch combines the speed of Gigabit Ethernet with intelligent surveillance features, making it the definitive choice for businesses and residences requiring a high-capacity security backbone.

Key Features
A standout feature of the DGS-F1010P-E is its four specialized hardware DIP switch modes: Extend, VLAN, QoS, and Intelligent PoE. In "Extend" mode, the switch can deliver power and data at distances of up to 250 meters, overcoming the standard 100-meter Ethernet limitation. The "VLAN" mode provides port isolation to prevent broadcast storms, while "QoS" prioritizes video traffic to ensure smooth, high-definition recording without frame loss during peak network usage.

Performance / Technology
Equipped with a total PoE power budget of 96W, this switch supports the IEEE 802.3at standard, delivering up to 30W per port for high-draw devices like PTZ cameras. To protect your investment against environmental factors, D-Link has integrated 6kV lightning protection to safeguard the switch and all connected hardware from sudden electrical surges. The two dedicated Gigabit uplink ports provide a high-speed connection to your NVR and router simultaneously, ensuring zero bottlenecks in your data stream.

Design & Ergonomics

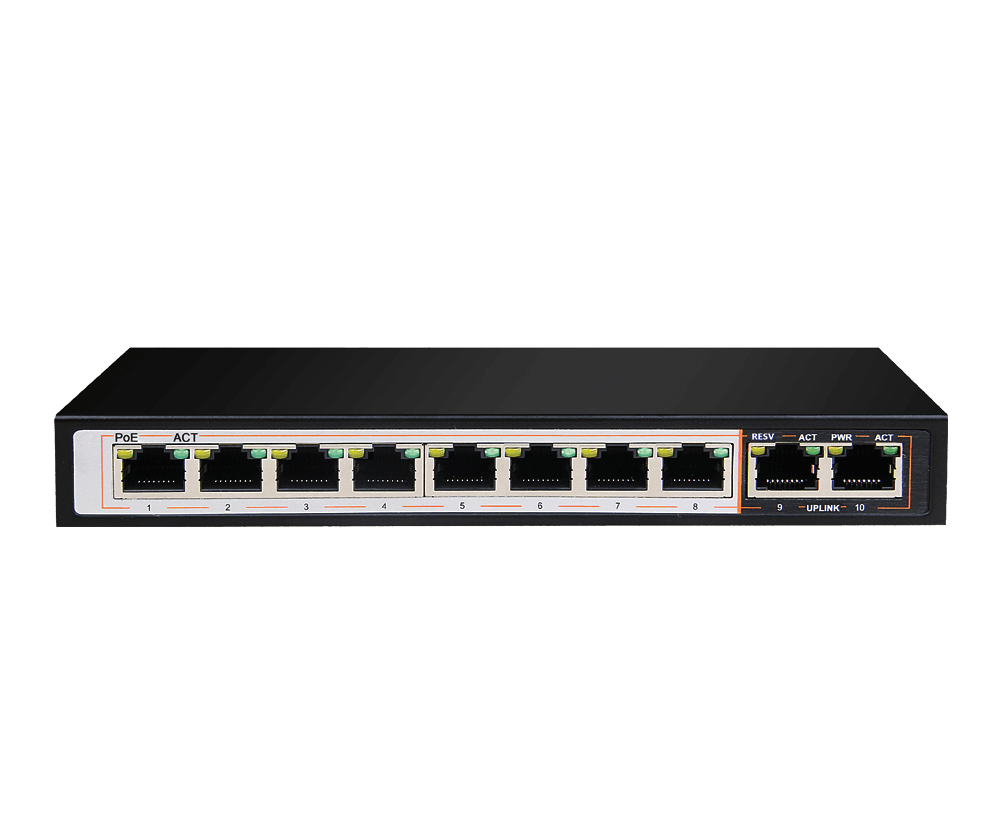

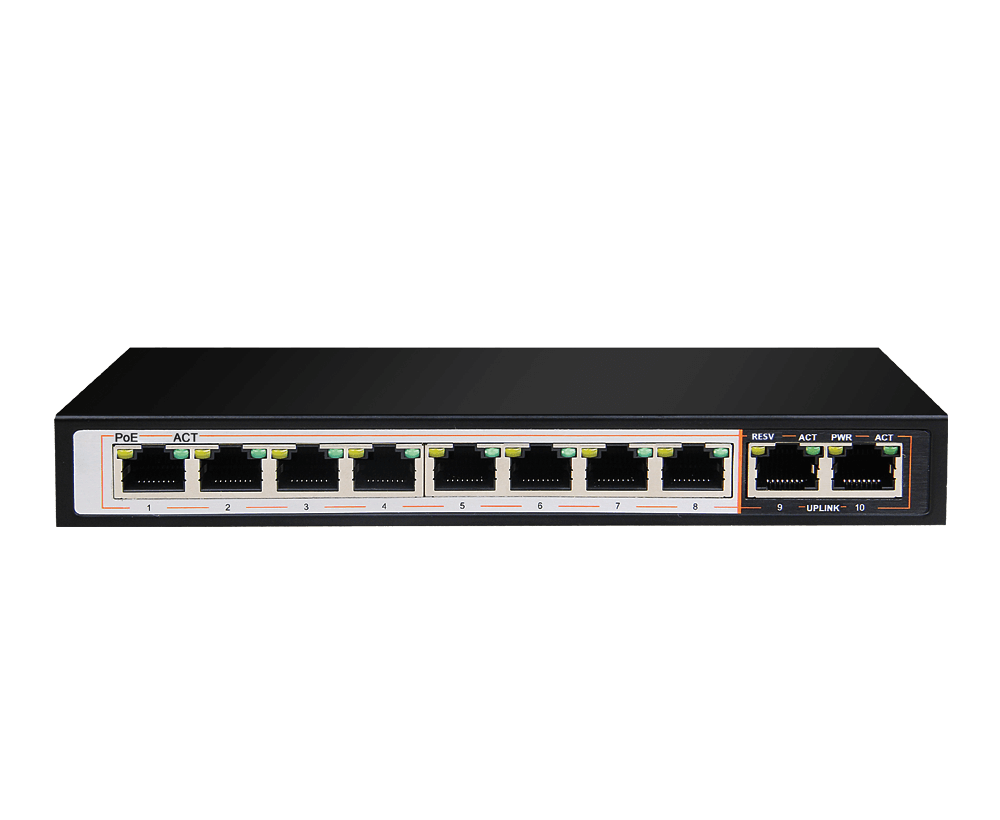

The DGS-F1010P-E features a rugged, industrial-grade metal housing designed for superior heat dissipation and long-term durability. Its fanless design ensures completely silent operation, allowing for placement in office environments or retail spaces where noise is a concern. The front panel includes high-visibility LED indicators for power, link/activity, and PoE status, while the plug-and-play architecture allows for immediate deployment without complex software configuration.

Compatibility / Use Cases
This 10-port Gigabit switch is the ideal solution for medium-to-large-scale CCTV installations in warehouses, parking lots, and multi-story office buildings. It is fully compatible with all standard IEEE 802.3af/at compliant devices, including VoIP phones and wireless access points. The Gigabit speeds on all ports make it particularly well-suited for high-resolution 4MP, 8MP, and 4K cameras that require substantial bandwidth for clear, detailed surveillance footage.

Why This Product Stands Out
The D-Link DGS-F1010P-E stands out by offering full Gigabit throughput alongside specialized 250-meter long-range transmission technology. While many surveillance switches limit you to 10/100 Mbps, this model ensures your network is future-proofed for next-generation high-bitrate cameras. Its combination of hardware-level optimization (DIP switches), high-capacity power delivery, and robust surge protection makes it one of the most reliable and efficient PoE switches in the professional surveillance market.
