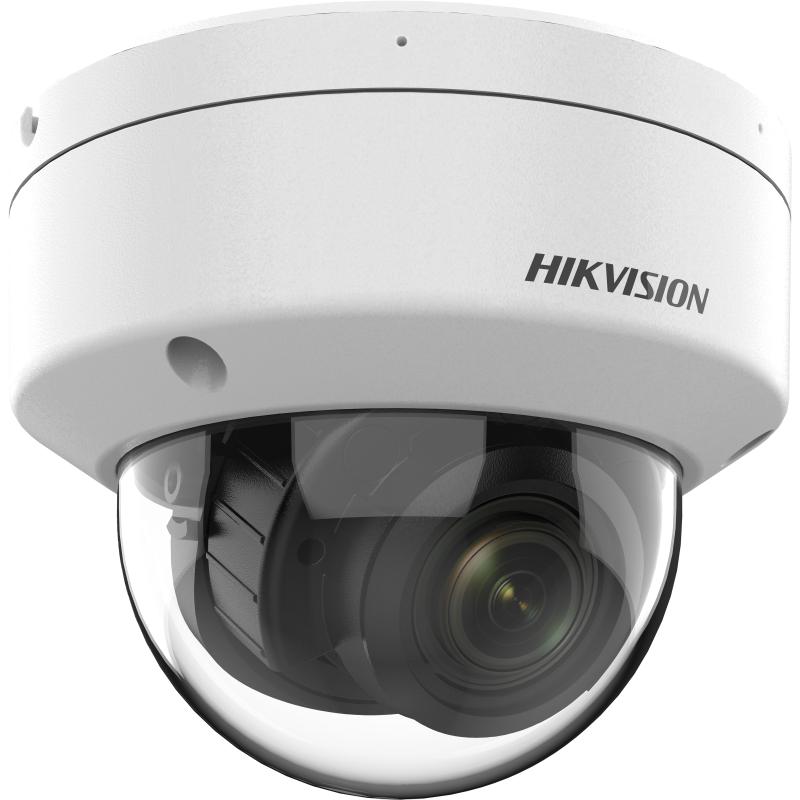

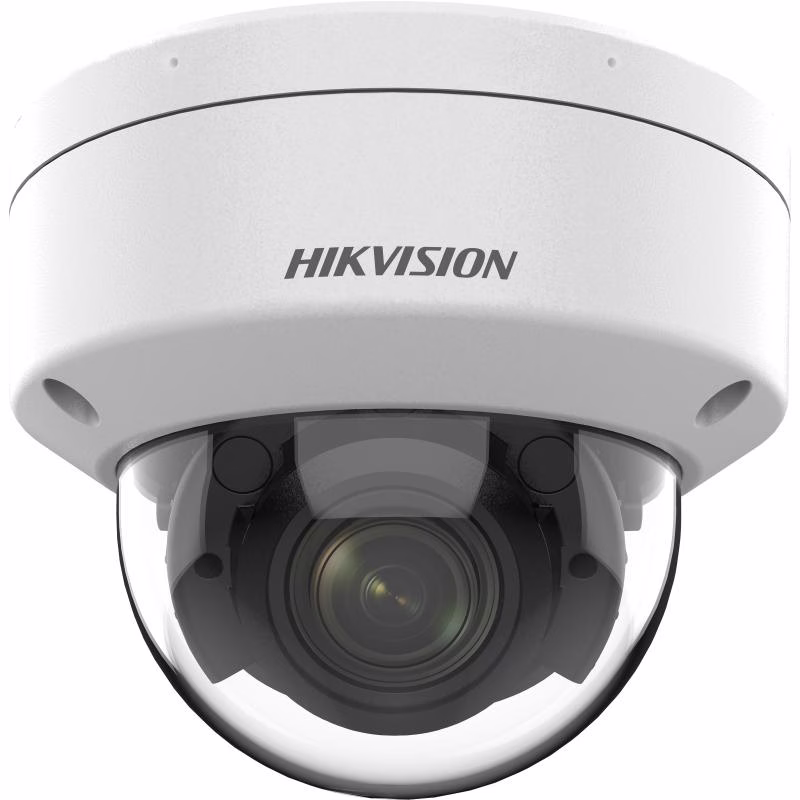

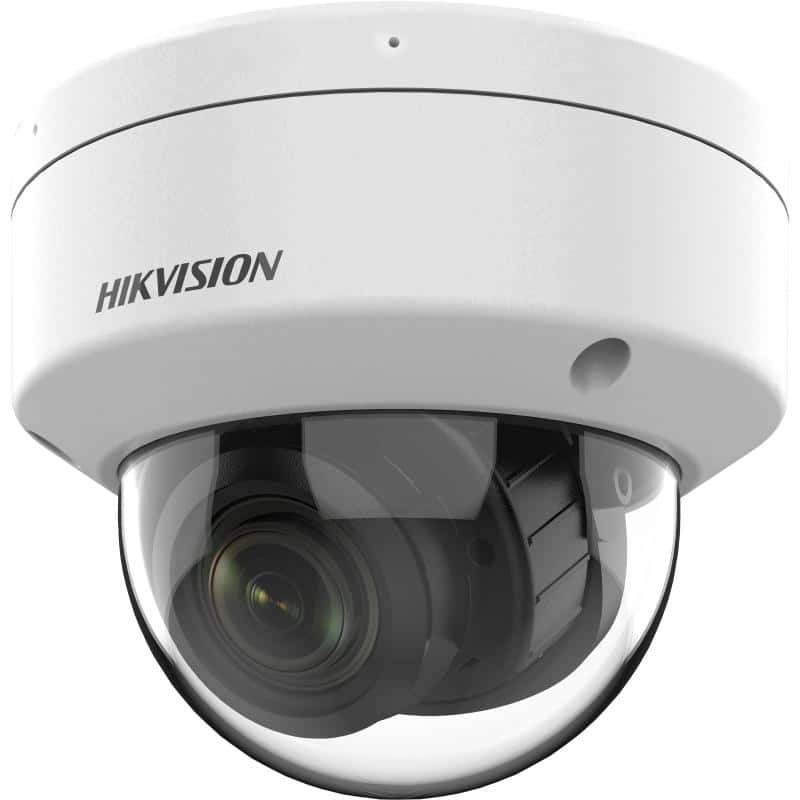

Hikvision DS-2CD3743G2-IZS(UHK) 4 MP AcuSense Motorized Varifocal Dome Network Camera, Up to 40 m, Motion Detection
Model :
SKU : DS-2CD3743G2-IZSUHK
About this item
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-2CD3743G2-IZS(UHK) 4 MP AcuSense Motorized Varifocal Dome Network Camera, Up to 40 m, Motion Detection Specifications
| Image Sensor | 1/3??? Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 75??, Rotate: 0?? to 355?? |
| Lens Type | Varifocal lens, motorized lens, 2.7 to 13.5 mm |
| Iris Type | Auto-iris |
| Lens Type & FOV | 2.7 to 13.5 mm, horizontal FOV 102?? to 31??, vertical FOV 55?? to 18??, diagonal FOV 122?? to 36?? |
| Aperture | F1.6 |
| Lens Mount | ??14 |
| DORI | 2.7 to 13.5 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m |
| Smart Supplement Light | Yes |
| IR Range | Up to 40 m |
| Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720), 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub Stream | 50 Hz: 25 fps (640 ?? 480, 640 ?? 360), 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) |
| Third Stream | 50 Hz: 12 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360), 60 Hz: 12 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Simultaneous Live View | Up to 6 channels |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP v2c/v3 |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB), NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR, Target cropping |
| Audio Input/Output | 1 input (line in), two-core terminal block, 1 output (line out), two-core terminal block |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| On-board Storage | Built-in micro SD card slot, up to 256 GB |
| Power | 12 VDC ?? 25%, 0.88 A, max. 10.5 W, ??5.5 mm coaxial power plug, reverse polarity protection; PoE: (802.3af, Class 3, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W |
| Camera Dimensions | ??153.3 mm ?? 111.6 mm (??6??? ?? 4.4???) |
| Weight | Approx. 890 g (2 lb.) |
| Approval | EMC: FCC, CE-EMC, RCM, IC, KC; Safety: UL, CB, CE-LVD, BIS, LOA; Environment: CE-RoHS, WEEE, Reach |
| Protection | IP67, IK10 |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-2CD3743G2-IZS(UHK) 4 MP AcuSense Motorized Varifocal Dome Network Camera, Up to 40 m, Motion Detection Specifications
| Image Sensor | 1/3??? Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 75??, Rotate: 0?? to 355?? |
| Lens Type | Varifocal lens, motorized lens, 2.7 to 13.5 mm |
| Iris Type | Auto-iris |
| Lens Type & FOV | 2.7 to 13.5 mm, horizontal FOV 102?? to 31??, vertical FOV 55?? to 18??, diagonal FOV 122?? to 36?? |
| Aperture | F1.6 |
| Lens Mount | ??14 |
| DORI | 2.7 to 13.5 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m |
| Smart Supplement Light | Yes |
| IR Range | Up to 40 m |
| Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720), 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub Stream | 50 Hz: 25 fps (640 ?? 480, 640 ?? 360), 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) |
| Third Stream | 50 Hz: 12 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360), 60 Hz: 12 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Simultaneous Live View | Up to 6 channels |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP v2c/v3 |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB), NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR, Target cropping |
| Audio Input/Output | 1 input (line in), two-core terminal block, 1 output (line out), two-core terminal block |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| On-board Storage | Built-in micro SD card slot, up to 256 GB |
| Power | 12 VDC ?? 25%, 0.88 A, max. 10.5 W, ??5.5 mm coaxial power plug, reverse polarity protection; PoE: (802.3af, Class 3, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W |
| Camera Dimensions | ??153.3 mm ?? 111.6 mm (??6??? ?? 4.4???) |
| Weight | Approx. 890 g (2 lb.) |
| Approval | EMC: FCC, CE-EMC, RCM, IC, KC; Safety: UL, CB, CE-LVD, BIS, LOA; Environment: CE-RoHS, WEEE, Reach |
| Protection | IP67, IK10 |
